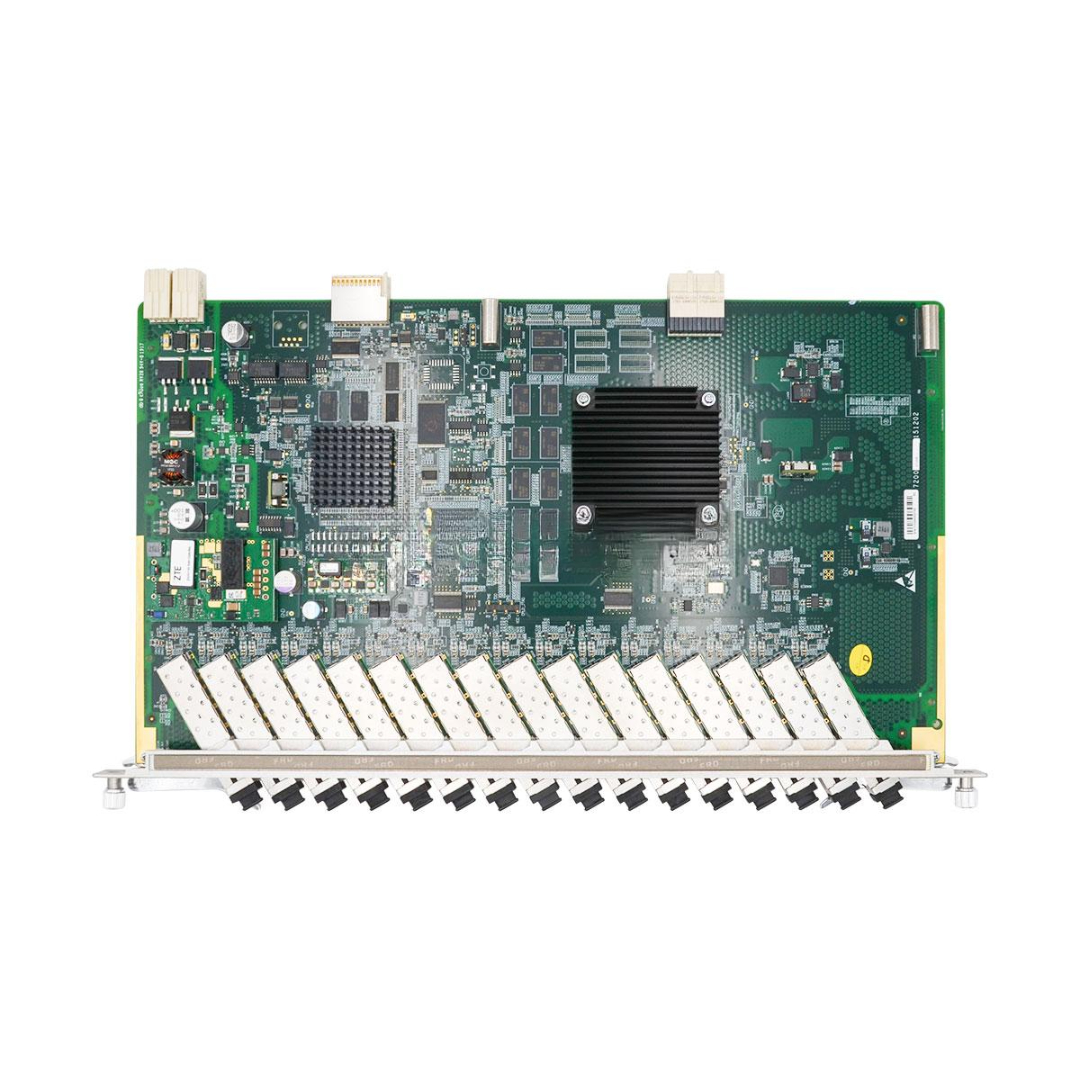

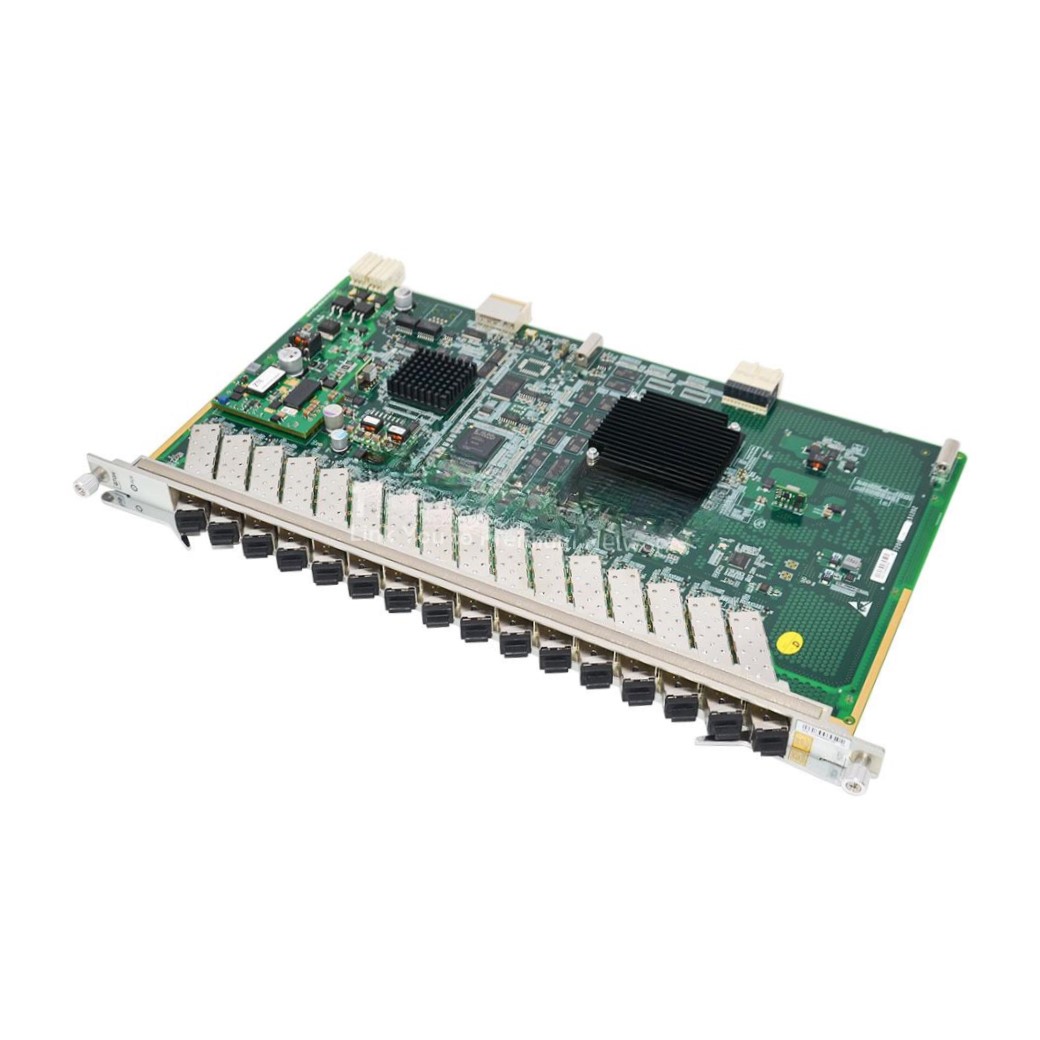

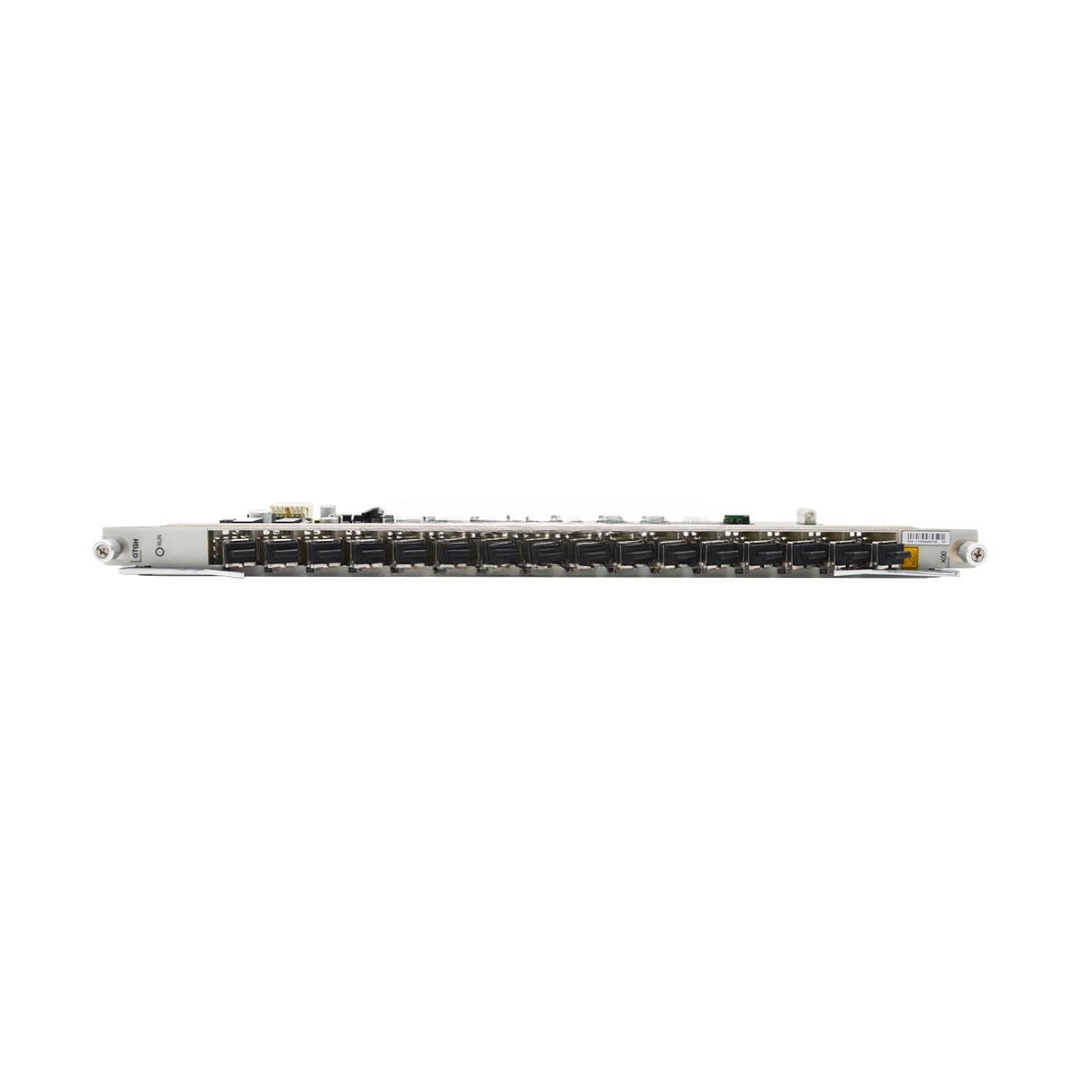

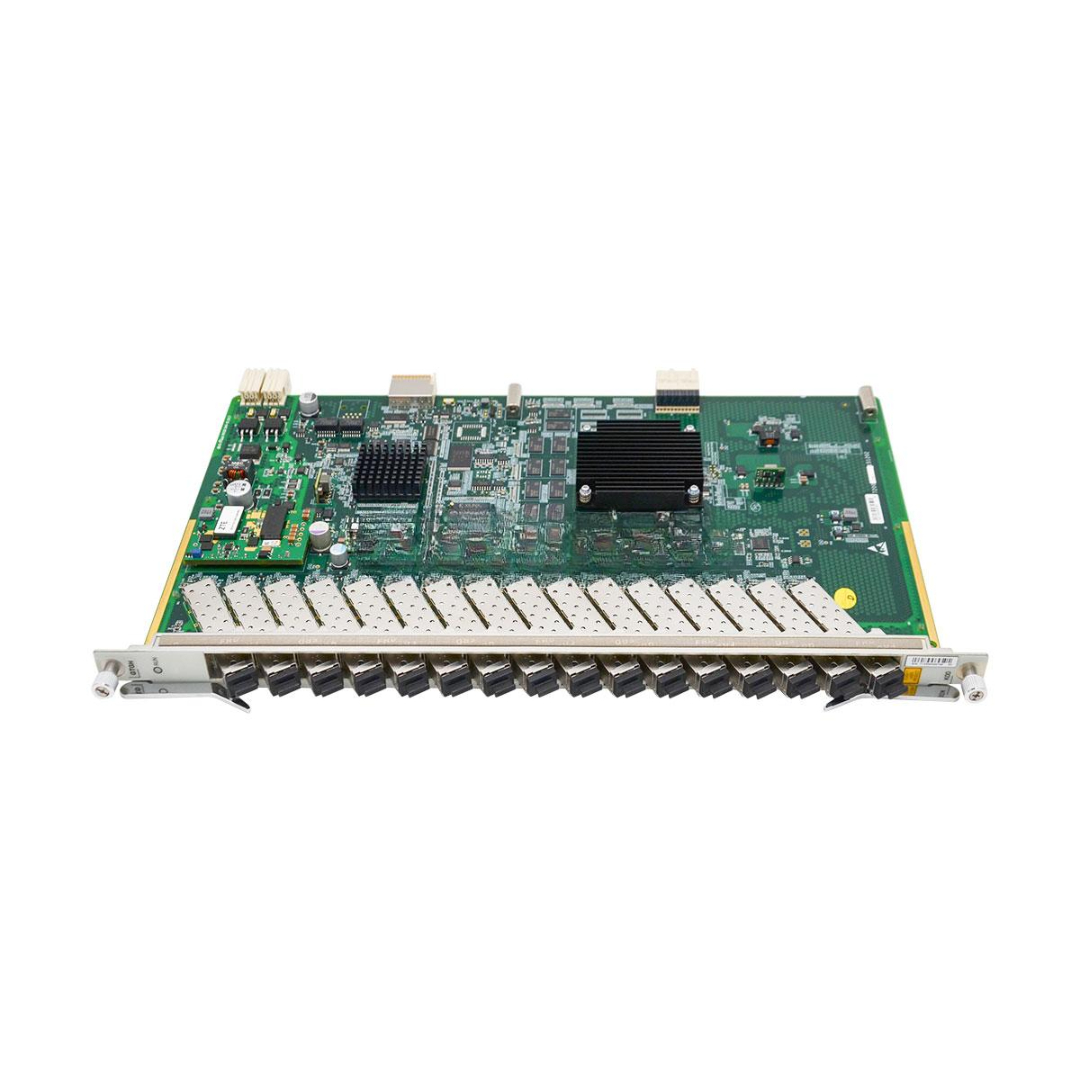

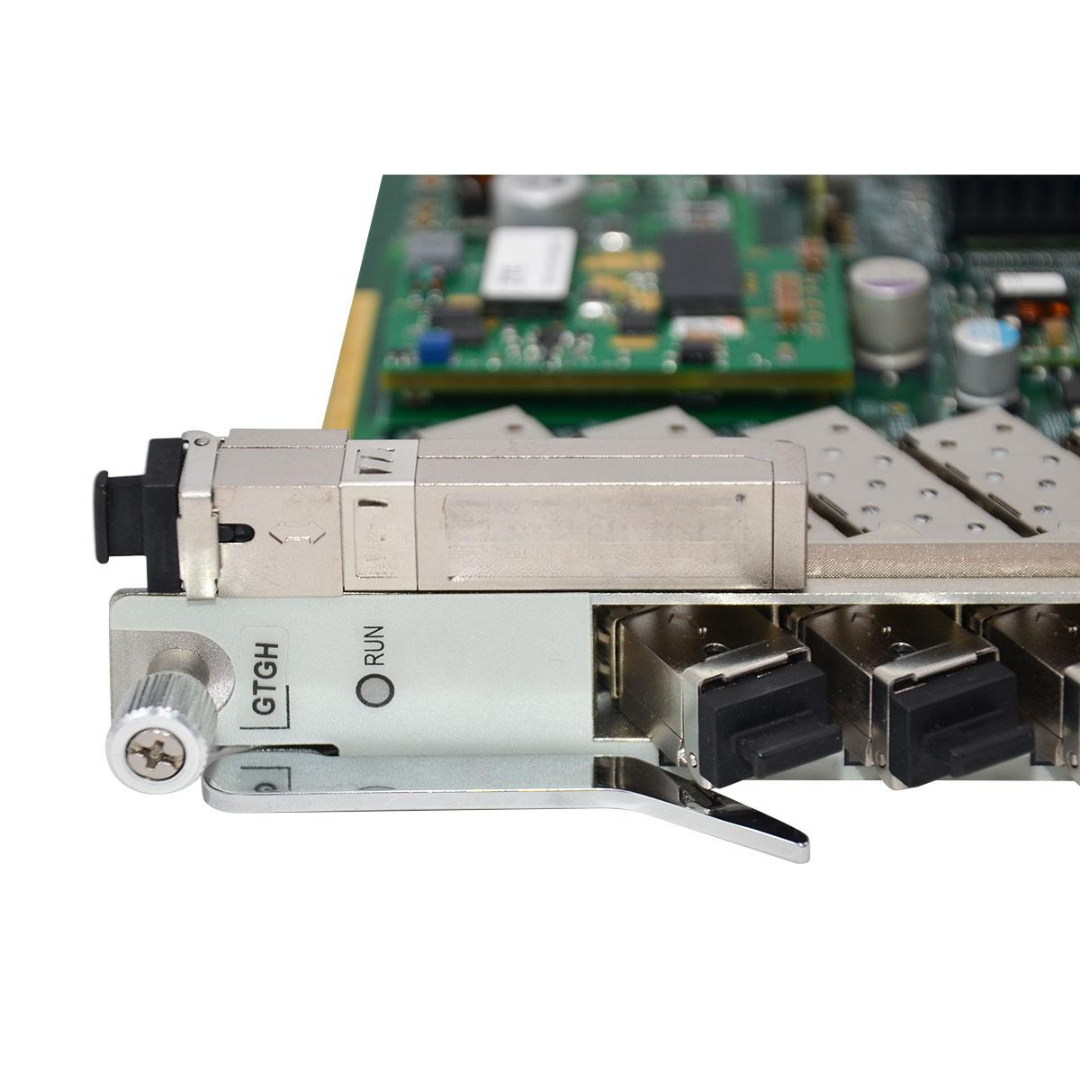

GTGH K00 C++ GPON OLT Brand New 16-Port Interface Board
The GTGH K00 C++ GPON is a Huawei Brand New 16-Port C++ GPON OLT Interface Board, designed for high-capacity fiber access networks. It delivers 16 GPON ports, offering excellent performance, long-distance coverage, and robust bandwidth handling using Class C++ optics. Fully compatible with Huawei’s MA5600T/MA5800 series OLT chassis, the GTGH K00 ensures superior fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments.
Ideal for carriers, ISPs, and enterprises looking to deliver high-speed broadband, IPTV, and VoIP services across dense urban and rural environments.
Key Features
-
Model: GTGH K00
-
Condition: 100% Brand New, Original Huawei
-
Service Type: GPON OLT interface
-
Ports: 16x GPON (SC/PC, Class C++)
-
Optical Class: C++ (high output power and high sensitivity)
-
Splitting Ratio: Supports up to 1:128 per port
-
Hot-Swappable: Yes
-
Max Bandwidth per Port: 2.5 Gbps downstream / 1.25 Gbps upstream
-
Compatibility: MA5600T, MA5800 series OLTs
-
Power Consumption: ≤ 60W (typical)
Technical Specifications
| Specification | Details |
|---|---|
| Model | GTGH K00 |
| Ports | 16x GPON |
| Connector Type | SC/PC |
| Optical Class | C++ |
| TX Wavelength | 1490 nm |
| RX Wavelength | 1310 nm |
| TX Power | +3 to +7 dBm |
| RX Sensitivity | ≤ -32 dBm |
| Split Ratio | Up to 1:128 |
| Max Distance | 20–40 km |
| Bandwidth (Per Port) | 2.5 Gbps downstream / 1.25 Gbps upstream |
| Compatible Chassis | MA5600T, MA5800, EA5800 |
| Hot-Swappable | Supported |
| Operating Temp. | -40°C to +65°C |
| Humidity | 5% – 95%, non-condensing |
| Warranty | 1–3 Years Manufacturer Warranty |
GTGH K00 C++ GPON Applications
-
FTTH Deployments — Ideal for large-scale residential broadband rollouts
-
FTTB/FTTC Solutions — Enterprise and MDU GPON access support
-
Rural Connectivity Projects — Long-distance Class C++ optics ideal for low-density areas
-
Triple-Play Services — IPTV, high-speed internet, and voice via fiber
-
Carrier & ISP Networks — Central office or remote cabinet-based GPON aggregation
Customization & OEM Options
-
Custom Port Labels — Your logo and part numbers can be printed on the front panel
-
Pre-configured Profiles — Factory-configured VLANs, T-CONTs, and GEM ports
-
Splitters & Patch Panels — Bundled fiber accessories for fast site installation
-
Firmware Customization — Preloaded software versions for compatibility with NMS
-
Color-Coded Optics — Matching patch cord and port ID systems
Wholesale & Global Supply Information
-
Bulk Availability — Direct from Huawei OEM channels, ready for large deployments
-
Secure Packaging — Original Huawei ESD-safe and foam-protected box
-
Fast Lead Times — In-stock or just-in-time shipping for rollouts
-
Logistics Support — Shipping compliant with optical and lithium battery regulations
-
Global Supply Chain — Export-ready for Asia, EU, Africa, and LATAM projects
-
After-Sales Support — Full technical assistance with integration & provisioning
Why Choose the GTGH K00 C++ GPON Interface Board
High-Density GPON Access — 16 ports per board with 1:128 splitting for maximum reach
Class C++ Optics — Superior long-distance and low-power ONT connectivity
Huawei Compatibility — Seamless integration with existing Huawei OLT infrastructure
Robust Build Quality — Carrier-grade reliability for 24/7 uptime
Cost-Effective GPON Expansion — Ideal for rapid scaling of fiber broadband services
Request a Quote or Place Your Order
Power your next FTTH expansion with the Huawei GTGH K00 16-Port C++ GPON Board.
Contact us now for pricing, technical datasheets, and volume discount options.
