SKU 1600447306797 Categories ,
  • Model Number:GTGO
  • Type:OLT
  • Place of Origin:Zhejiang, China
  • Brand Name:ZTE
  • Use:FTTH
  • Warranty Time:1 year
  • Network:Wireless Lan, wifi, 4g
  • model:GTGO
  • brand name:ZTE
  • service board:ETGO GTGO ETGH GTGH
  • fiber port:8~32 ports
  • Split Ratio:1:128
  • GPON Port:8-GPON Port
  • Reach:20km
  • Operating Wavelength:Tx: 1490 nm, Rx: 1310 nm
  • Weight:1kg
  • Dimensions:22.86 mm * 237.00 mm *395.40 mm
  • Supply Ability
    100 Piece/Pieces per Month
  • Packaging Details

    1pcs/ctn

  • Port

    Shanghai/Ningbo

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

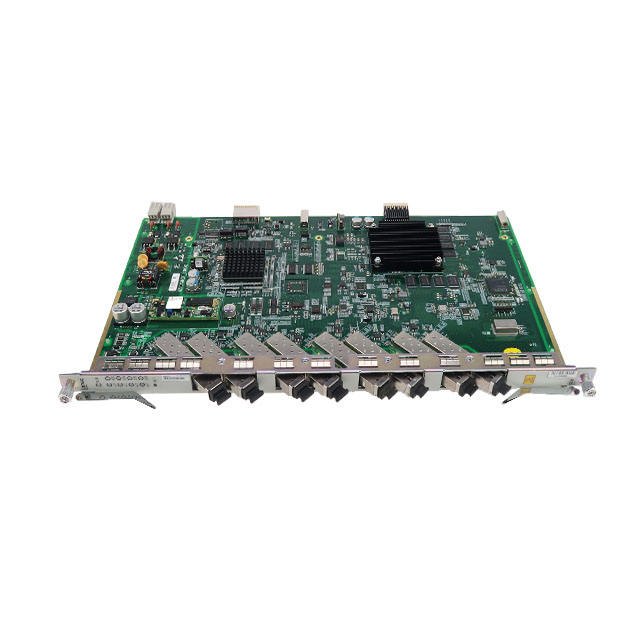

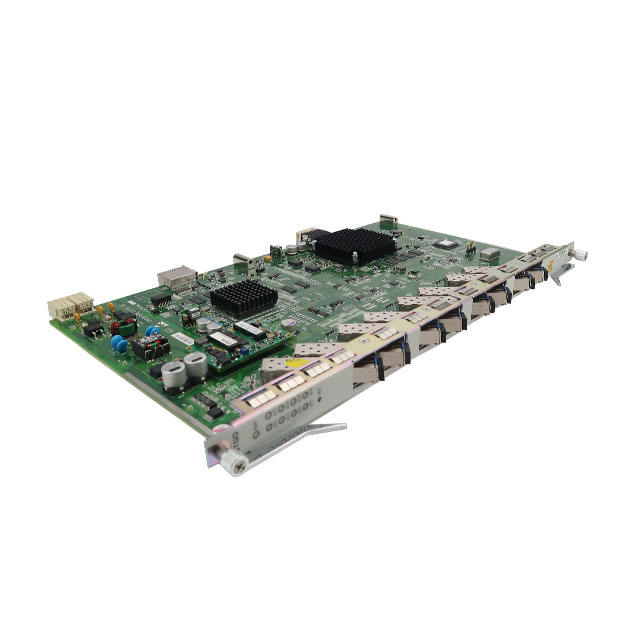

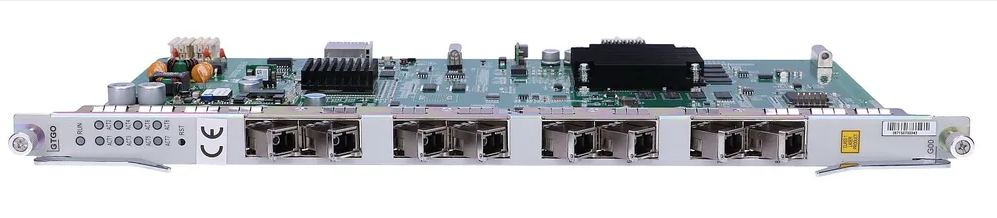

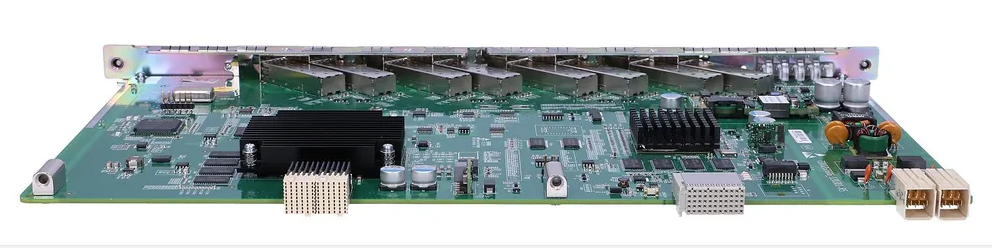

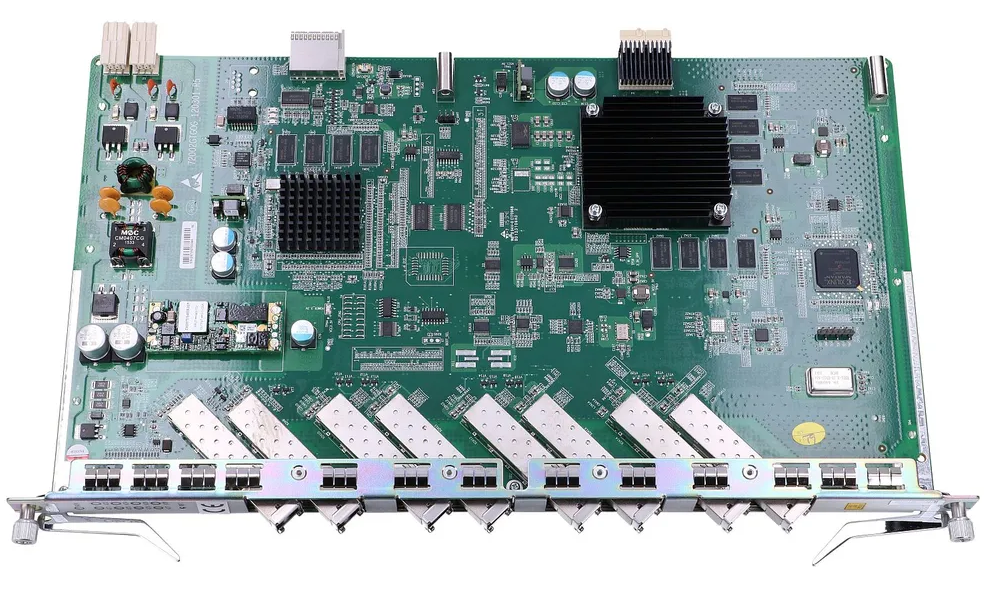

ZTE Card GTGO – 8-port GPON expansion module for C300/C320 platform

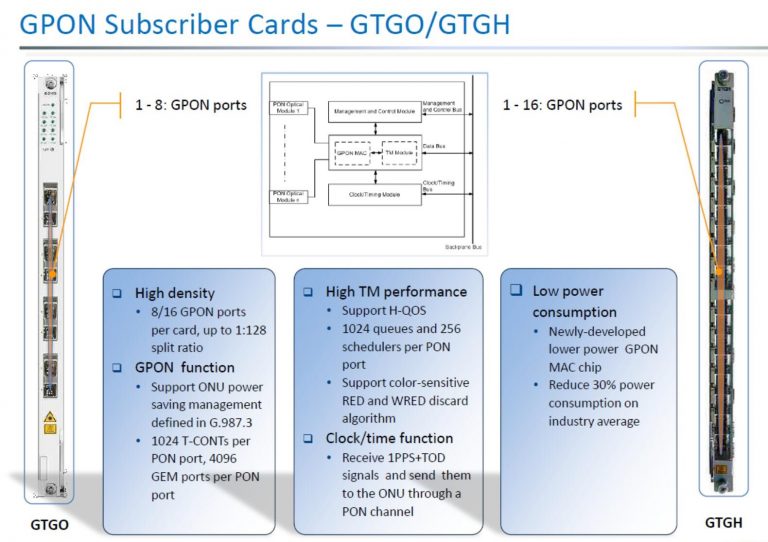

The GPON GTGO class C++ subscriber’s card has 8 GPON connectors with a division coefficient of 1:128.
The GPON OLT ZTE GTGO C++ expansion card together with ONU will allow you to build a high availability network. Supported maximum distance between two ONUs is 20 km, which will improve network building.
Product Paramenters
Model
ZTE GTGO
MAX Split ratio (Class B+)
1:64
MAX Split ratio (Class C+/Class C++)
1:128
Operating Wavelength
Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type
SFP
Dimensions
490 x 325 x 75 mm
Port Rate
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Optical Fiber Type
Single-mode
Reach
20km
Division coefficient
Up to 1:128
Details Images
Application
Packing&Shipping

Specification

22.86 mm * 237.00 mm *395.40 mm
