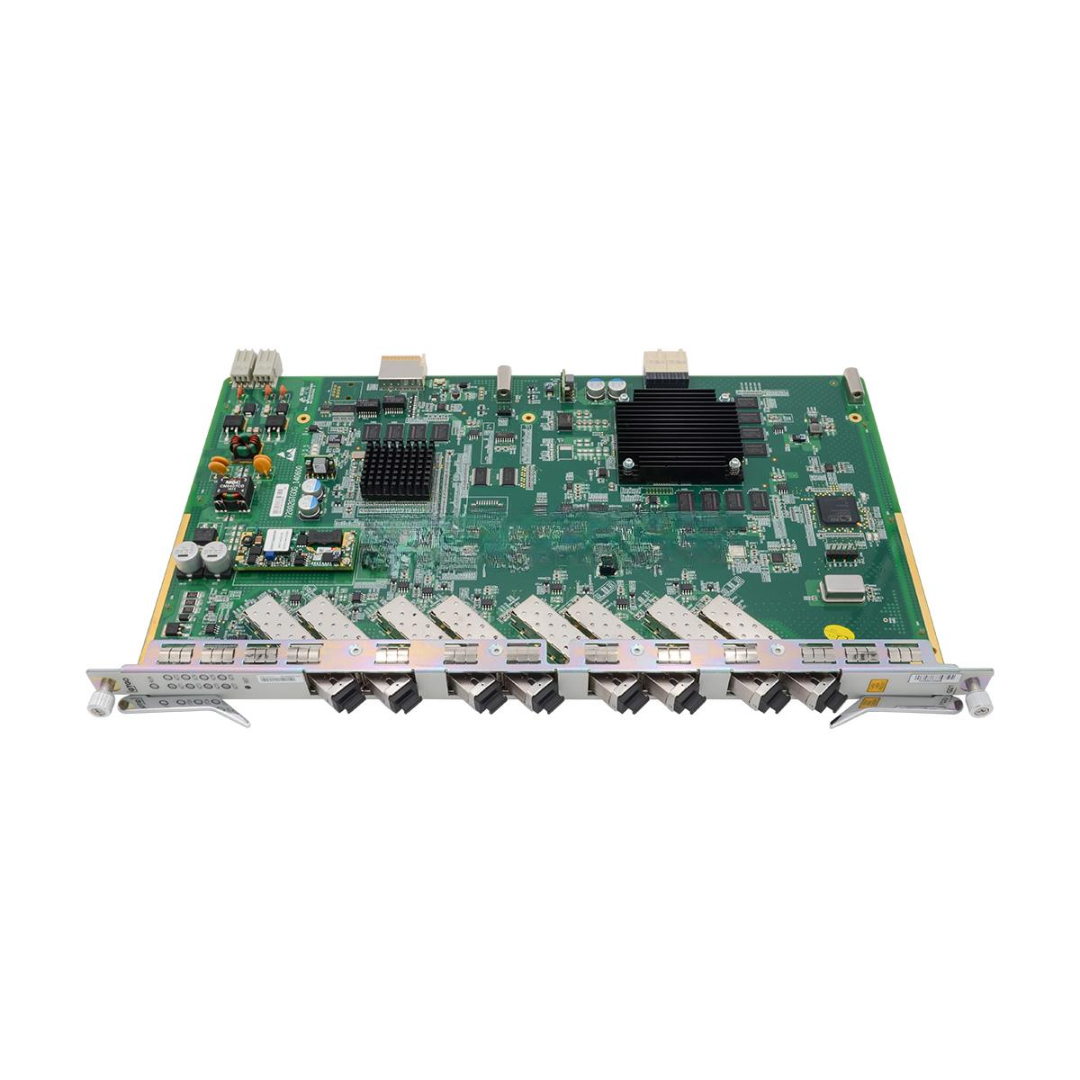

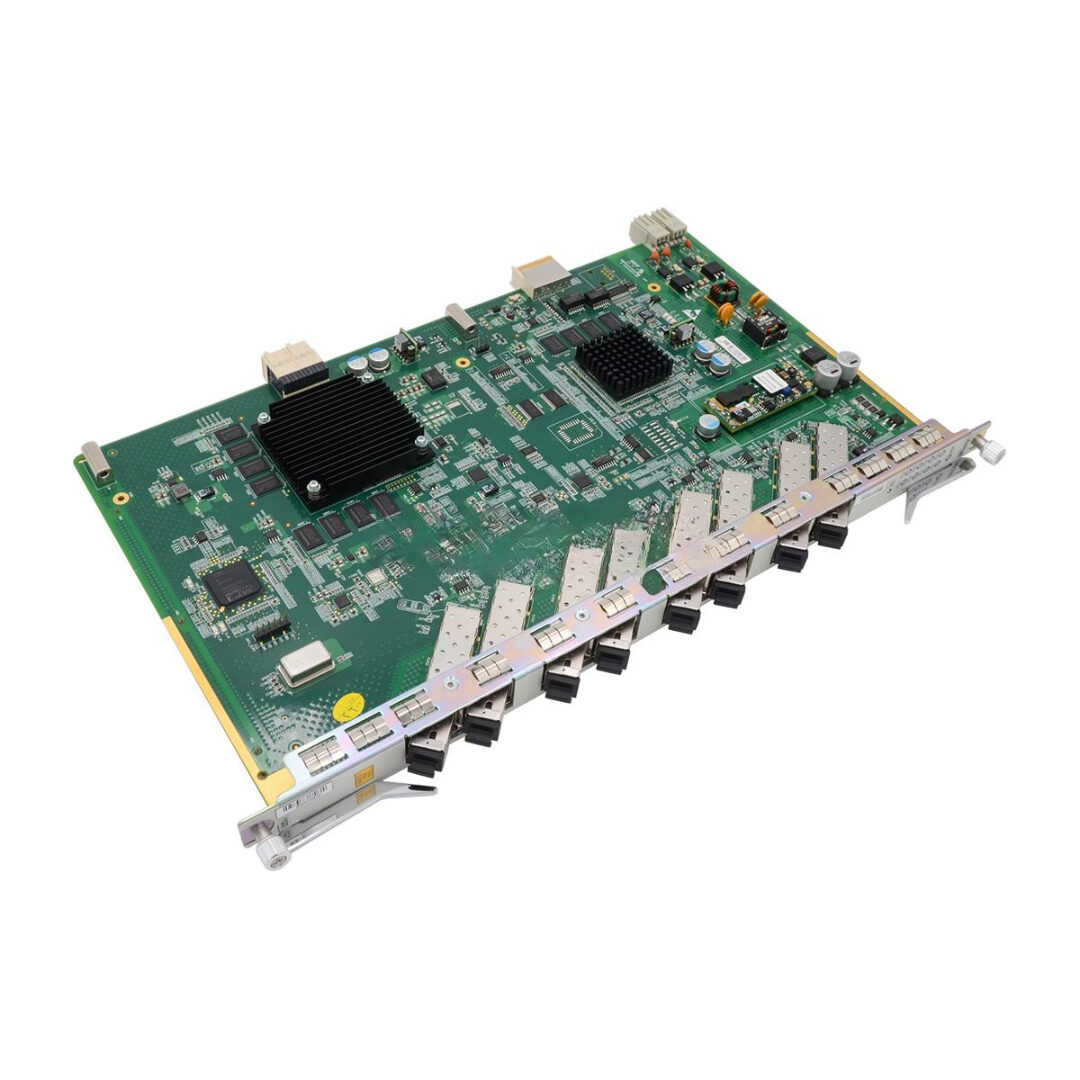

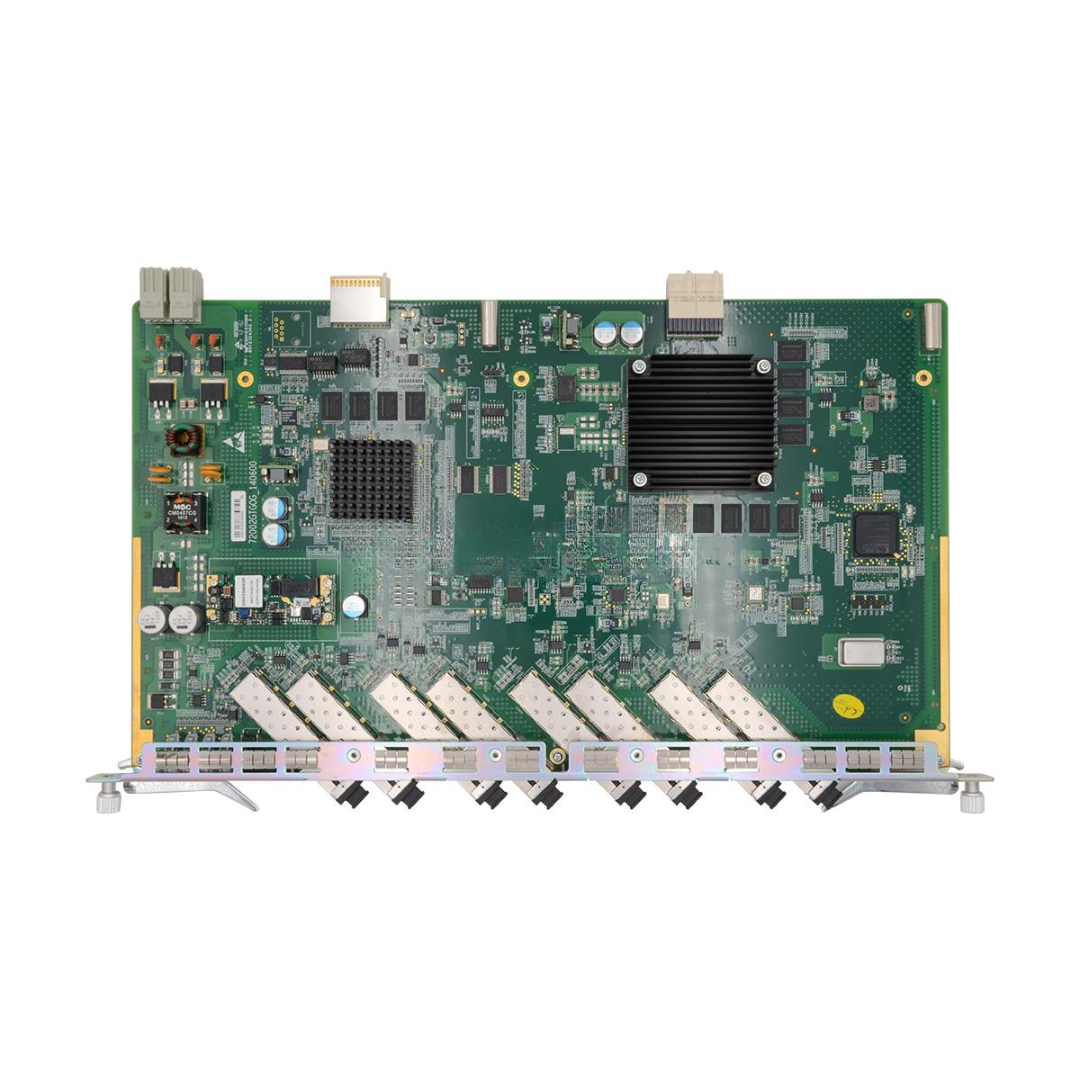

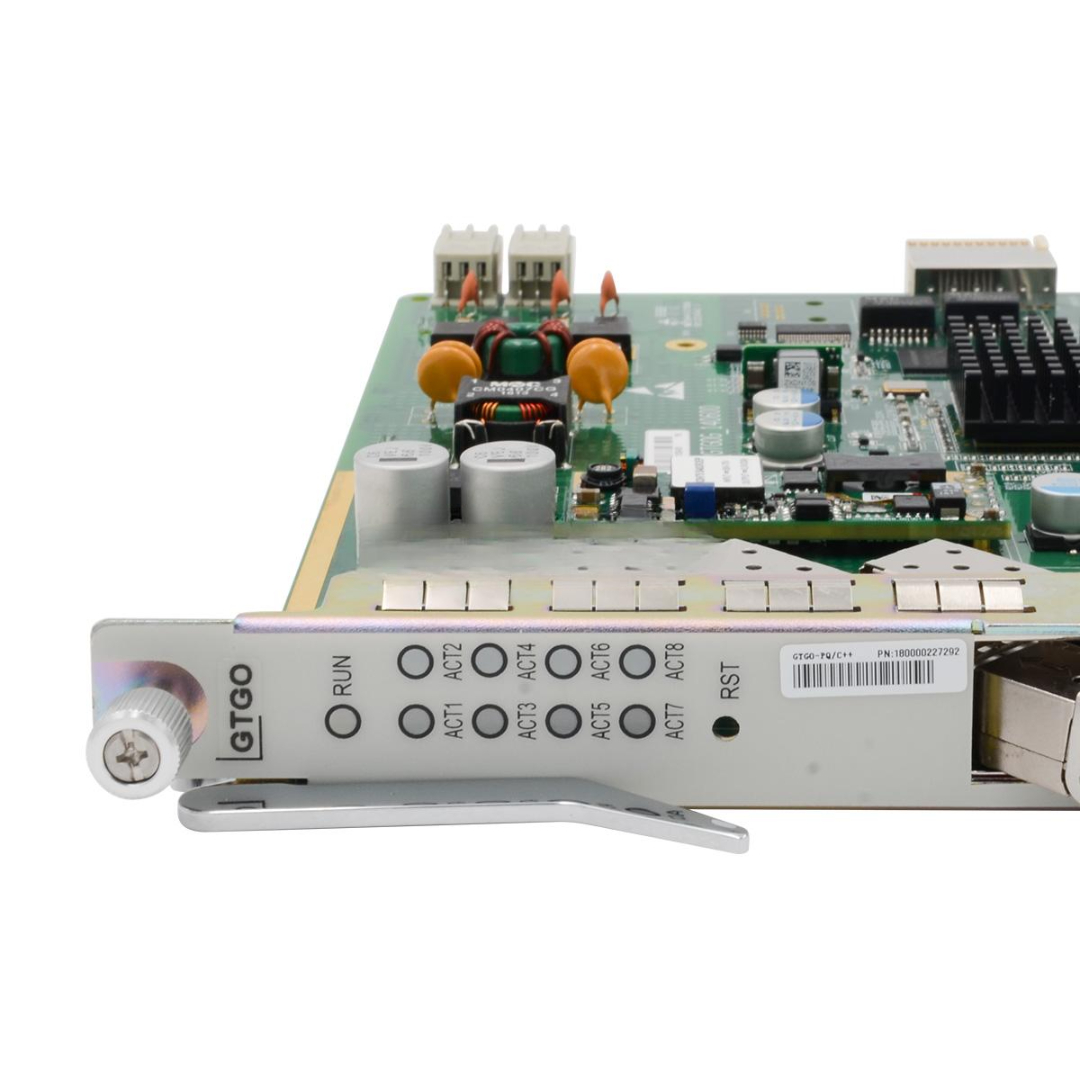

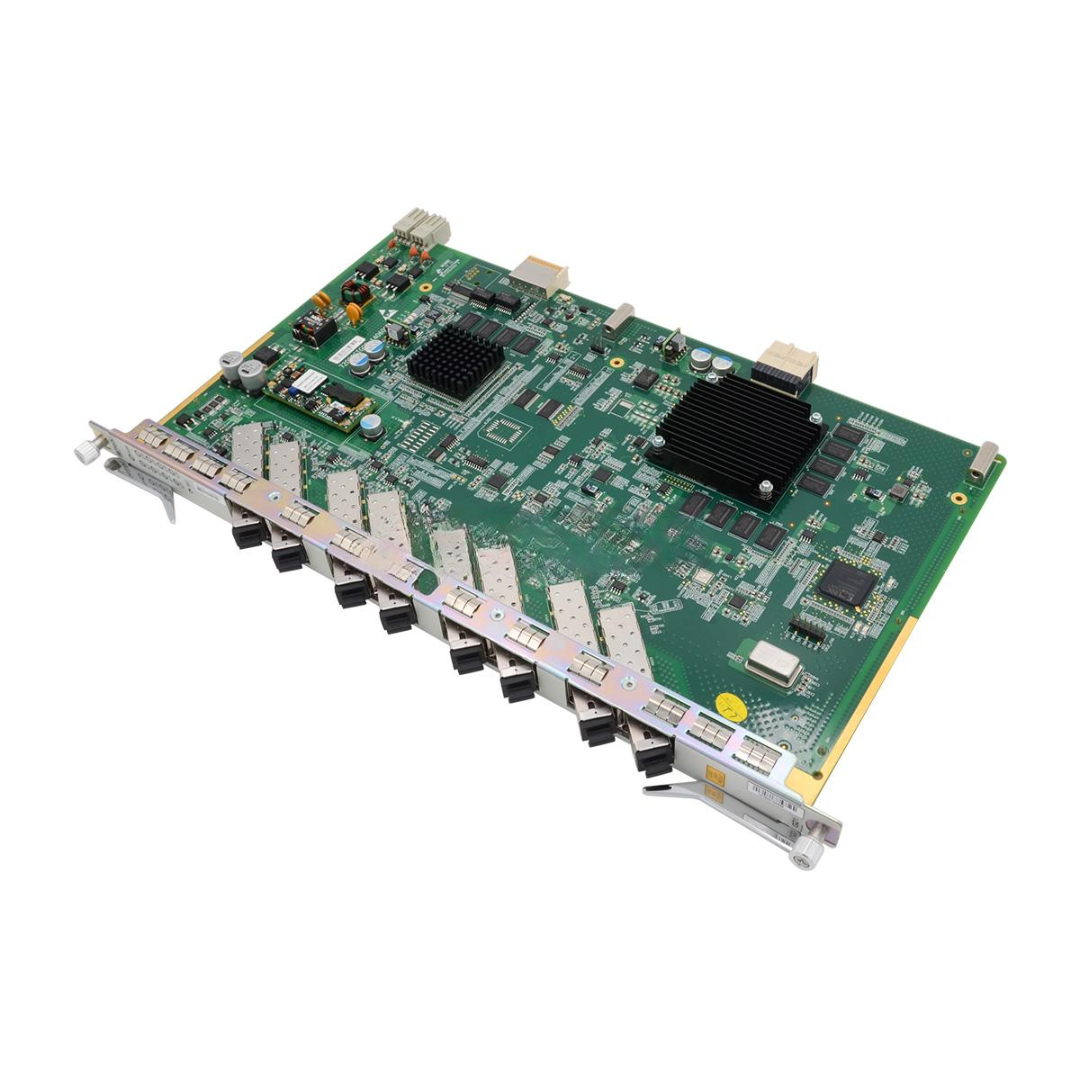

GTGO C++ GPON Brand New 16-Port OLT Interface Board Module
The GTGO C++ GPON is a high-performance 16-port GPON OLT interface board, purpose-built for use in Huawei OLT platforms such as the MA5800 series. Designed to deliver ultra-reliable Gigabit Passive Optical Network (GPON) services, the board provides 16 GPON interfaces supporting large-scale FTTH (Fiber to the Home) and FTTB (Fiber to the Building) deployments. It supports Class C++ optics, ensuring long-distance transmission up to 20 km while maintaining high reliability and low latency. Ideal for telecom carriers, ISPs, and enterprise-level fiber access networks.
Key Features
Model: GTGO (C++)
Condition: 100% Brand New, Original Huawei
Service Type: GPON (Gigabit Passive Optical Network)
Port Count: 16 GPON ports
Connector Type: SC/UPC (Class C++ Optical Transceivers)
Maximum Split Ratio: 1:128 per port
Transmission Distance: Up to 20 km (with Class C++ optics)
Downstream Rate: 2.488 Gbps
Upstream Rate: 1.244 Gbps
Plug-in Module: Hot-swappable for easy maintenance
Built-in Features: DBA (Dynamic Bandwidth Allocation), ONU auto-discovery, secure encryption
Compatible Platforms: Huawei MA5800-X7, MA5800-X15, MA5800-X17, and MA5683T/MA5680T (with firmware support)
Applications: FTTH, FTTB, FTTx deployments, enterprise access, and broadband expansion
Technical Specifications
| Specification | Details |
|---|---|
| Model | GTGO (C++) |
| Board Type | GPON OLT Interface Board |
| Port Count | 16 GPON Ports |
| Connector | SC/UPC, Optical, Class C++ |
| Downstream Bandwidth | 2.488 Gbps per port |
| Upstream Bandwidth | 1.244 Gbps per port |
| Maximum Split Ratio | 1:128 |
| Transmission Distance | Up to 20 km |
| Power Consumption | ≤45W (Typical) |
| Wavelength (TX/RX) | TX: 1490 nm, RX: 1310 nm |
| Compatibility | MA5800 series, MA5683T/MA5680T |
| Operating Temperature | -40°C to +65°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance | ITU-T G.984.x, IEEE 802.3ah, RoHS |
| Firmware Support | Supports multiple firmware versions |
| Warranty | 1–3 Years Manufacturer Warranty |
GTGO (C++) GPON Applications
-
Telecom & ISP Networks — Ideal for building high-density, reliable fiber access infrastructure
-
FTTH/FTTB Deployments — Scalable GPON delivery to residential and commercial premises
-
Enterprise Access — Business-grade broadband service delivery
-
Rural Connectivity — Cost-efficient fiber broadband rollout for underserved regions
-
Campus Networks — High-capacity aggregation for university or industrial campuses
Customization & OEM Options
-
Private Branding — Customize the module with your company logo, labeling, and packaging
-
Tailored Configurations — Pre-configured split ratios, ONT authentication, and alarm thresholds
-
Firmware Preloading — Load customer-specified firmware versions before delivery
-
Burn-In Testing — Extended testing periods for mission-critical or high-availability networks
-
Integration Kits — Rack-mount kits and pre-terminated cable sets available for seamless deployment
GTGO C++ GPON Wholesale & Global Procurement
-
Bulk Supply Available — Direct-from-factory sourcing with competitive wholesale rates
-
Stock Assurance — Genuine Huawei GTGO (C++) boards in sealed anti-static packaging
-
Fast Delivery Worldwide — Global shipping with customs-compliant packaging (optical and lithium safe)
-
Support Services — Remote configuration support, compatibility validation, and deployment guidance
-
Reseller Incentives — Partner programs available for telecom integrators and distributors
Why Choose the GTGO C++ Huawei 16-Port GPON Interface Board
-
Carrier-Class Performance — 16 ports of scalable GPON access with Class C++ optics
-
Huawei OEM Reliability — Trusted hardware backed by Huawei’s global telecom expertise
-
Maximized Fiber Reach — Serve more customers with high split ratios and long reach
-
Low Power, High Density — Efficient design for space- and energy-constrained deployments
-
Future-Ready — Seamless migration path to XG(S)-PON and 10G networks via MA5800 platform
Contact Us Now for Pricing, Datasheets & Bulk Orders
Equip your OLT platform with the GTGO C++ Huawei 16-Port GPON Board — the ideal solution for high-performance GPON access in modern telecom networks.
Request a quote today and scale your fiber access deployment with confidence.
