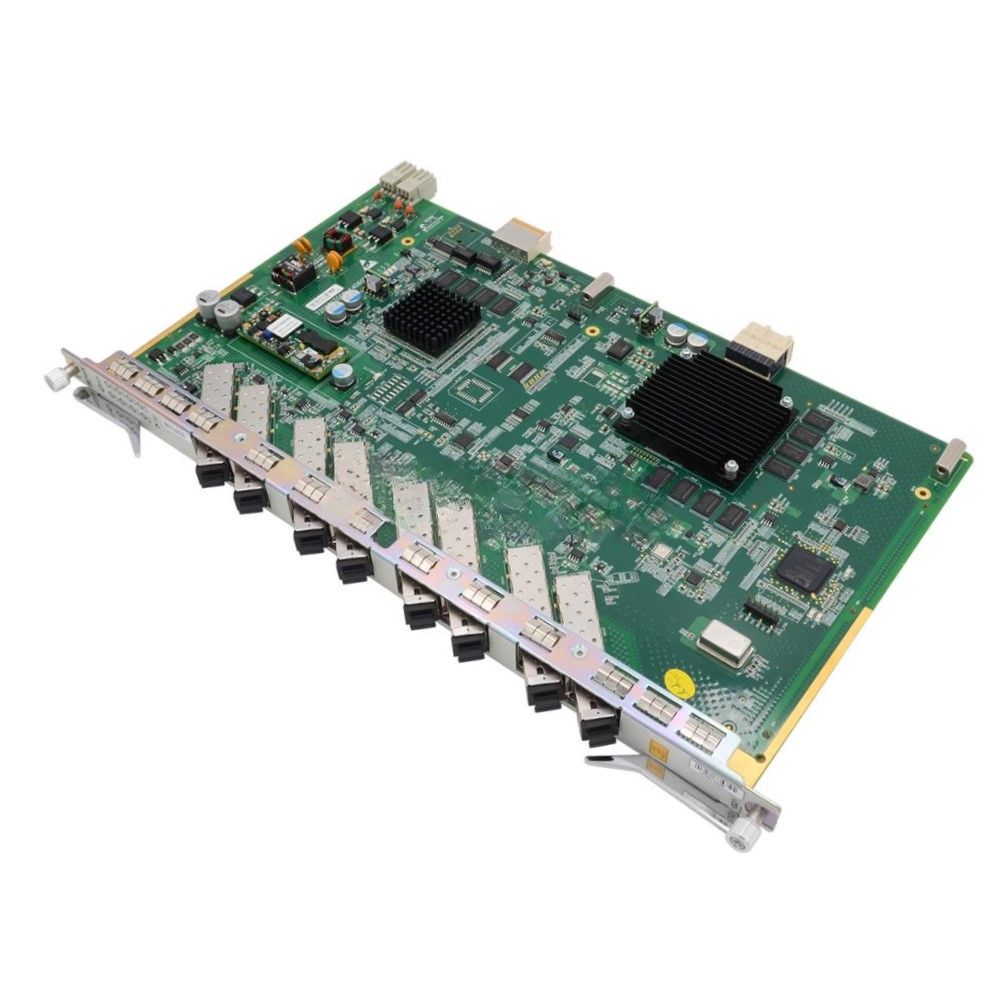

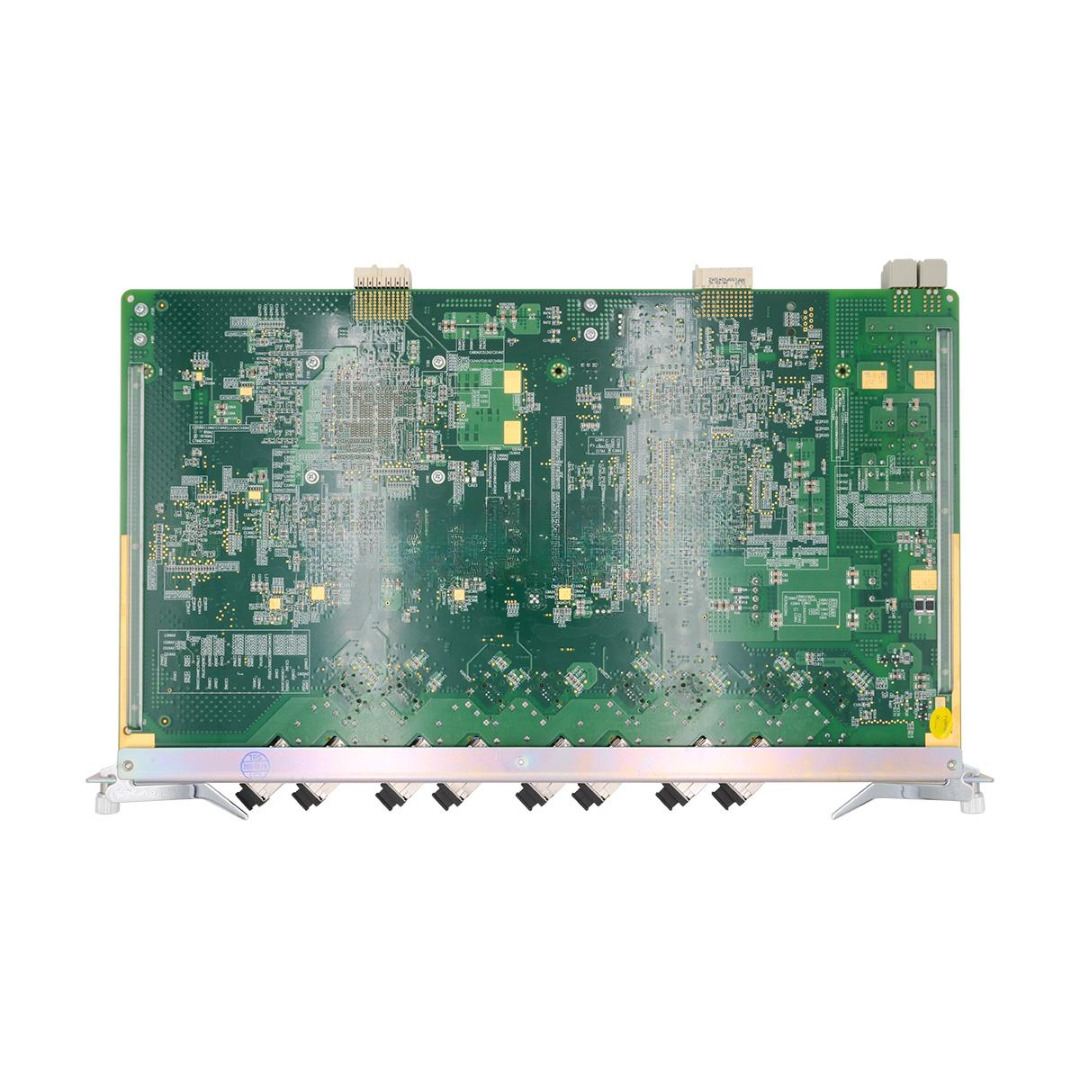

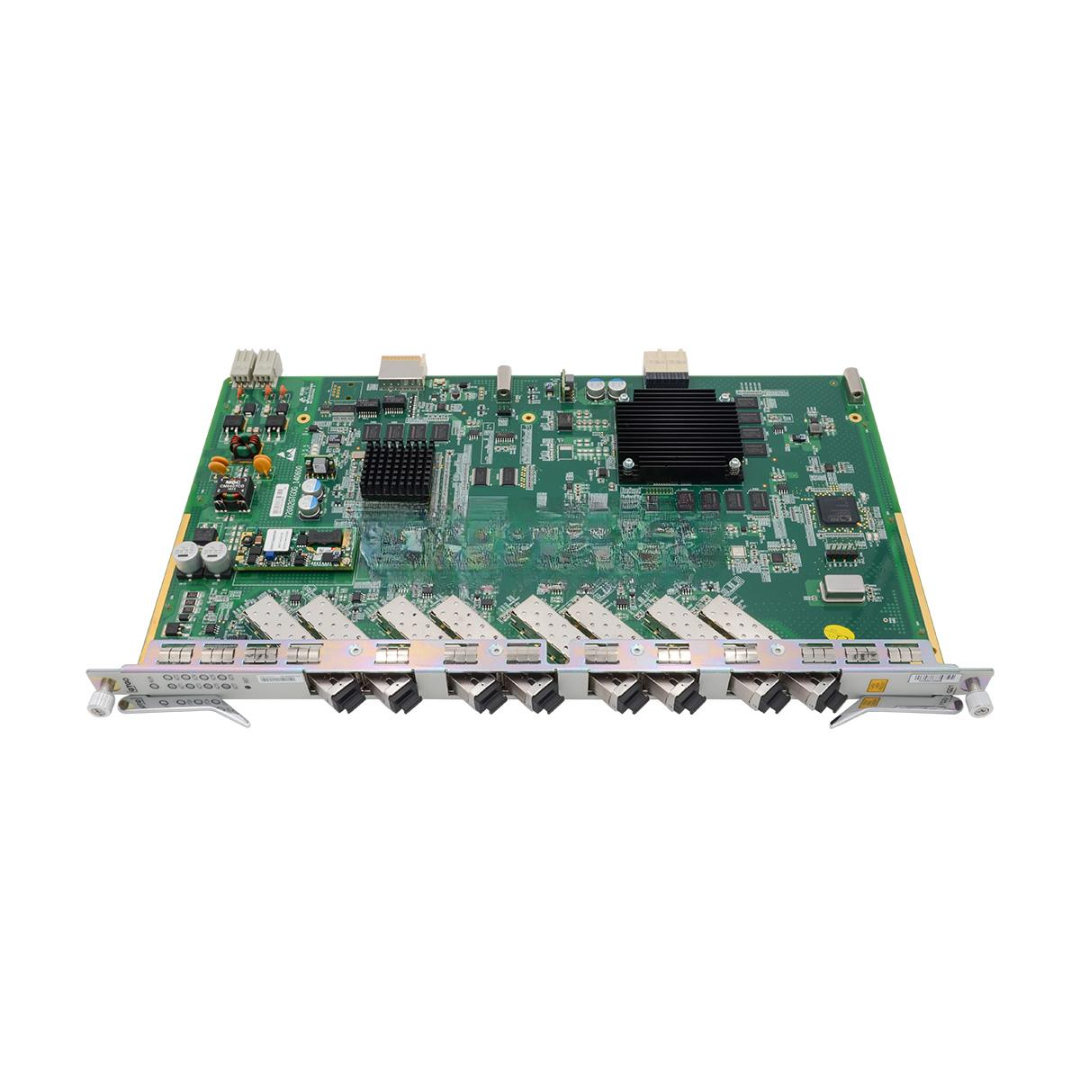

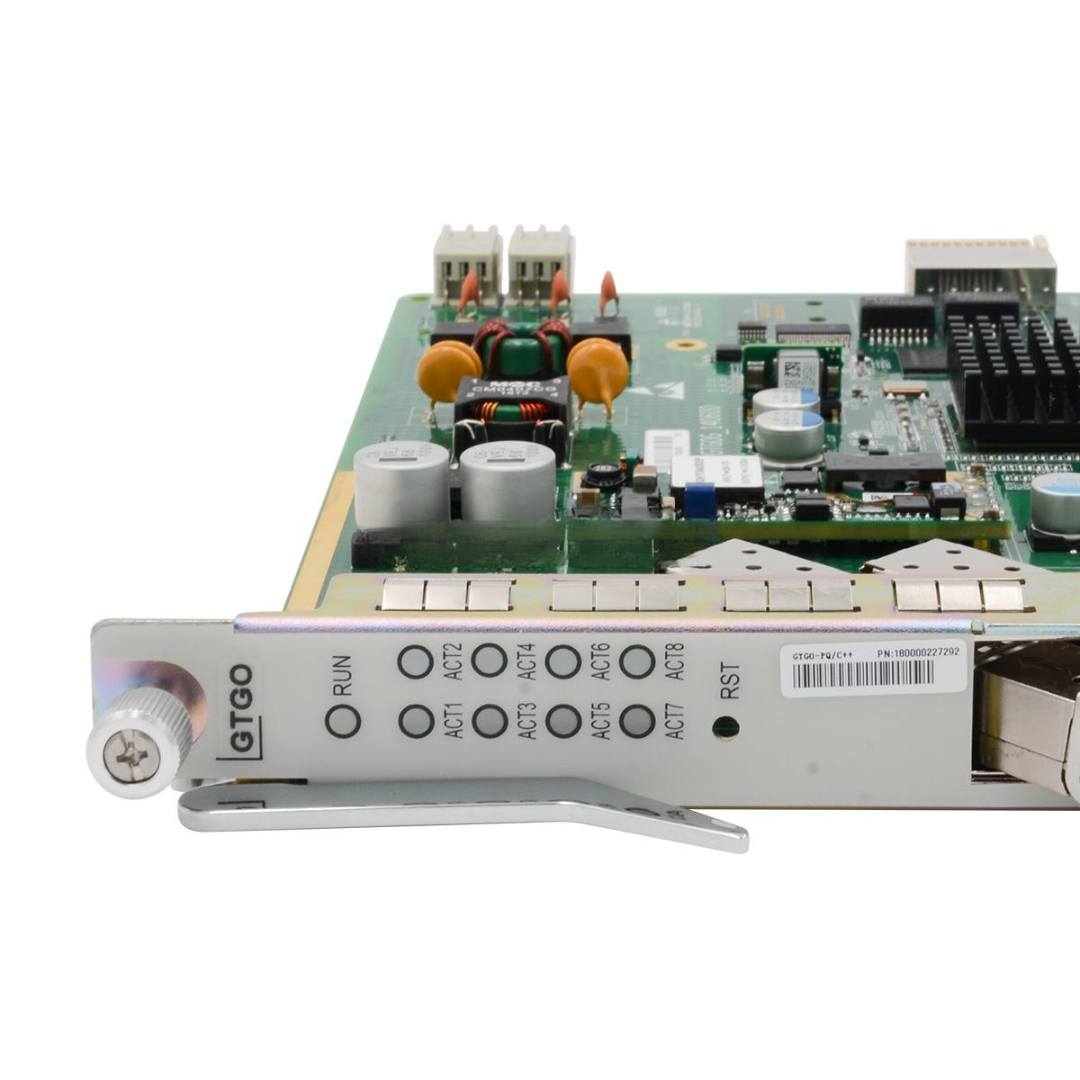

GTGO C+ GPON Brand New 16-Port OLT Interface Board Module
The GTGO C+ GPON Brand is a high-quality 16-port GPON OLT interface board, specifically engineered for use with Huawei MA5600T and MA5800 series OLT platforms. Designed to meet the needs of modern fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments, the GTGO board provides robust, stable, and scalable GPON connectivity with Class C+ optical modules, enabling transmission distances of up to 20 km and supporting split ratios of up to 1:128 per port. It is the perfect solution for high-density broadband access and next-gen telecom networks.
Key Features
Model: GTGO (C+)
Condition: 100% Brand New, Original Huawei
Service Type: GPON (Gigabit Passive Optical Network)
Port Count: 16 GPON Optical Ports
Optical Module Type: Class C+ (SC/UPC connectors)
Maximum Split Ratio: 1:128 per port
Transmission Distance: Up to 20 km
Downstream Rate: 2.488 Gbps
Upstream Rate: 1.244 Gbps
Slot Compatibility: Works with service slots on MA5600T, MA5680T, MA5683T, MA5800-X2/X7/X15/X17
Features: ONU auto-discovery, authentication, DBA, encryption, fault detection
Hot-Swappable: Yes, supports online insertion and removal
Use Case: Scalable GPON access for residential, commercial, and industrial applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | GTGO (C+) |
| Board Type | GPON OLT Interface Board |
| Port Count | 16 GPON Ports |
| Optics Class | C+ Optical Modules |
| Connector Type | SC/UPC |
| Downstream Bandwidth | 2.488 Gbps |
| Upstream Bandwidth | 1.244 Gbps |
| Split Ratio | Up to 1:128 |
| Transmission Distance | Up to 20 km |
| Compatibility | MA5600T, MA5683T, MA5680T, MA5800 Series |
| Power Consumption | ≤42W (typical) |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance | ITU-T G.984.x, RoHS |
| Firmware | Supports multiple software versions |
| Warranty | 1–3 Years Manufacturer Warranty |
GTGO C+ GPON Brand Applications
-
Telecom Networks – Designed for fiber broadband access in large-scale residential rollouts
-
FTTH/FTTB Projects – Ideal for last-mile fiber delivery in urban and suburban settings
-
Enterprise Connectivity – Efficient broadband access for corporate campuses and multi-tenant buildings
-
Rural Broadband Expansion – Long-range, high-split GPON for underserved regions
-
ISP Network Growth – Expand service areas and connect more users without new infrastructure
Customization & OEM Options
-
Private Label Options – Customize board labeling and packaging with your brand
-
Pre-Loaded Firmware – Ships with specified firmware versions based on customer need
-
Preset Configurations – Board-level ONT whitelist, DBA profiles, and port settings
-
Custom Split Ratios – Tailor split configurations to match your deployment needs
-
Long-Haul Testing – Extended QA testing available for mission-critical fiber environments
GTGO C+ GPON Brand Wholesale & Global Procurement
-
Original Huawei Supply – 100% genuine factory-sealed boards
-
Competitive Wholesale Pricing – Discounts available for bulk and recurring orders
-
Global Shipping – Reliable international logistics with customs-cleared delivery
-
Secure Packaging – Electrostatic-safe, foam-cushioned packaging for export
-
Partner Support – Technical assistance for integration, provisioning, and deployment
-
Available Stock – Quick lead times for urgent rollout schedules
Why Choose the GTGO C+ 16-Port GPON OLT Board
-
High-Density Access – 16-port capacity enables wide fiber access coverage
-
Extended Reach – Class C+ optics offer longer transmission without repeaters
-
Scalable Network Design – Easily expand fiber network with flexible port-to-ONT mapping
-
Energy Efficient – Low power usage with high-performance throughput
-
Trusted OEM Quality – Proven reliability across global telecom environments
Contact Us Now for Pricing, Technical Datasheets & Bulk Orders
Elevate your fiber access capabilities with the GTGO C+ 16-Port GPON Board — the ideal solution for scalable, long-distance, and high-performance optical broadband networks.
Get in touch today for a quote or volume supply deal.
