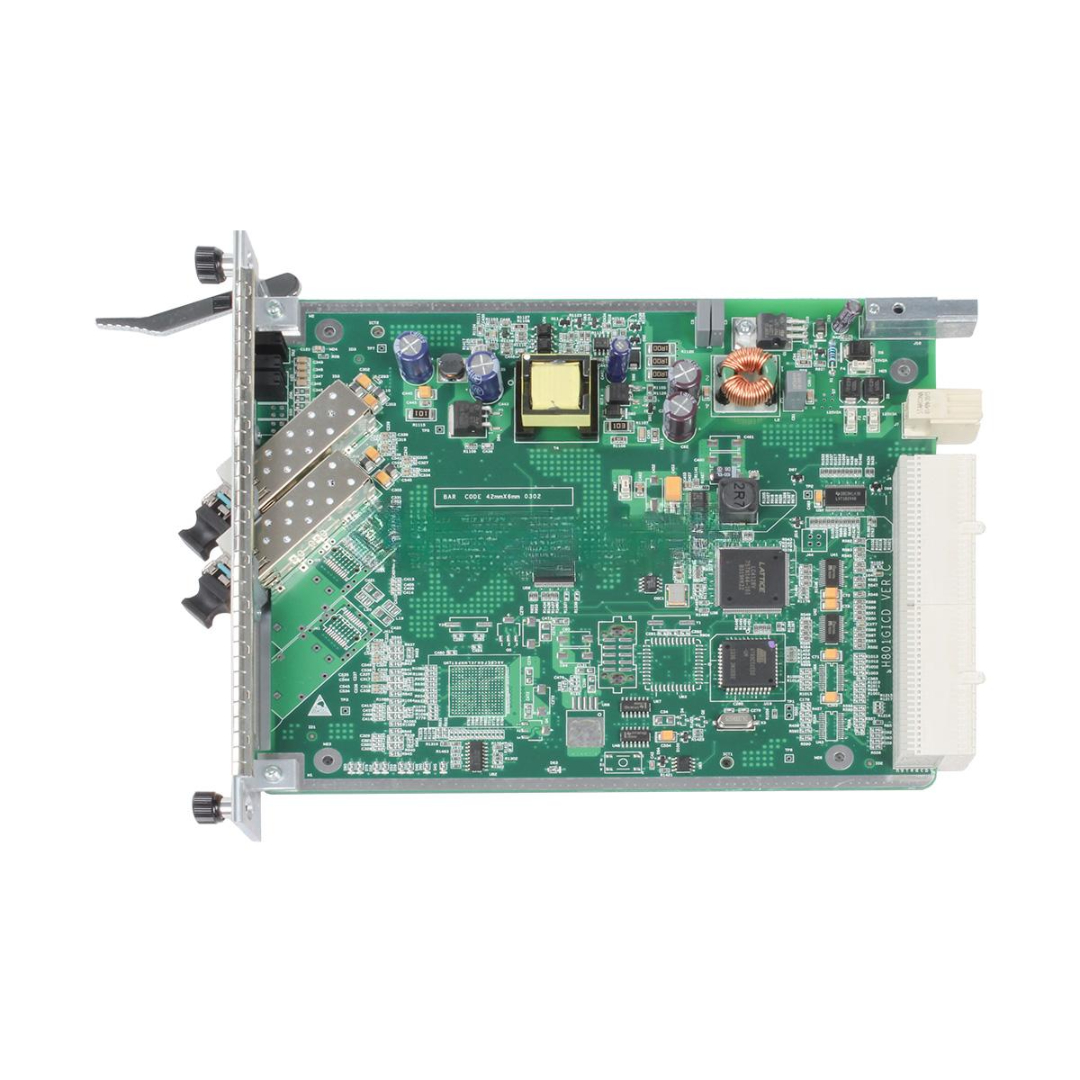

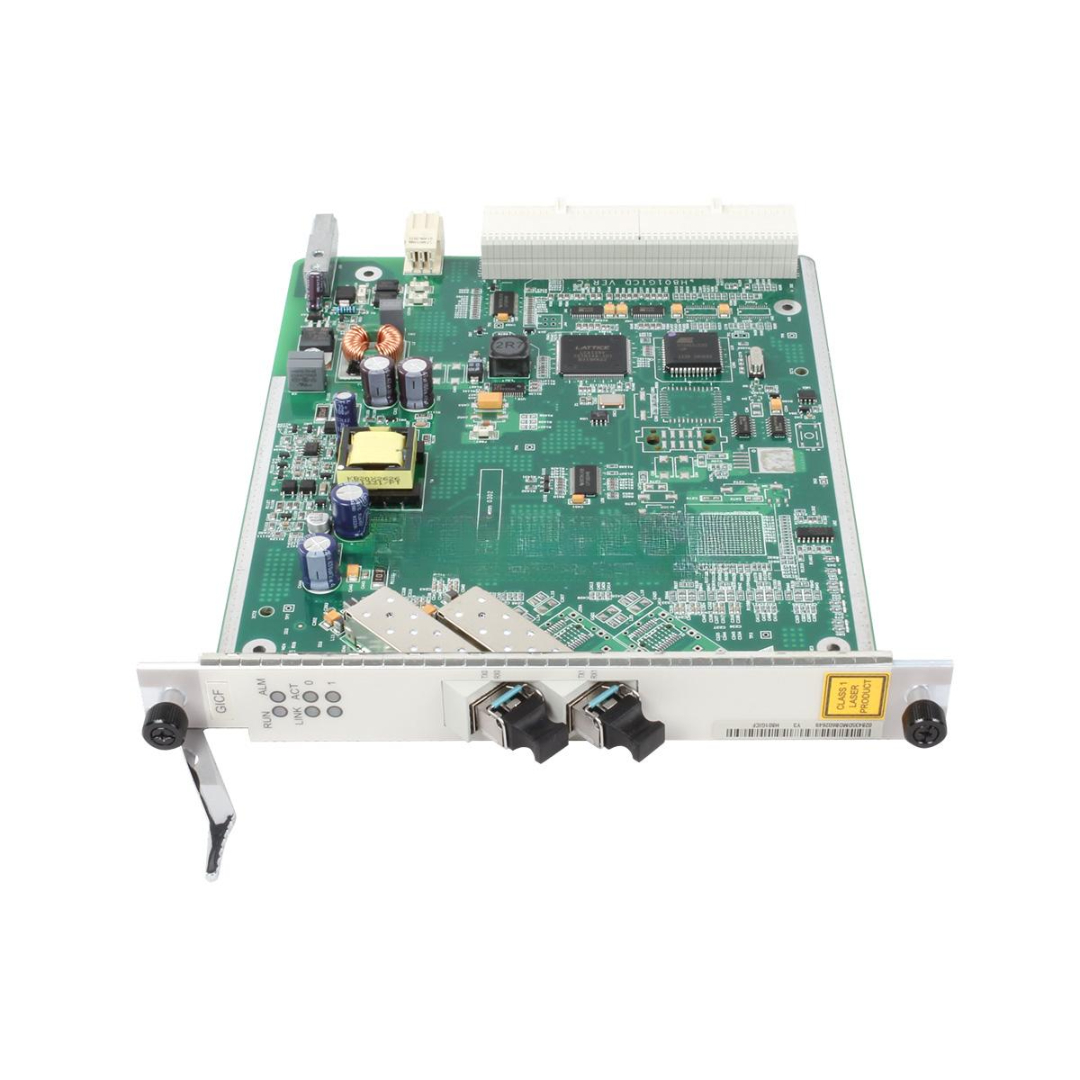

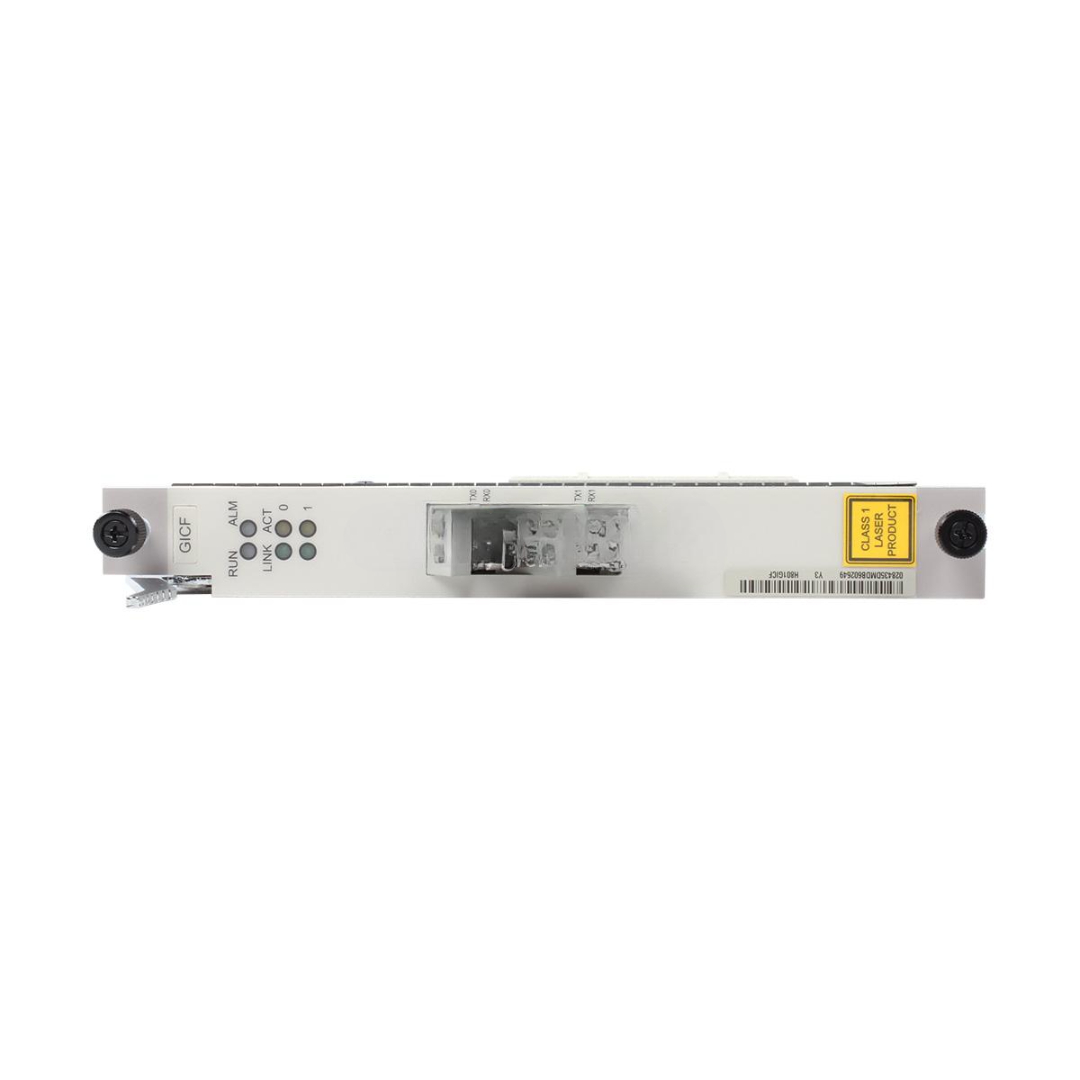

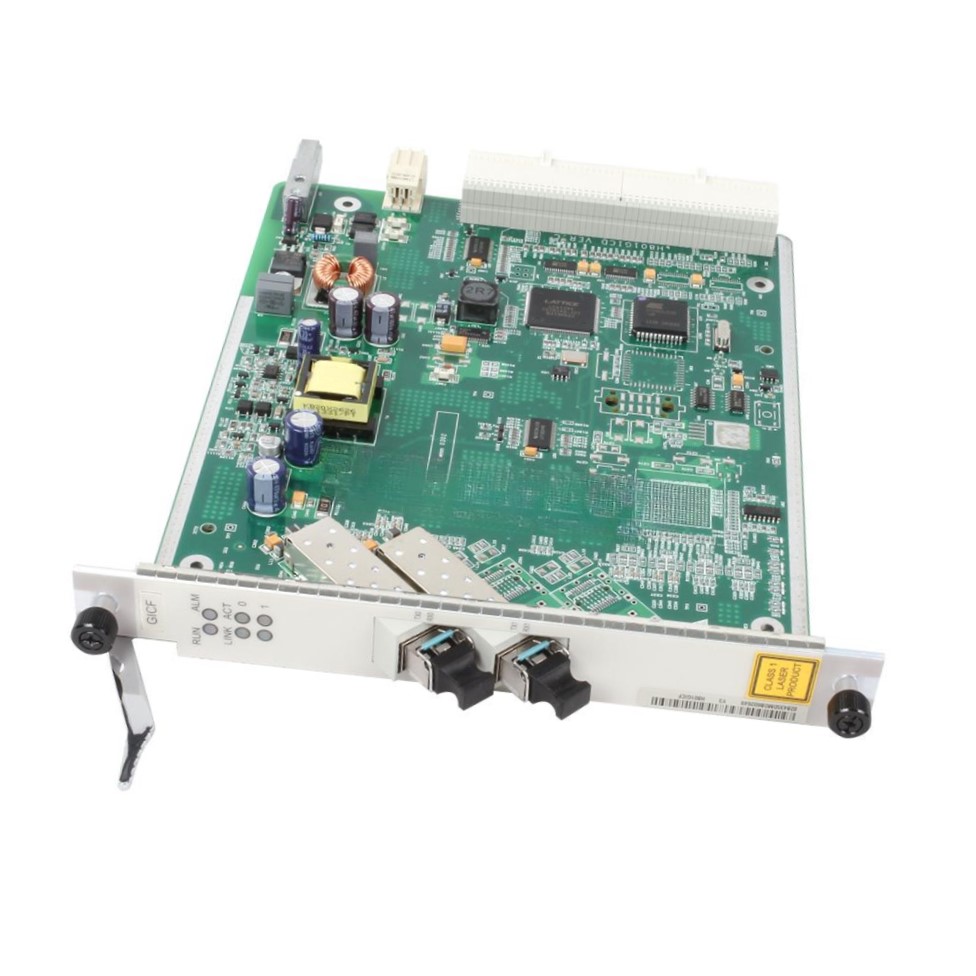

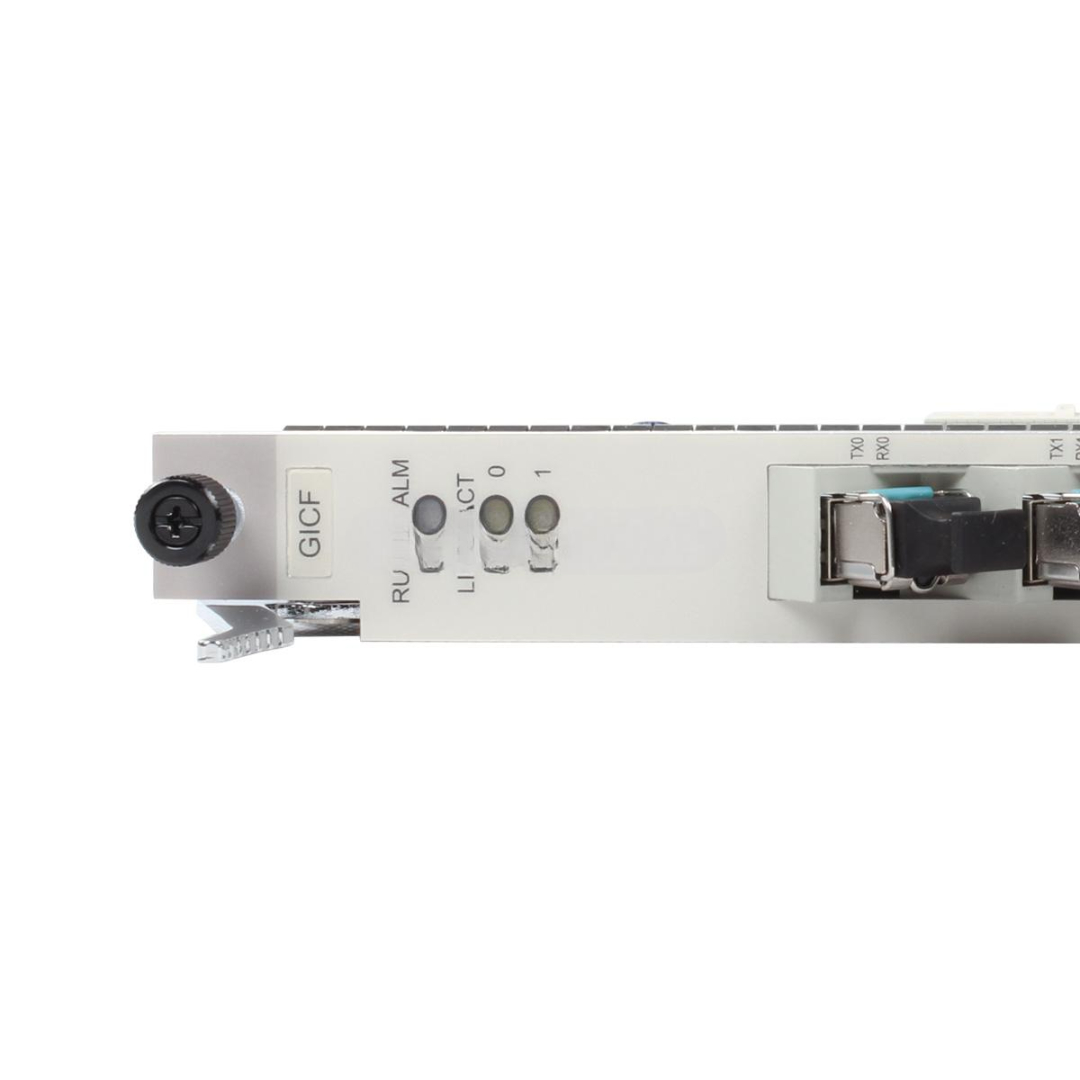

H801GICF Huawei Brand New 2-Port GE Optical Uplink Board
The H801GICF Huawei is a brand new 2-port GE (Gigabit Ethernet) optical uplink board developed for Huawei’s MA5600T and MA5680T series OLTs. It provides high-speed optical uplink capability, supporting seamless upstream data transmission in GPON-based access networks. With support for dual optical interfaces, the H801GICF enhances network redundancy, flexibility, and reliability, making it ideal for FTTH and FTTB deployments.
Key Features
-
Model: H801GICF
-
Condition: 100% Brand New, Original Huawei
-
Port Type: 2 × GE SFP optical ports
-
Interface Type: SFP-based optical modules (Hot-pluggable)
-
Data Rate: 1.25 Gbps per port
-
Mode Support: Single-mode and multi-mode fiber
-
Redundancy: Supports link aggregation and protection switching
-
Plug-and-Play: Hot-swappable with auto-detection
-
Compatibility: Fully compatible with MA5600T, MA5680T series OLT chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | H801GICF |
| Uplink Ports | 2 × GE optical SFP slots |
| Port Speed | 1.25 Gbps (per port) |
| Interface Type | SFP (supports 1000BASE-X) |
| Fiber Type | Single-mode or multi-mode |
| Wavelength | Dependent on SFP module (e.g., 1310 nm or 1550 nm) |
| Max Distance | Up to 10–40 km (based on optics) |
| Standards Compliance | IEEE 802.3z, ITU-T G.984 |
| Traffic Types | Voice, Data, IPTV, and TDM over IP |
| Power Consumption | ≤ 10W |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% – 95%, non-condensing |
| Chassis Support | MA5600T / MA5680T series |
H801GICF Huawei Applications
-
GPON Uplink Expansion – Reliable high-speed connection to backbone network
-
FTTH/FTTB Access Aggregation – Data uplink in multi-service environments
-
Redundant Optical Uplinks – Ensures failover and improved SLA performance
-
Enterprise and Campus Access – Secure and scalable gigabit networking
Customization & OEM Services
-
SFP Module Options – Choose from SM/MM, short/long range optics
-
Label Customization – Company branding and barcoding available
-
Pre-Provisioning – VLAN, QoS, and IP configurations preloaded
-
Deployment Packages – Can include patch cords and pigtails
-
Extended Testing – Pre-dispatch burn-in testing available
H801GICF Huawei Wholesale & Global Supply Chain
-
Original Huawei Factory Product
-
Ready Stock for Large Volume Orders
-
Fast Worldwide Shipping with Export Documentation
-
COO, CE, RoHS Certificates Available
-
Technical Consulting and Support
Why Choose the H801GICF Huawei
-
Dual GE Optical Ports – Ensures fast and redundant uplink paths
-
Interoperability – Seamlessly integrates into existing Huawei OLT networks
-
Compact and Efficient – High-speed connectivity with low power draw
-
Carrier-Grade Quality – Built to meet the demands of telecom-grade networks
-
Flexible Deployment – Compatible with various fiber topologies
Contact Us
Upgrade your OLT uplink capacity with the Huawei H801GICF 2-Port GE Optical Uplink Board – the smart choice for scalable, high-speed, and reliable fiber network expansion.
