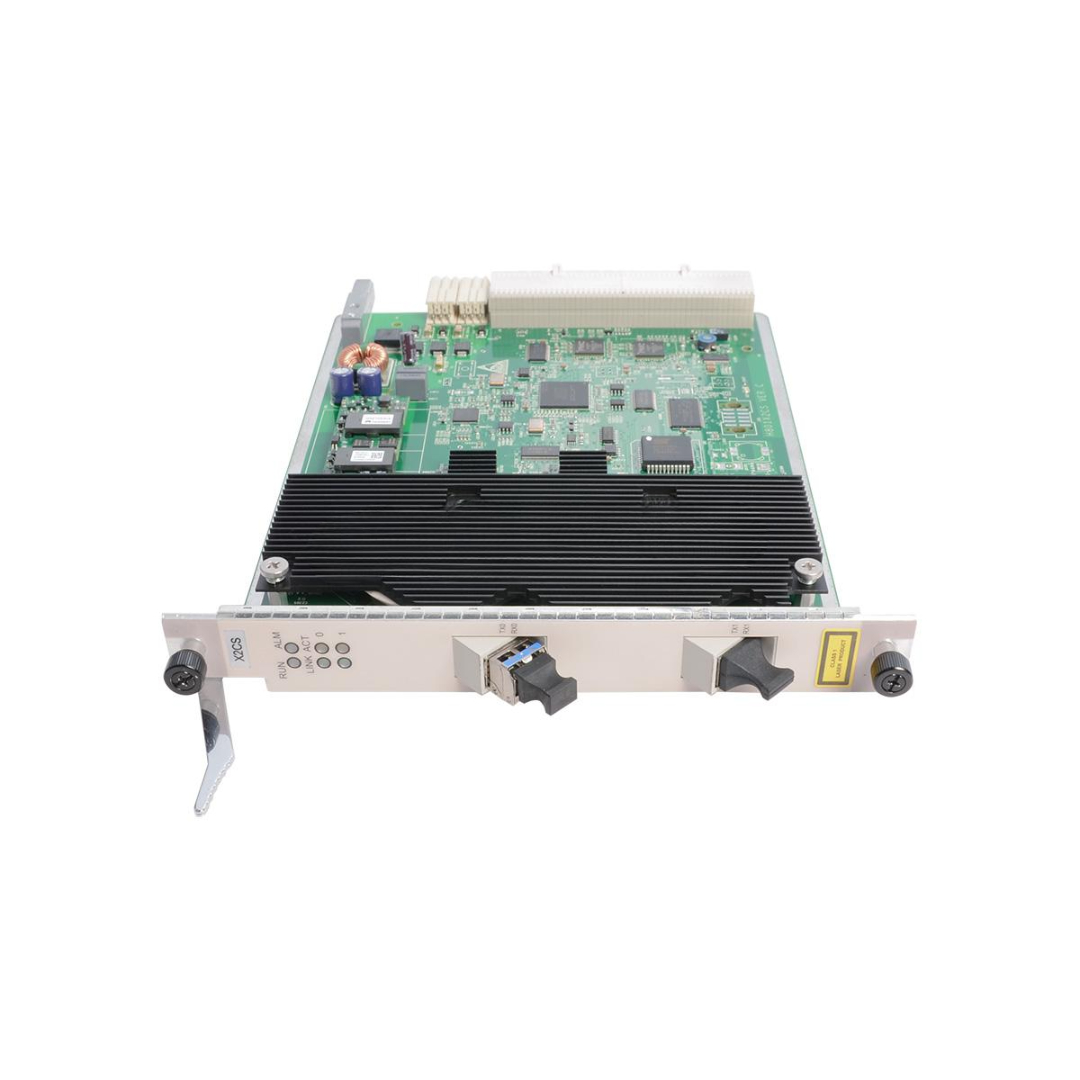

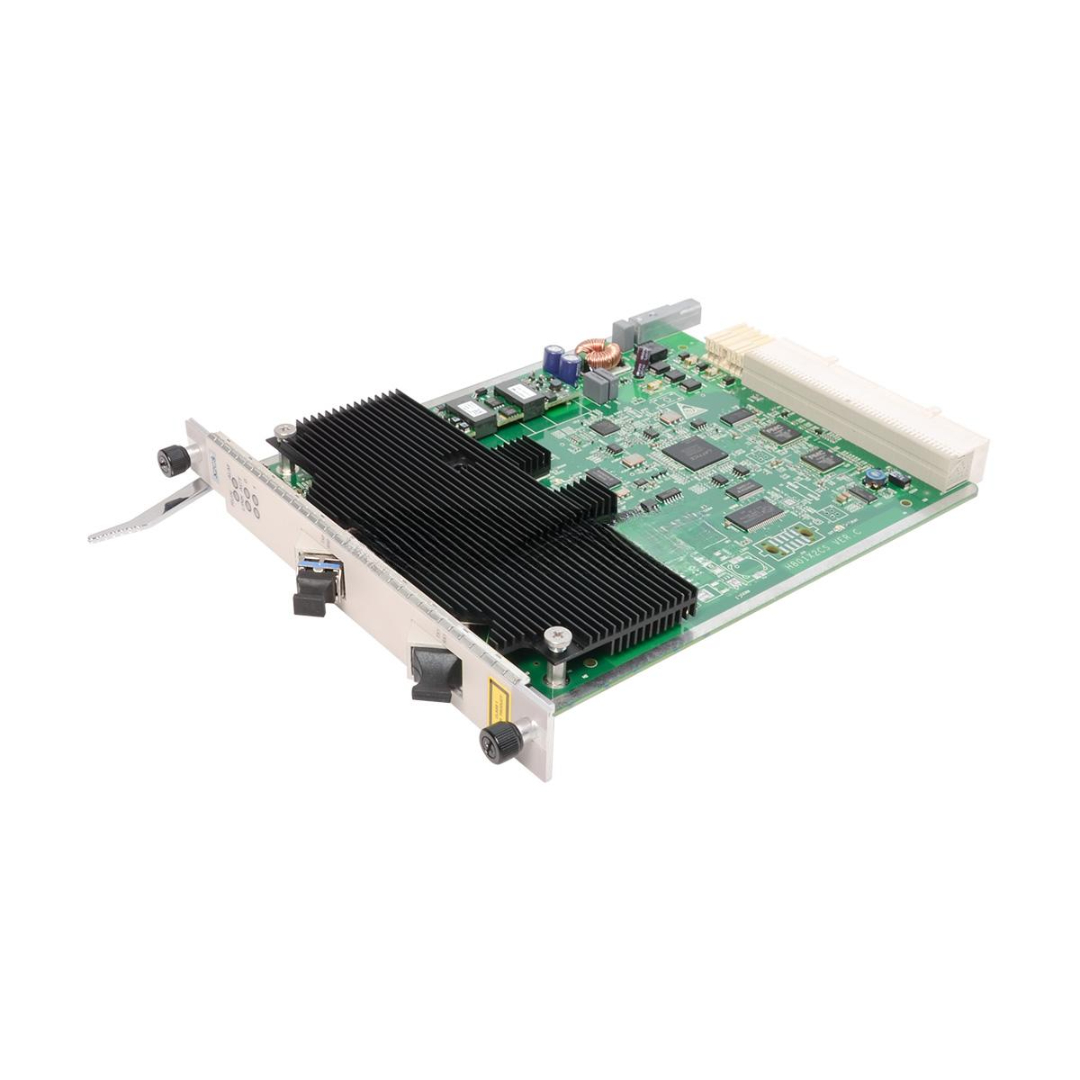

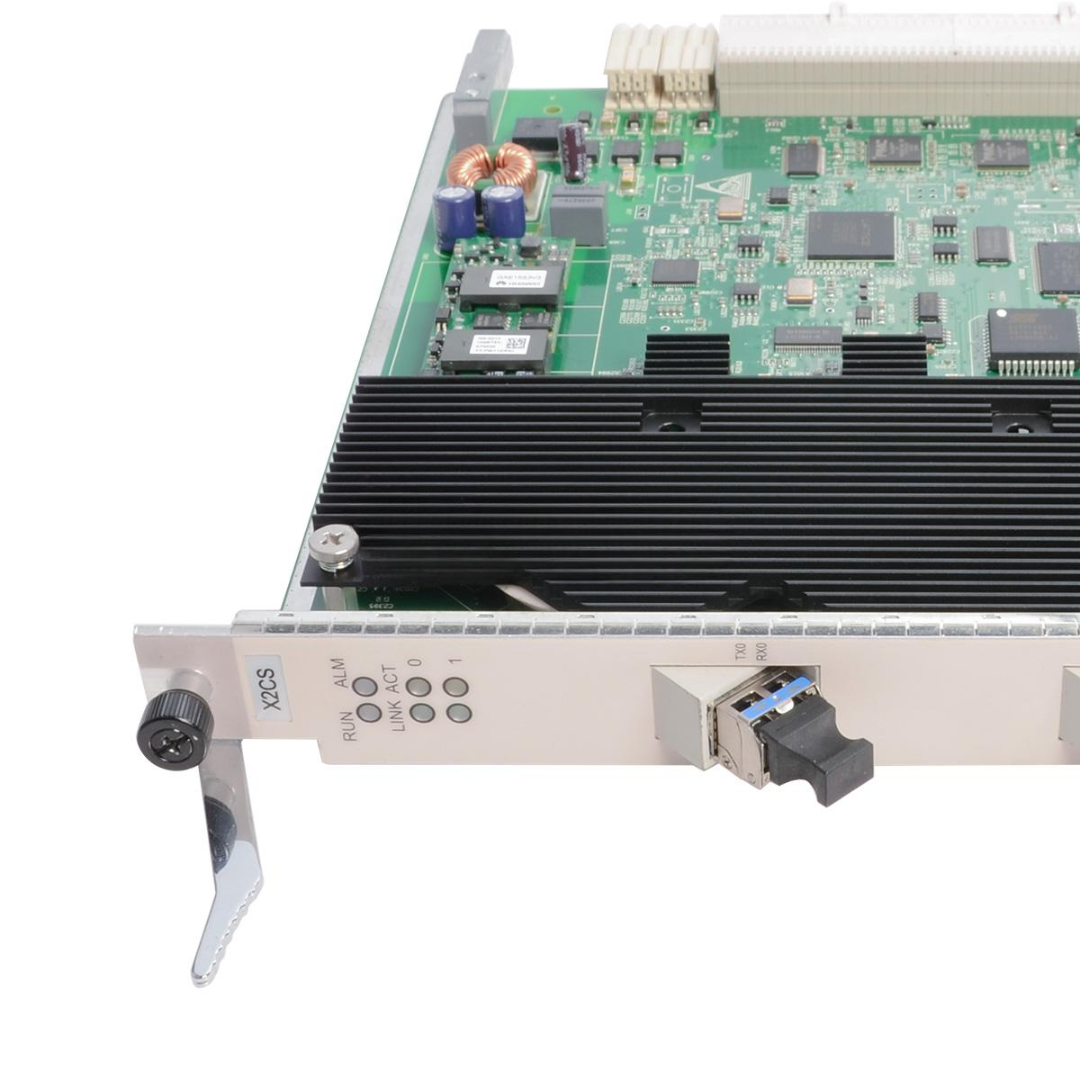

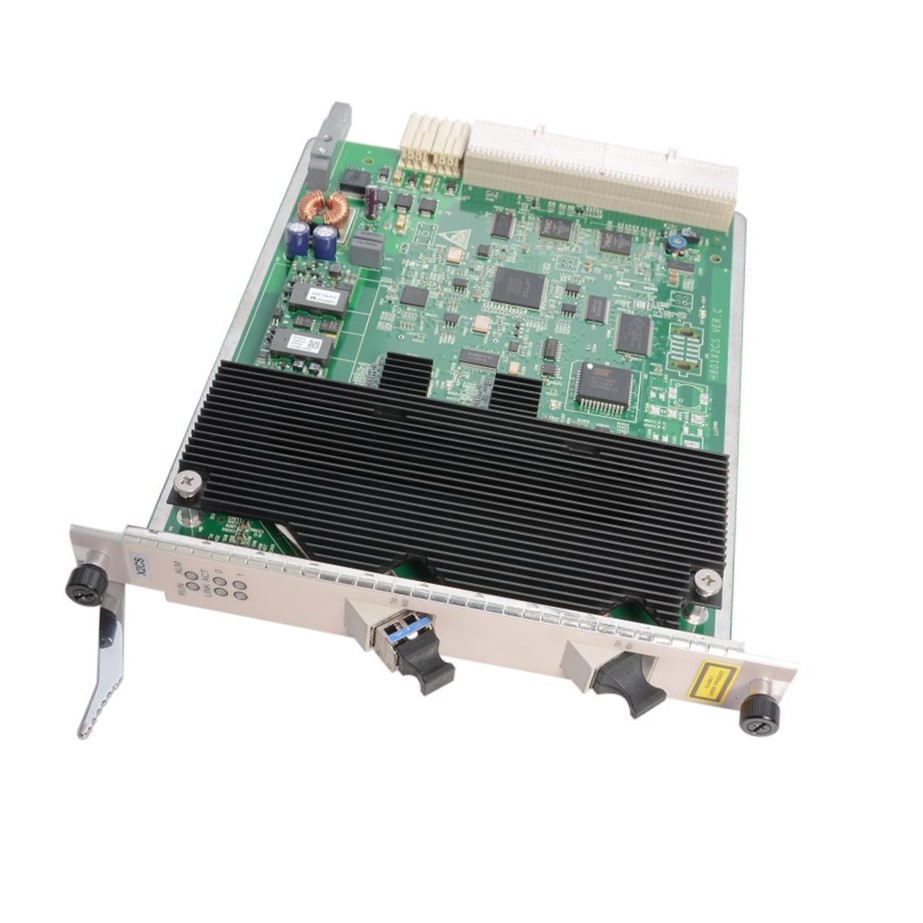

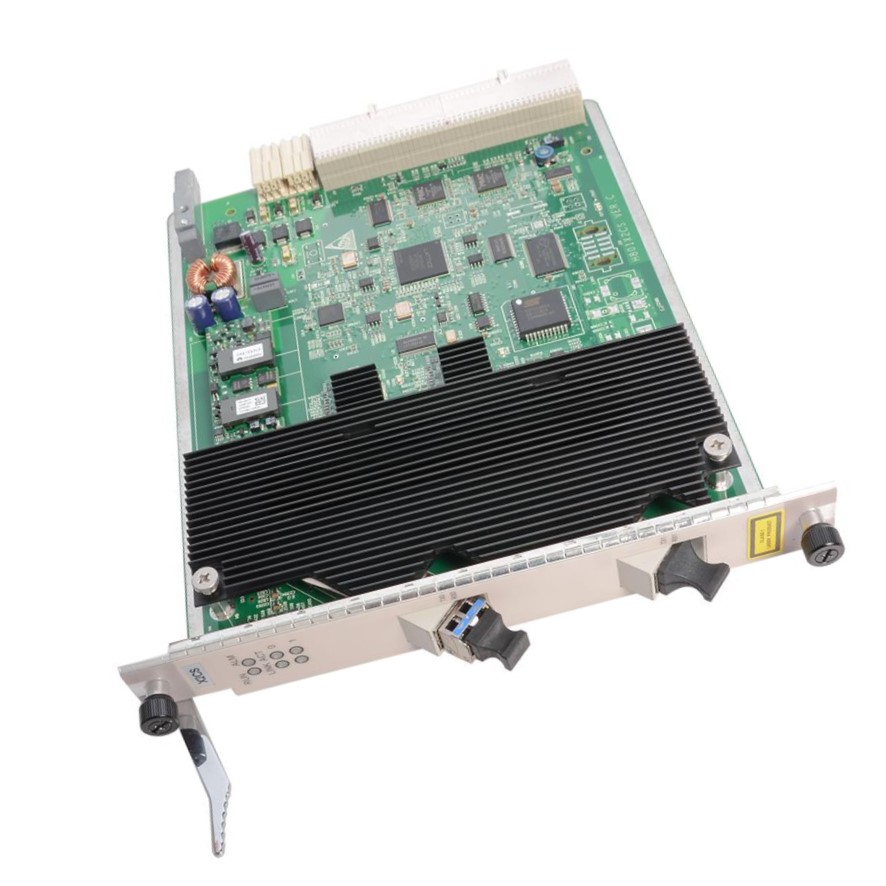

H801X2CS Huawei High Quality 2-Port 10GE Optical Uplink Board
The H801X2CS Huawei is a high-performance 2-port 10GE optical uplink board designed for Huawei’s MA5600T and MA5680T series OLT platforms. It provides high-speed, stable uplink transmission using 10 Gigabit Ethernet interfaces via SFP+ optical modules. Ideal for carrier-grade FTTH networks, the H801X2CS ensures large bandwidth aggregation, efficient service transmission, and network scalability.
Key Features
-
Model: H801X2CS
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 2 × 10GE SFP+ Optical Ports
-
Interface Type: Optical, compatible with various SFP+ modules
-
High Bandwidth: Supports up to 20 Gbps full-duplex uplink
-
Service Support: High-speed data, IPTV, voice, video conferencing
-
Compatibility: Fully compatible with MA5600T, MA5680T OLT series
-
Hot-Swappable: Supports online insertion and removal
Technical Specifications
| Specification | Details |
|---|---|
| Model | H801X2CS |
| Port Type | 2 × 10GE Optical Ports |
| Connector Type | LC (via SFP+ modules) |
| Transmission Rate | 10.3125 Gbps per port |
| Wavelength | Depends on SFP+ module (e.g., 1310 nm, 1550 nm) |
| Transmission Distance | Up to 80 km (depends on optics) |
| Fiber Type | Single-mode (default), multimode supported |
| Standards Compliance | IEEE 802.3ae, ITU-T G.984 |
| Hot-Swappable | Yes |
| Power Consumption | ≤ 30W |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% to 95%, non-condensing |
| Supported Chassis | MA5600T / MA5680T |
H801X2CS Huawei Applications
-
10G Uplink for GPON Networks – Connects OLT to aggregation/core switch
-
IPTV & Triple Play Services – High-speed data + video delivery
-
Enterprise/Carrier Backhaul – Reliable, low-latency uplink to central office
-
Smart City / Surveillance – High-bandwidth video and data transfer
-
Scalable FTTH/FTTB – Supports dense and growing fiber access networks
Customization & OEM Options
-
SFP+ Module Options – 10G LR, ER, SR or CWDM/DWDM modules on request
-
Preconfigured VLANs – Pre-loaded settings for plug-and-play deployment
-
Private Labeling – OEM branding, barcoding, and labeling options
-
Extended Testing – Optional burn-in testing for mission-critical use
H801X2CS Huawei Wholesale & Global Supply
-
100% Original Huawei Equipment
-
Bulk Stock for ISPs and Integrators
-
Secure Packaging & Fast Shipping Worldwide
-
Export-Compliant with Customs Documentation
-
Integration Support Available
Why Choose the H801X2CS Huawei
-
Dual 10GE Ports – High-speed uplink for growing data demands
-
Flexible Optical Module Support – Adaptable to various deployment distances
-
Hot-Swappable Design – No downtime during maintenance or upgrade
-
Carrier-Class Performance – Built for 99.999% network availability
-
Huawei Trusted Quality – Proven in global large-scale deployments
Contact Us Today
Upgrade your OLT uplink capability with the Huawei H801X2CS 2-Port 10GE Optical Uplink Board — an ideal solution for next-generation fiber access networks, enterprise services, and ultra-broadband deployments.
