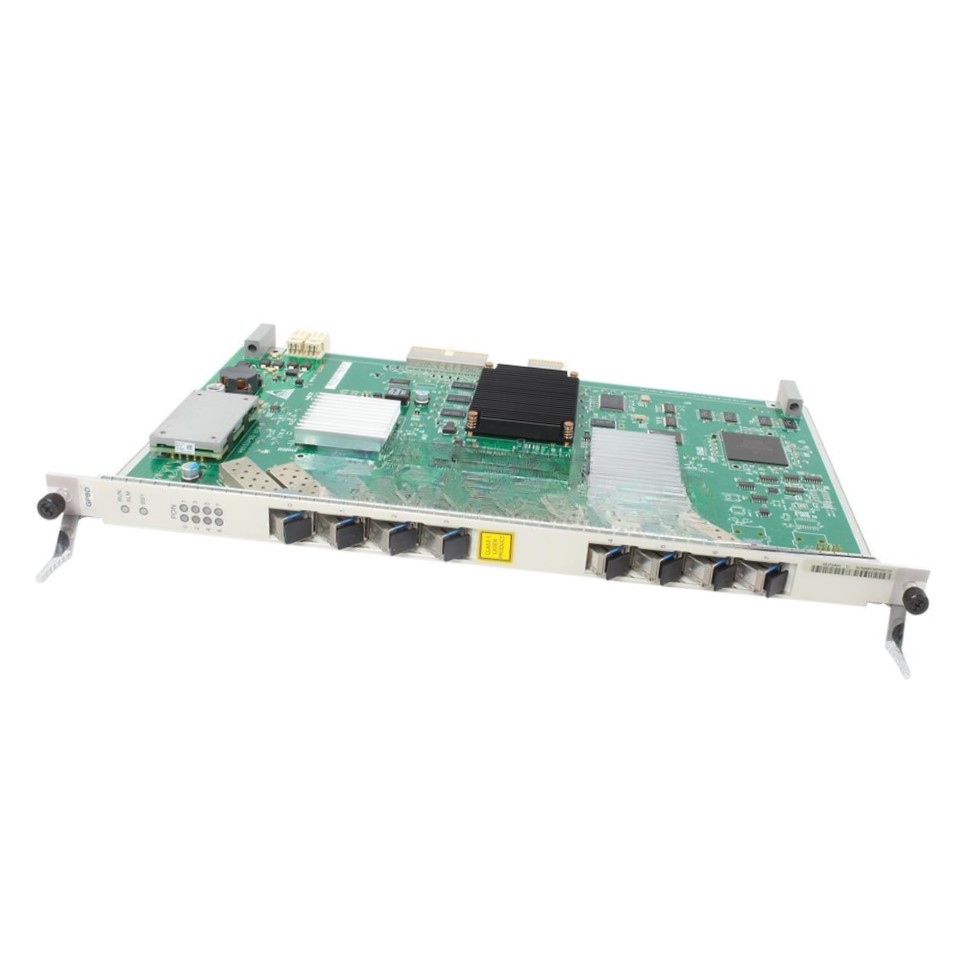

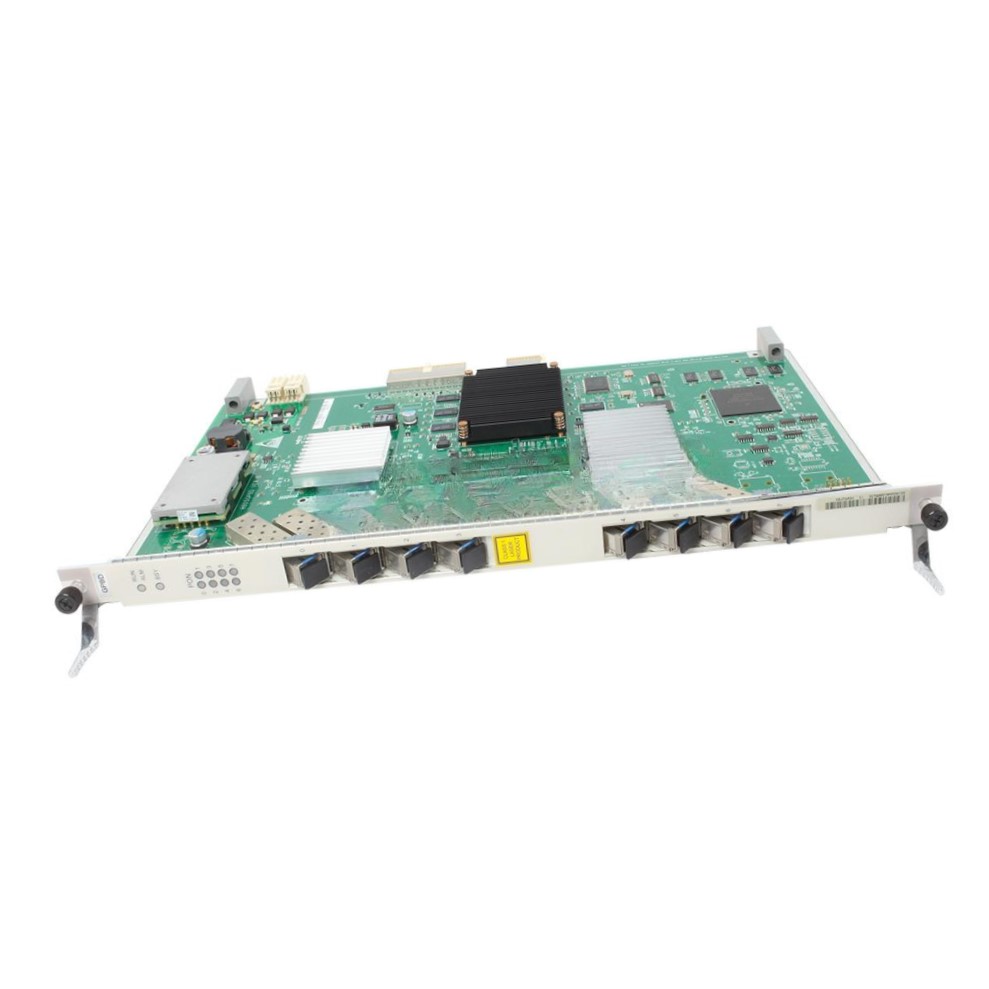

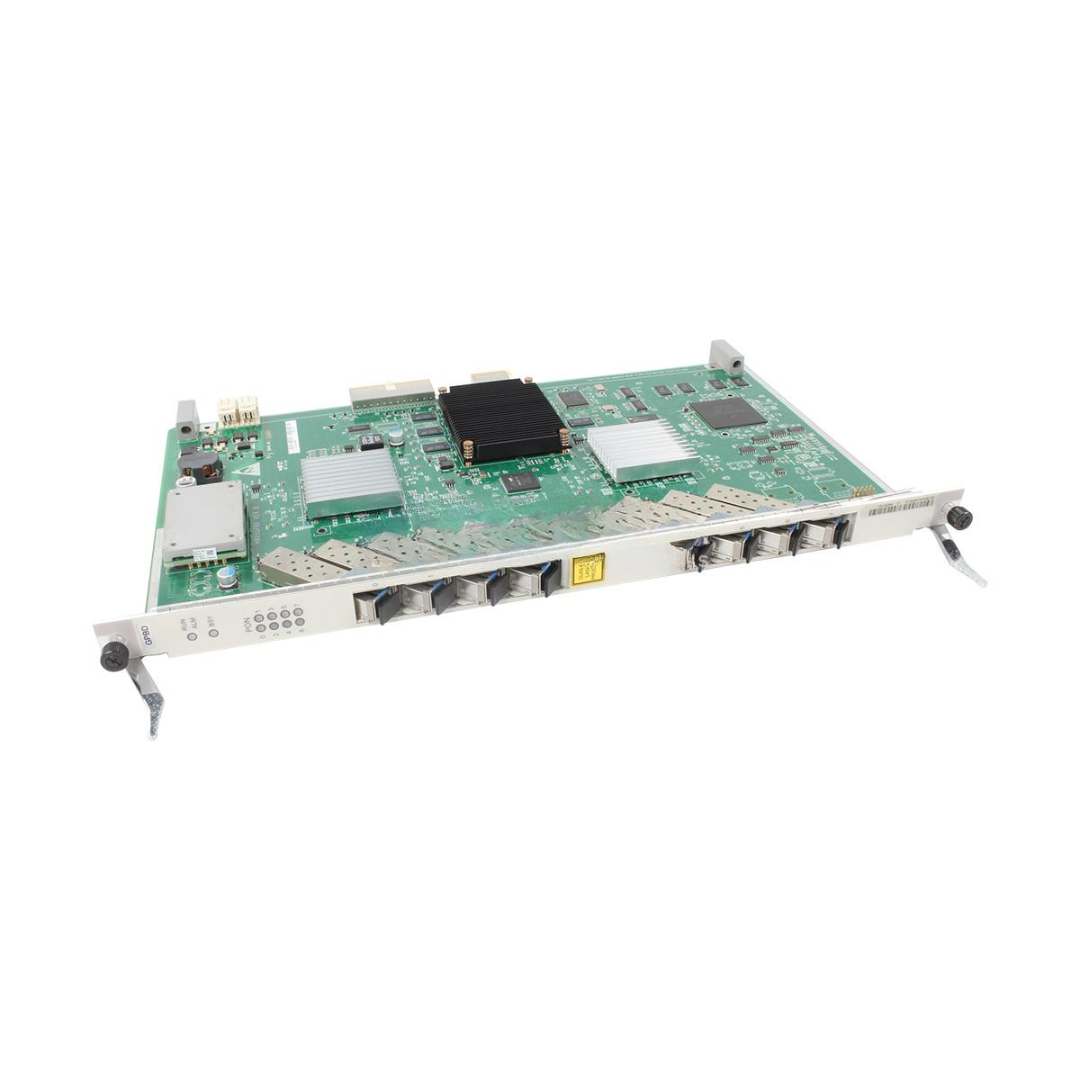

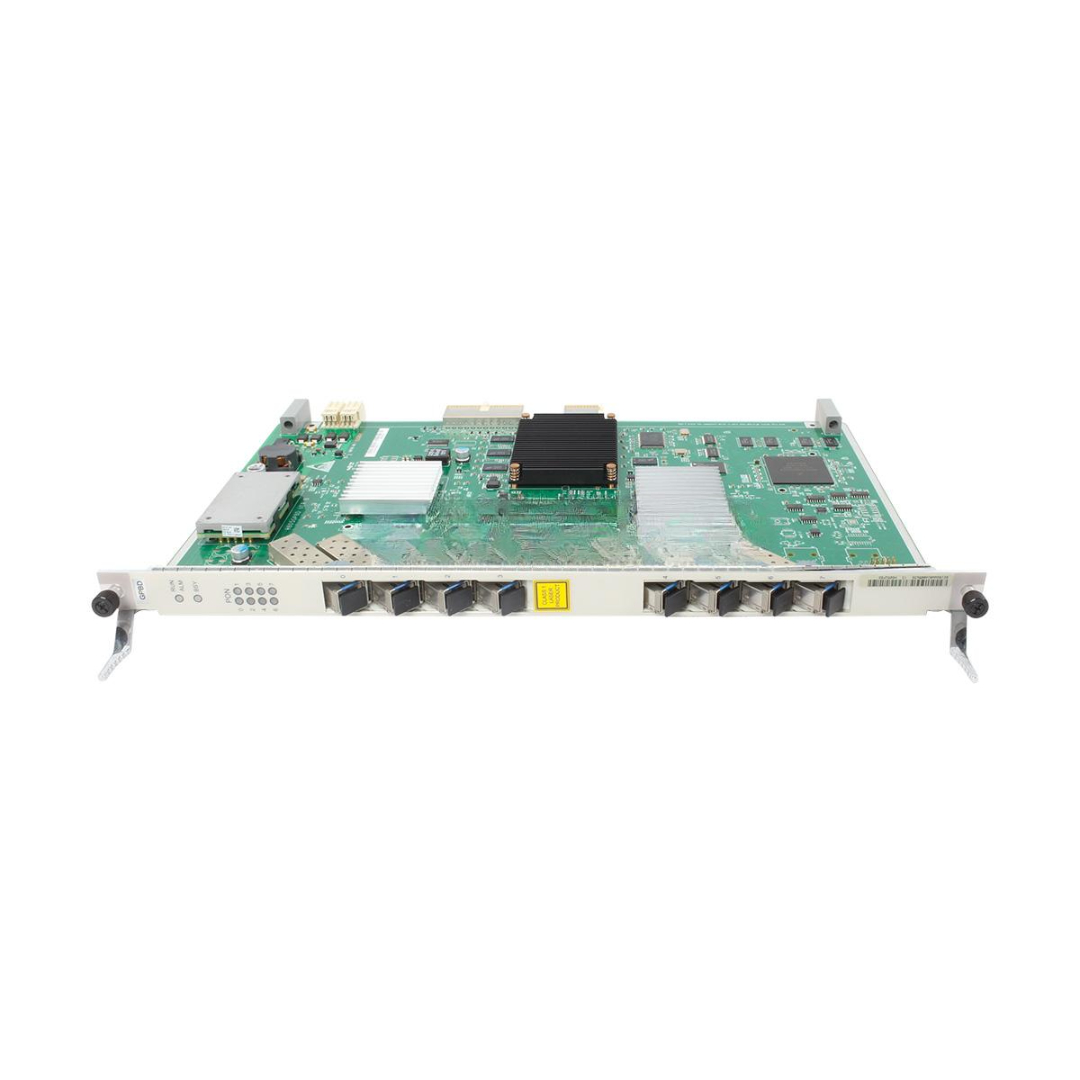

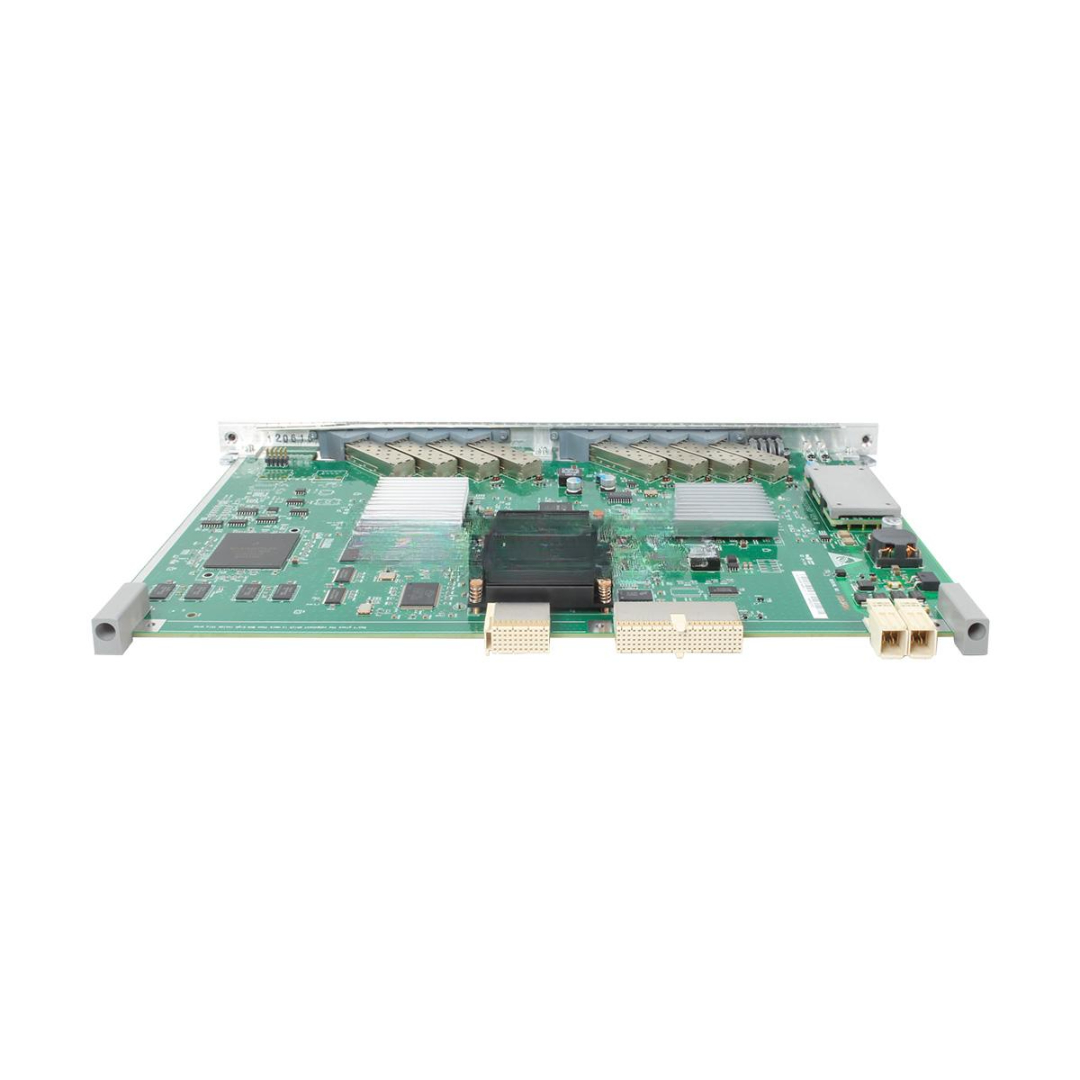

H802GPBD C+ Huawei Brand New 8-Port GPON OLT Interface Board
The H802GPBD C+ Huawei is a brand new, high-efficiency 8-port GPON OLT interface board designed for integration with Huawei’s MA5600T and MA5800 series OLT platforms. Built with C+ class optical modules, it ensures dependable performance, long-distance transmission, and high port utilization — making it ideal for FTTH, FTTB, and FTTx deployments in residential and commercial environments.
Key Features
-
Model: H802GPBD C+
-
Condition: 100% Brand New, Original Huawei
-
Ports: 8 GPON ports with C+ class optical transceivers
-
Split Ratio: Supports up to 1:128 split per port
-
Downstream Rate: 2.488 Gbit/s
-
Upstream Rate: 1.244 Gbit/s
-
Connector Type: SC/UPC for each GPON port
-
Transmission Distance: Up to 20 km with C+ optics
-
Hot-Swappable: Yes — seamless replacement without powering down the chassis
-
OLT Compatibility: Fully compatible with MA5600T and MA5800 (X2, X7, X15, X17)
Technical Specifications
| Specification | Details |
|---|---|
| Board Name | H802GPBD |
| Port Quantity | 8 GPON Ports |
| Optical Class | C+ |
| Max Splitting Ratio | 1:128 per port |
| Transmission Distance | Up to 20 km |
| Downstream Bandwidth | 2.488 Gbit/s |
| Upstream Bandwidth | 1.244 Gbit/s |
| Wavelengths | Tx: 1490 nm / Rx: 1310 nm |
| Power Consumption | ≤ 19W (typical full load) |
| Operating Temperature | -25°C to +65°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Supported Protocols | ITU-T G.984.2, G.984.3, G.984.4 |
| Compliance | OMCI, DBA, SNMP, TR069, CLI |
| Warranty | 1–3 Years Manufacturer Warranty |
H802GPBD C+ Huawei Applications
-
FTTH (Fiber to the Home) — Efficient broadband delivery for residential users
-
FTTB/FTTC Deployments — Multi-dwelling unit access and curbside connectivity
-
Municipal & Campus Networks — Public networks and smart campus backbones
-
Enterprise Fiber Access — Low-latency, high-speed access for offices and industrial areas
-
Triple Play Services — Supports Internet, IPTV, and VoIP on a single GPON line
Customization & OEM Options
-
Optical Class Options — Available in B+, C+, or C++ based on range requirements
-
Preloaded Configuration — Custom port mappings, VLANs, and ONT templates
-
Private Branding — Logo printing and packaging customization available
-
Accessory Bundles — Can be shipped with SC patch cords, SFP modules, or fiber splitters
-
Functional Testing — Pre-shipment burn-in tests for high-reliability deployments
H802GPBD C+ Huawei Wholesale & Global Procurement
-
Huawei OEM Inventory — Direct factory sourcing with complete traceability
-
Bulk Availability — Large-volume supply for operators and project rollouts
-
Worldwide Delivery — Shipped with anti-static, shockproof packaging
-
Documentation Included — Datasheets, configuration guides, and XML templates
-
Technical Assistance — Integration support for CLI, U2000 NMS, and ONT onboarding
Why Choose H802GPBD C+ Huawei GPON OLT Interface Board
-
8-Port High-Efficiency Design — Supports 1024 ONTs (with 1:128 split)
-
C+ Optical Modules — Extended reach and enhanced optical power
-
Carrier-Grade Stability — Trusted by ISPs, telcos, and governments worldwide
-
Flexible Integration — Works seamlessly with all MA5800 and MA5600T systems
-
Energy-Efficient Build — Lower power usage per user connection
Contact Us Now for Bulk Pricing, Lead Time & Custom Supply
Power your GPON network with the Huawei H802GPBD C+ 8-Port OLT Interface Board — delivering stable, high-capacity fiber access for next-generation broadband services.
