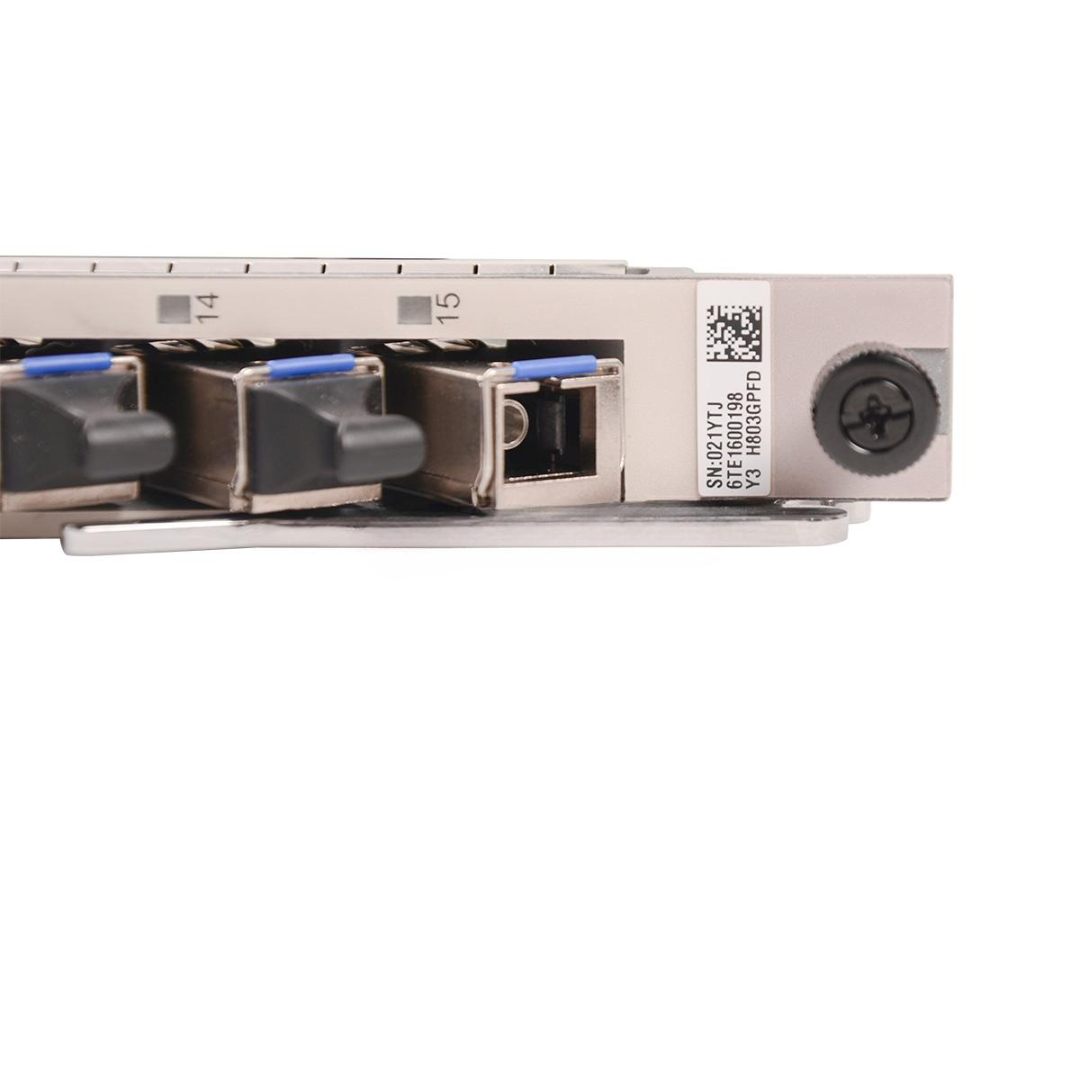

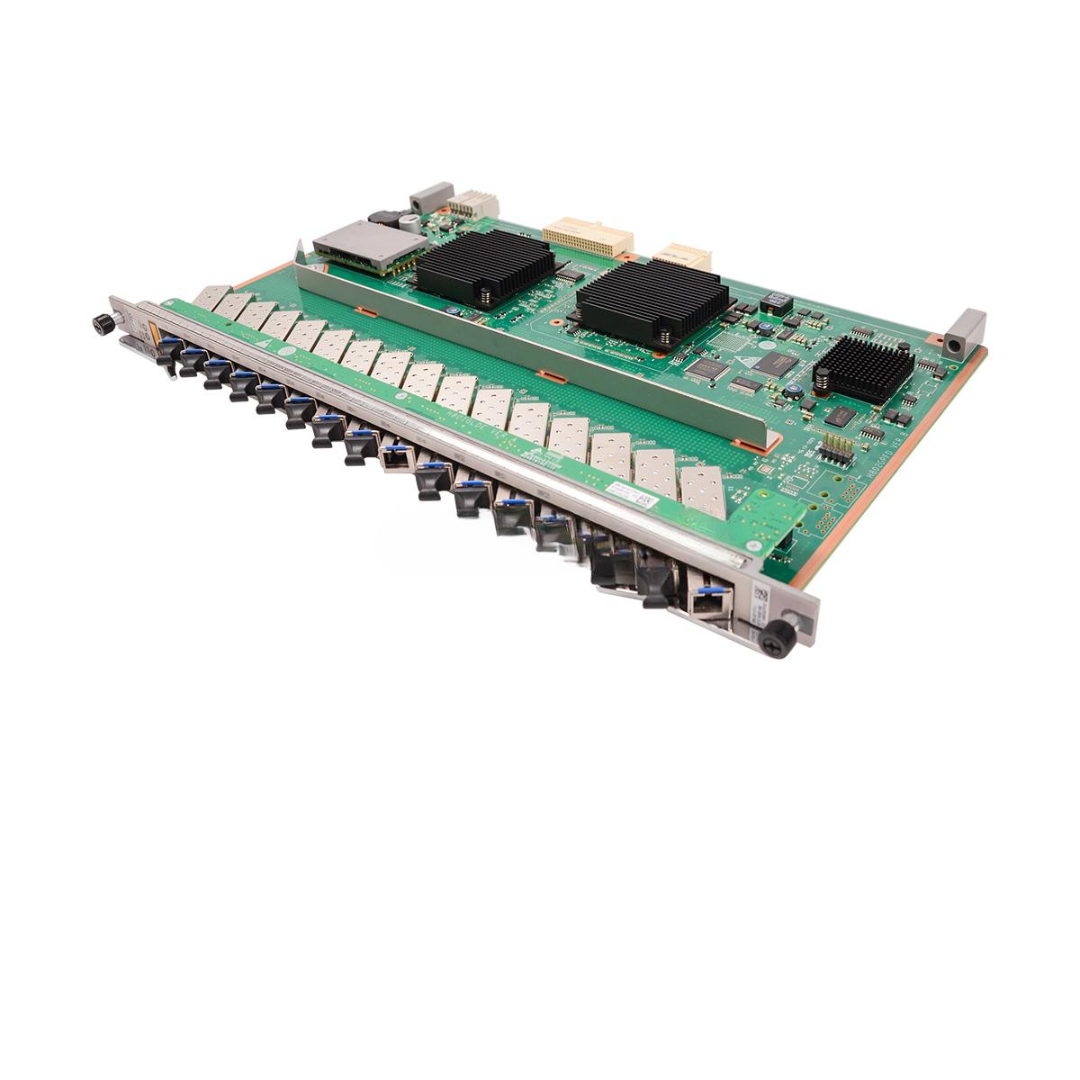

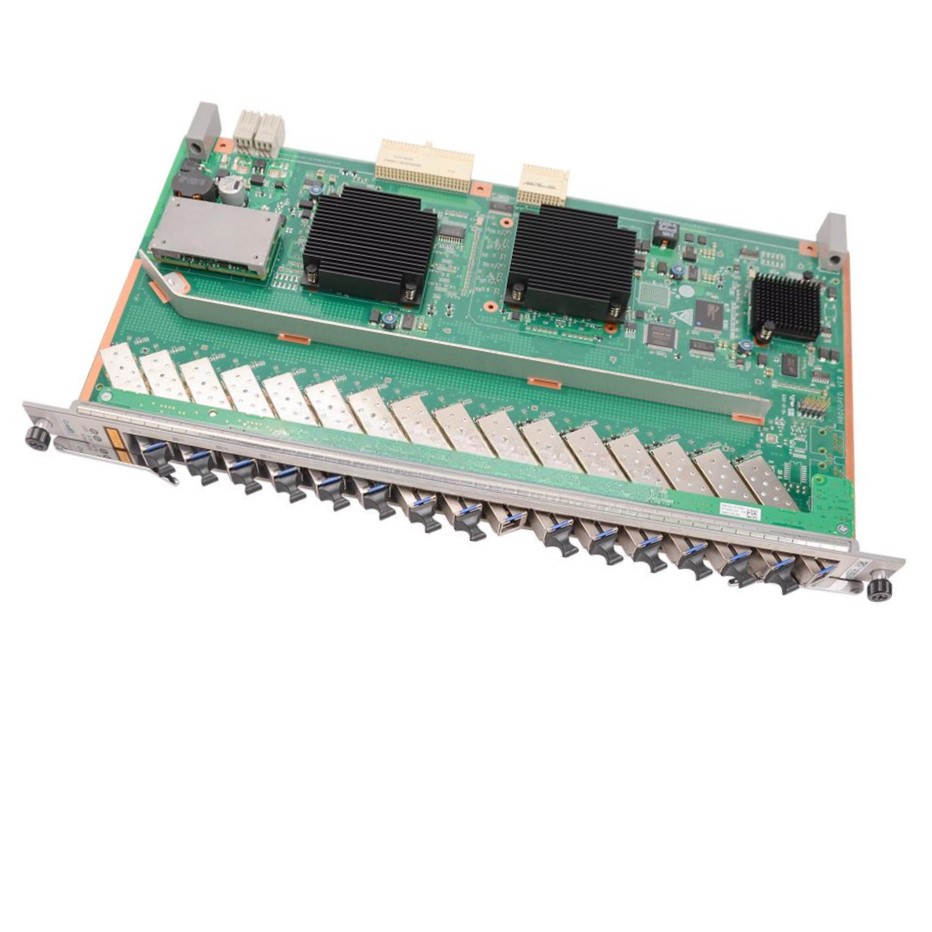

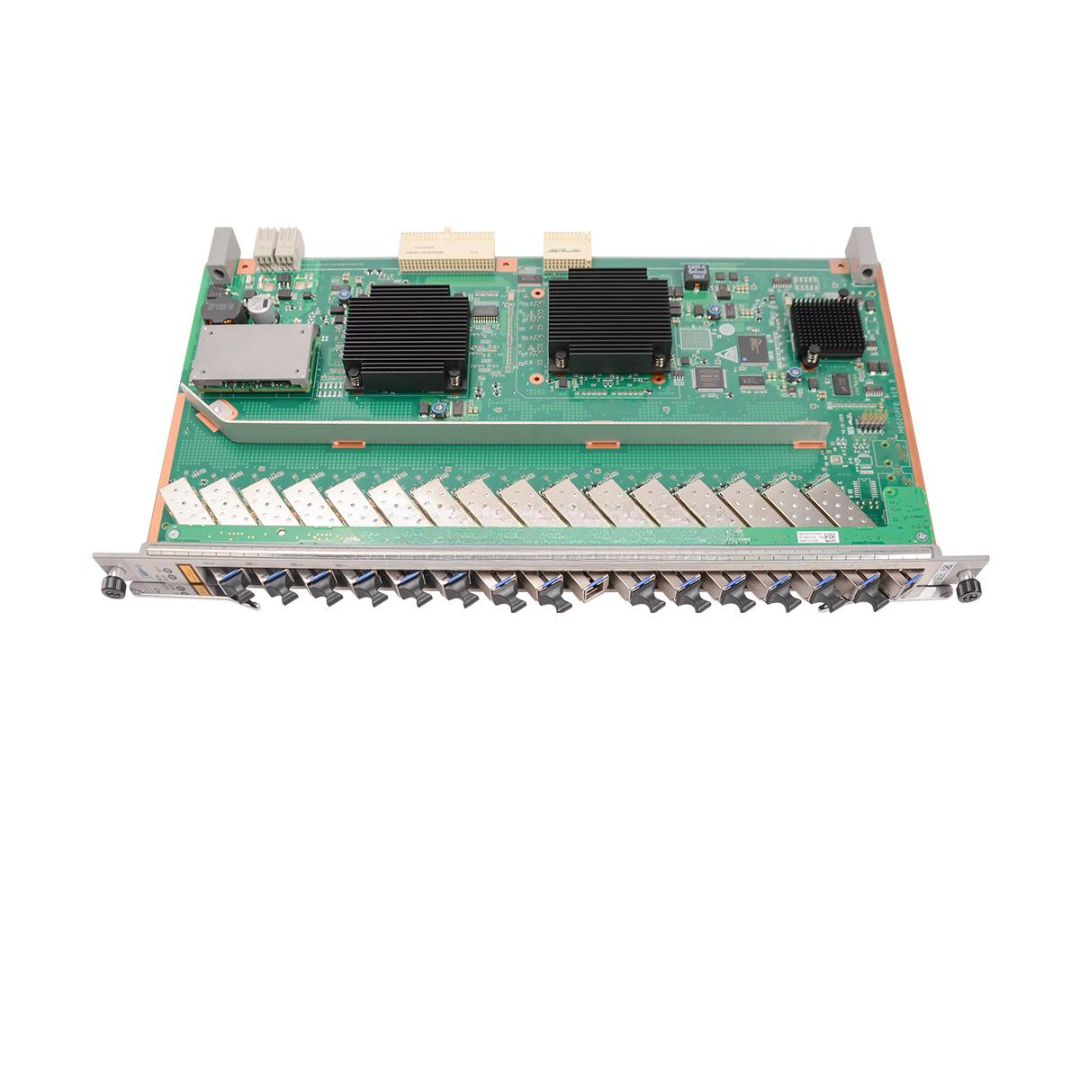

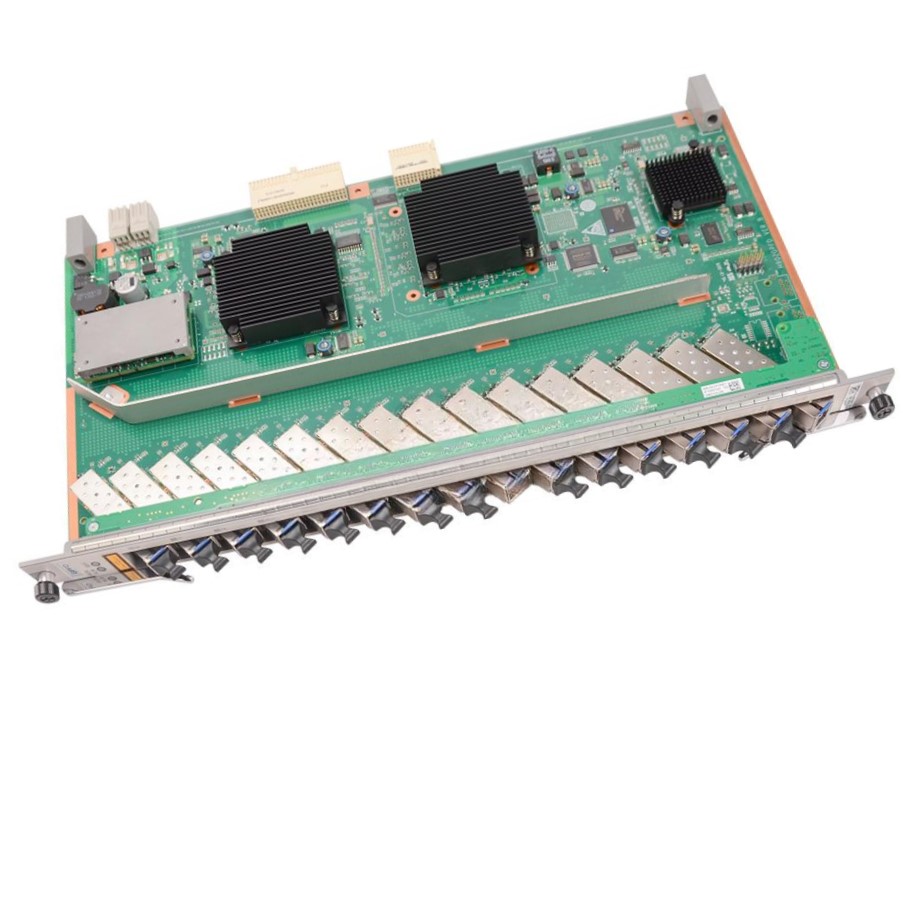

H802GPFD B+ Huawei Brand New OLT Interface Board with SFP Module
The H802GPFD B+ Huawei is a brand new 16-port GPON OLT interface board, engineered for use in Huawei’s MA5600T and MA5680T OLT platforms. Featuring Class B+ GPON SFP modules, this board delivers stable and scalable fiber access solutions for FTTH (Fiber to the Home), FTTB, and FTTC deployments. With high bandwidth, wide compatibility, and energy-efficient performance, it is an ideal solution for telecom operators and large-scale fiber networks.
Key Features
-
Model: H802GPFD B+
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 16 GPON Ports
-
SFP Type: Built-in Class B+ GPON Optical Modules
-
Downstream Data Rate: 2.488 Gbps
-
Upstream Data Rate: 1.244 Gbps
-
Max Split Ratio: 1:128 per port
-
Transmission Distance: Up to 20 km
-
Hot-Swappable Design: Enables quick replacement or upgrades
-
Compatibility: Huawei MA5600T, MA5680T chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | H802GPFD |
| Port Count | 16 GPON Ports |
| Optical Module Type | Class B+ GPON SFP |
| Wavelengths | Tx: 1490 nm, Rx: 1310 nm |
| Transmission Distance | Up to 20 km |
| Tx Optical Power | +1.5 dBm to +5 dBm |
| Receiver Sensitivity | -28 dBm |
| Max Split Ratio | 1:128 |
| Protocols Supported | ITU-T G.984.1–4, AES, OMCI, DBA |
| Fiber Type | Single-mode, SC/UPC or SC/APC |
| Power Consumption | ≤ 45W (typical) |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5%–95%, non-condensing |
| Warranty | 1–3 Years Manufacturer Warranty |
H802GPFD B+ Huawei Applications
-
FTTH Access – High-speed, last-mile fiber service for residential zones
-
FTTB/FTTC Deployments – Reliable broadband for apartments and business parks
-
Enterprise Networks – Optical infrastructure for large organizations
-
Service Provider Backbones – Scalable OLT board for expanding fiber coverage
-
Municipal and Campus Networks – Efficient broadband for government, education, and smart city projects
Customization & OEM Options
-
Custom Branding – Company logo and part number labeling
-
Pre-configured Settings – ONT templates, service profiles, VLAN setups
-
Alternative Optics – Option to upgrade to Class C+/C++ or Combo PON modules
-
Integration Kits – Bundled with fiber patch cords, pigtails, trays, and panels
-
Special QA Testing – Optional extended test for harsh environment deployments
H802GPFD B+ Huawei Wholesale & Global Supply
-
Original Huawei Product – Direct OEM stock with sealed packaging
-
Bulk Availability – Suitable for national rollouts and ISP projects
-
Secure Packaging – Static-protected and export-grade boxes
-
International Delivery – Shipping compliant with lithium and optical module regulations
-
Expert Tech Support – For onboarding, provisioning, and troubleshooting
Why Choose the H802GPFD B+ Huawei
-
Reliable 16-Port GPON Access – Ideal for high-density fiber deployments
-
Class B+ SFP Optics – Balanced performance for urban and suburban areas
-
Huawei Carrier-Grade Quality – Trusted worldwide for network stability
-
Wide Compatibility – Seamless integration with Huawei’s OLT platforms
-
Efficient & Scalable – Supports high split ratios and long distances
Request a Quote or Technical Datasheet
Boost your fiber access network with the Huawei H802GPFD B+ OLT Interface Board — a trusted and efficient solution for next-gen broadband services.
