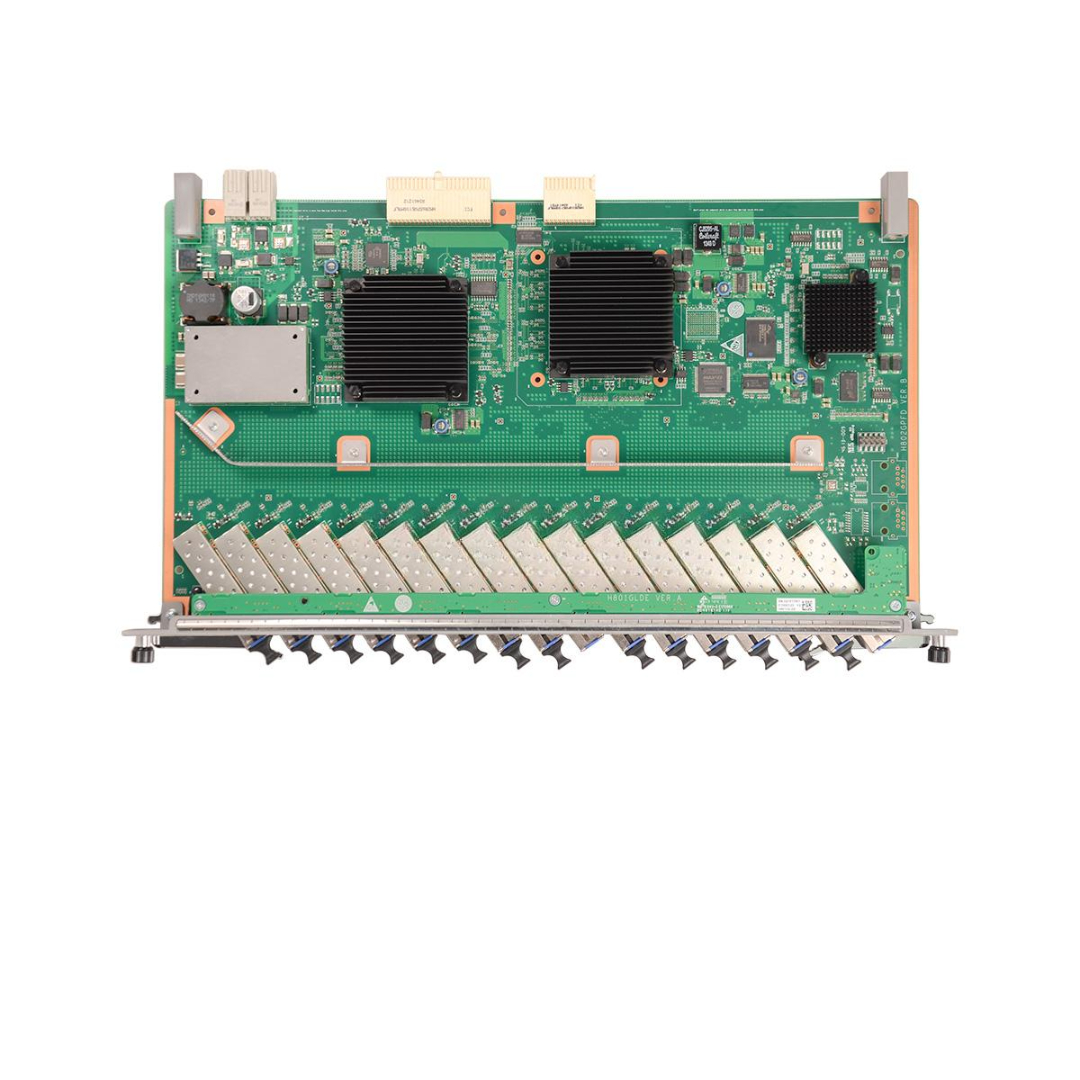

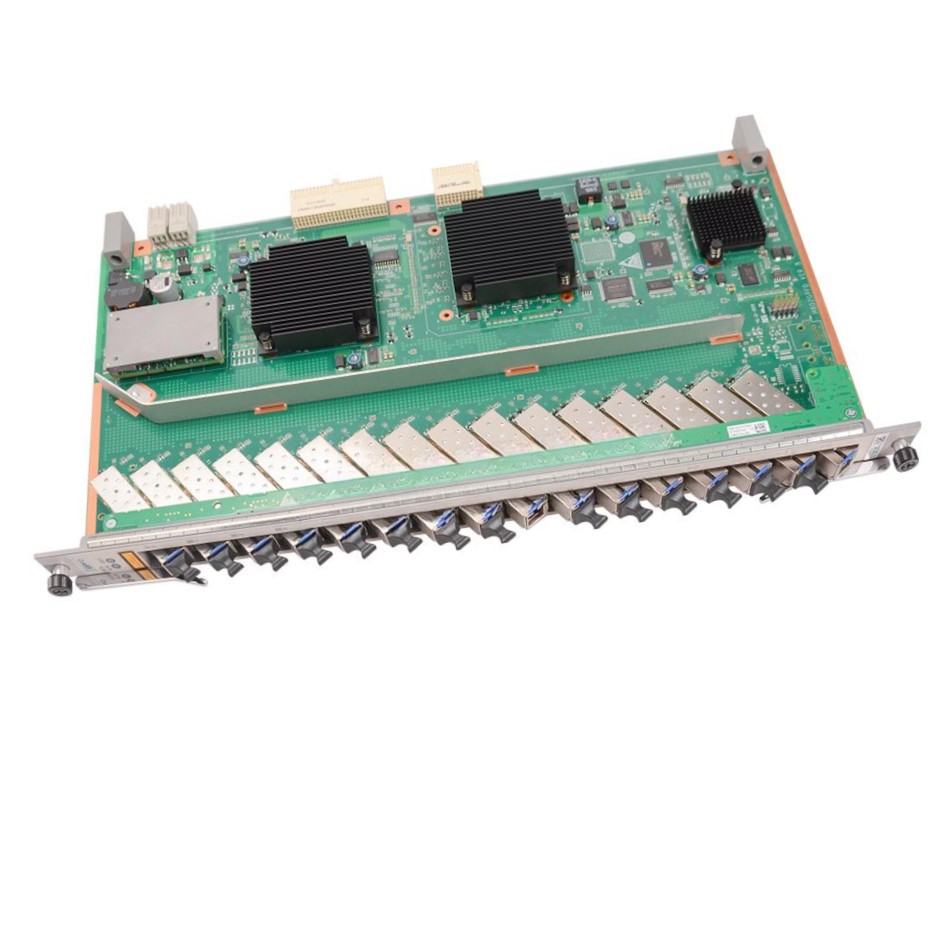

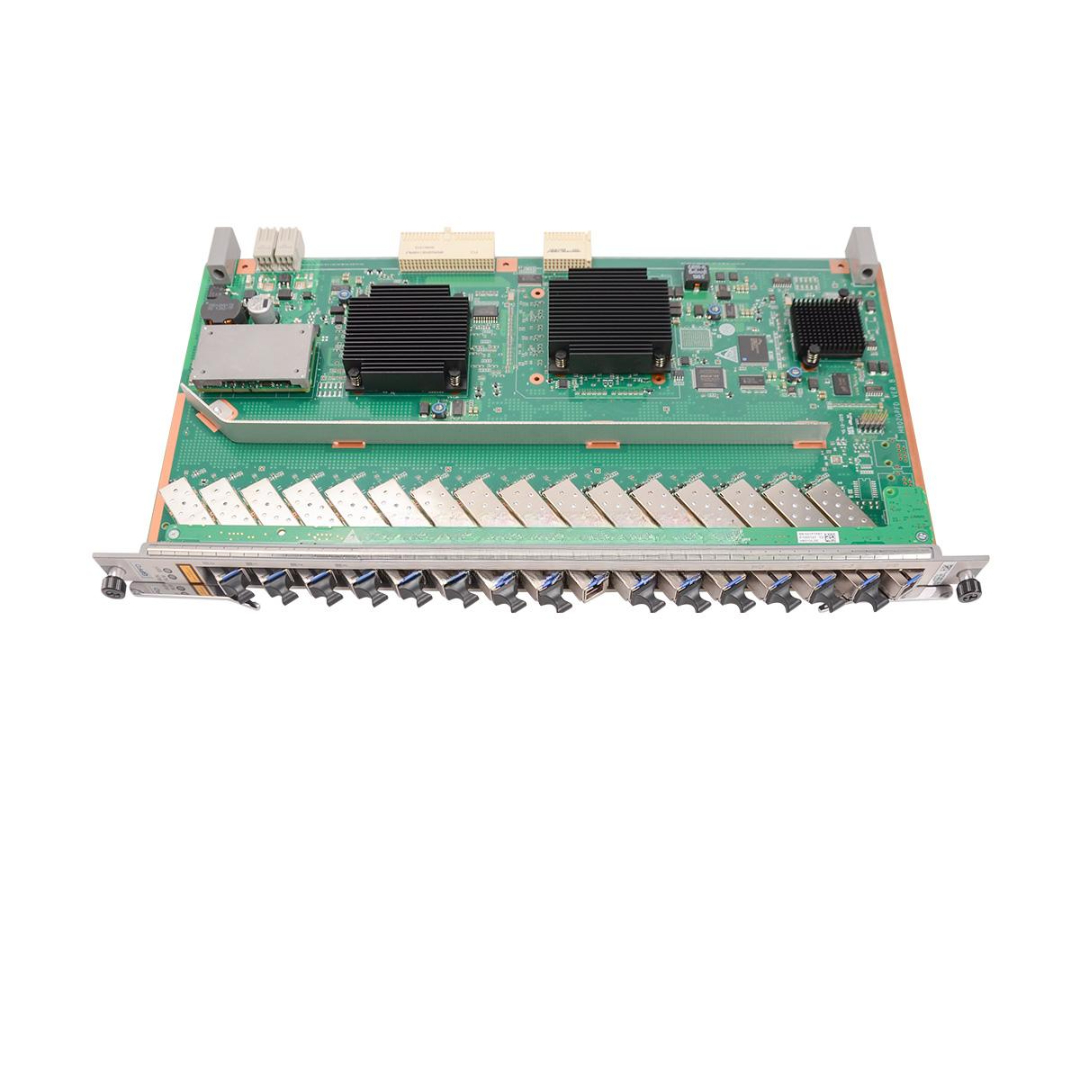

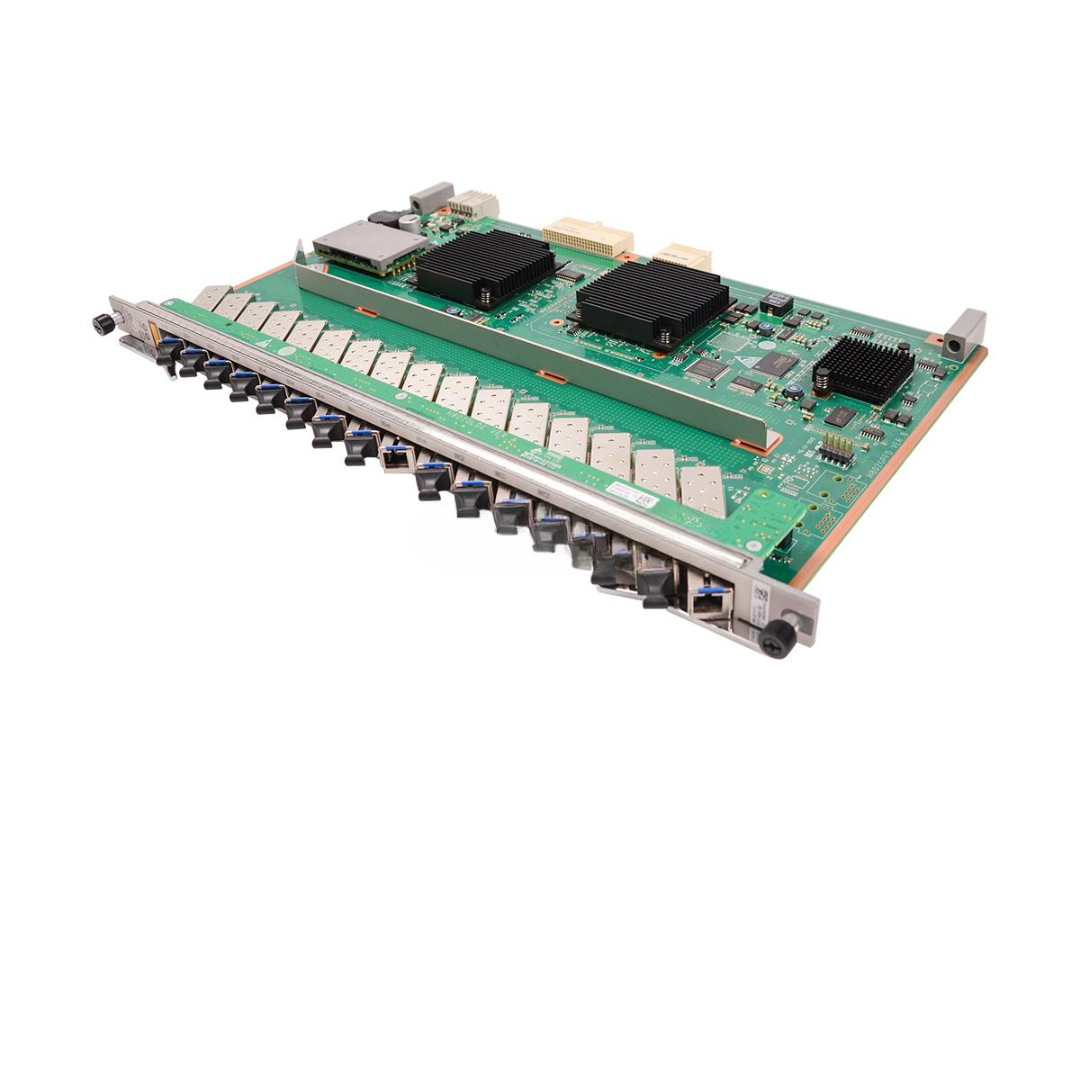

H802GPFD C++ Huawei Brand New 16-Port GPON Interface Board
The H802GPFD C++ Huawei is a brand new, high-performance 16-port GPON interface board designed for use in Huawei’s MA5600T and MA5800 OLT series. With advanced C++ optical modules, this board supports up to 128 ONTs per PON port, delivering ultra-high capacity for FTTx deployments. It’s ideal for telecom operators and ISPs seeking scalable and reliable Gigabit Passive Optical Network (GPON) solutions.
Key Features
-
Model: H802GPFD C++
-
Condition: 100% Brand New, Original Huawei
-
Ports: 16 GPON ports with C++ optical modules
-
Splitting Ratio: Supports up to 1:128 split per port
-
Downstream Rate: 2.488 Gbit/s
-
Upstream Rate: 1.244 Gbit/s
-

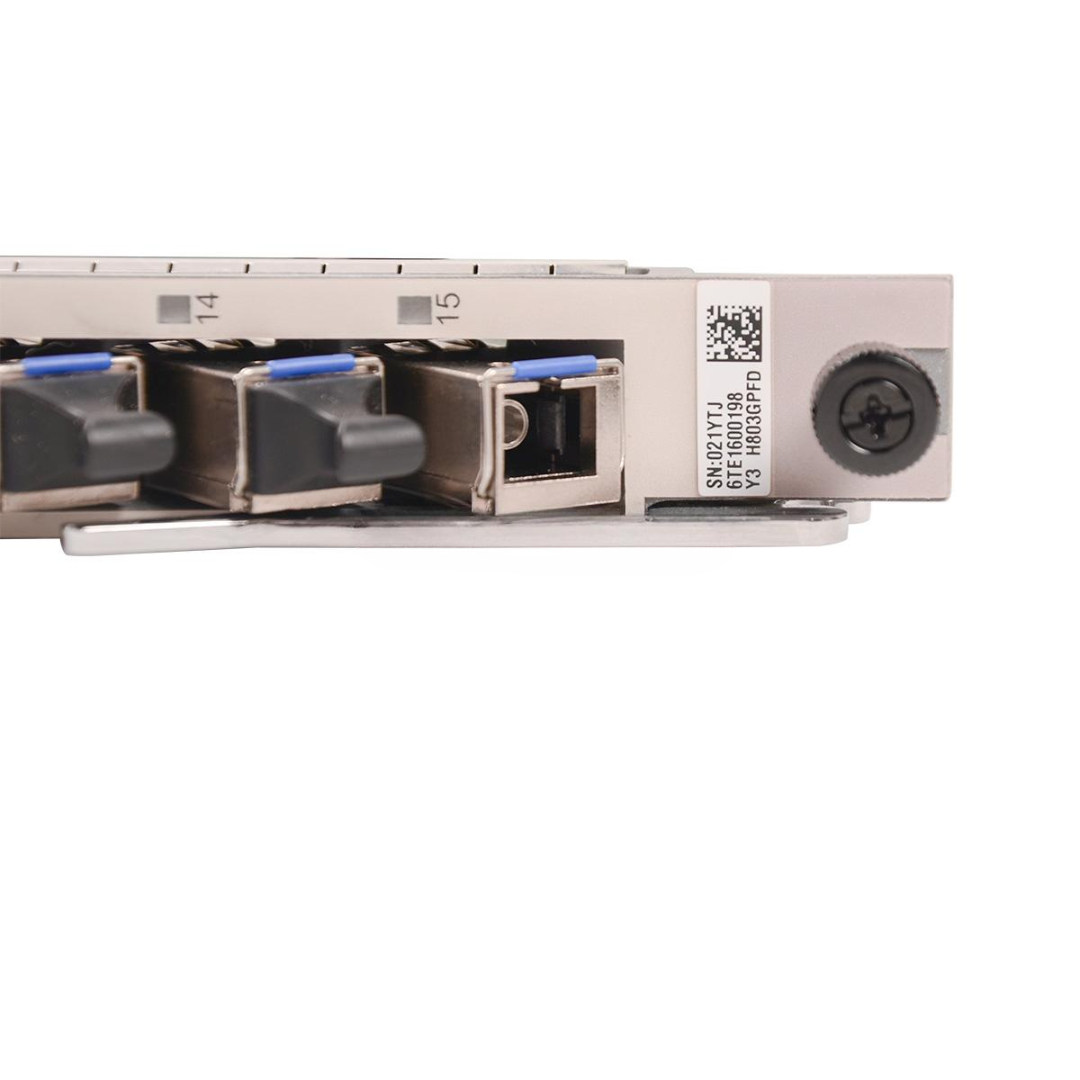

Connector Type: SC/UPC for GPON interfaces
-
Hot-Swappable: Yes, for live system maintenance
-
Compatibility: MA5600T, MA5800-X2/X7/X15/X17 series
-
Management: Fully integrated with Huawei U2000 NMS
-
Deployment Mode: GPON/FTTH/FTTB/FTTC scenarios
Technical Specifications
| Specification | Details |
|---|---|
| Board Name | H802GPFD |
| Optical Module Type | Class C++ |
| GPON Port Count | 16 |
| Max Splitting Ratio | 1:128 per port |
| Transmission Distance | Up to 40 km (C++ optics) |
| Connector Type | SC/UPC |
| Downstream Rate | 2.488 Gbit/s |
| Upstream Rate | 1.244 Gbit/s |
| Wavelengths | Tx: 1490 nm, Rx: 1310 nm |
| Power Consumption | ≤ 38W (typical with full load) |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5%–95% RH, non-condensing |
| Supported Protocols | ITU-T G.984, OMCI, DBA |
| Compatible OLTs | MA5600T, MA5800 (X2, X7, X15, X17) |
| Warranty | 1–3 Years Manufacturer Warranty |
H802GPFD C++ Huawei Applications
-
FTTH (Fiber to the Home) — Delivers ultra-fast broadband to residential users
-
FTTB/FTTC (Building/Curb) — High-density access for commercial and enterprise environments
-
Rural & Urban Connectivity — Supports long-distance deployment up to 40 km
-
Smart City Infrastructure — Reliable backbone for surveillance, IoT, and public Wi-Fi
-
Triple Play Services — Ensures high-quality voice, video, and data services
Customization & OEM Options
-
Optical Module Swapping — Available with B+, C+, or C++ optics
-
Custom Branding — Private label and packaging customization
-
Pre-Configuration — VLANs, PON mappings, and ONT templates setup
-
Complete Kits — Supplied with patch cords, SFPs, and splitter modules if required
-
PON Profiles — Preloaded with DBA and OMCI templates for quick rollout
Wholesale & Global Distribution
-
Direct Factory Supply — Brand new Huawei OEM stock
-
Large Volume Ready — Ideal for ISP and national FTTx rollouts
-
Secure Packaging — Anti-static, foam-packed for safe transport
-
Worldwide Shipping — Certified for international air/sea logistics
-
Technical Documentation — Full datasheets, CLI guides, and XML templates
Why Choose H802GPFD C++ Huawei GPON Board
-
High Capacity — 16 ports supporting up to 2048 ONTs (1:128 split)
-
Long-Distance Reach — C++ optics for up to 40 km fiber runs
-
Field-Proven Stability — Widely deployed in telecom networks globally
-
Flexible Integration — Seamless with MA5800/MA5600T series
-
Energy Efficient — Low power draw with high port density
H802GPFD C++ Huawei Contact Us
Upgrade your FTTx network infrastructure with the Huawei H802GPFD C++ 16-Port GPON Board — engineered for high-speed, high-reach, and high-density optical access.
