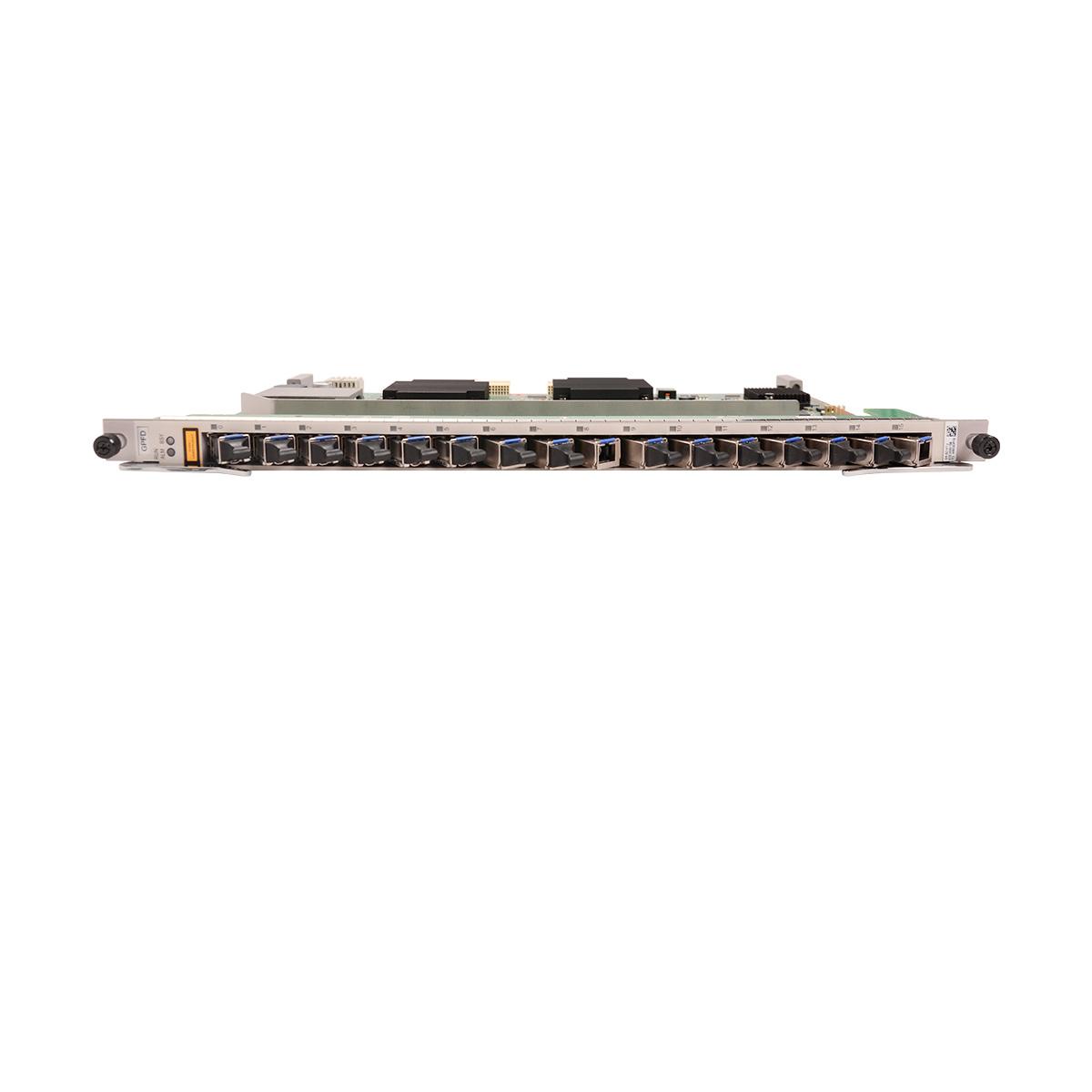

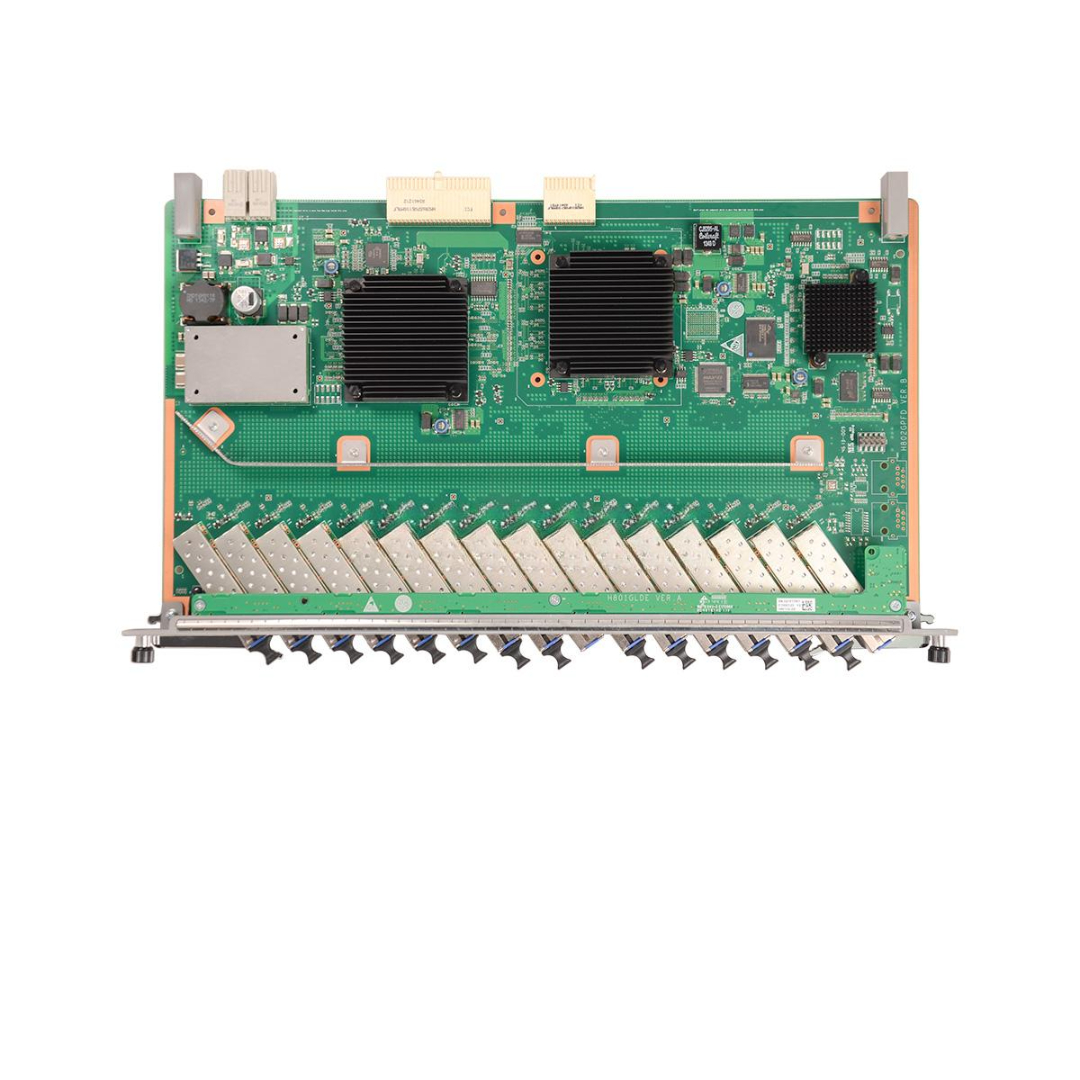

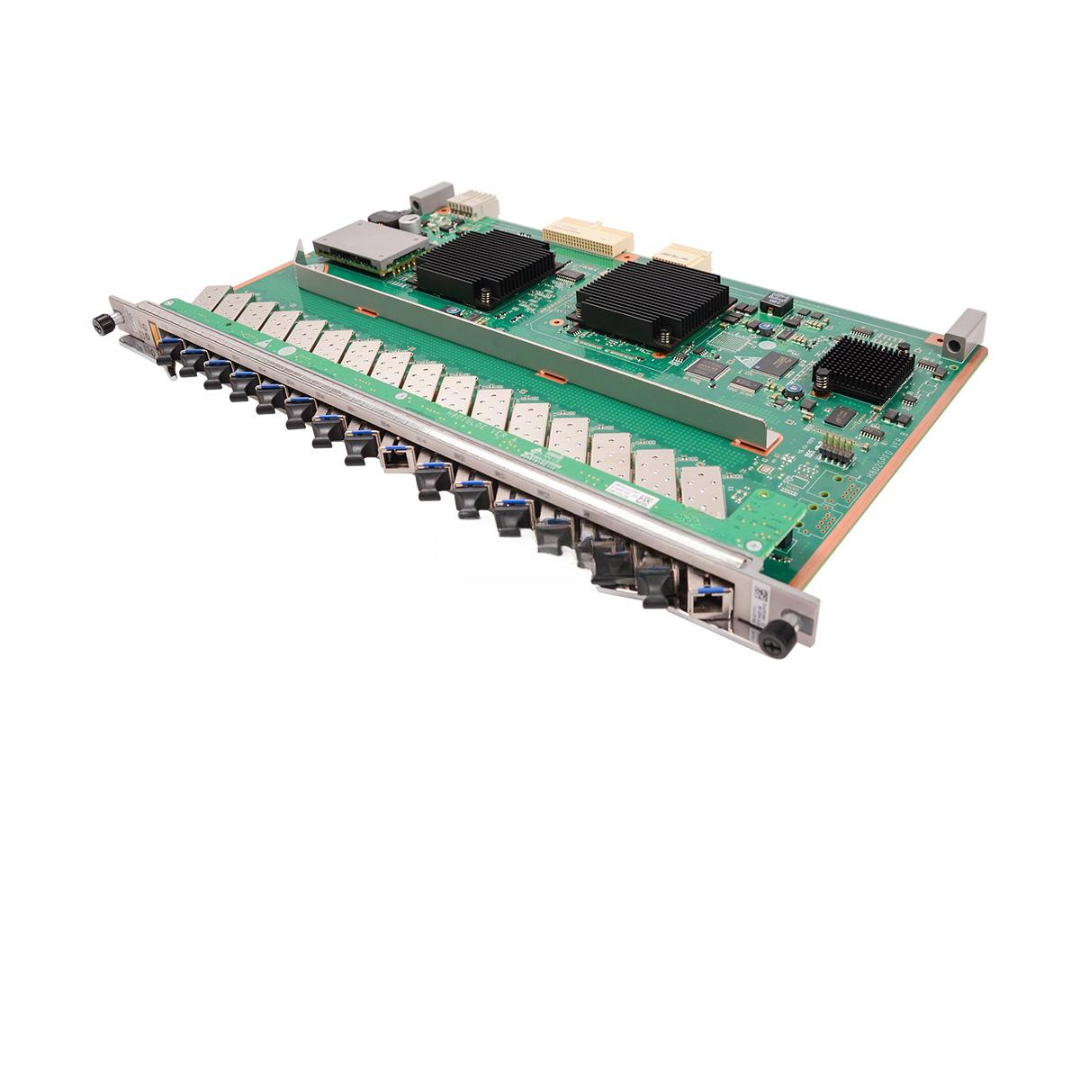

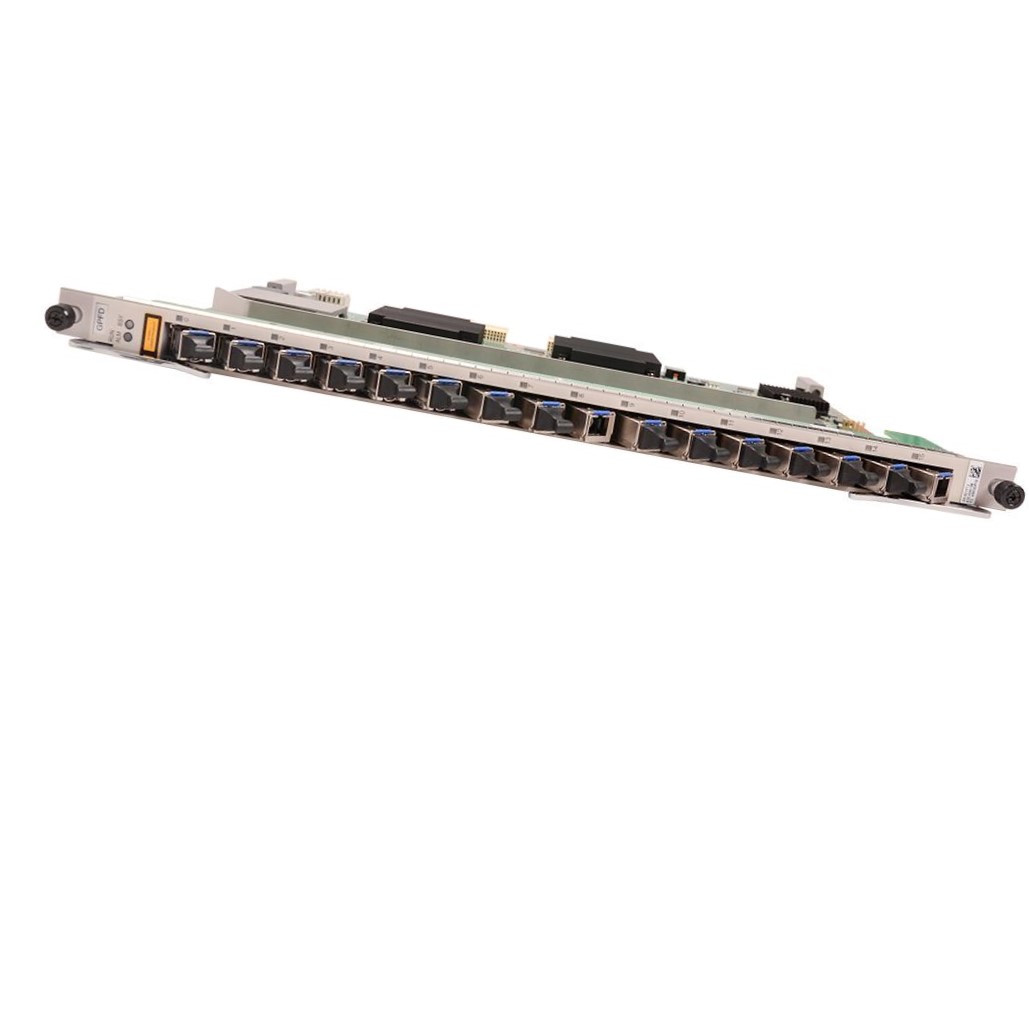

H802GPFD C+ Huawei Brand New 16-Port GPON OLT Interface Board
The H802GPFD C+ Huawei Brand is a brand new 16-port GPON OLT interface board designed for Huawei’s MA5600T and MA5680T optical line terminal platforms. It delivers high-capacity fiber access using C+ optical modules, offering extended reach and strong optical performance for FTTH, FTTB, and FTTx network deployments. With 1:128 split ratio per port and full compliance with ITU-T G.984 standards, the H802GPFD ensures high-speed broadband, IPTV, and VoIP service delivery with carrier-grade reliability.
Key Features
-
Model: H802GPFD C+
-
Condition: 100% Brand New & Original Huawei
-

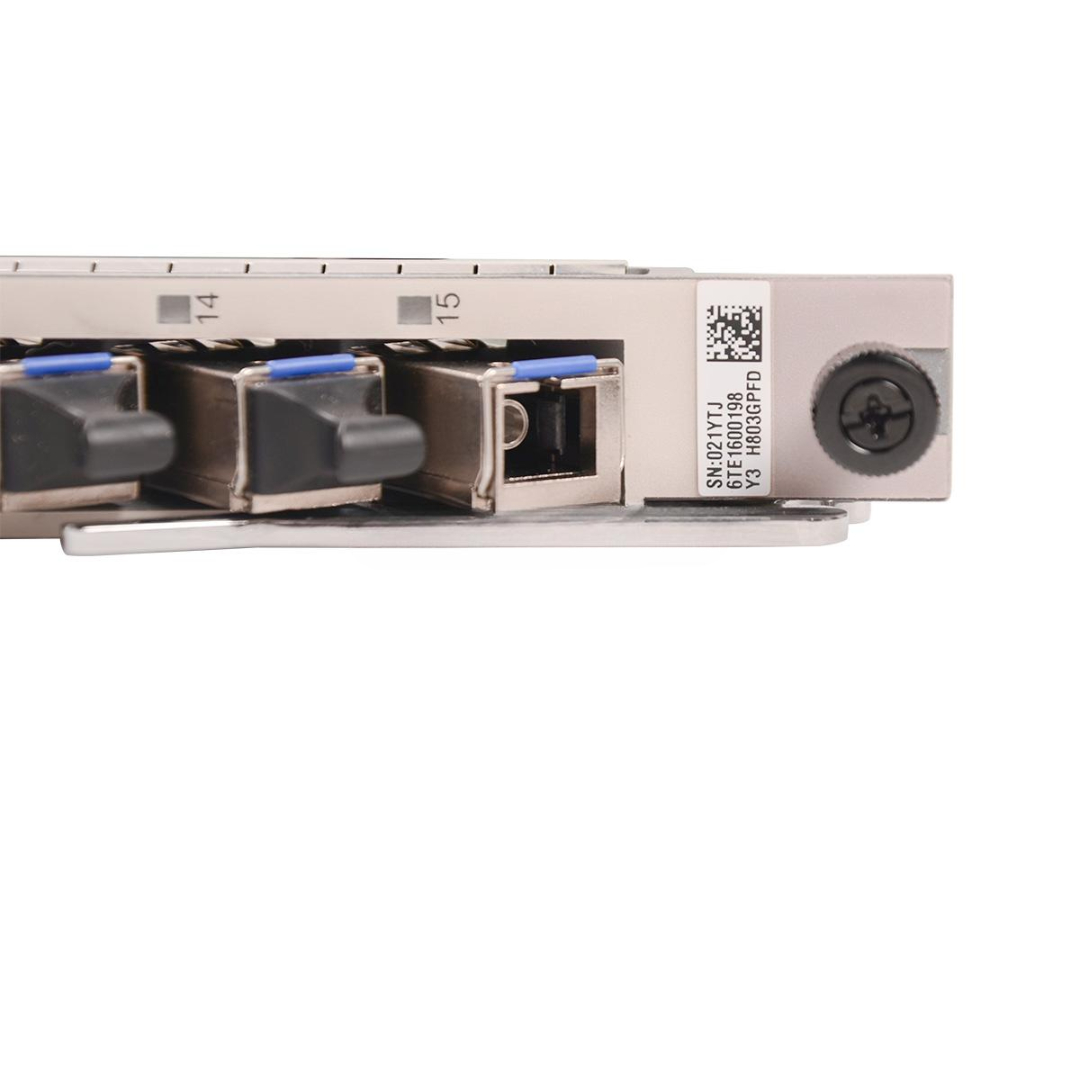

Ports: 16 × GPON ports with SC/UPC or SC/APC interfaces
-
Optical Module Type: Class C+ (higher launch power, extended range)
-
Downstream Rate: 2.488 Gbps per port
-
Upstream Rate: 1.244 Gbps per port
-
Max Split Ratio: 1:128 per port
-
Transmission Distance: Up to 20 km (with C+ optics)
-
Hot-Swappable: Yes – plug-and-play installation
-
Compatibility: Works with MA5600T / MA5680T chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | H802GPFD C+ |
| Number of Ports | 16 × GPON ports |
| Optical Module Type | Class C+ SFP |
| Wavelengths | Tx: 1490 nm / Rx: 1310 nm |
| Transmit Optical Power | +3 to +7 dBm |
| Receiver Sensitivity | -30 dBm |
| Max Split Ratio | 1:128 per port |
| Fiber Type | Single-mode fiber (SMF), SC/UPC or SC/APC |
| Distance | Up to 20 km (C+ optics) |
| Traffic Types | High-speed internet, IPTV, VoIP, enterprise services |
| Standards Compliance | ITU-T G.984.1~4, OMCI, AES encryption |
| Power Consumption | ≤ 45W |
| Operating Temp | -25°C to +65°C |
| Humidity | 5% – 95% RH, non-condensing |
| Supported Chassis | MA5600T / MA5680T series |
H802GPFD C+ Huawei Brand Applications
-
FTTH (Fiber to the Home) – Ideal for residential gigabit broadband
-
FTTB (Fiber to the Building) – Aggregation point for multi-unit access
-
Rural Access Networks – Long-distance fiber connectivity
-
Enterprise GPON Solutions – Dedicated GPON lines for businesses
-
Government / Campus Deployments – High-speed fiber infrastructure
Customization & OEM Options
-
Branding Services – Company logo, part numbers, and packaging
-
Preloaded Configuration – VLANs, service templates, ONT profiles
-
Optics Upgrade – Optional Class C++ or Combo PON modules
-
Accessory Kits – Patch cords, splitters, pigtails, and racks
-
Extended Burn-In Testing – QA for harsh or mission-critical deployment
H802GPFD C+ Huawei Brand Wholesale & Global Procurement
-
100% Original Huawei Manufacturing
-
Large Volume Availability for ISPs & Integrators
-
Custom Export Packaging with Fast Global Shipping
-
Compliance Documents Provided (COO, CE, RoHS)
-
Technical Support Available on Request
Why Choose the H802GPFD C+ Huawei Brand
-
16 GPON Ports in One Board – High-density fiber access solution
-
Class C+ Optical Power – Greater coverage and signal quality
-
Carrier-Class Reliability – Designed for long-term network uptime
-
Interoperable with Huawei ONTs – Seamless deployment
-
Cost-Effective for Mass Deployment – Ideal for scaling FTTH projects
Contact Us Now
Boost your fiber access network with the Huawei H802GPFD C+ 16-Port GPON OLT Interface Board — designed for high-density, long-distance, and reliable GPON connectivity in modern broadband deployments.
