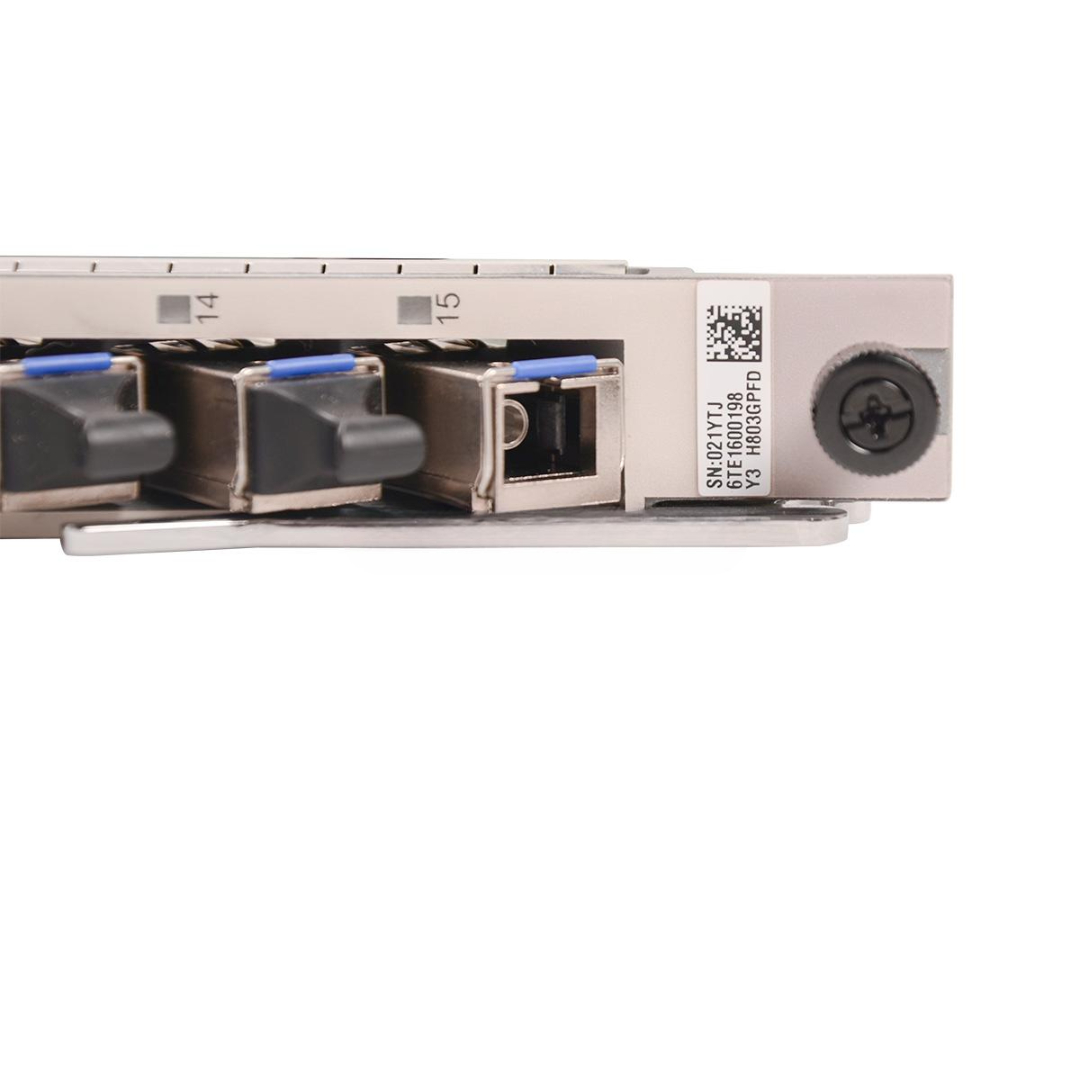

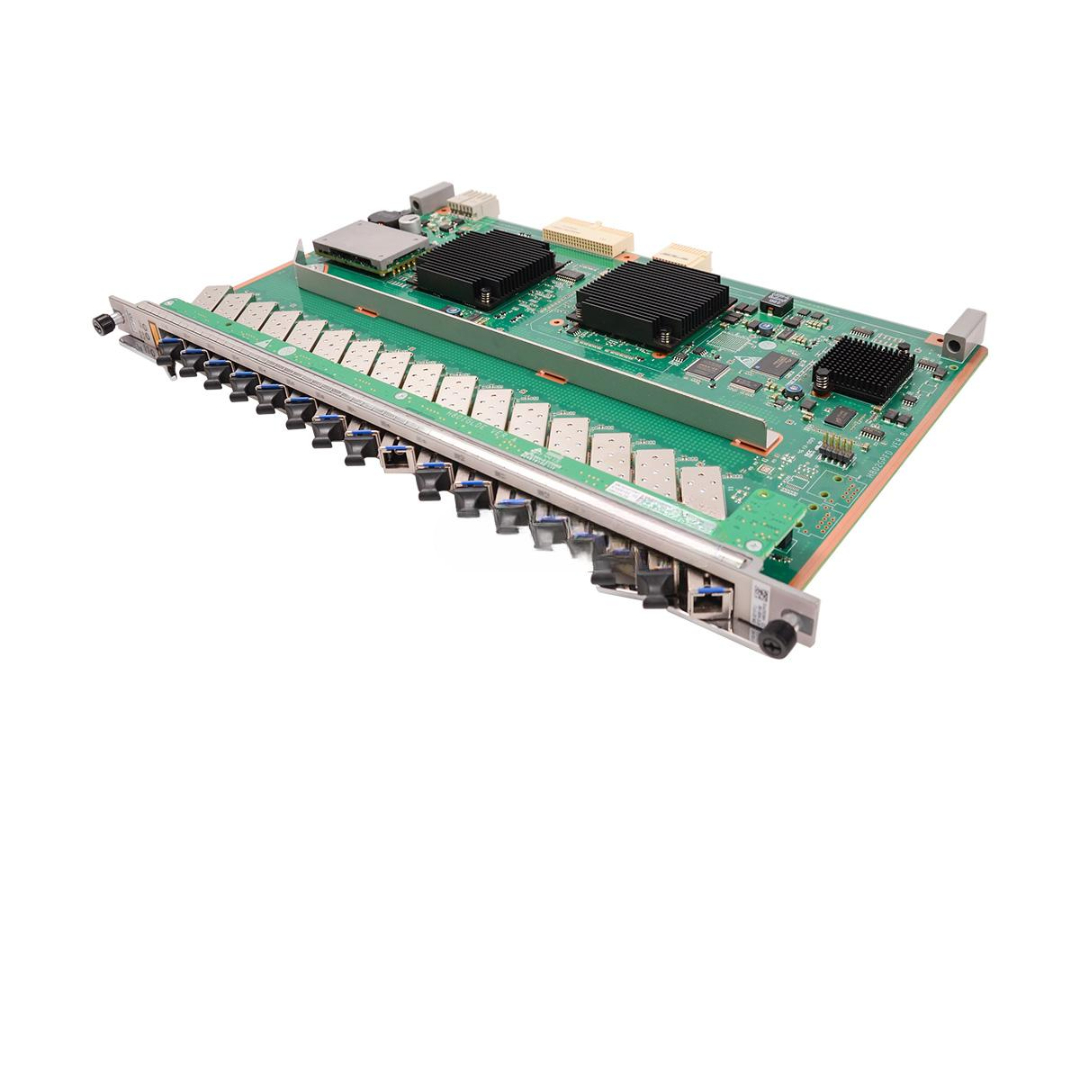

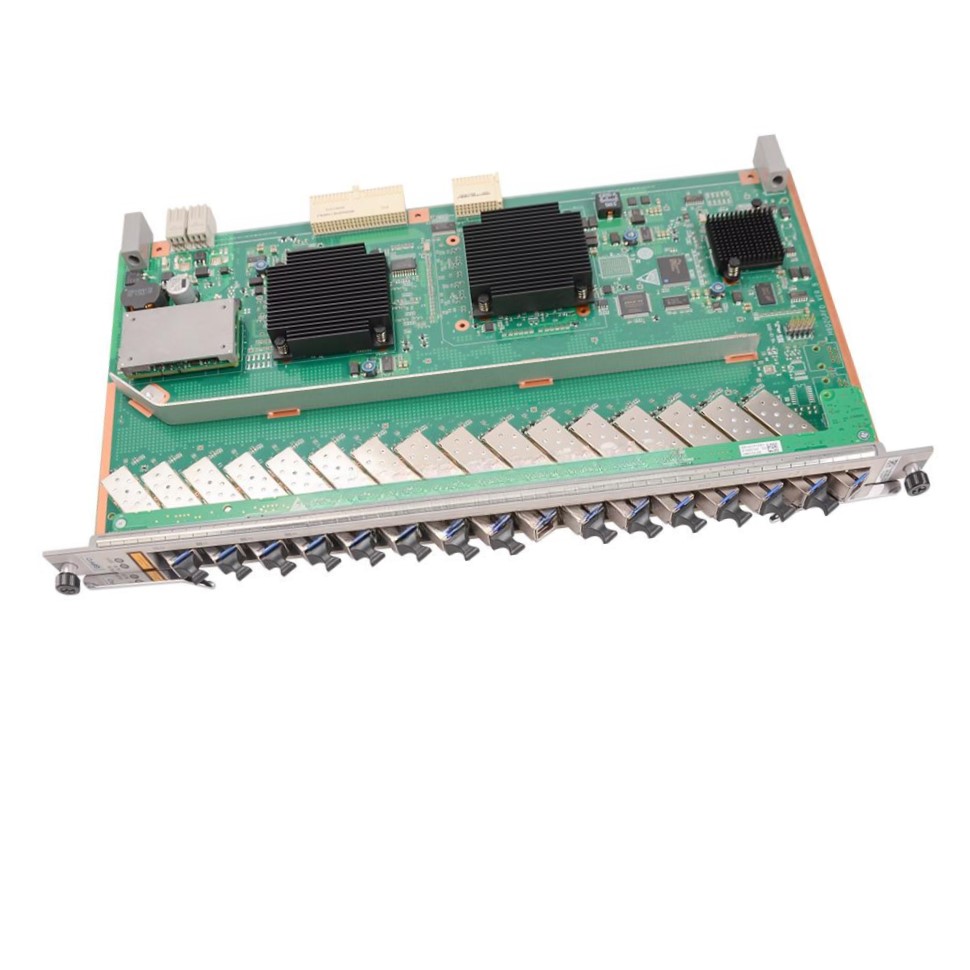

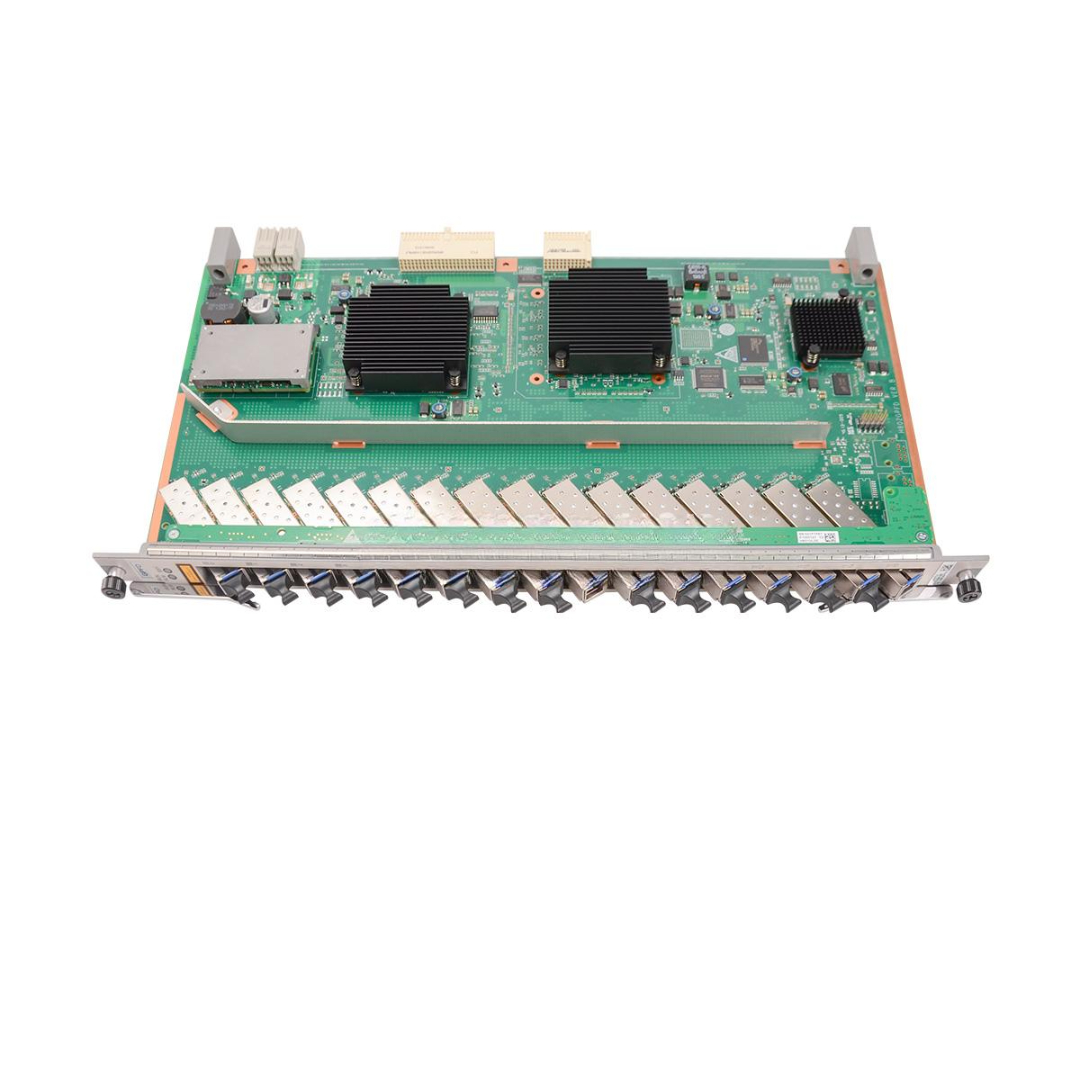

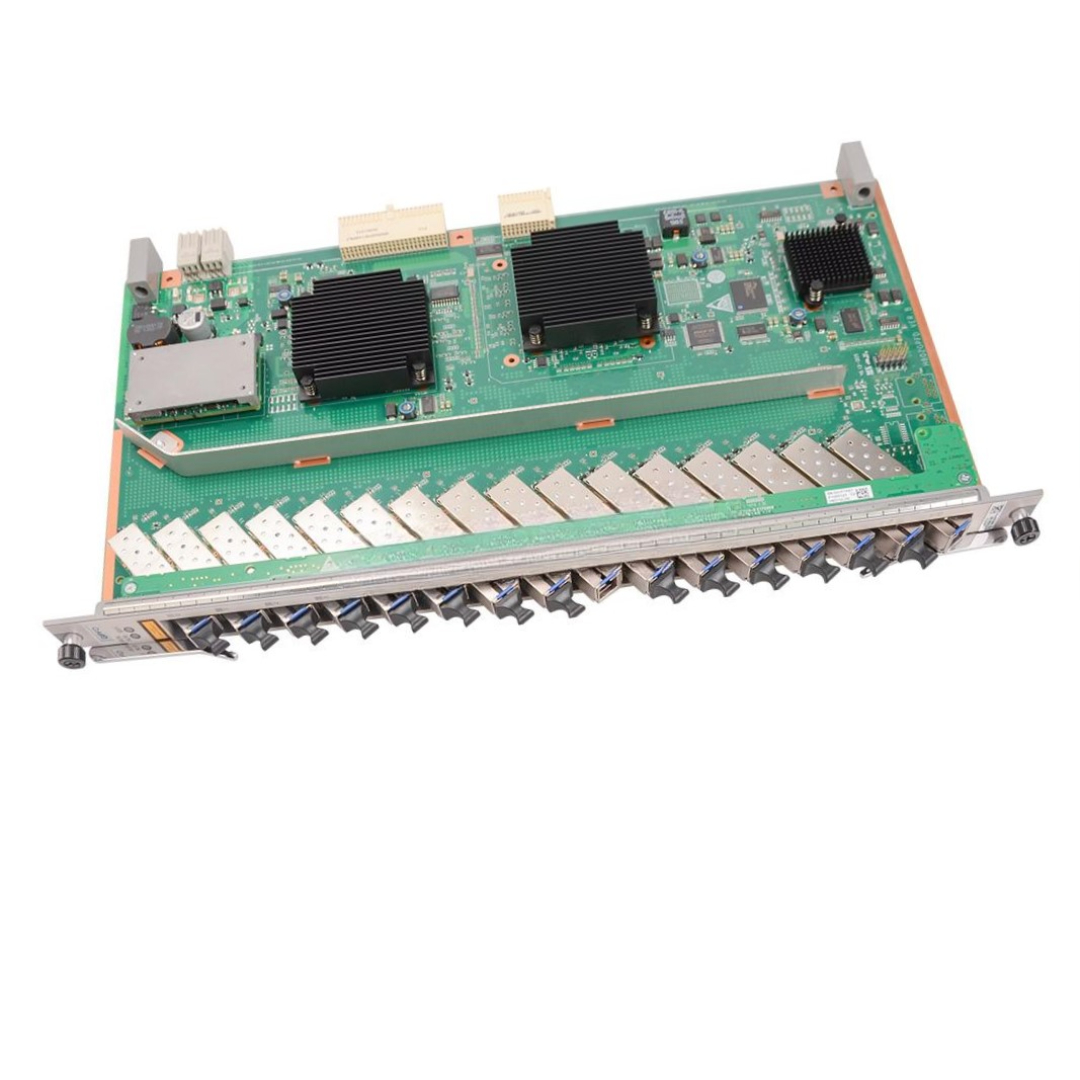

H803GPFD B+ Huawei High Quality 16-Port GPON OLT Board
The H803GPFD B+ Huawei is a high-quality 16-port GPON OLT interface board, built for Huawei’s MA5600T, MA5680T, and MA5800 series chassis. Supporting Class B+ optical modules, it provides stable and efficient fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) services. With its large capacity, low power consumption, and proven Huawei engineering, it is ideal for telecom operators, ISPs, and enterprises seeking reliable and scalable GPON access networks.
Key Features
-
Model: H803GPFD B+
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 16 GPON Ports
-
Optical Module Type: Class B+
-
Downstream Speed: 2.488 Gbps
-
Upstream Speed: 1.244 Gbps
-
Max Split Ratio: 1:128 per port
-
Transmission Distance: Up to 20 km
-
Hot-Swappable: Yes – for fast deployment and maintenance
-
Compatible Chassis: MA5600T, MA5680T, MA5800
Technical Specifications
| Specification | Details |
|---|---|
| Model | H803GPFD |
| GPON Ports | 16 |
| Optical Module Type | Class B+ SFP |
| Tx/Rx Wavelengths | Tx: 1490 nm, Rx: 1310 nm |
| Transmission Distance | Up to 20 km |
| Tx Power Range | +1.5 dBm to +5 dBm |
| Rx Sensitivity | -28 dBm |
| Max Optical Split Ratio | 1:128 |
| Protocols Supported | ITU-T G.984.1–4, OMCI, AES, DBA |
| Fiber Type | Single-mode, SC/UPC or SC/APC |
| Power Consumption | ≤ 45W (typical) |
| Operating Temperature | -25°C to +65°C |
| Relative Humidity | 5%–95%, non-condensing |
| Warranty | 1–3 Years Manufacturer Warranty |
H803GPFD B+ Huawei Applications
-
FTTH (Fiber to the Home) – High-speed broadband delivery for residential users
-
FTTB (Fiber to the Building) – Shared internet for apartments, hotels, offices
-
Campus Networks – Reliable fiber connectivity in educational or business campuses
-
Telecom Infrastructure – Centralized GPON access for national and regional operators
-
Municipal Networks – Broadband infrastructure for public service systems
Customization & OEM Options
-
Custom Branding – Add your company logo and part numbers
-
Factory Pre-Config – Preloaded with VLAN, traffic profiles, ONT templates
-
Alternative Module Options – Available with Class C+ or Combo PON upgrades
-
Deployment Kits – Bundled with patch panels, fiber jumpers, and accessories
-
Special Testing – Extended QA for mission-critical or long-distance deployments
H803GPFD B+ Huawei Wholesale & Global Procurement
-
Huawei OEM Stock – 100% original and sealed product
-
Bulk Quantities Available – Ready for telecom rollout projects
-
Protective Packaging – Anti-static, foam-insert, export-safe boxing
-
Worldwide Delivery – Shipping compliant with international regulations
-
Expert Assistance – Technical support available for setup and integration
Why Choose the H803GPFD B+ Huawei
-
High-Density Access – 16 ports supporting large user bases
-
Class B+ Optics – Reliable coverage up to 20 km
-
Huawei Trusted Hardware – Global carrier-grade performance
-
Energy-Efficient Design – Low power consumption with high output
-
Flexible Integration – Supports all major Huawei OLT systems
Request Bulk Pricing or Technical Datasheets
Upgrade your GPON infrastructure with the Huawei H803GPFD B+ 16-Port OLT Interface Board – the smart choice for stable, scalable, and future-ready fiber networks.
