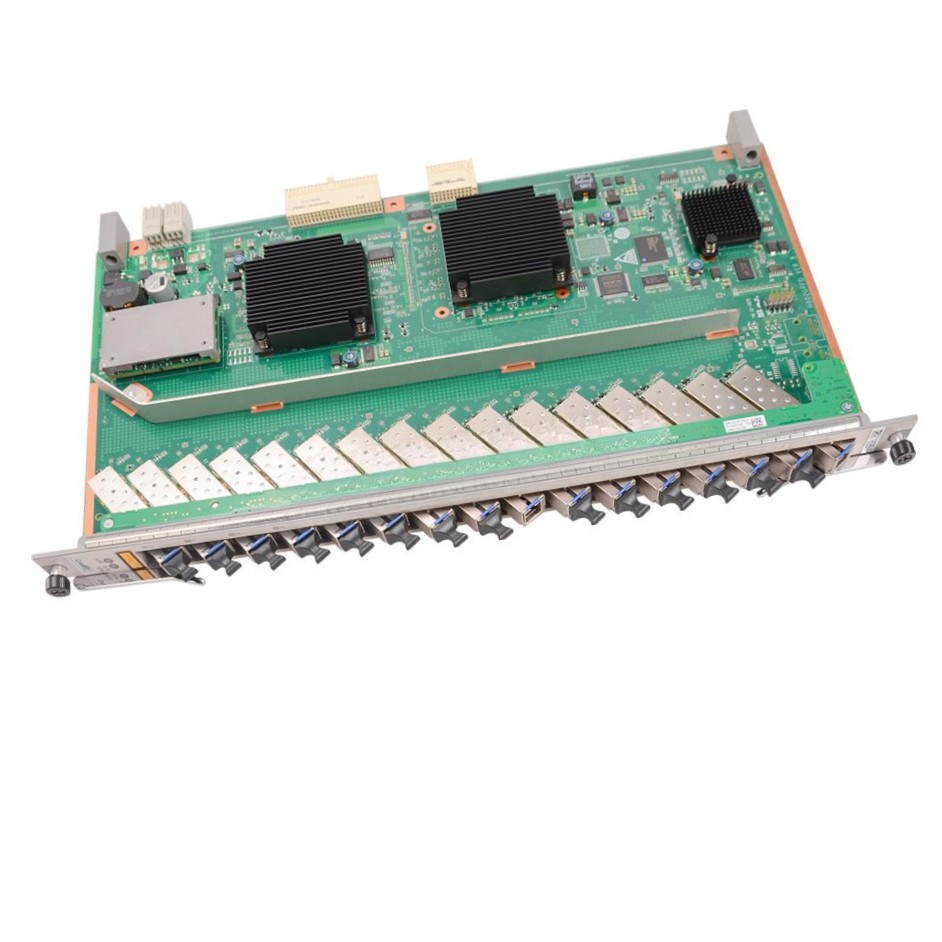

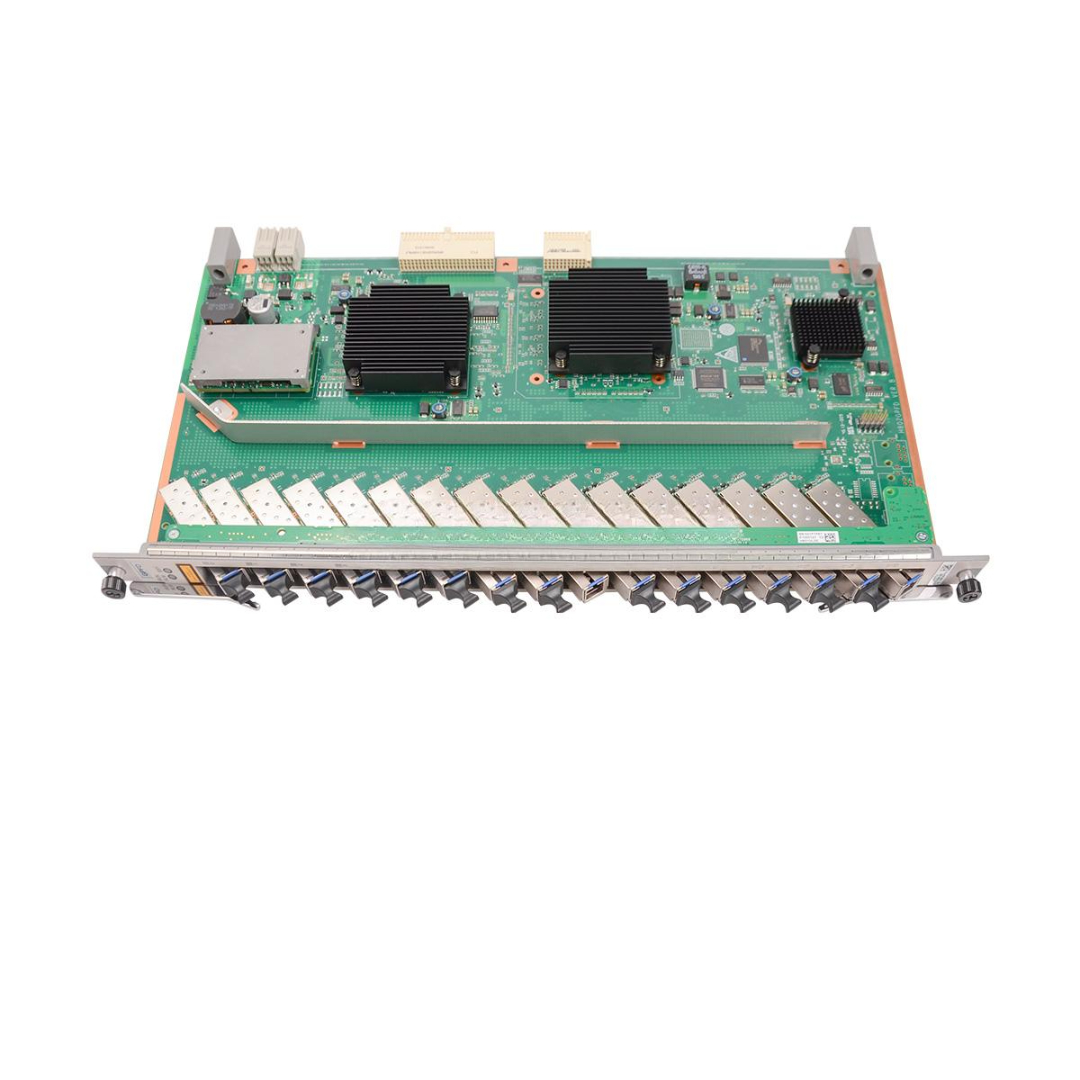

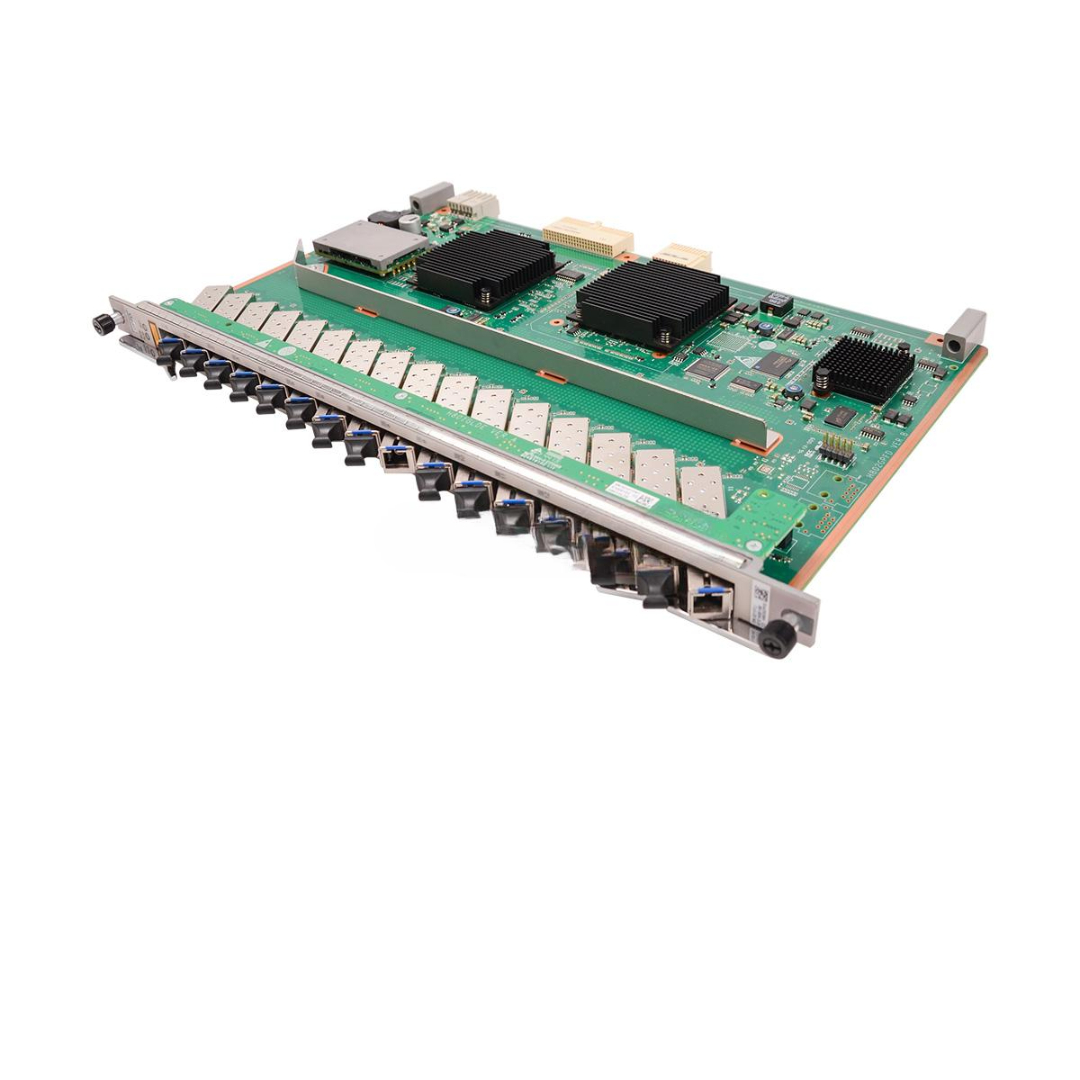

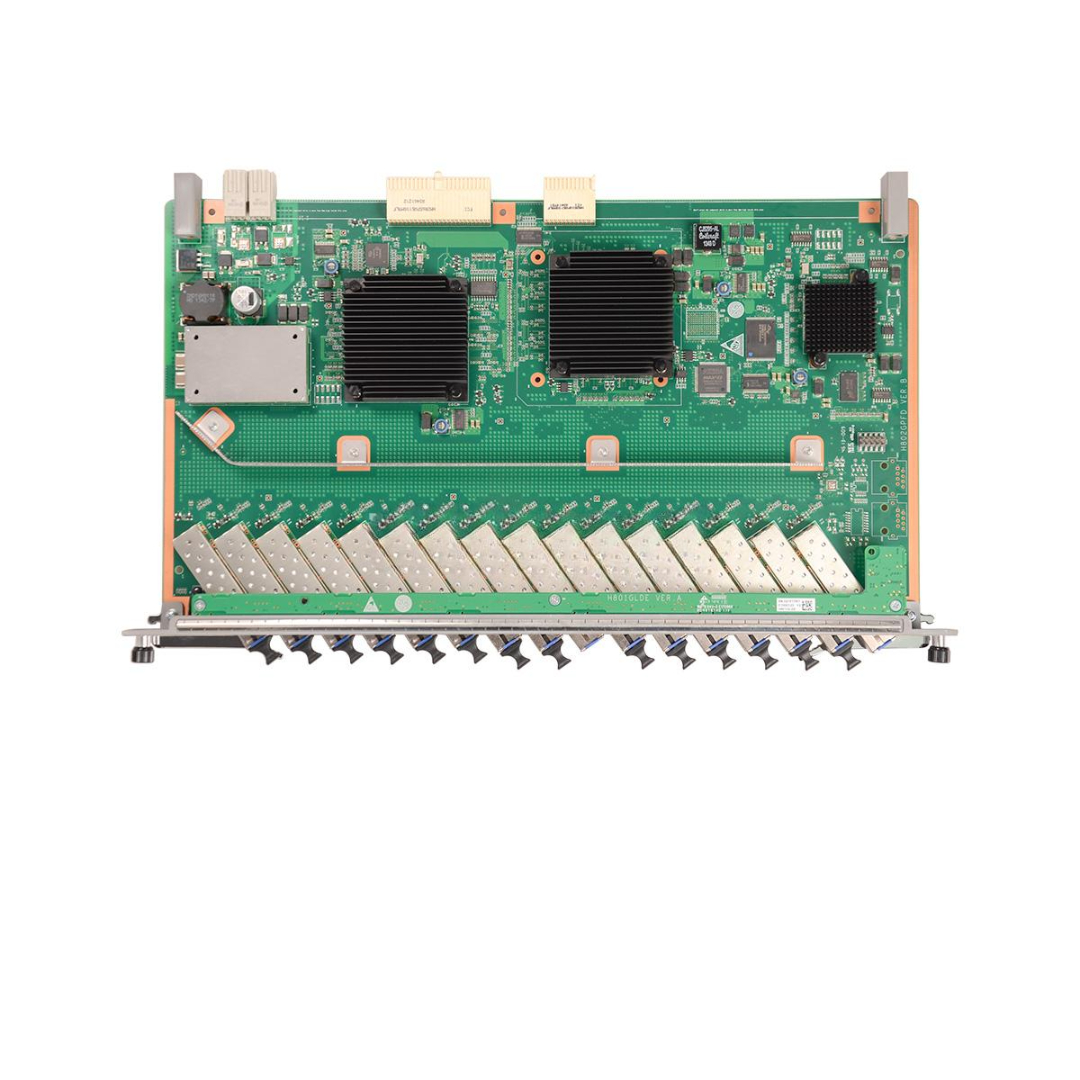

H803GPFD C+ Huawei Brand New 16-Port GPON OLT Interface Board
The H803GPFDC+ Huawei is a brand new 16-port GPON OLT interface board, purpose-built for the Huawei MA5600T and MA5800 series. It features C+ optical modules, offering high-capacity and stable performance across GPON-based FTTx networks. This board supports up to 128 ONTs per port, making it an ideal solution for large-scale residential, commercial, or municipal fiber access deployments.
Key Features
-
Model: H803GPFD C+
-
Condition: 100% Brand New, Original Huawei
-
Ports: 16 GPON ports with C+ optical modules
-
Split Ratio: Supports 1:128 split per PON port
-
Downstream Bandwidth: 2.488 Gbit/s
-
Upstream Bandwidth: 1.244 Gbit/s
-

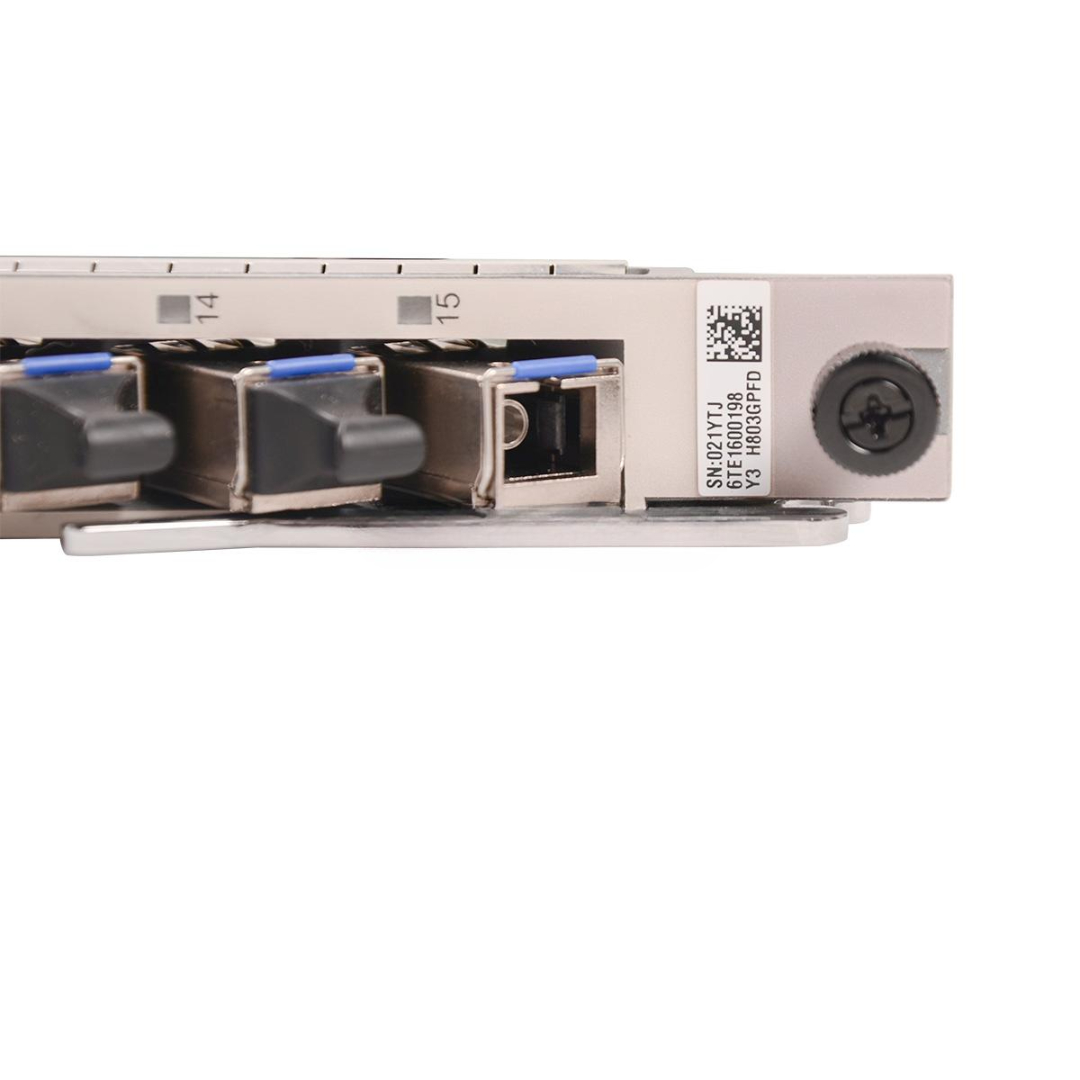

Connector Type: SC/UPC interface
-
Hot-Swappable: Yes – live insertion/removal supported
-
Compatibility: MA5600T, MA5800-X2/X7/X15/X17
-
Management: Fully integrated with Huawei U2000/U2000e NMS
Technical Specifications
| Specification | Details |
|---|---|
| Board Model | H803GPFD |
| Optical Module Class | C+ |
| GPON Port Quantity | 16 |
| Splitting Ratio | Up to 1:128 per port |
| Transmission Distance | Up to 20 km (C+ optics) |
| Connector Interface | SC/UPC |
| Wavelengths | TX: 1490 nm / RX: 1310 nm |
| Protocol Compliance | ITU-T G.984.2, G.984.3, G.984.4 |
| Downstream Rate | 2.488 Gbit/s |
| Upstream Rate | 1.244 Gbit/s |
| Power Consumption | ≤ 38W (fully loaded) |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Applicable Equipment | MA5600T, MA5800-X series |
| Warranty | 1–3 Years Manufacturer Warranty |
H803GPFDC+ Huawei Applications
-
FTTH (Fiber to the Home) – High-speed residential internet access
-
FTTB/FTTC – Fiber access to buildings or curb for MDU or enterprise environments
-
Urban & Suburban Networks – Reliable deployment in dense areas with medium-range reach
-
Triple Play Delivery – Supports IPTV, VoIP, and high-speed internet on one platform
-
Municipal Infrastructure – Ideal for smart cities and digital village projects
Customization & OEM Solutions
-
Optical Class Options – Available with B+, C+, or C++ modules based on range needs
-
Pre-Configured Boards – VLAN, ONT templates, and PON profiles can be factory set
-
Custom Packaging – OEM/ODM branding, logos, and label customization available
-
Turnkey FTTx Kits – Bundled with patch cords, splitters, and ONTs if required
-
Tested Configurations – Burn-in testing, full functionality assurance before shipment
H803GPFDC+ Huawei Wholesale & Global Procurement
-
Huawei Original Inventory – Factory-fresh with full serial tracking
-
Bulk Order Ready – High availability for ISPs and telecom contractors
-
Global Logistics – Fast worldwide shipping with export-safe packaging
-
Tech Documentation – Includes datasheets, CLI reference, and XML templates
-
Responsive Support – Technical help for integration and provisioning
Why Choose H803GPFDC+ Huawei GPON Interface Board
-
High Port Density – 16 ports delivering up to 2048 ONT connections
-
C+ Optical Modules – Reliable performance with up to 20 km transmission
-
Carrier-Grade Quality – Deployed worldwide in critical access networks
-
Energy Efficient – Low power draw with scalable architecture
-
Standards Compliant – Fully compatible with ITU-T GPON specifications
Contact Us
Deploy next-generation GPON access with the Huawei H803GPFD C+ 16-Port OLT Interface Board — trusted by leading telecom providers for its efficiency, stability, and scalability.
