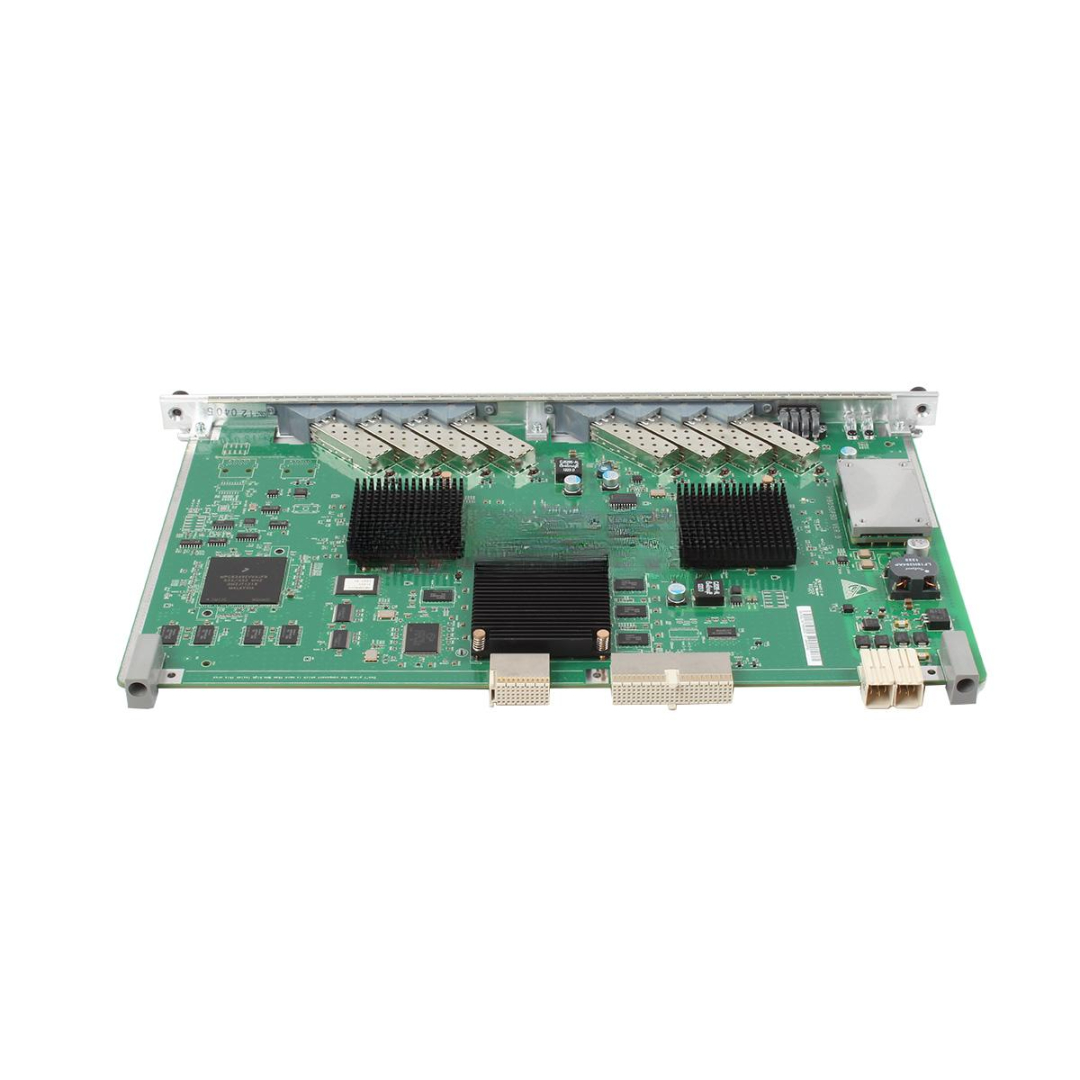

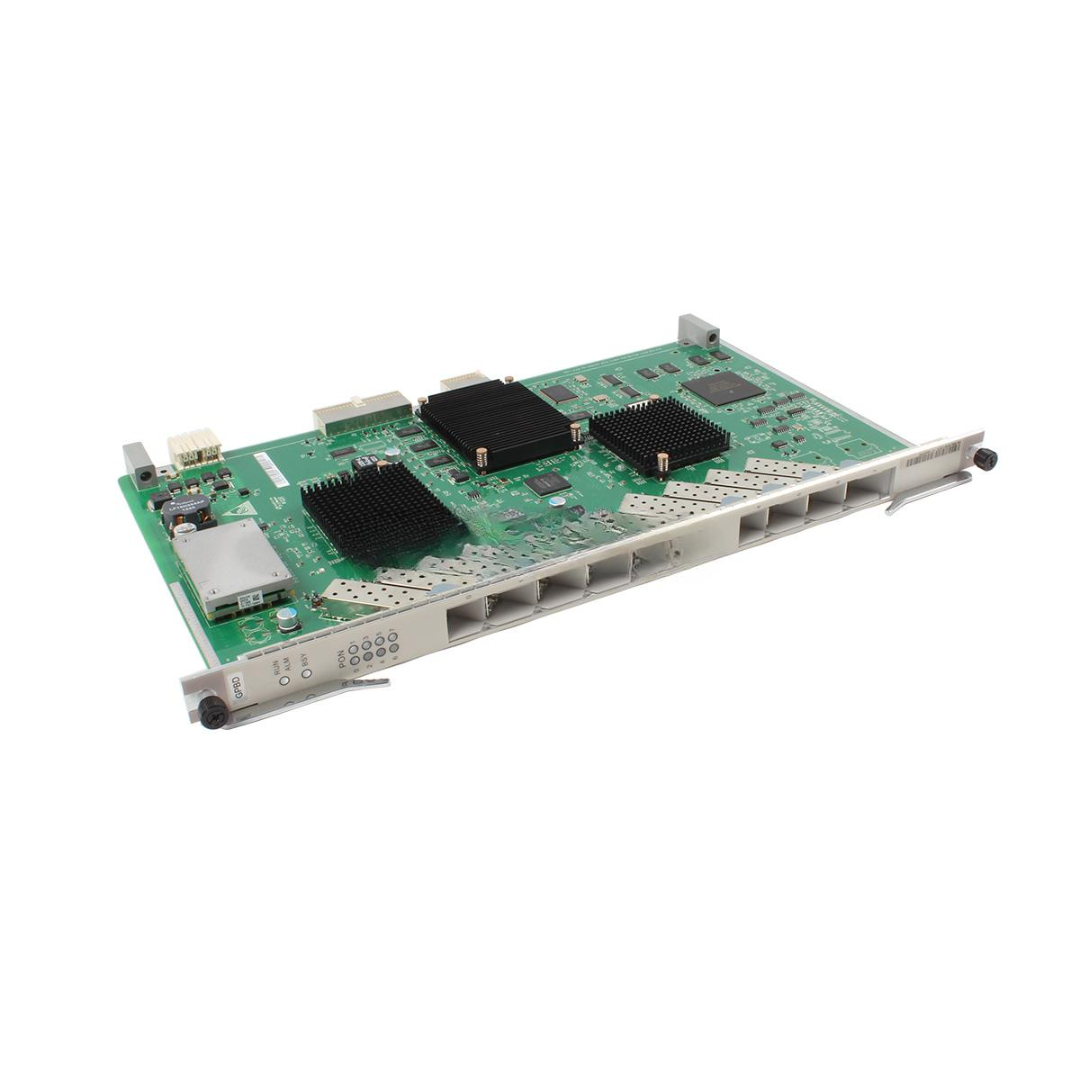

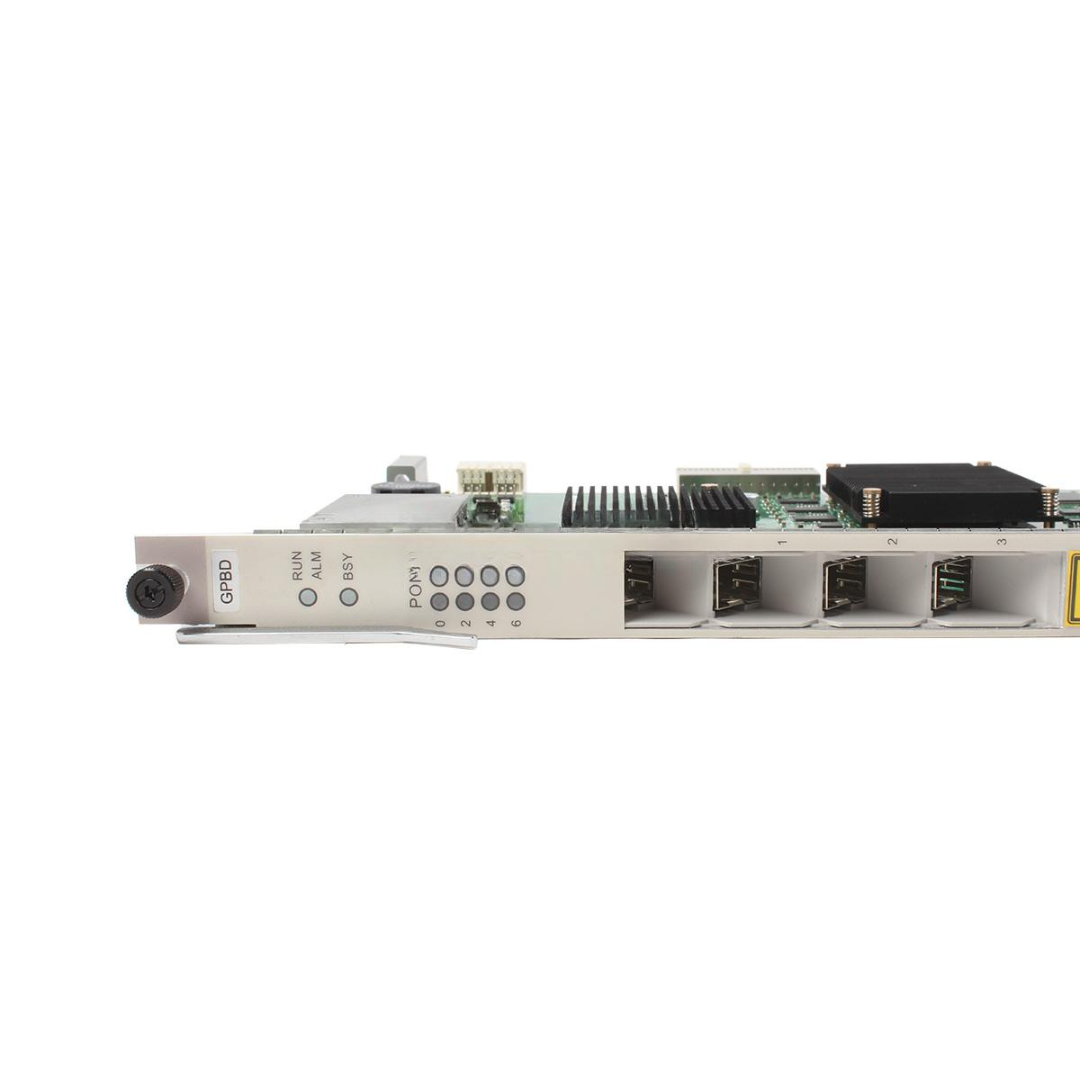

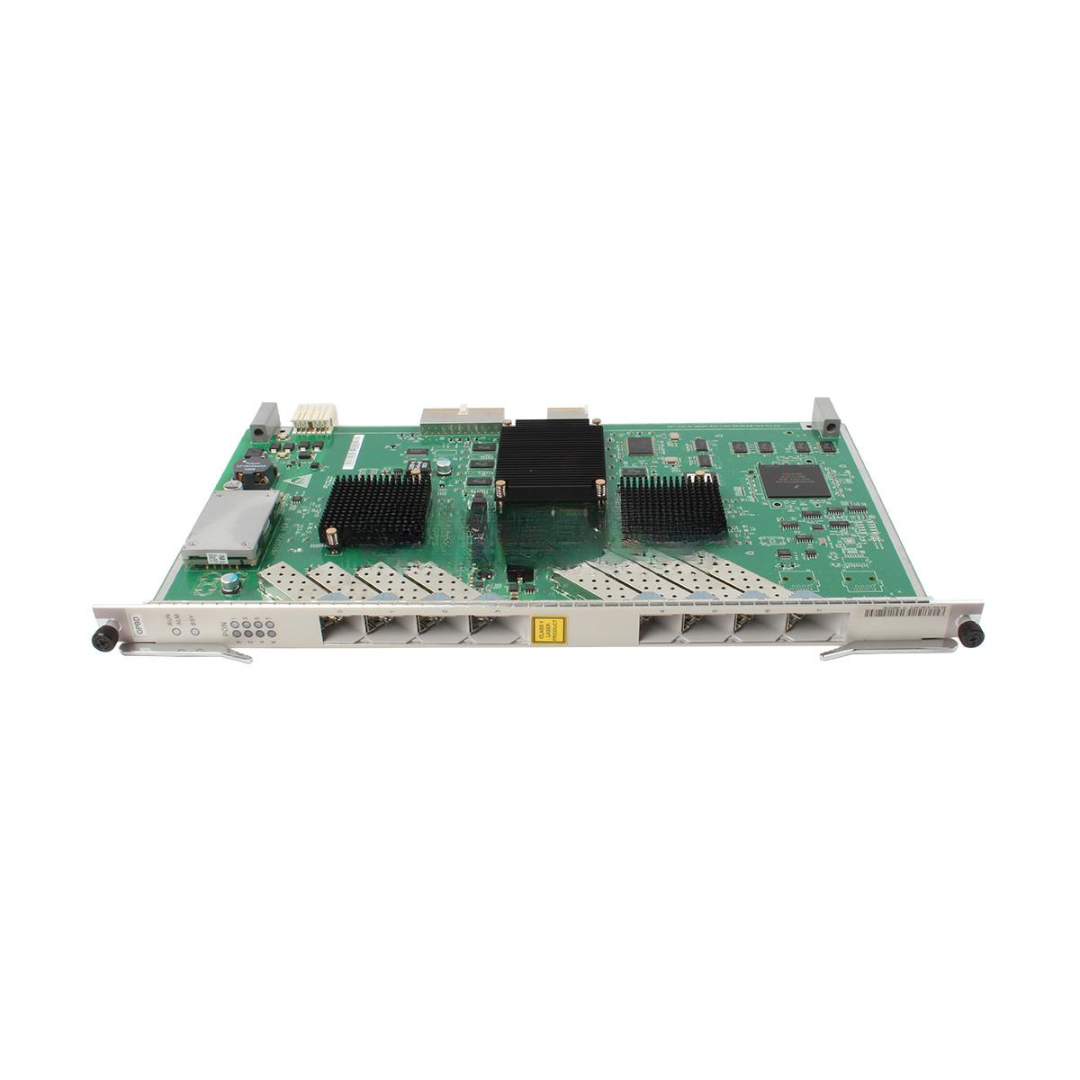

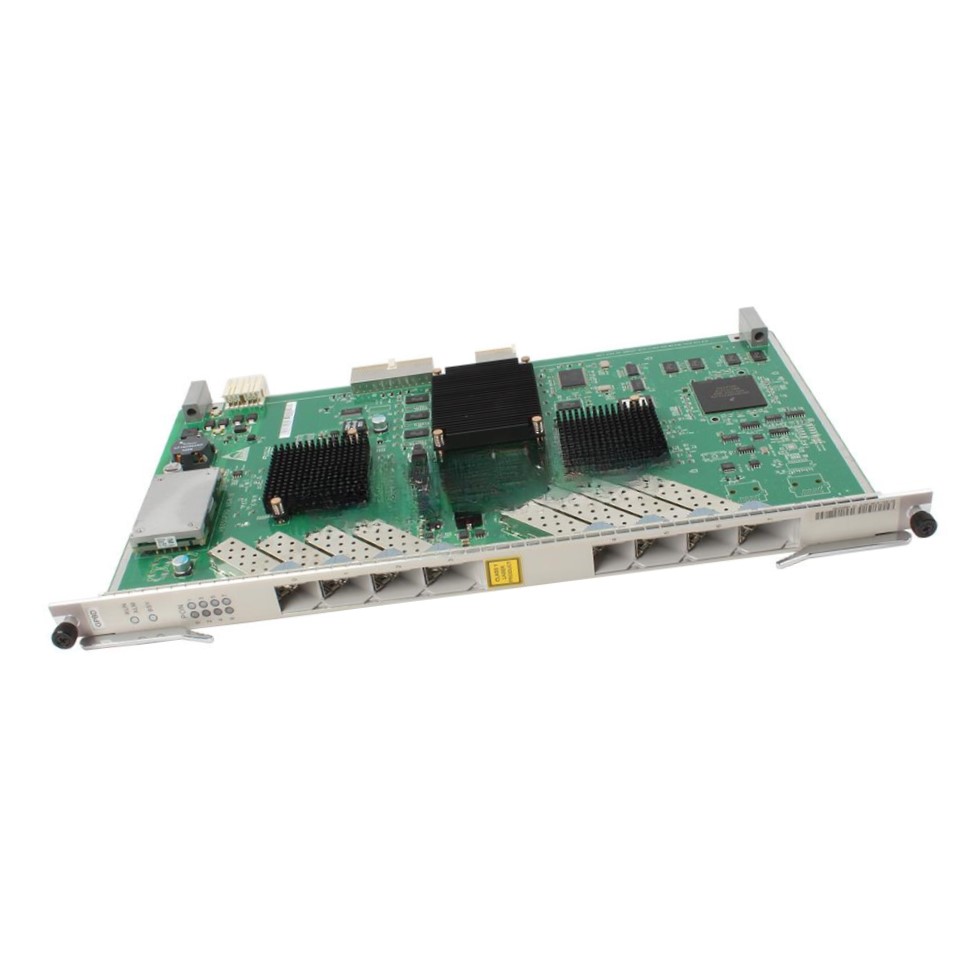

H805GPBD B+ Huawei Brand New 8-Port GPON OLT Interface Board
The H805GPBD B+ Huawei is a high-performance 8-port GPON OLT interface board designed for Huawei’s industry-leading OLT platforms, including the MA5600T, MA5680T, and MA5800 series. Supporting Class B+ optical modules, it delivers robust and efficient Gigabit Passive Optical Network (GPON) services for FTTH, FTTB, and FTTC applications. This board is an ideal choice for telecom carriers and ISPs seeking scalable, stable, and cost-effective broadband access.
Key Features
-
Model: H805GPBD B+
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 8 GPON Ports
-
Optical Module Type: Class B+ SFP
-
Downstream Data Rate: 2.488 Gbps
-
Upstream Data Rate: 1.244 Gbps
-
Max Split Ratio: 1:128 per port
-
Transmission Distance: Up to 20 km (typical with B+ module)
-
Plug-and-Play: Hot-swappable for fast replacement and deployment
-
Chassis Compatibility: MA5600T, MA5680T, MA5800 series
Technical Specifications
| Specification | Details |
|---|---|
| Board Model | H805GPBD (B+ Optical Module) |
| GPON Ports | 8 |
| Optical Module Class | B+ (Tx Power: +1.5 to +5 dBm / Rx Sensitivity: -28 dBm) |
| Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Split Ratio Support | Up to 1:128 |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single-mode, SC/UPC or SC/APC (ODN dependent) |
| Protocols Supported | ITU-T G.984.x, OMCI, AES, DBA |
| Power Consumption | ≤ 25W |
| Operating Temperature | -25°C to +65°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| OLT Compatibility | MA5600T, MA5680T, MA5800 series |
| Warranty | 1–3 Years Manufacturer Warranty |
H805GPBD B+ Huawei Applications
-
FTTH (Fiber to the Home) – High-speed internet access for residential users
-
FTTB (Fiber to the Building) – Shared broadband delivery in buildings and hotels
-
FTTC (Fiber to the Curb) – Intermediate access for hybrid fiber/copper deployments
-
Enterprise Networks – Reliable connectivity for corporate clients
-
Government & Education – Scalable broadband for public sector networks
Customization & OEM Options
-
Custom Branding Available – Company logo and model labeling upon request
-
Preloaded Settings – VLANs, T-CONTs, QoS templates pre-configured in factory
-
Alternate Optical Modules – Upgrade to Class C+ or Combo GPON options
-
Rack Integration Kits – Patch cords, panels, and fiber trays bundled
-
High-End QA Testing – Burn-in or long-duration testing for mission-critical rollouts
H805GPBD B+ Huawei Wholesale & Global Procurement
-
Original Huawei OEM Supply – Guaranteed new, sealed stock
-
Bulk Availability – Ideal for ISPs, telecom integrators, and contractors
-
Secure Packaging – ESD-safe bag, protective foam, export-ready carton
-
Fast International Delivery – Available via air or sea freight
-
Export Compliance – Full documentation and certifications provided
Why Choose the H805GPBD B+ Huawei
-
8 High-Capacity Ports – Efficient user expansion per board
-
Class B+ Module Support – Balanced performance and range for GPON
-
Huawei Quality Assurance – Deployed in millions of live networks
-
Flexible Deployment Options – Supports all major Huawei OLT chassis
-
Great Value for ISPs – Affordable solution with low power draw
Request Your Bulk Quote or Technical Sheet Today
Enhance your GPON network with the Huawei H805GPBD B+ 8-Port GPON OLT Interface Board — a trusted choice for stable, scalable, and cost-efficient fiber broadband access.
