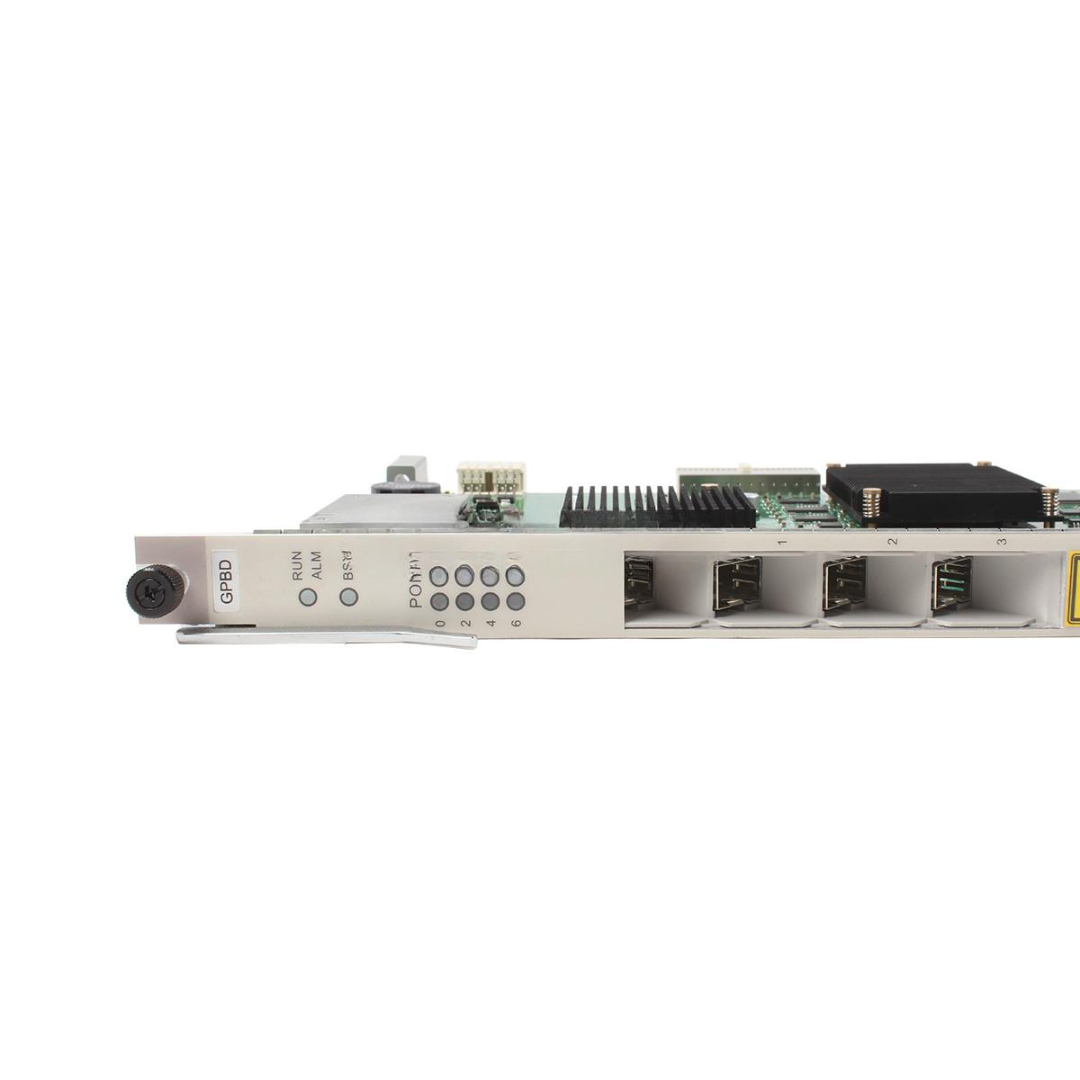

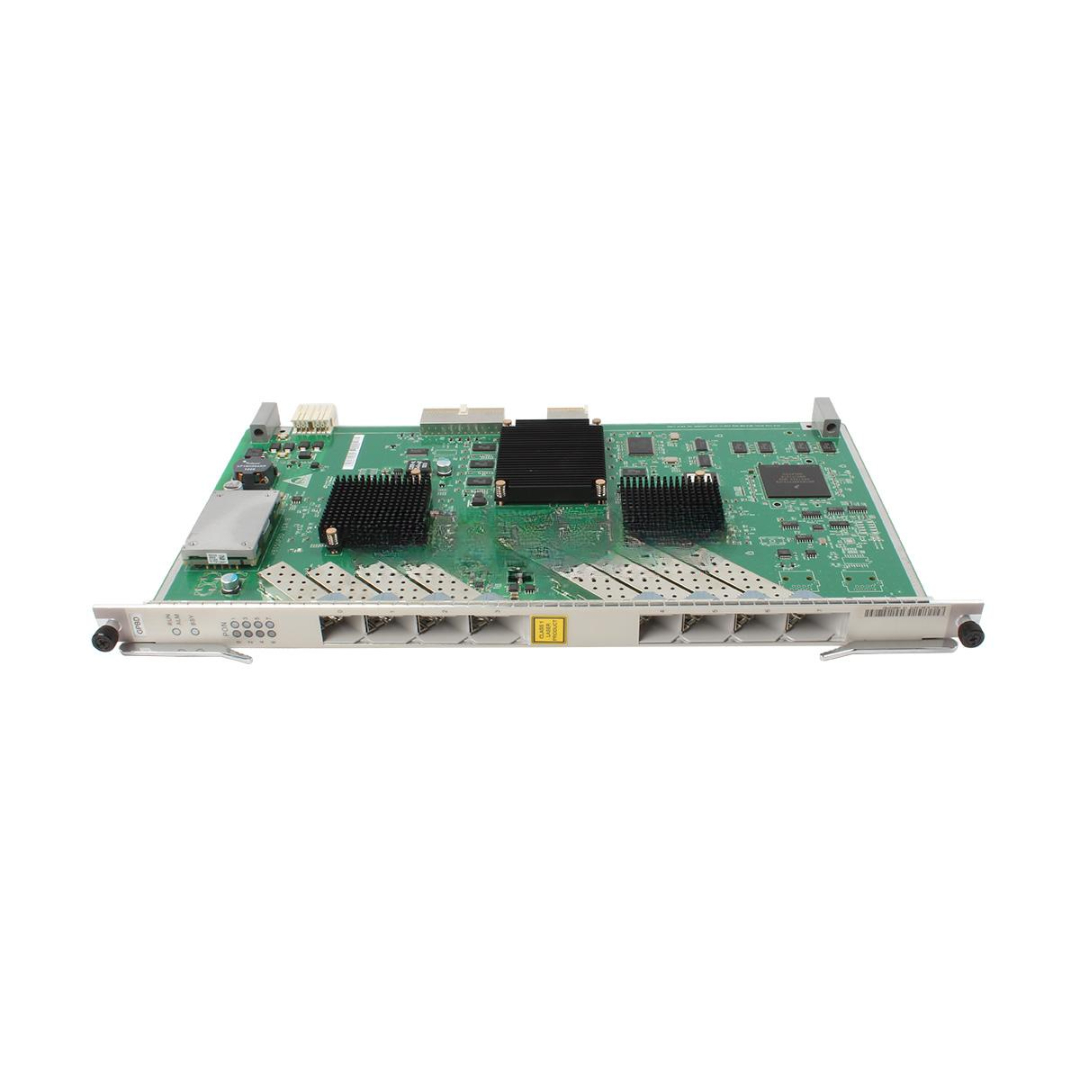

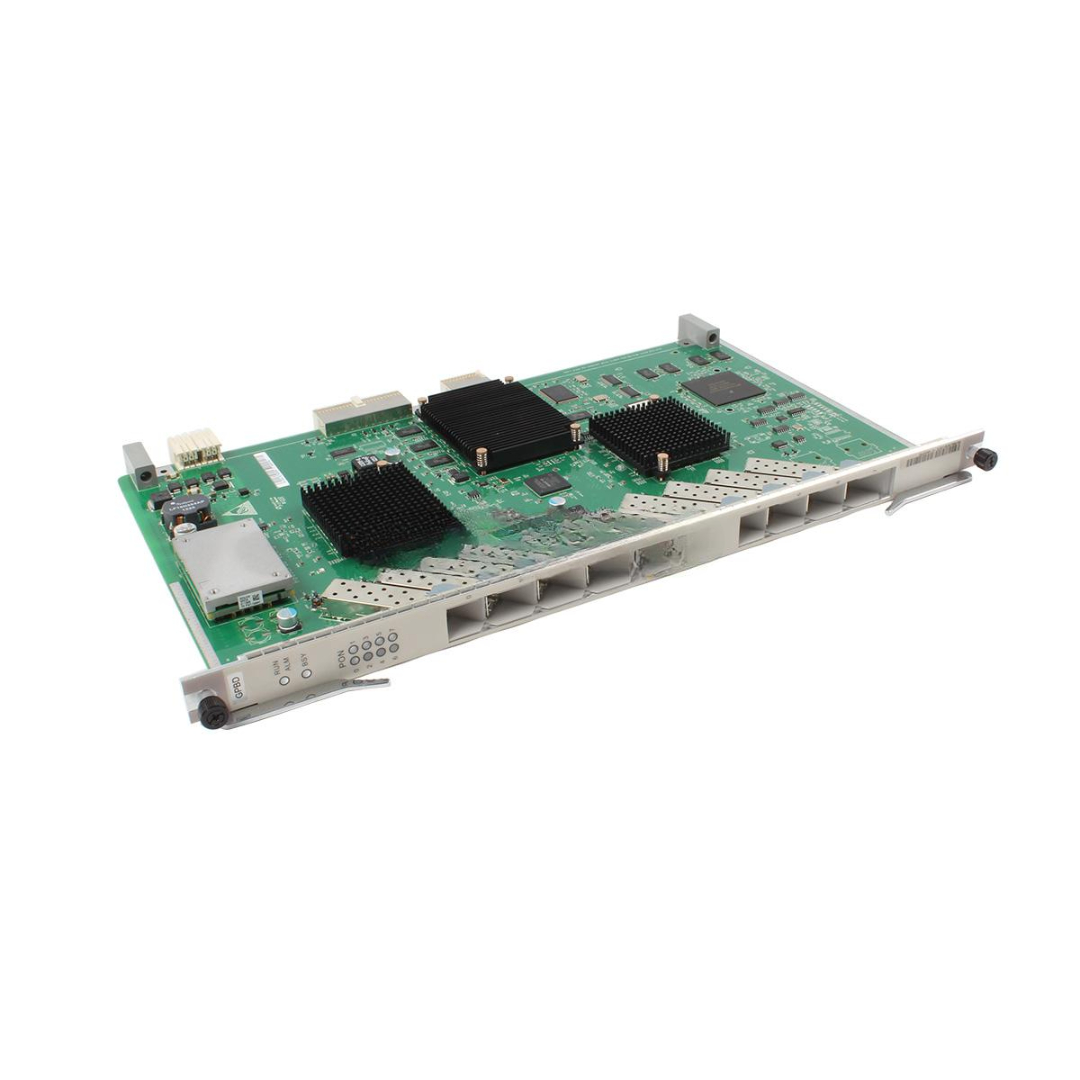

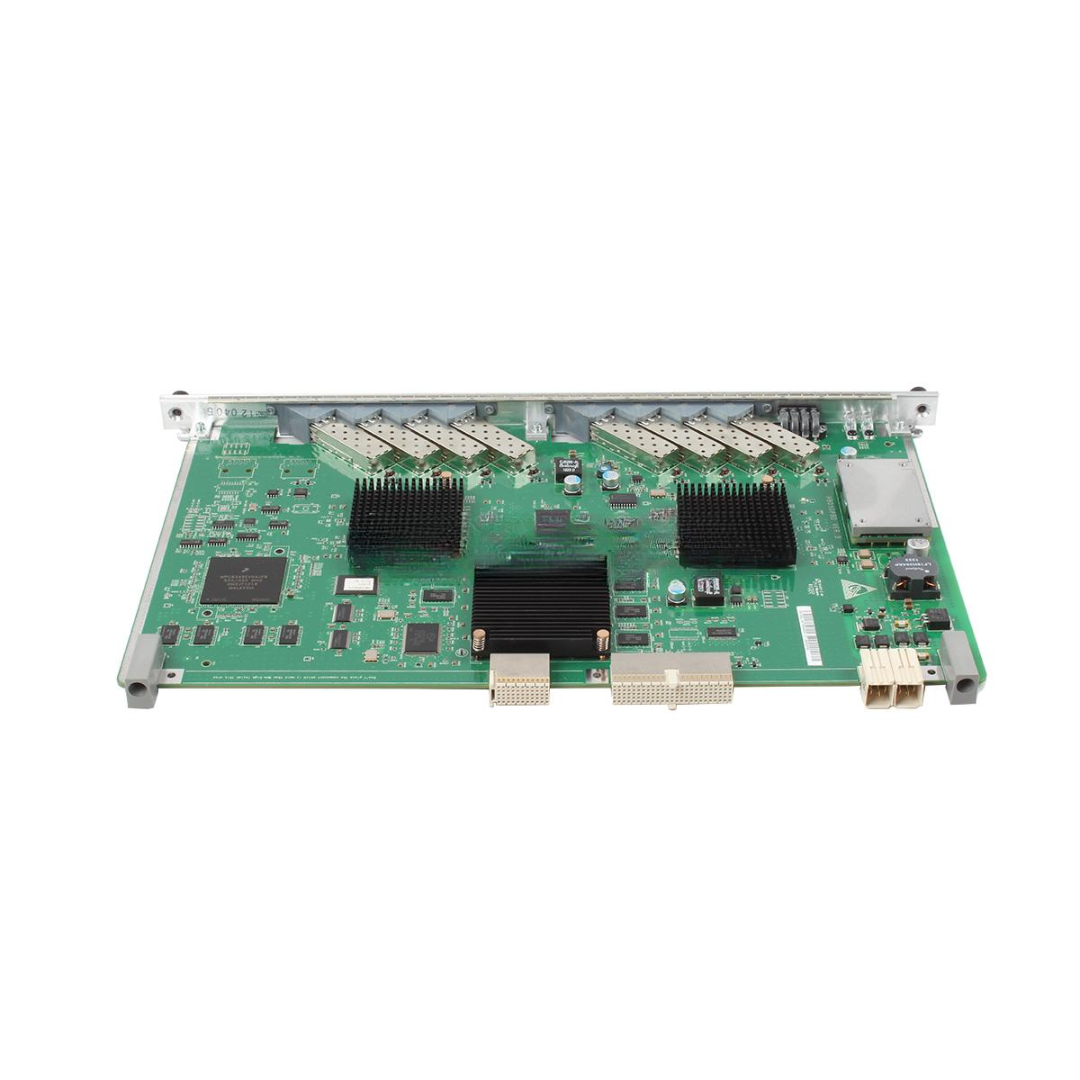

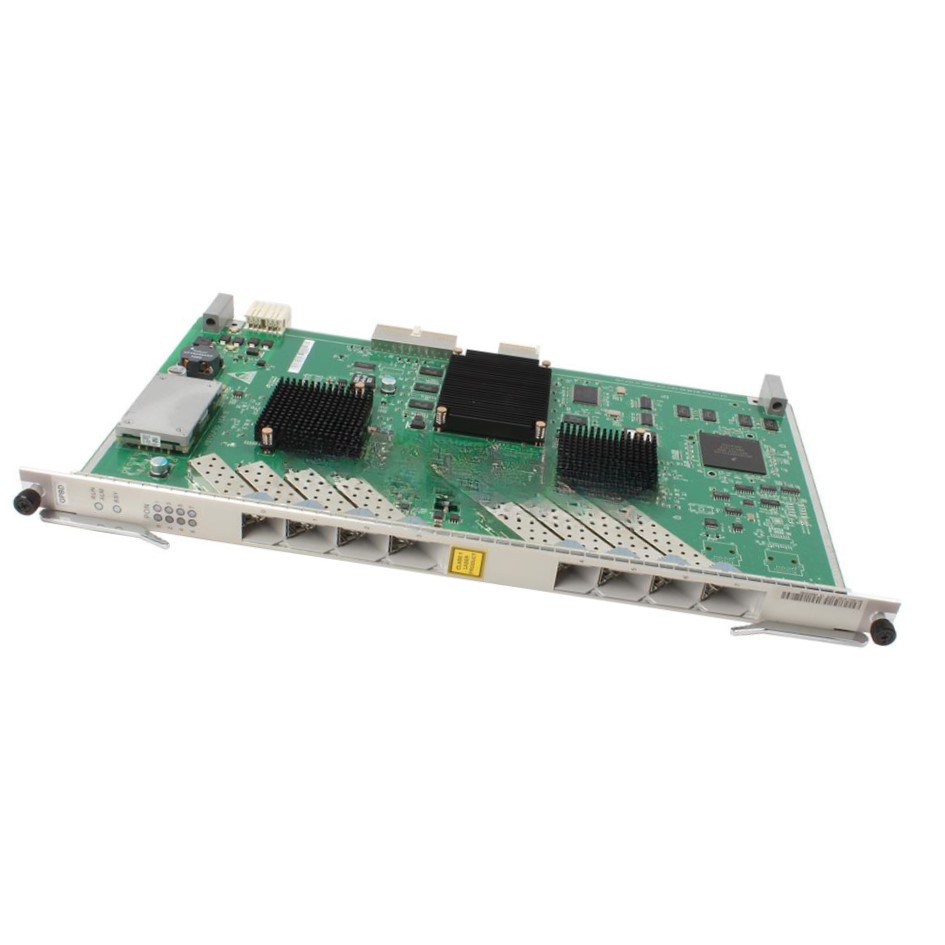

H805GPBD C++ Huawei Brand New 8-Port GPON OLT Interface Board
The H805GPBD C++ Huawei is a brand new 8-port GPON OLT interface board designed for use with Huawei’s MA5600T, MA5680T, and MA5800 series OLT platforms. Equipped with Class C++ optical modules, it provides superior optical power and long-distance transmission, making it ideal for dense and large-scale FTTH/FTTB deployments. The board supports up to 1:128 split ratio per port and is fully compliant with ITU-T G.984 standards for GPON networks.
Key Features
-
Model: H805GPBD C++
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 8 GPON Ports
-
Optical Module Type: Class C++ (Higher power and longer range)
-
Downstream Rate: 2.488 Gbps
-
Upstream Rate: 1.244 Gbps
-
Max Split Ratio: 1:128 per port
-
Transmission Distance: Up to 40 km (with Class C++ optics)
-
Compatibility: Fully compatible with MA5600T, MA5680T, MA5800 series
-
Hot-Swappable: Yes, supports live insertion and removal
Technical Specifications
| Specification | Details |
|---|---|
| Model | H805GPBD C++ |
| GPON Ports | 8 |
| Optical Module Type | Class C++ SFP |
| Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Optical Power (Tx) | +3 to +7 dBm |
| Receiver Sensitivity | -32 dBm |
| Split Ratio | Up to 1:128 |
| Transmission Distance | Up to 40 km |
| Fiber Type | Single-mode fiber, SC/UPC or SC/APC connectors |
| Service Types | High-speed data, voice, IPTV, and enterprise broadband |
| Standards Compliance | ITU-T G.984.1–4, OMCI, DBA, AES encryption |
| Power Consumption | ≤ 25W |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% to 95%, non-condensing |
| Supported Chassis | MA5600T / MA5680T / MA5800 series |
| Warranty | 1–3 Years Manufacturer Warranty |
H805GPBD C++ Huawei Applications
-
FTTH (Fiber to the Home) – High-bandwidth residential broadband access
-
FTTB (Fiber to the Building) – Broadband aggregation for multi-unit dwellings
-
Rural Connectivity – Ideal for long-distance coverage in rural areas
-
Enterprise Access – Dedicated fiber access for business internet services
-
Smart City Infrastructure – Secure, long-range GPON access for public networks
Customization & OEM Options
-
Custom Labeling – Brand the board with your company logo or part numbers
-
Preloaded Configuration – VLANs, user profiles, and ONT authentication settings preconfigured
-
Optical Module Choices – Upgradable to Combo PON modules on request
-
Deployment Kits – Includes patch cords, pigtails, and mounting brackets
-
Extended Testing Services – Optional QA tests for harsh environment deployments
H805GPBD C++ Huawei Wholesale & Global Procurement
-
Original Huawei Equipment – Direct from Huawei manufacturing lines
-
Large Volume Supply – Ideal for ISPs, carriers, and integrators
-
Fast Worldwide Shipping – Secure packaging with customs-ready documentation
-
Export-Compliant – Fully certified for international telecom deployment
-
Technical Assistance – Remote support and integration consultancy available
Why Choose the H805GPBD C++ Huawei
-
Class C++ Optical Power – Superior range up to 40 km with stable performance
-
8 High-Density Ports – Cost-effective solution for mass deployment
-
Carrier-Grade Reliability – Designed for 99.999% network uptime
-
Huawei Original Quality – Globally trusted in thousands of networks
-
Future-Ready Access Layer – Perfect fit for expanding FTTH infrastructures
Get a Quote for Bulk Orders or Technical Consultation
Upgrade your network with the Huawei H805GPBD C++ 8-Port GPON OLT Board — the ideal solution for high-density, long-range fiber access in modern telecom environments.
