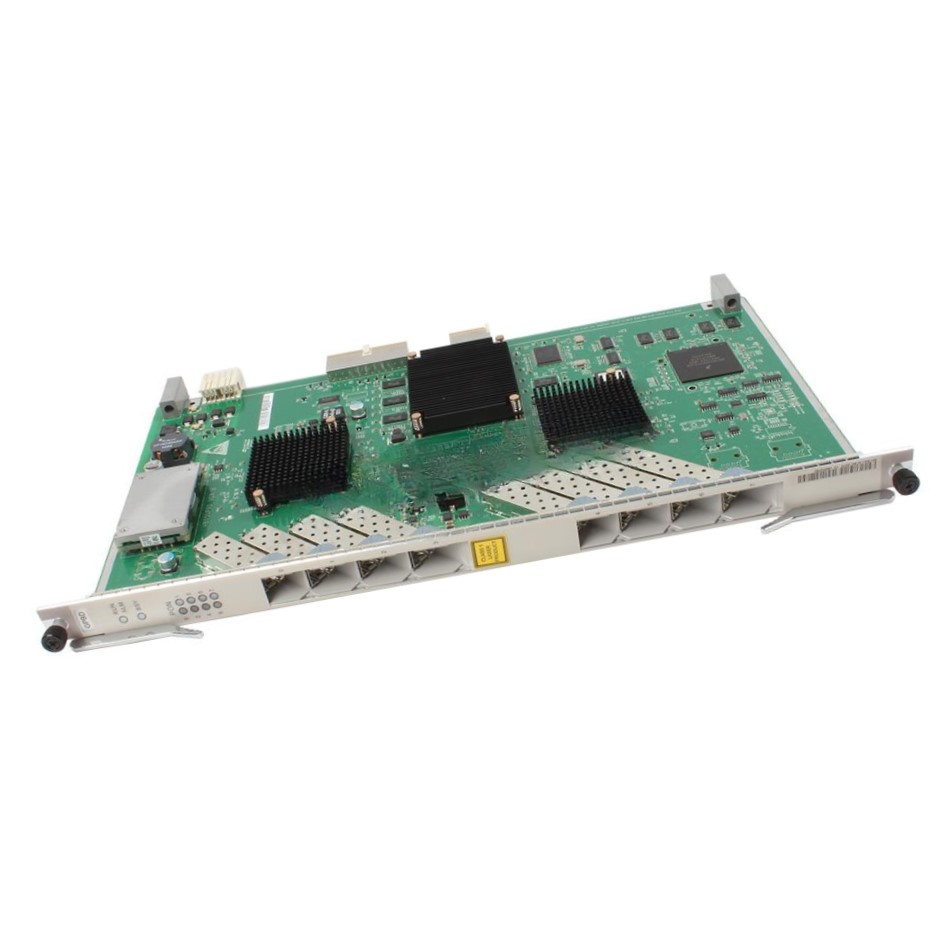

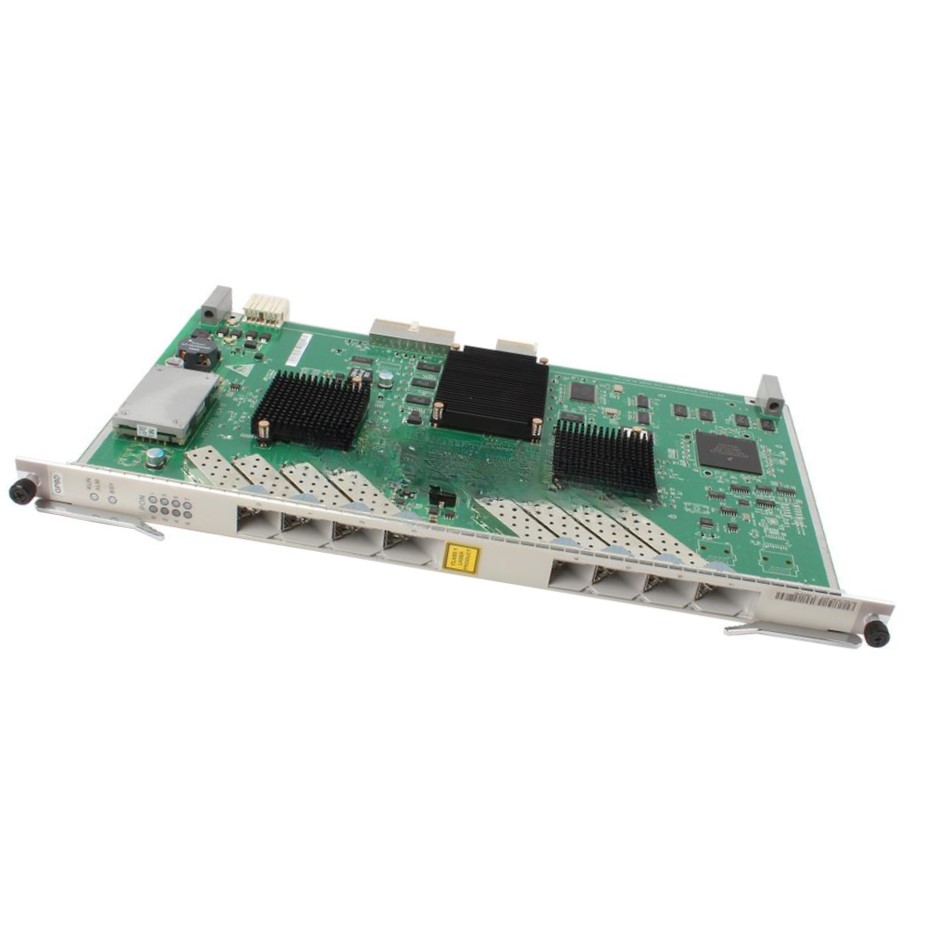

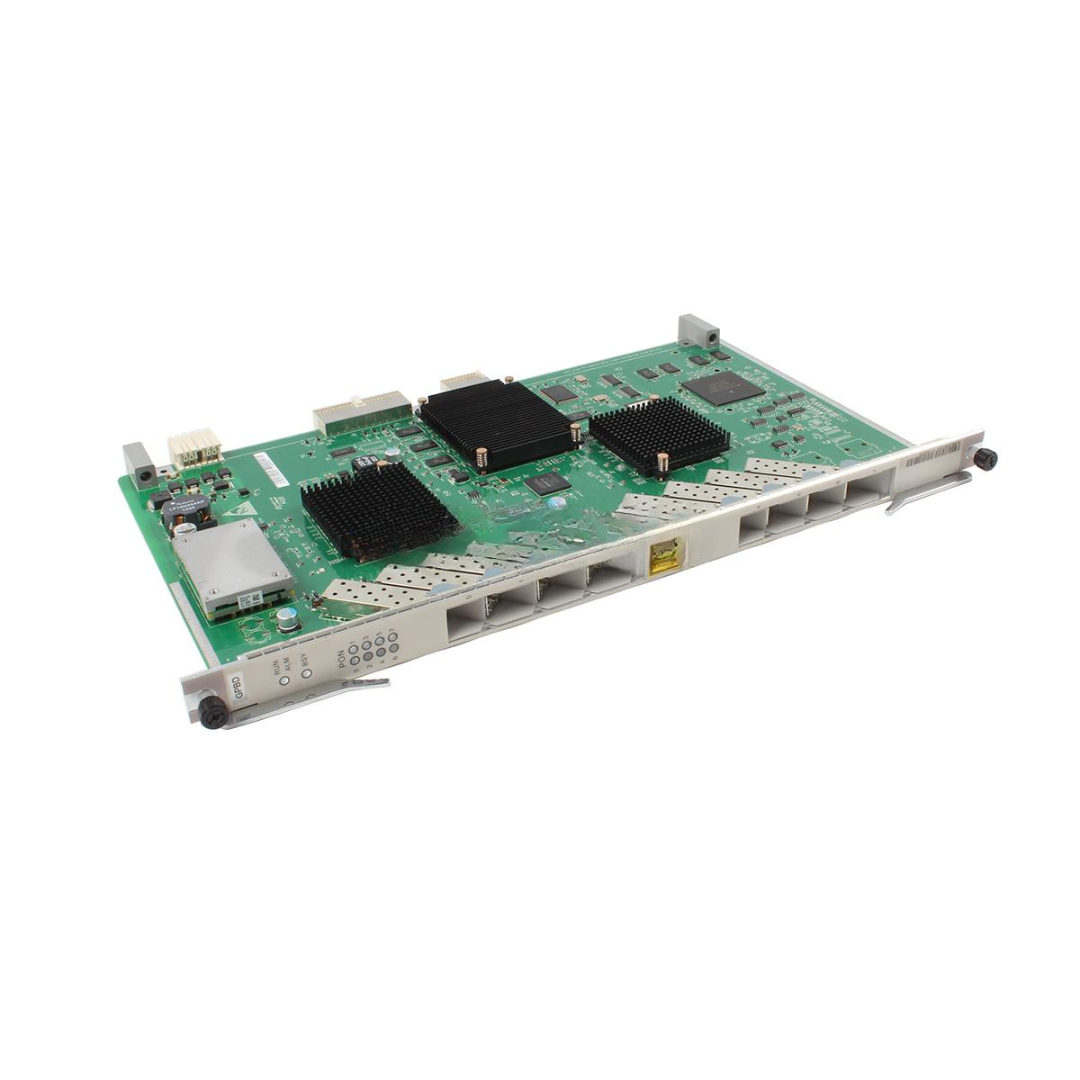

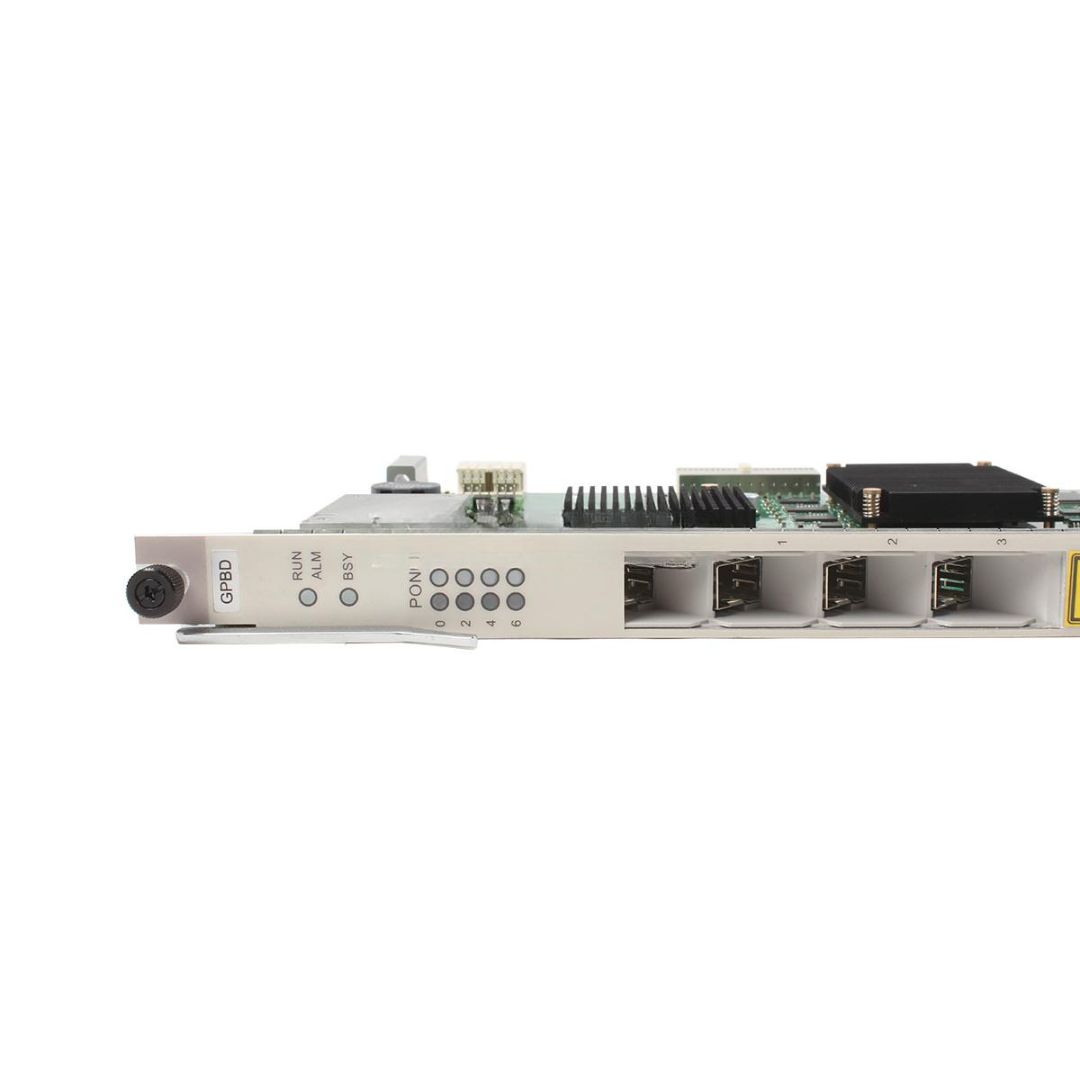

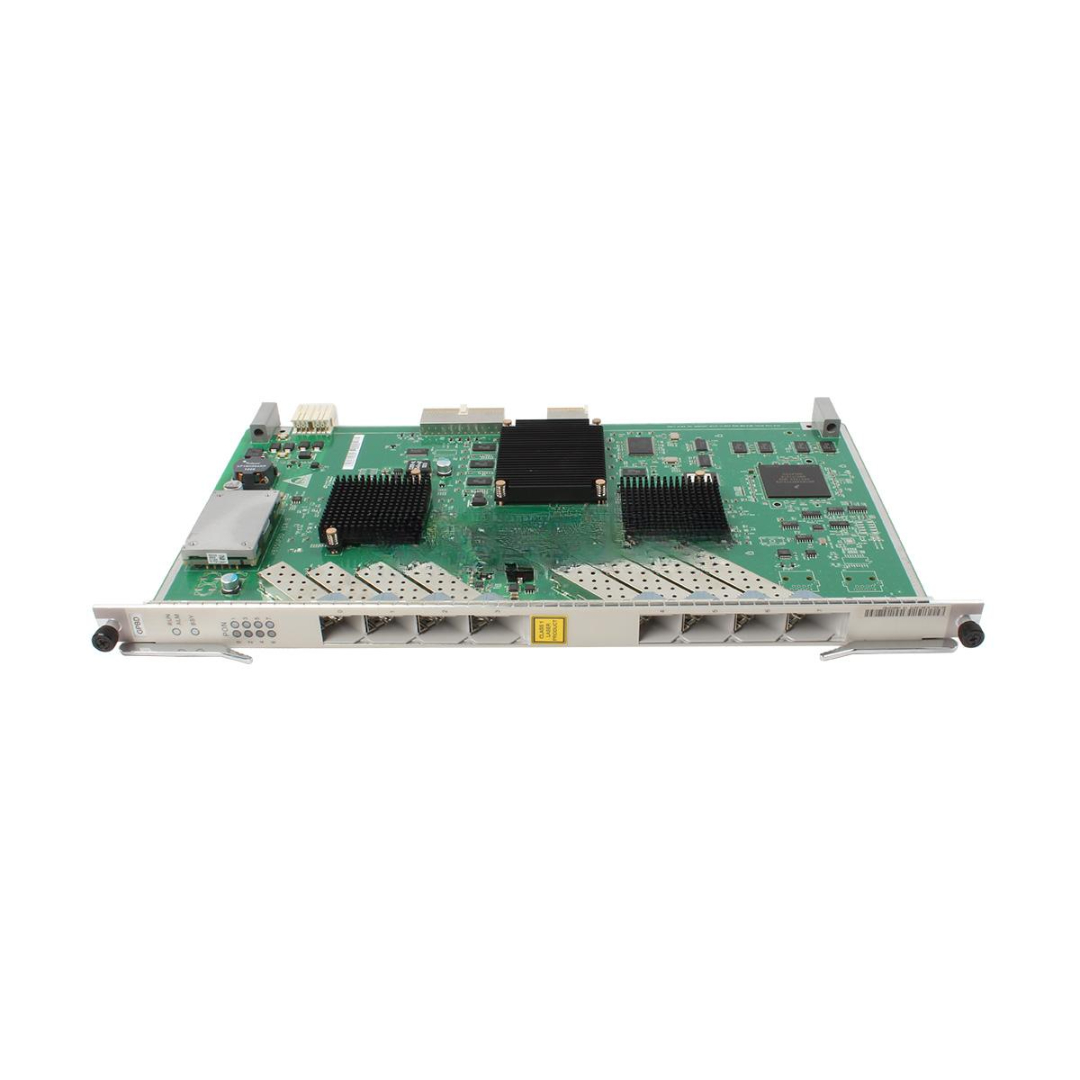

H805GPBD C+ Huawei Brand New 8-Port GPON OLT Interface Board
The H805GPBD C+ Huawei Brand New is a brand new 8-port GPON OLT interface board designed for use with Huawei’s SmartAX MA5600T, MA5680T, and MA5800 series OLT platforms. Equipped with Class C+ optical modules, this board offers stable, high-power transmission and is ideal for fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments. It supports up to 1:128 split ratio per port and fully complies with ITU-T G.984 standards for GPON networks.
Key Features
-
Model: H805GPBD C+
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 8 x GPON Ports
-
Optical Module Type: Class C+
-
Downstream Rate: 2.488 Gbps
-
Upstream Rate: 1.244 Gbps
-
Max Split Ratio: 1:128 per port
-
Transmission Distance: Up to 20 km
-
Compatibility: Fully compatible with MA5600T, MA5680T, MA5800 series
-
Hot-Swappable: Yes, supports live insertion/removal
Technical Specifications
| Specification | Details |
|---|---|
| Model | H805GPBD C+ |
| GPON Ports | 8 |
| Optical Module Type | Class C+ SFP |
| Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Tx Optical Power | +3 to +7 dBm |
| Receiver Sensitivity | -30 dBm |
| Split Ratio | Up to 1:128 |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single-mode fiber, SC/UPC or SC/APC |
| Standards Compliance | ITU-T G.984, OMCI, DBA, AES Encryption |
| Power Consumption | ≤ 22W |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% to 95%, non-condensing |
| Supported Chassis | MA5600T / MA5680T / MA5800 series |
| Warranty | 1–3 Years Manufacturer Warranty |
H805GPBD C+ Huawei Brand New Applications
-
FTTH (Fiber to the Home) – High-speed residential broadband access
-
FTTB (Fiber to the Building) – GPON aggregation for MDU networks
-
Rural Fiber Networks – Long-distance, stable optical transmission
-
Enterprise Fiber – Dedicated high-bandwidth access for businesses
-
Government & Smart Cities – Secure and scalable fiber infrastructure
Customization & OEM Options
-
Custom Branding – Add your logo or part number labels
-
Pre-configured Settings – VLANs, ONT profiles, authentication
-
Optional Accessories – Patch cords, pigtails, SFP spares
-
Extended QA Testing – Available for special deployment conditions
H805GPBD C+ Huawei Brand New Wholesale & Global Supply Information
-
Original Huawei Manufacturing – Authentic and quality-assured
-
Bulk Supply – Ideal for ISPs, integrators, and system builders
-
Fast Global Shipping – Safe export packaging, customs-ready
-
After-Sales Support – Remote help for integration and setup
Why Choose the H805GPBD C+ Huawei Brand New
-
Class C+ Optical Power – Delivers strong, stable signal up to 20 km
-
High Port Density – 8-port design enhances access capacity per slot
-
Carrier-Grade Quality – Engineered for 99.999% uptime in telecom networks
-
Huawei Original – Compatible with global Huawei GPON ecosystems
-
Cost-Effective GPON Access – Ideal for expanding last-mile fiber access
Contact Us Today
Upgrade your fiber network with the Huawei H805GPBD C+ 8-Port GPON OLT Interface Board — engineered for performance, reliability, and scalability in next-gen broadband deployments.
