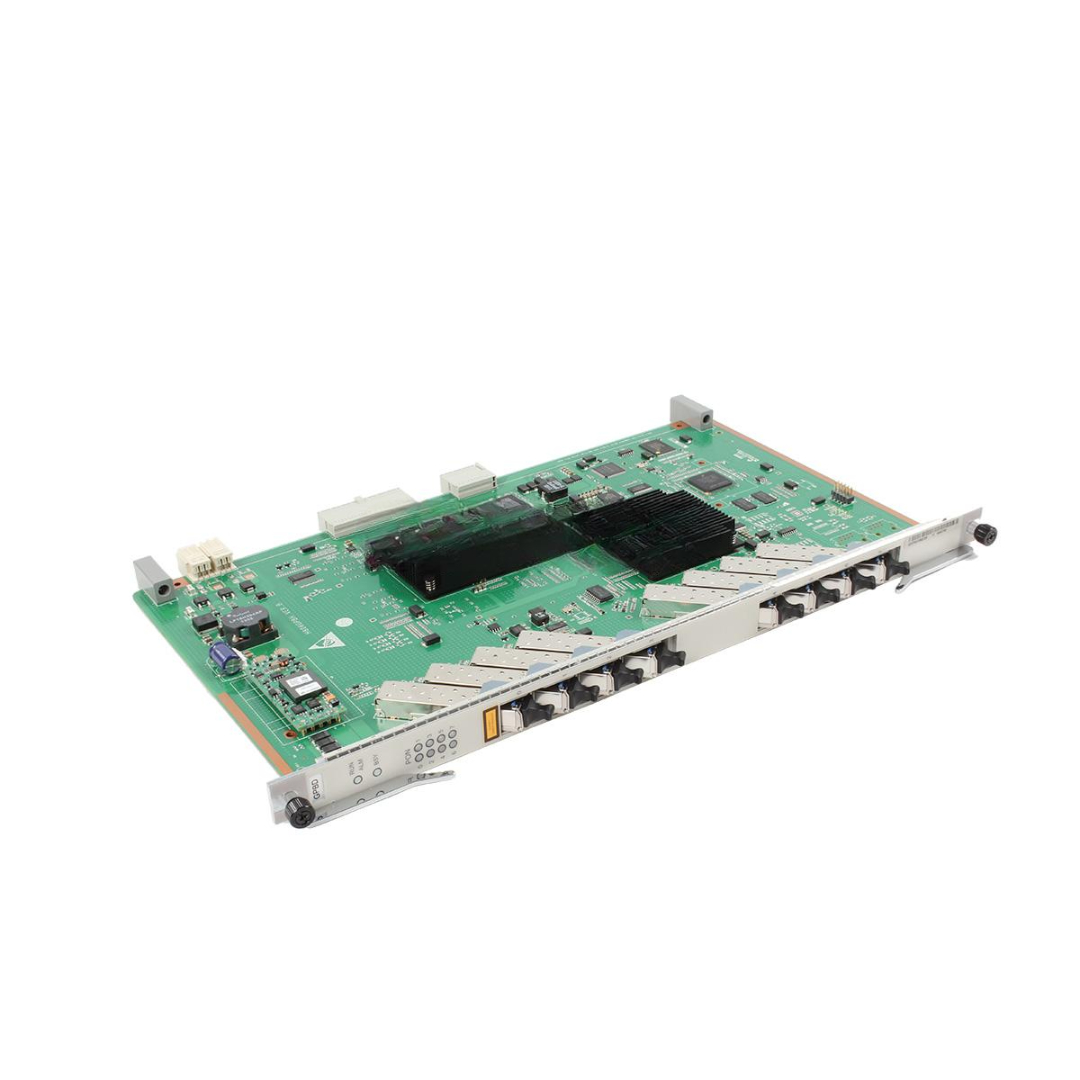

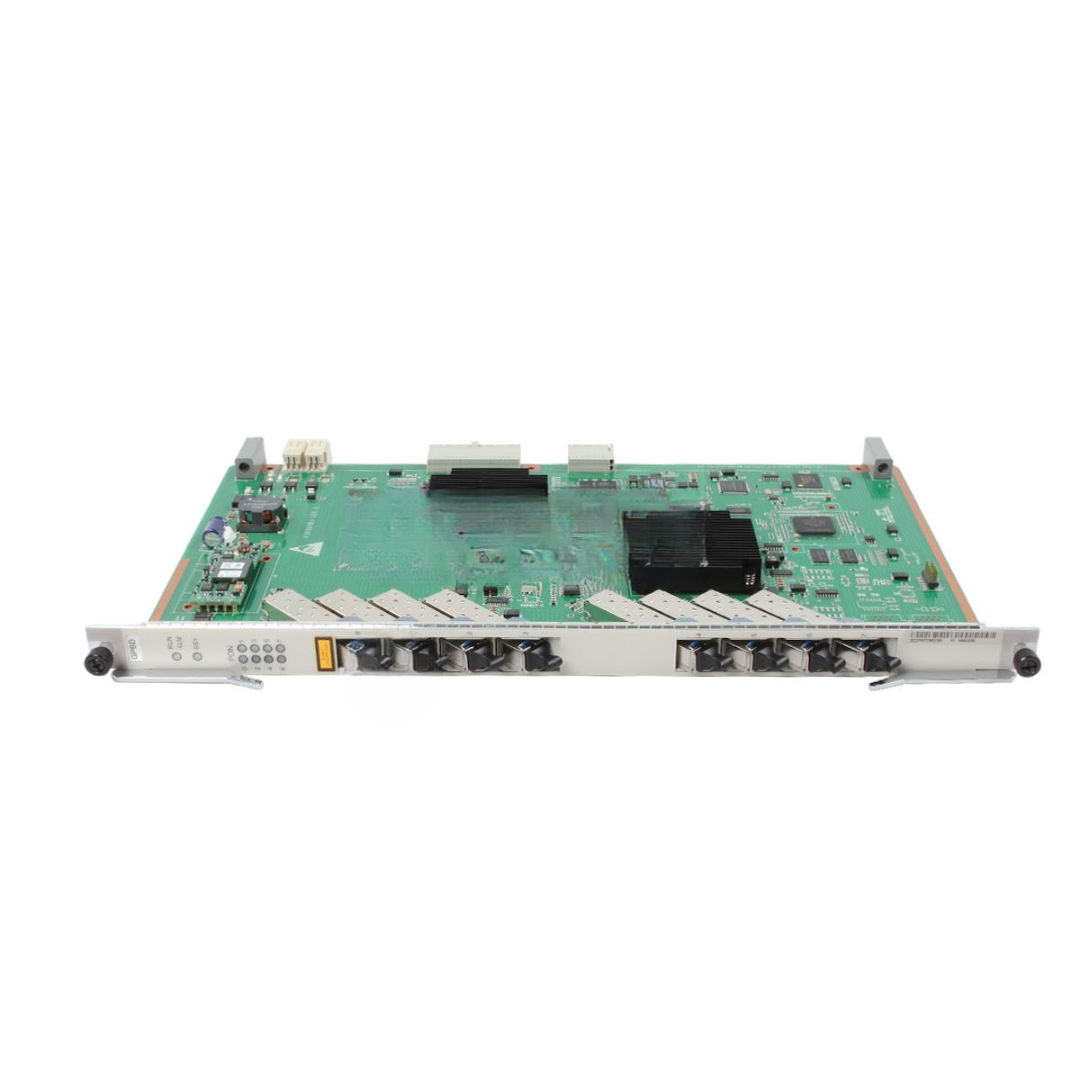

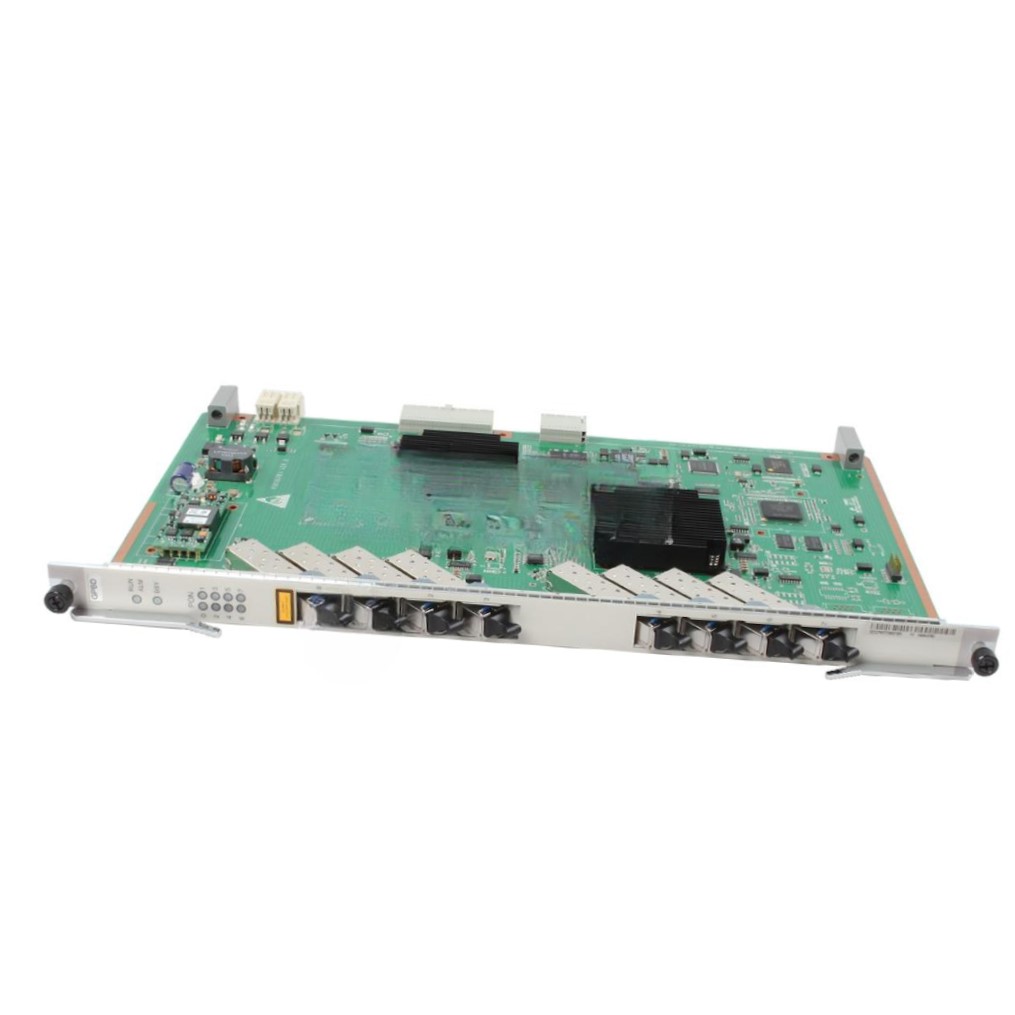

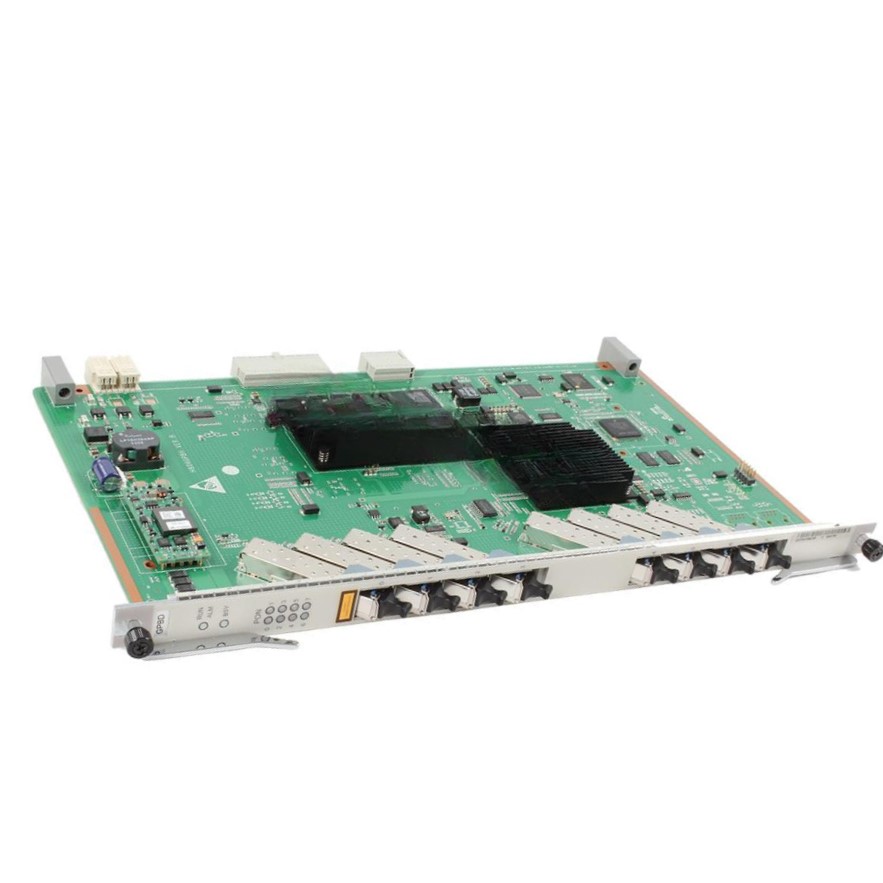

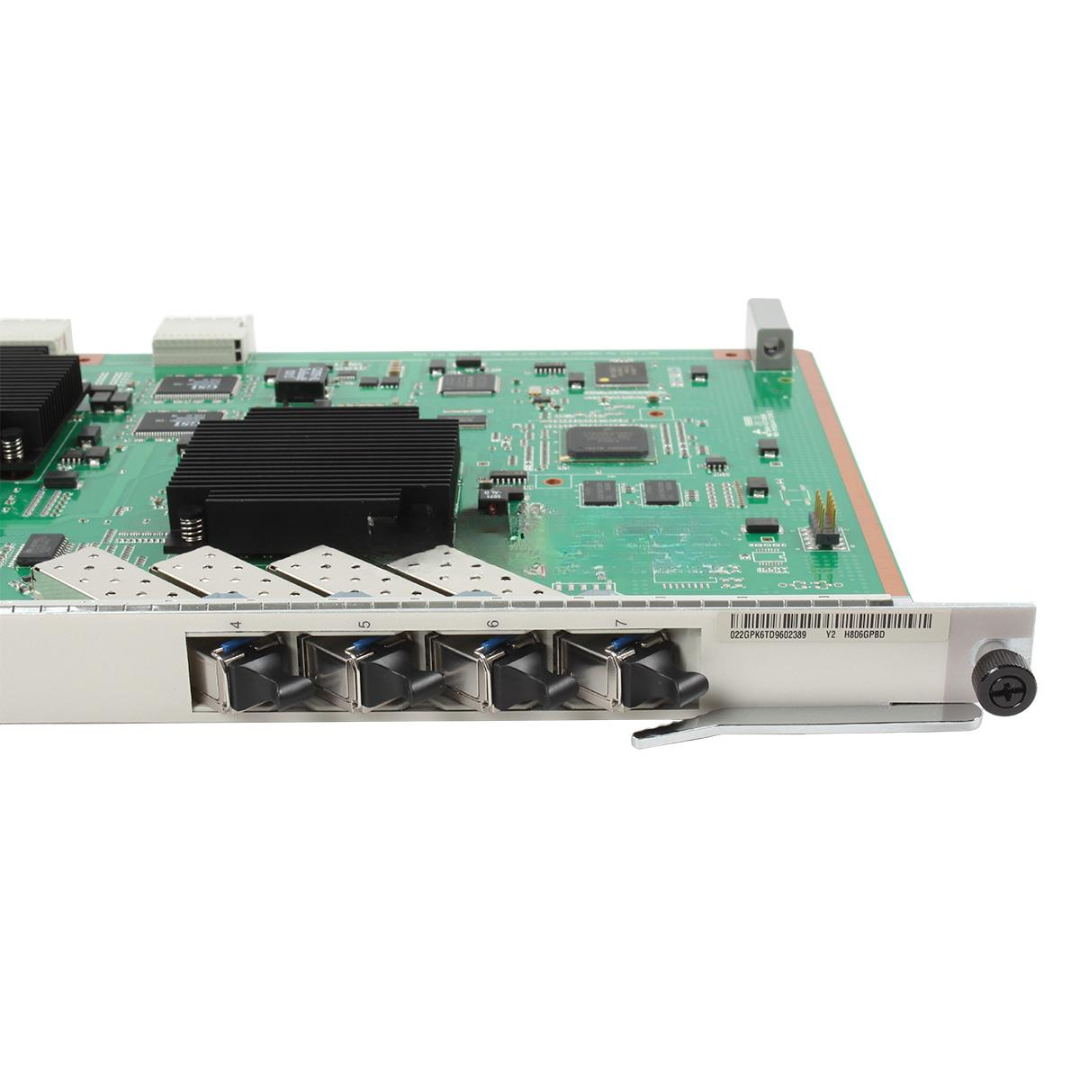

H806GPBD C+ Huawei Brand New 8-Port GPON OLT Interface Board
The H806GPBD C+ GPON is a brand new 8-port GPON OLT interface board, designed for use with the Huawei MA5800 series OLT platforms. Engineered for high-capacity, long-distance fiber access networks, the H806GPBD C+ comes with integrated C+ class optical modules, ensuring reliable GPON connectivity for up to 1:128 split ratios per port. It is ideal for FTTH, FTTB, and FTTC deployments in both urban and rural environments.
Key Features
-
Model: H806GPBD C+
-
Condition: 100% Brand New, Original Huawei
-
GPON Ports: 8 ports with C+ class optical modules
-
Connector Type: SC/UPC
-
Split Ratio: Supports up to 1:128 per port
-
Hot-Swappable: Yes – plug and play operation
-
Compatible Platforms: Huawei MA5800 series (X2, X7, X15, X17)
-
Downstream Speed: 2.488 Gbit/s
-
Upstream Speed: 1.244 Gbit/s
Technical Specifications
| Specification | Details |
|---|---|
| Board Name | H806GPBD C+ |
| Port Quantity | 8 GPON Ports |
| Optical Module Class | C+ |
| Connector Type | SC/UPC |
| Max Splitting Ratio | 1:128 per port |
| Transmission Distance | Up to 20 km |
| Downstream Rate | 2.488 Gbit/s |
| Upstream Rate | 1.244 Gbit/s |
| Wavelengths | TX: 1490 nm / RX: 1310 nm |
| Power Consumption | ≤ 22W (full load) |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% – 95% RH, non-condensing |
| Supported Protocols | ITU-T G.984.2, G.984.3, G.984.4 |
| Compliance | OMCI, TR069, SNMP, CLI |
| Warranty | 1–3 Years Manufacturer Warranty |
H806GPBD C+ GPON Applications
-
FTTH Deployments — Ideal for residential broadband service delivery
-
FTTB/FTTC Access — High-speed connectivity for buildings and roadside cabinets
-
Smart City Networks — Backbone GPON access for IoT and surveillance systems
-
Triple Play Services — Delivers voice, data, and IPTV over a single PON
-
Enterprise Fiber Access — Reliable connectivity for offices, schools, and campuses
H806GPBD C+ GPON Customization & OEM Options
-
Module Options — Available with C+ or C++ optics based on project needs
-
Pre-Configured Boards — Custom ONT templates, VLANs, and profiles can be preloaded
-
Branding Services — Custom label, logo, and packaging upon request
-
Bundled Kits — Available with GPON splitters, patch cords, or ONTs
-
Advanced Testing — Burn-in testing, QA reports, and configuration validation before delivery
H806GPBD C+ GPON Wholesale & Global Supply
-
Huawei Original Inventory — Verified and traceable product sourcing
-
Large Stock Availability — Ready for carrier-scale deployment
-
Export-Compliant Packaging — Anti-static and shockproof for global transit
-
Documentation Support — Datasheets, configuration guides, and CLI manuals included
-
Integration Assistance — Expert support for provisioning and system setup
Why Choose H806GPBD C+ Huawei GPON Board
-
8-Port High Density — Supports up to 1024 ONTs (with 1:128 split)
-
C+ Class Optics — Long-range stable transmission up to 20 km
-
Carrier-Grade Quality — Trusted in telco environments worldwide
-
Energy Efficient — Optimized power consumption for scalable growth
-
Seamless Compatibility — Integrates effortlessly with Huawei’s MA5800 OLTs
Contact US
Boost your fiber access network with the Huawei H806GPBD C+ 8-Port GPON OLT Interface Board — a trusted, high-performance solution for next-generation broadband delivery.
