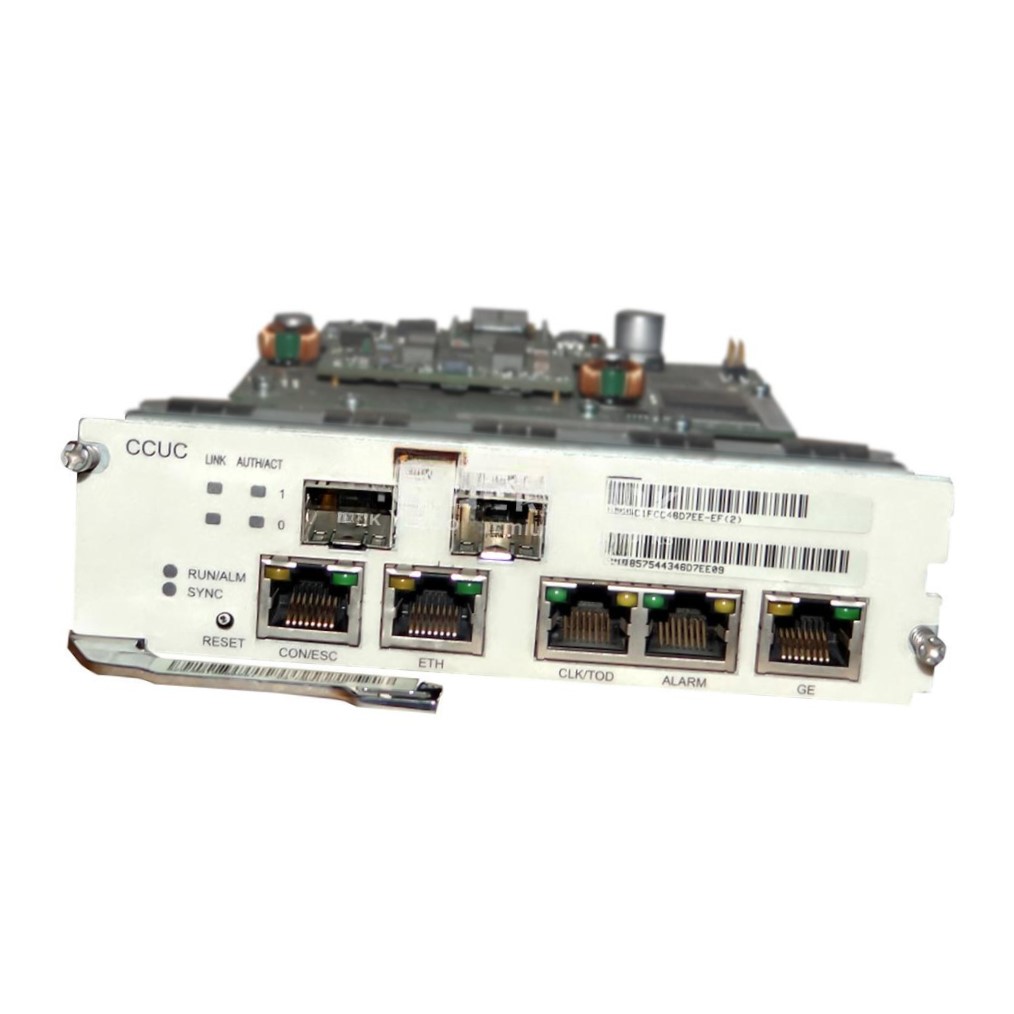

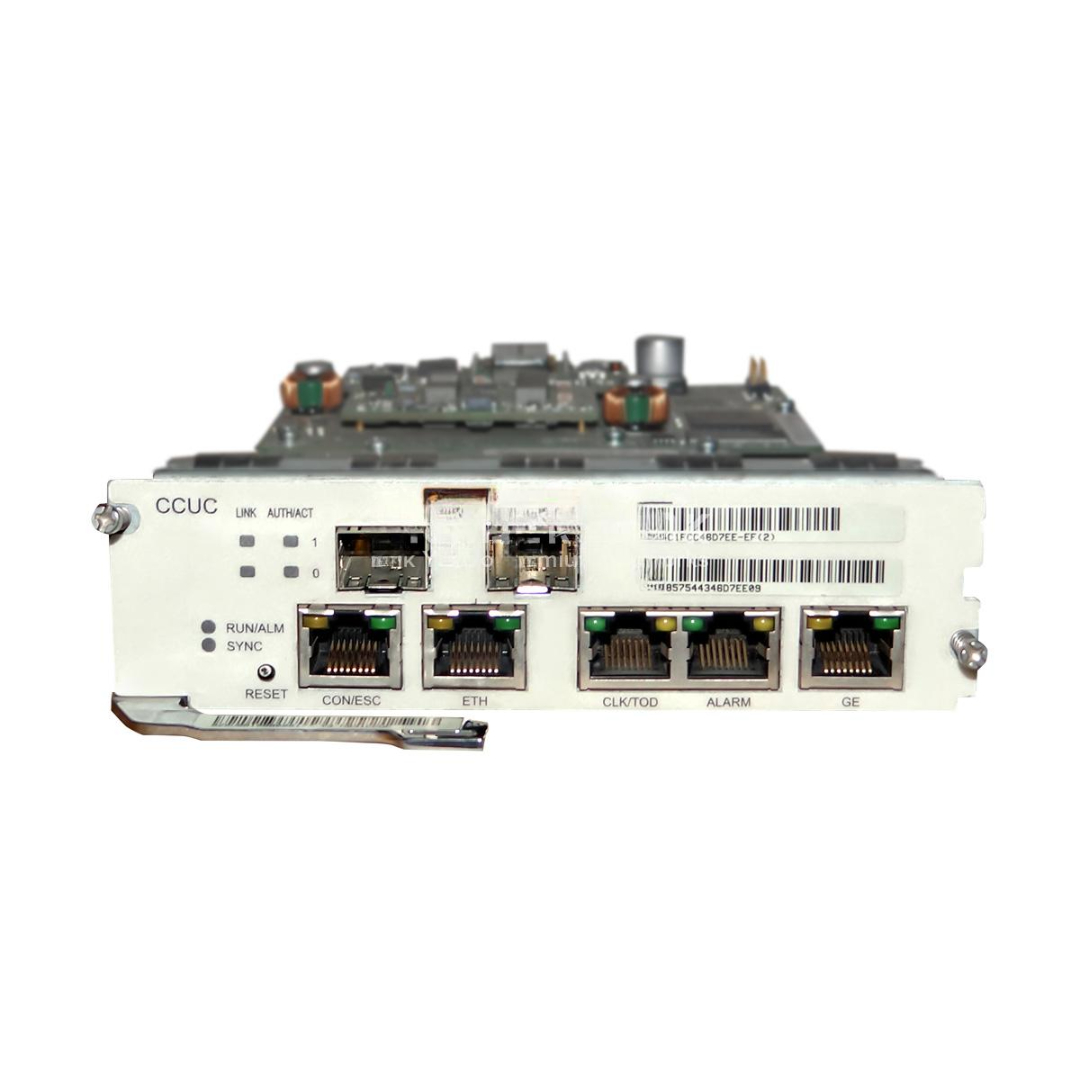

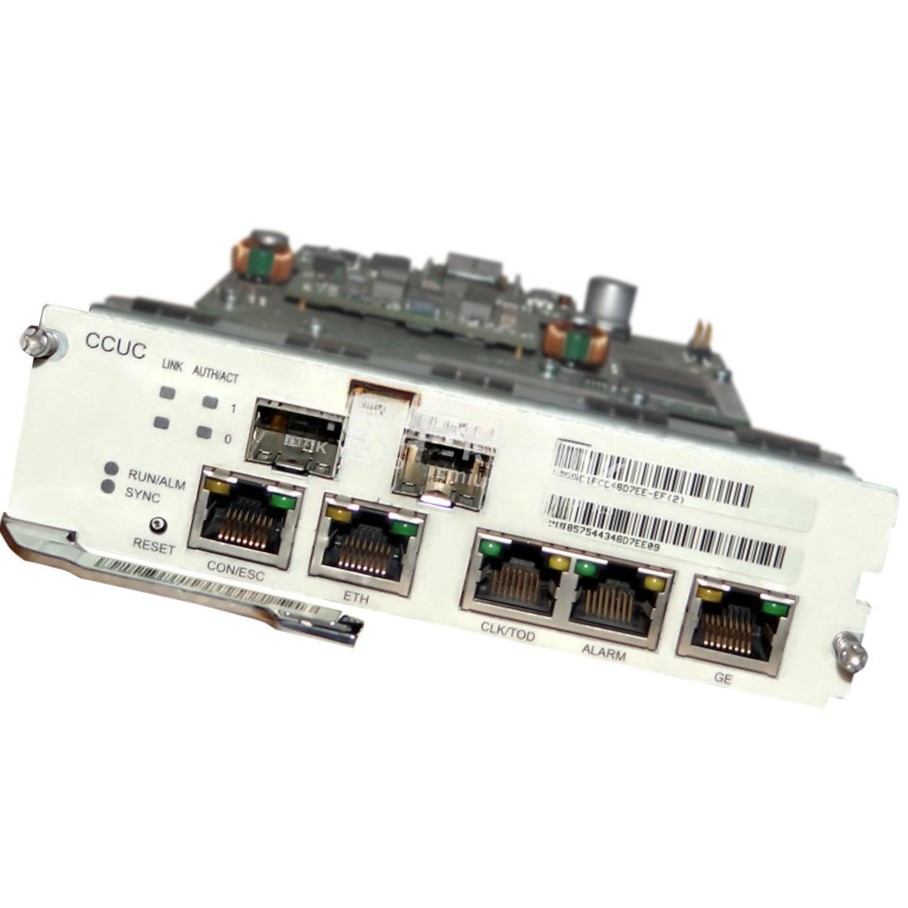

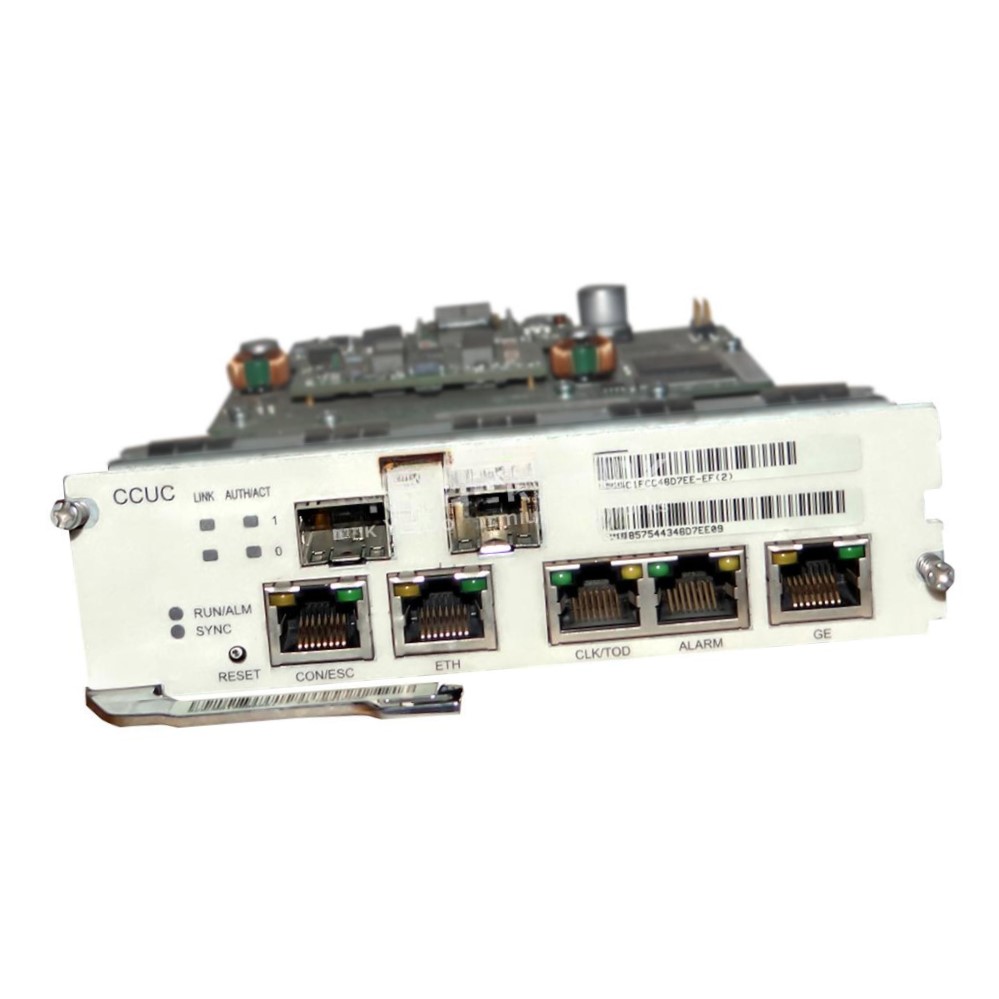

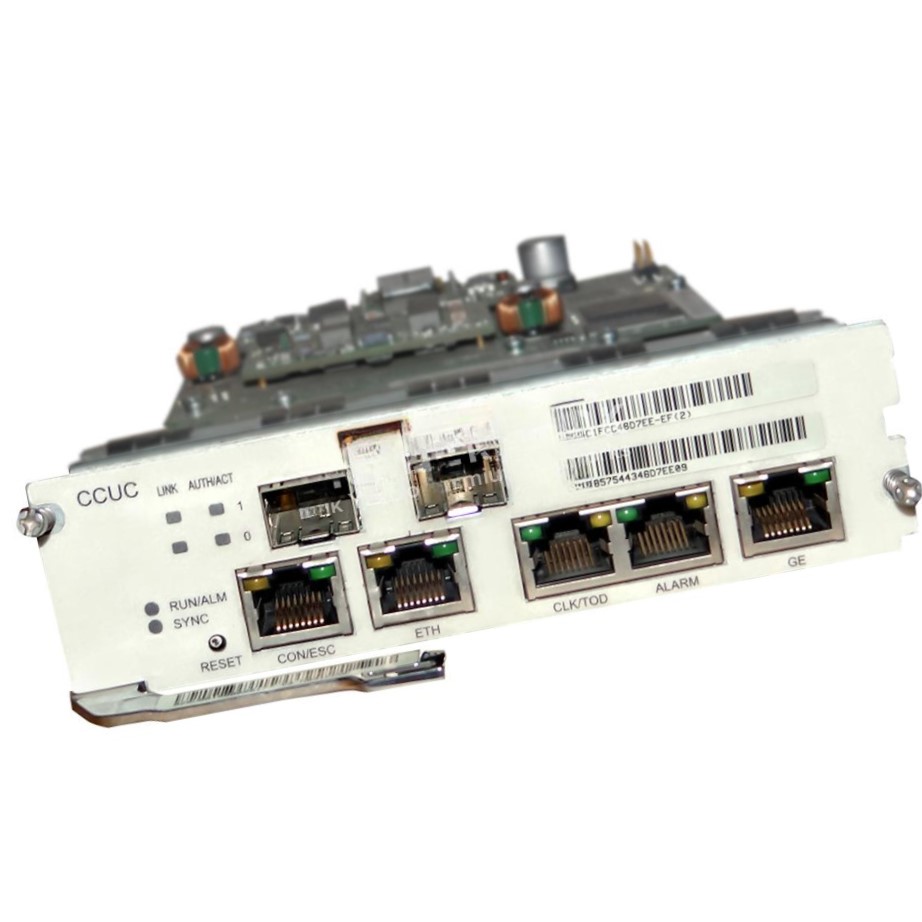

H831CCUC (UP2A) Huawei Brand New Main Control Board with 2 Ports
The H831CCUC (UP2A) Huawei is a brand new main control board designed for use in Huawei MA5800 series OLTs. As a central component, it manages system control, service scheduling, configuration management, and communication with service and interface boards. Featuring 2 uplink ports, the H831CCUC provides reliable, high-speed communication and system coordination, ensuring optimal performance in FTTH, FTTB, and smart city deployments.
Key Features
-
Model: H831CCUC (UP2A)
-
Condition: 100% Brand New, Original Huawei
-
Function: Main control and management unit for MA5800 series
-
Uplink Ports: 2 (typically GE or 10GE)
-
System Management: Supports board detection, configuration, software upgrades
-
Switching and Scheduling: Handles traffic forwarding and resource scheduling
-
Redundancy: Supports 1+1 active/standby backup when two CCUC boards are installed
-
Hot-Swappable: Yes, supports live insertion and replacement
-
High Reliability: Carrier-grade performance and stability
Technical Specifications
| Specification | Details |
|---|---|
| Board Name | H831CCUC (UP2A) |
| Type | Main Control Board |
| Uplink Ports | 2 (GE or 10GE SFP/SFP+) |
| Switching Capacity | Up to 100 Gbps |
| Power Consumption | ≤ 55W |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compatibility | MA5800-X2, X7, X15, X17 series |
| Standards Compliance | IEEE 802.1p, 802.1q, ITU-T G.988, OMCI, VLAN, etc. |
| Redundancy Support | 1+1 Active/Standby |
| Warranty | 1–3 Years Manufacturer Warranty |
H831CCUC (UP2A) Huawei Applications
-
FTTH / FTTB Deployments – Main control board for Huawei MA5800 OLTs in fiber networks
-
Enterprise Access Networks – Ideal for business-class broadband solutions
-
Smart City Infrastructure – High-performance control for intelligent ODN systems
-
Carrier Networks – Backbone for large-scale ISP and telecom provider operations
Customization & OEM Options
-
Branding & Labeling – Custom part numbers or logo available
-
Pre-Configured Boards – Optional ONT profiles and service templates
-
QA & Extended Testing – Factory acceptance testing and reporting upon request
-
Bundled Kits – Can be shipped with compatible uplink SFP modules or power cables
Wholesale & Global Supply
-
Genuine Huawei Hardware – Sourced directly from certified Huawei supply chains
-
Large Volume Availability – For ISPs, integrators, and regional distributors
-
Export-Ready – Properly packed and labeled with all shipping documentation
-
Technical Support – Remote deployment guidance and configuration available
Why Choose the H831CCUC (UP2A) Huawei
-
High-Speed Uplink Ports – Supports scalable traffic throughput
-
Centralized Control & Management – Ensures stable and responsive OLT operation
-
Hot Swappable with Redundancy – Enables maintenance without downtime
-
Trusted in Carrier Networks Worldwide – Proven reliability in diverse environments
Contact Us Today
Upgrade your optical network with the Huawei H831CCUC (UP2A) Main Control Board — a vital component for managing and optimizing next-generation broadband access infrastructure.
