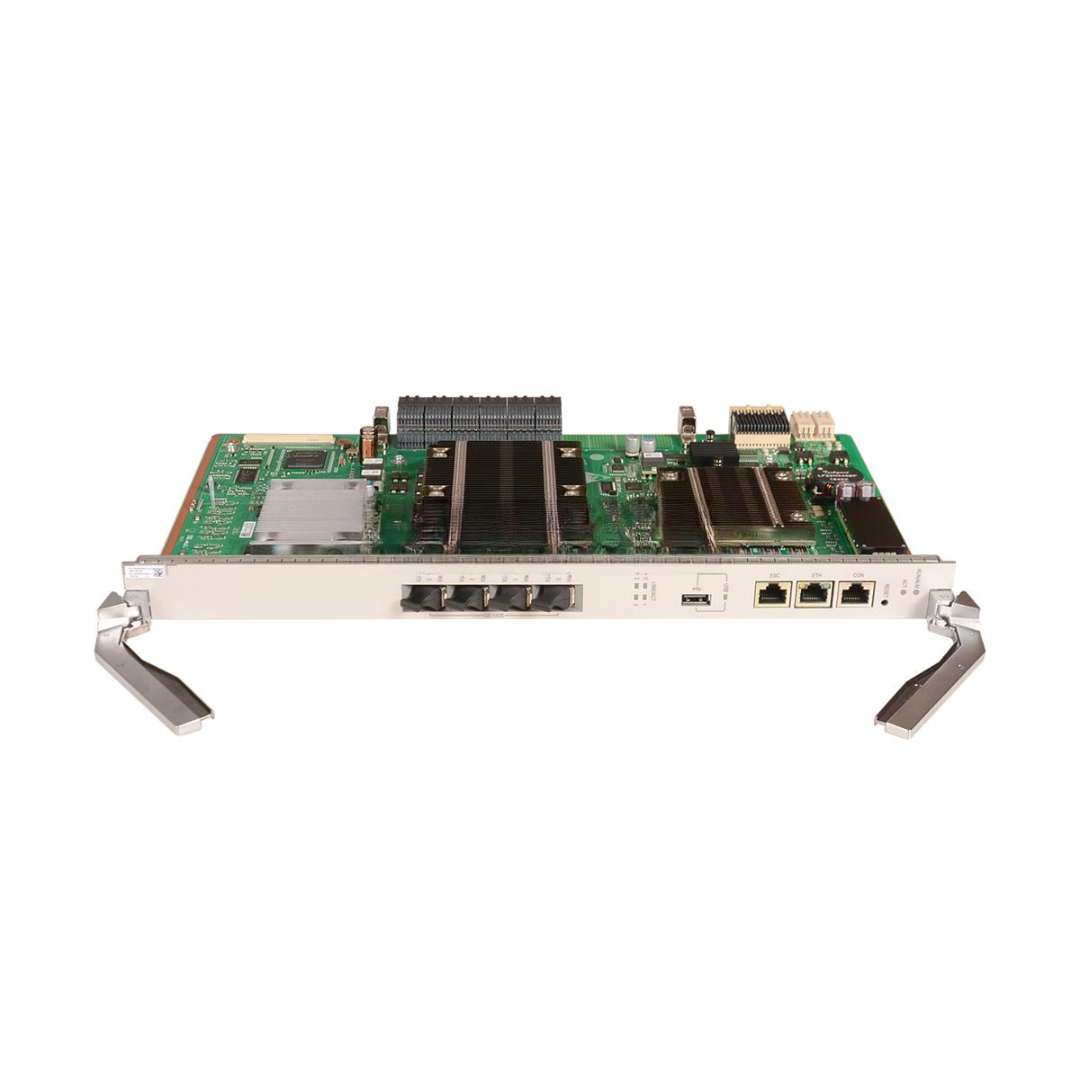

H901MPLB Huawei Brand New Main Control Board Integrated
The H901MPLB Huawei is a brand new original Huawei main control board designed for the MA5800 series OLT platforms, including the MA5800-X7, MA5800-X15, and MA5800-X17. As an integrated control and switching board, it delivers centralized service scheduling, system management, and data forwarding capabilities essential for high-performance broadband access networks.
Ideal for large-scale FTTx deployments, the H901MPLB supports a full range of service boards and ensures carrier-grade reliability, high switching capacity, and seamless network management.
Key Features
-
Model: H901MPLB
-
Condition: 100% Brand New and Original Huawei
-
Board Type: Integrated main control, switching, and service scheduling board
-
Compatibility: Huawei MA5800-X7, MA5800-X15, MA5800-X17 OLTs
-
Switching Capacity: Up to 3.2 Tbps
-
Redundancy Support: 1+1 hot backup with automatic failover
-
Management Functions: Supports NMS-based remote management, performance monitoring, and alarms
-
Plug-and-Play: Hot-swappable design for easy maintenance
-
Control Plane Integration: Controls all service boards and interfaces within the chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | H901MPLB |
| Function | Main control + switch + service management board |
| Switching Capacity | 3.2 Tbps |
| Backplane Bandwidth | 480 Gbps |
| Uplink Support | Multiple GE/10GE via service boards |
| Redundancy | 1+1 redundancy with automatic switchover |
| Slot Compatibility | Main control board slot in MA5800 series chassis |
| Protocol Support | IPv4, IPv6, VLAN, QoS, OSPF, BGP, IGMP, PIM, etc. |
| Operating Temperature | -25°C to +65°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Cooling Method | Chassis cooling (front-to-rear airflow) |
| Power Consumption | ≤90W (typical) |
| Warranty | 1–3 Years Manufacturer Warranty |
H901MPLB Huawei Applications
-
FTTH/FTTB/FTTC Networks — Central control board for high-density broadband access
-
Carrier-Grade OLTs — Scalable and modular platform for Tier 1/2/3 ISPs
-
Triple-Play Services — Supports data, voice, and video convergence
-
Metro Access Networks — Efficient service aggregation and switching
-
Enterprise & Campus Networks — Backbone control for large distributed environments
Customization & OEM Options
-
Branding Services — Custom labeling with your logo, part number, or packaging
-
Preconfigured Firmware — Pre-loaded software and configuration profiles for plug-and-play
-
Environmental Certification — Enhanced testing for extreme operating environments
-
QA Reports — Batch-specific performance test results and traceability
-
Accessory Bundles — With optical modules, cabling kits, or chassis upon request
Wholesale & Global Supply Information
-
Huawei OEM Stock — Sourced from authorized global partners and factory direct
-
Volume Discounts — Competitive pricing for bulk and long-term procurement
-
Export-Compliant Packaging — Secure anti-static and shock-proof packaging
-
Global Logistics — Worldwide shipping with customs clearance support
-
Technical Support — Integration consulting and post-deployment assistance
Why Choose the H901MPLB Huawei Main Control Board
High-Capacity Switching — Up to 3.2 Tbps for dense traffic and future scalability
Redundancy & Reliability — Hot backup support and fault-tolerant architecture
Seamless Integration — Compatible across all Huawei MA5800 chassis models
Carrier-Class Design — Telecom-grade durability and robust management features
Cost-Efficient Scalability — Ideal for growing networks without sacrificing performance
Contact Us for Pricing, Datasheets & Bulk Orders
Upgrade your OLT platform with the H901MPLB Huawei Main Control Board — trusted by global carriers for high-availability broadband access.
Inquire today for datasheets, OEM options, and wholesale pricing!
