- Model Number:HD4105C
- Type:Testers &Tools
- Place of Origin:Zhejiang, China
- Use:engineering
- Warranty Time:1 year
- Network:None

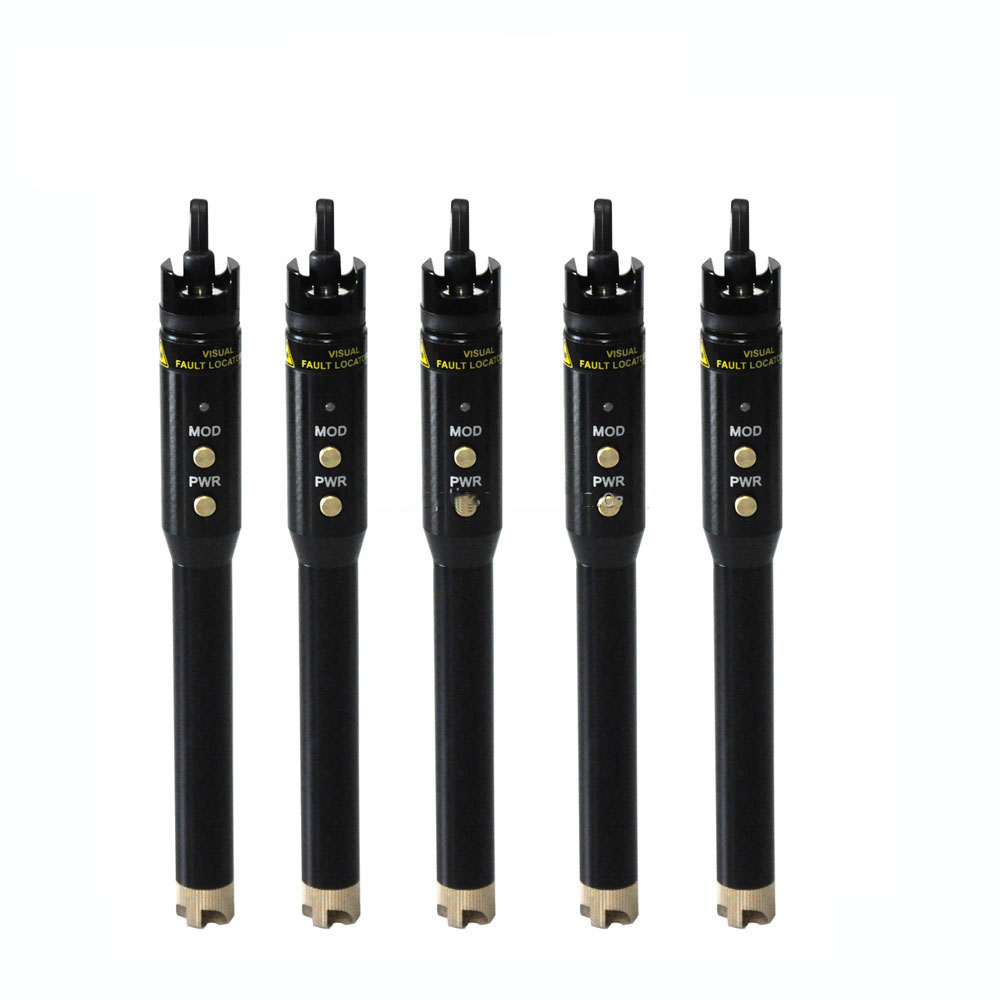

- Product name:HD4105C Optical Fiber Error Visual Fault Locator Laser Pen
- model:HD4105C
- Certification:CCC
- Application:FTTX
- Central wavelength:650nm+10nm(635nm is available on request)
- Output power:1mw,10mw,20mw,30mw,50mw
- Emitter type:FP-LD
- Function:fiber tracing, fiber routing,continuity checking in optical networks
- Operating model:Both CW and Pulse available
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Shanghai/Ningbo
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description
HD4105C is specially designed for field personnel who need an efficient and economical tool for fiber tracing fiber routing and continuity checking in optical networks. lt finds breakpoints, poor connections, bending or cracking in fiber optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fiber identification.
Products Description
|
Product name
|
HD4105C Optical Fiber Error Visual Fault Locator Laser Pen
|
|
|
Model
|
HD4105C
|
|
|
Central wavelength
|
650nm+10nm(635nm is available on request)
|
|
|
Emitter type
|
FP-LD
|
|
|
Output power
|
1mw,10mw,20mw,30mw,50mw
|
|
|
Optical connector
|
2.5mm universal connector,for 1.25mm connectors,FC(Male)-LC.(Female) convertor can be provided on request
|
|
|
Operating model
|
Both CW and Pulse available
|
|
|
Pulse frequency
|
2~3Hz
|
|
|
Power supply
|
2AA alkaline batteries650
|
|
|
Battery Operating Time
|
nm@1mw≥65hour650nm@10mw≥15hour
Test with Panasonic LR6 AA ALKALINE battery |
|
|
Operating temperature
|
-10°℃to 45°℃
|
|
|
Storage temperature
|
-40°℃to 70°℃
|
|
|
Weight
|
120g(without battery)
|
Details Images
Features：
1.User self calibration function1.Operates either in CW or Pulsed 2.Constant output power 3.Lower Battery warning 4.Long battery life (up to 60 hours)5.Crash-proof and dust-proof design for laser head Laser case ground design prevents ESD damage Burning testing to ensure the reliability 6.Portable and rugged, easy to use
