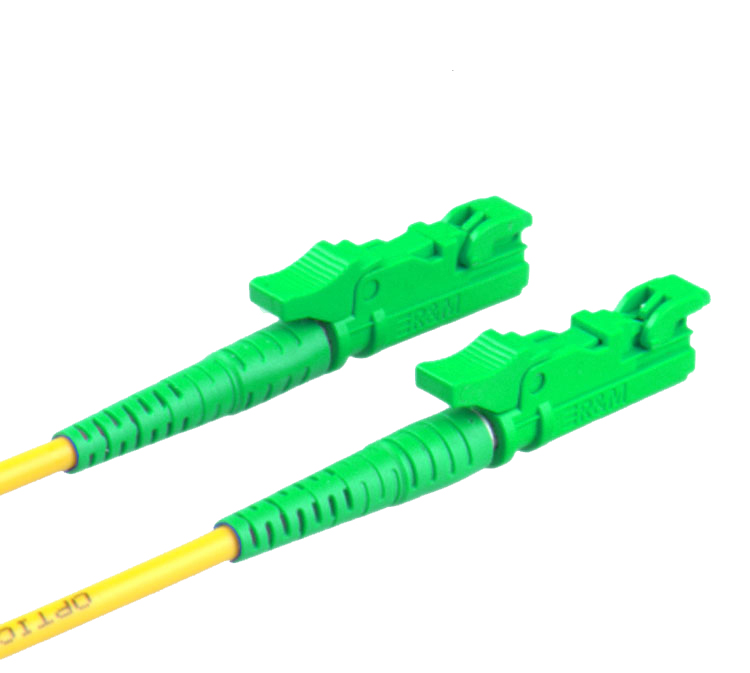

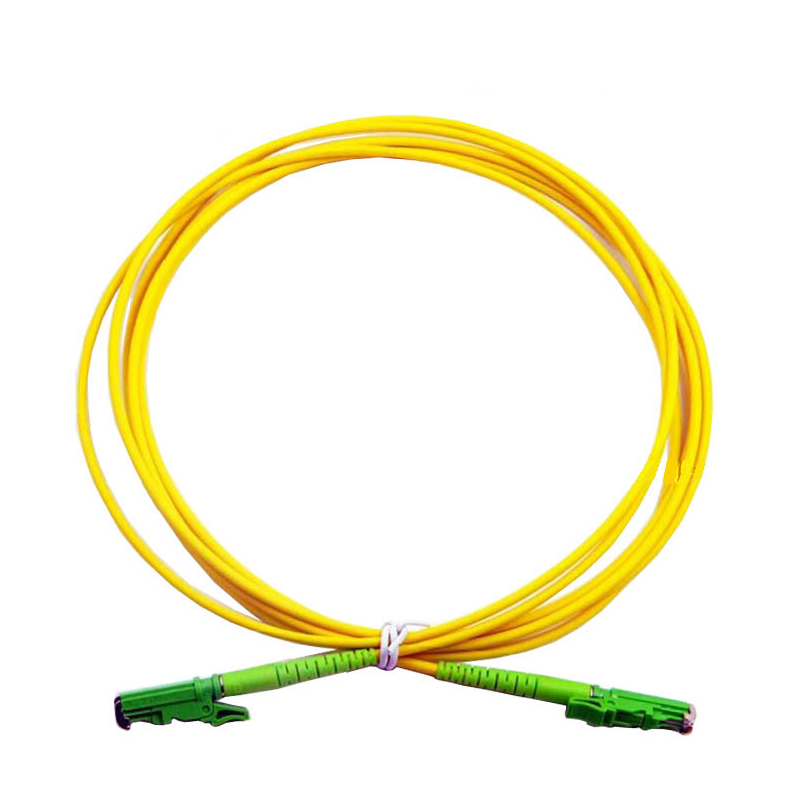

- Product name:Optical Fibers
- Fiber Type:OS1
- Fiber count:1Core
- Certification:ISO9001/CE/RoHS
- Jacket Material:PVC,LSZH
- Application:Access network,Trunk line,distribution
- Length:Customized
- Adapter:APC
- Selling Units:Single item
- Single package size: 12X12X6 cm
- Single gross weight:0.200 kg
- Package Type:Plastic/ Carton/wooden drum/Customized
- Lead time:Quantity(meters)1 – 5000>5000Lead time (days)10To be negotiated
FEATURES
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
APPLICATION
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
CABLE PARAMETERS
fiber brand: YOFC, FIBERHOME
Cord type: Duplex
Cable jacket:PVC, OFNR, LSZH, OFNP
Cable diameter:2.0mm,3.0mm
length:3m or customized
SPECIFICATIONS
| Parametor | Unit | Value | |||
| Connector Type | FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO | ||||
| Fiber Type | Multi-Mode | Single Mode | |||
| Insertion Loss | dB | Max.≤0.2 | Max.≤0.3 | ||
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| Connection Durability | times | ≥1000 | |||
| Operating/Storage Temperature | ℃ | -40~+80 |
