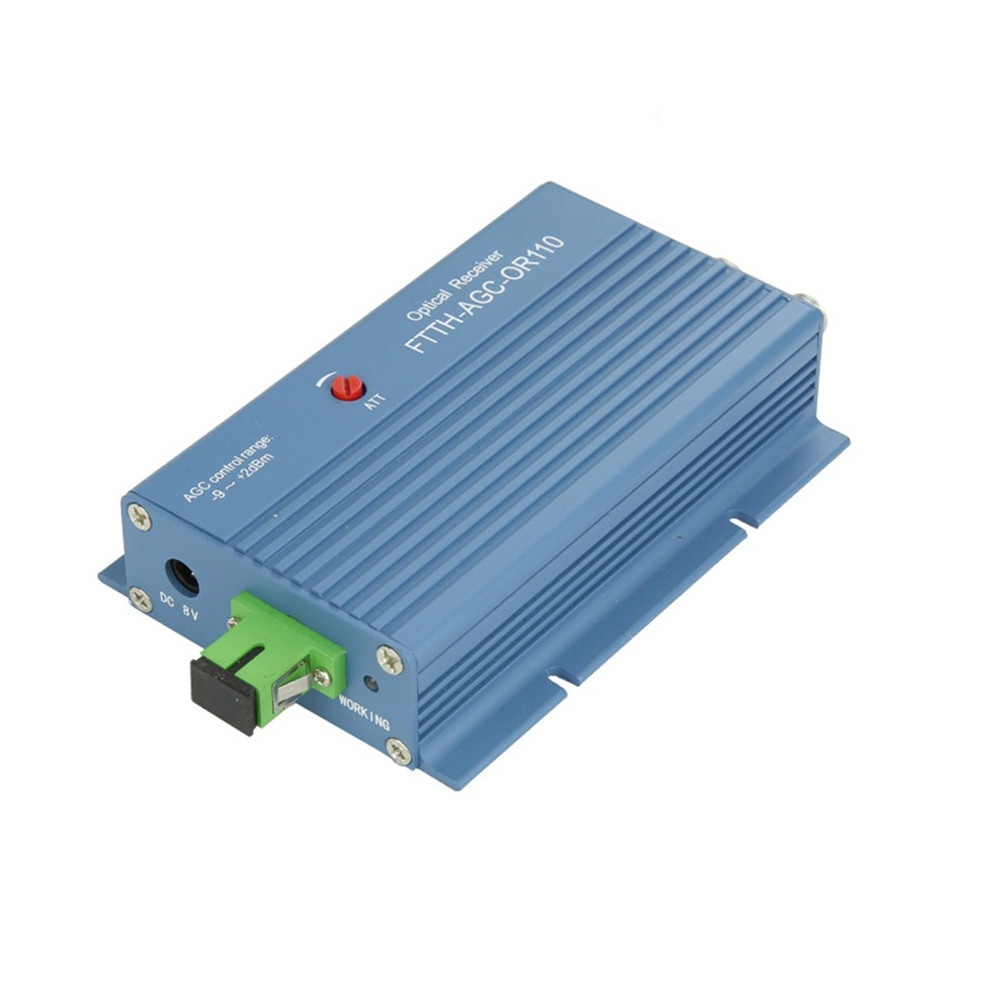

High Quality 1000MHz Mini AGC FTTB Gpon 2 Way CATV Optical Receiver in Factory Price
Product Description
FTTB AGC Fiber Optical Node / CATV Mini Fiber Optical Receiver is a specialty product which is specially designed for FTTB – Fiber to the building network structure. Low consumption, high output level, small size, compact and reasonable internal circuit structure, excellent performance and convenient installation and debugging makes it to be the first choice to build CATV FTTB network.
Features
- EQ and ATT both use the professional control circuit, makes the control more accurate.
- Adopt low noise high sensitivity PIN optical detector.
- AGC control range -9~+2dBm, output level unchanged, CTB and CSO unchanged basically.
- RF connector, female or male can be optional.
- GaAs MMIC amplification with high gain and high output lever and low distortion.
- Power supply: DC8V, American standard or European standard can be optional.
Specifications
|
FTTB Fiber Optical Receiver Node |
|||
|
Item |
Unit |
Paramter |
Supplement |
|
Opticalwavelength |
nm |
1260~1620 |
|
|
Optical input range |
dBm |
-9~+2 |
|
|
Output return loss |
(dB) |
≥45 |
|
|
Bandwidth (MHz) |
MHz |
47~862 |
|
|
Flatness (dB) |
dB |
±0.75 |
|
|
RF output level |
(dBuv) |
102 |
|
|
AGC control range |
(dBm) |
-9~+2 |
|
|
AGC character (dB) |
dB |
≤±0.5 |
|
|
ATT. |
(dB) |
0-20 |
MGC |
|
Optical connector |
|
SC/APC or FC/APC |
|
