- Model Number:GTGH
- Type:Other
- Place of Origin:Guangdong, China
- Brand Name:ZTE
- Use:FTTX FTTO FTTB
- Warranty Time:1 YEAR
- Network:wifi
- Product name:ZTE 16 port gpon card GTGH
-
- Supply Ability
- 300 Piece/Pieces per Month
-
- Packaging Details
Retail package for GTGH
-
- Port
Shenzhen/Guangzhou
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Product Description

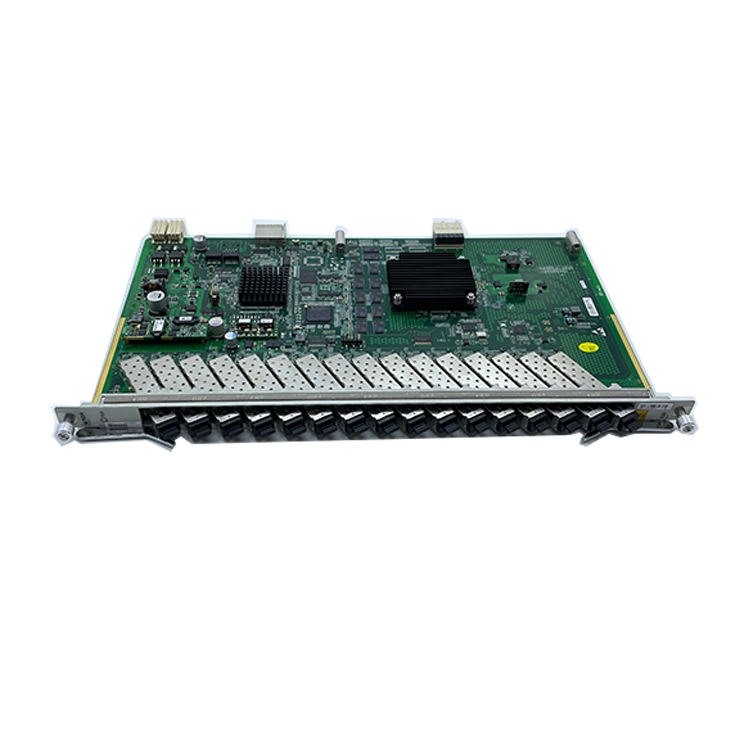

ZTE 16-port GPON interface board Apply to ZTE ZXA10 C320 C350 C300
| Specification | |
| Service ports | |
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C++ Module : Single Fiber Bidirectional Optical Module, Class C++ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power | C++ Module : 4.50 dBm |
| Maximum Output Optical Power | C++ Module : 8.00 dBm |
| Maximum Receiver Sensitivity | C++ Module : -30 dBm @10E-10
-32 dBm @10E-10 |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C++ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Weight | 1kg |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
