- Measurement system:Metric
- Place of Origin:Zhejiang, China
- Model Number:PA-08
- Material:Stainless steel
- Standard or Nonstandard:Standard

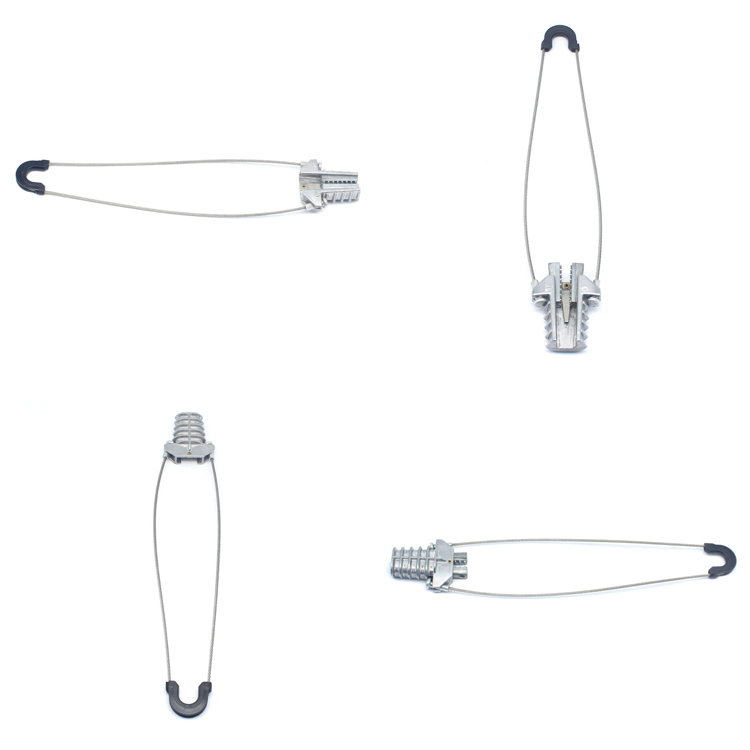

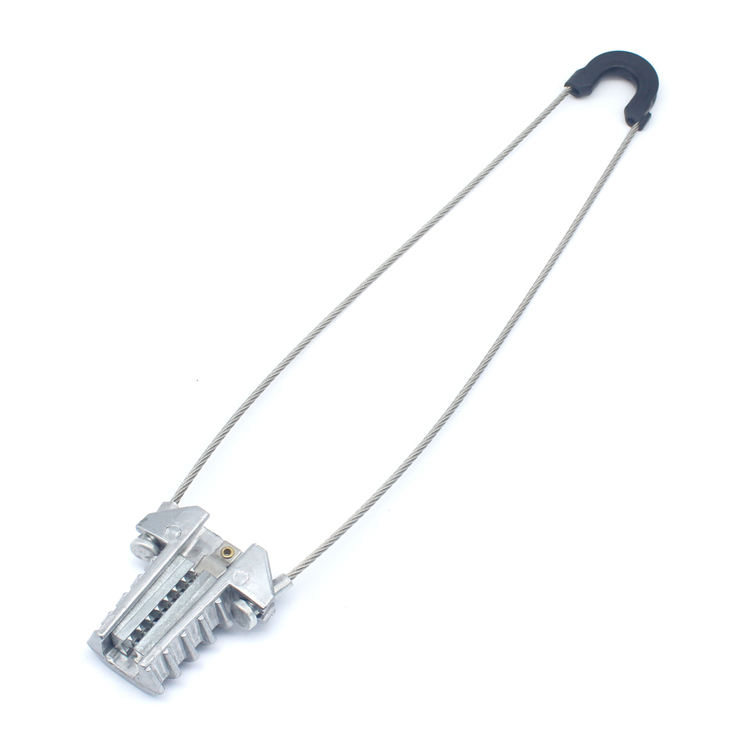

- Product name:Anchor Clamp
- Body Material:UV STABILIZED THERMOPLASTIC
- Bail Material:304 Stainless Steel Bail
- Breaking Load:7kN
- Diameter Changing Range:135-230mm
- Range of Conductor Sizes:4-9mm
- Color of Connector Core:BLACK
-
- Supply Ability
- 30000 Piece/Pieces per Week
-
- Packaging Details
Normal Package
-
- Port
Ningbo
- Lead time:Quantity(pieces)1 – 500>500Lead time (days)10To be negotiated
|
SR.NO.
|
DESCRIPTION
|
DATA
|
|
1
|
Type of Clamp
|
Anchor Clamp
|
|
2
|
Item No.:
|
PA08
|
|
3
|
International Standard it complies with
|
NFC 33-041
|
|
4
|
Range of Conductor Sizes
|
4-9mm
|
|
5
|
Color of Connector Core
|
BLACK
|
|
6
|
Body Material
|
UV STABILIZED THERMOPLASTIC
Nylon Fiber Glass Filled, Aluminium alloy |
|
7
|
Bail Material
|
304 Stainless Steel Bail
|
|
8
|
Breaking Load
|
7kN
|
|
9
|
Logo
|
/
|
|
10
|
Routine Test
|
1. Dimensional Verification
2. Mechanical Test. a) Product Break 3. Visual a) Marking (Printing & Embossing) b) Overall finish c) Packaging Quality |
