Product Description

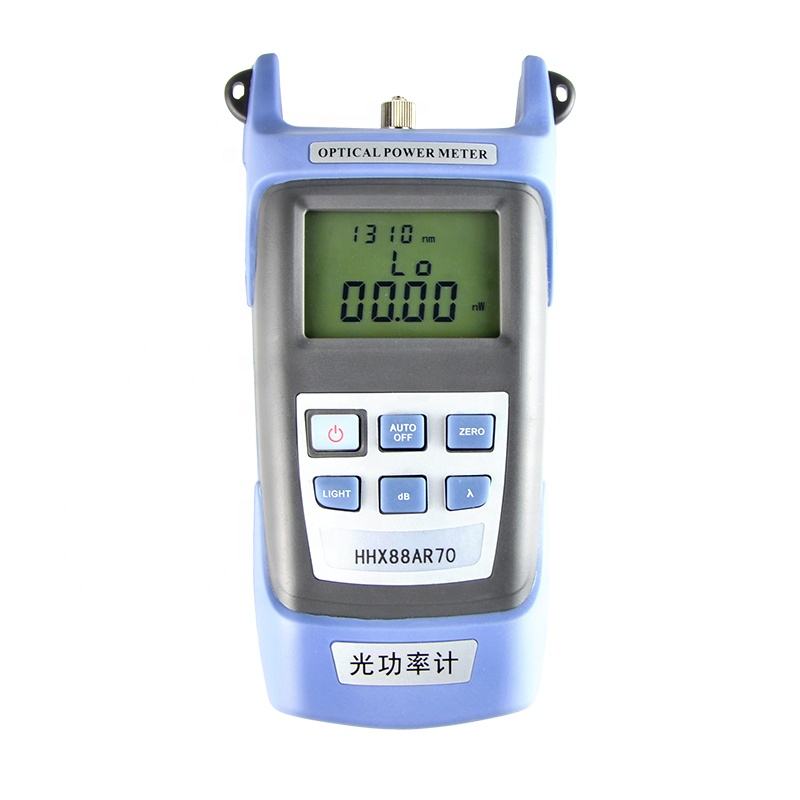

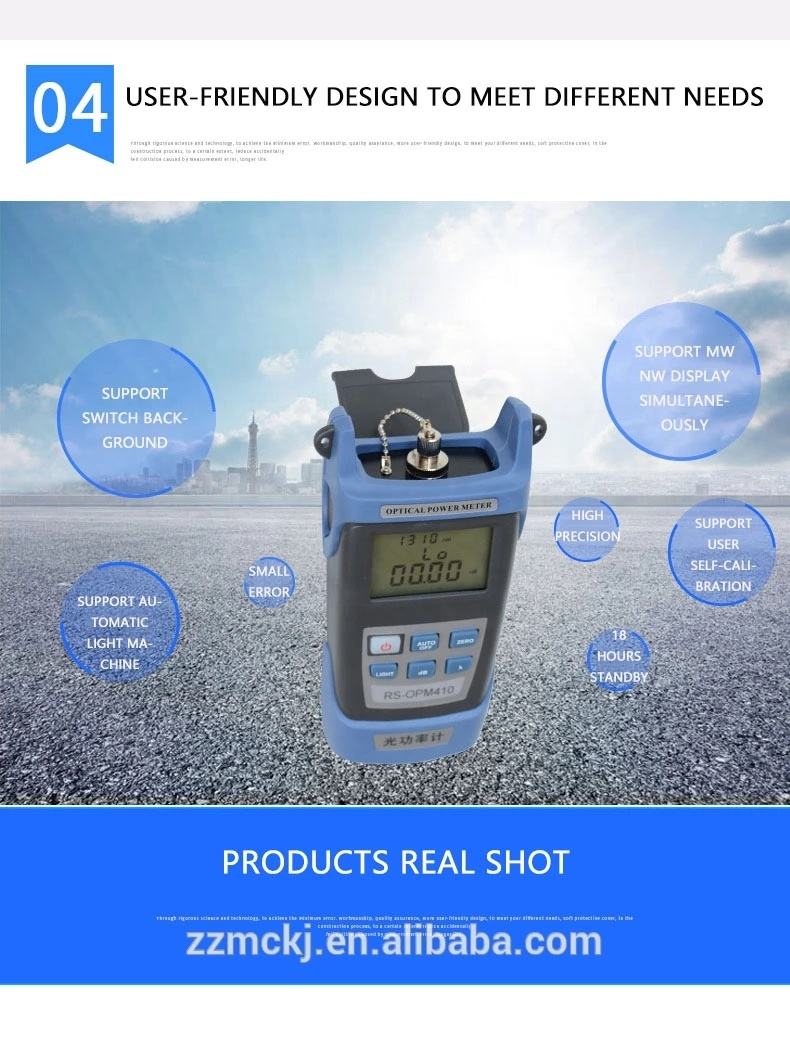

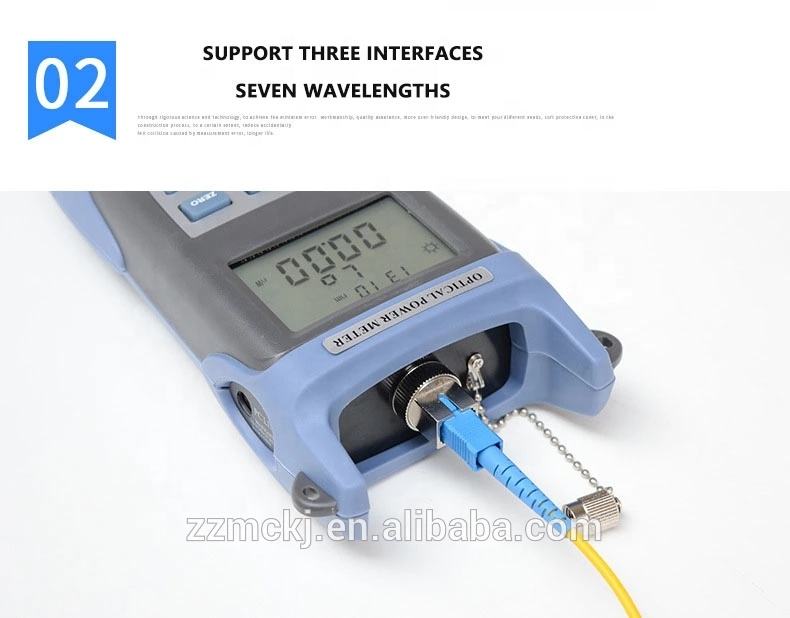

High-precision optical power meter tester, professionally built, quality assurance, suitable for cable construction and maintenance, fiber optic communication, fiber optic sensing, fiber optic CATV. High precision, low error, support three interfaces, seven test wavelengths for various test environments dBm, dB, mW display to meet different needs. The anti-drop soft rubber protective cover used in the construction process reduces the measurement error caused by accidental
fall to a certain extent and has a longer life.(Available in two types of AorB, please select the required reconfirmation order.)
| Instrument type | RS-OPM410(Type A) | Optional(Type B) |
| Wavelength range | 800~1700 | 800~1700 |
| Connector | FC/SC | FC/SC |
| Probe type | InGaAa | InGaAa |
| Power measurement range | -70~+10 | -50~+20 |
| uncertainty | ±5% | |

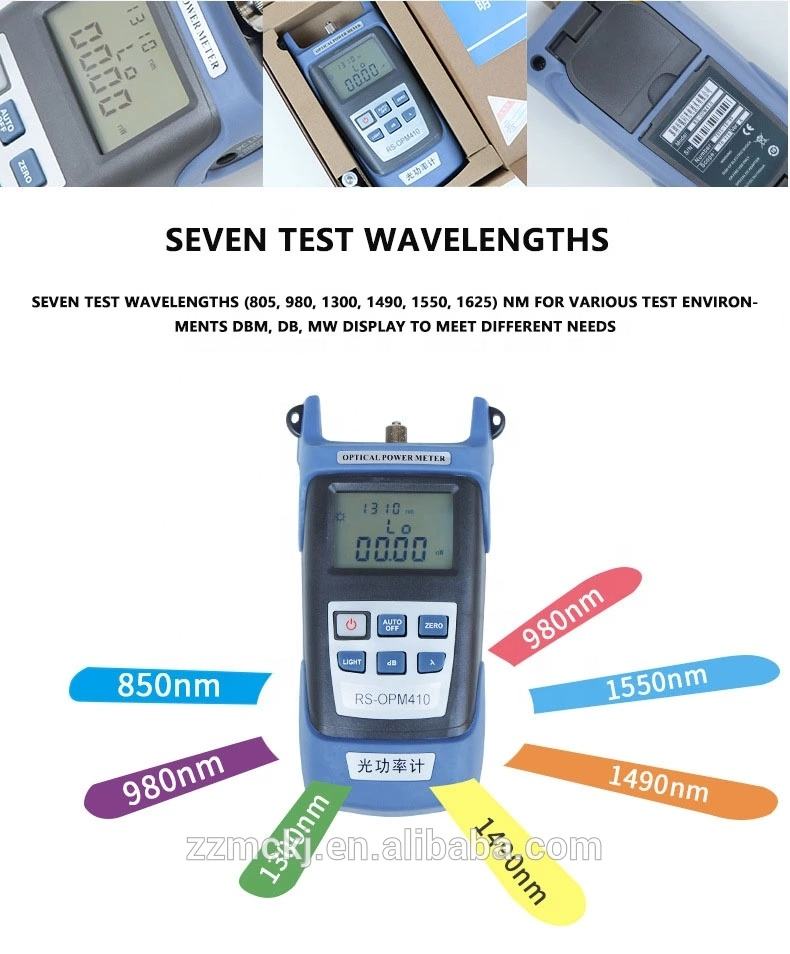

| Standard length (nm) | 850,980,1300,1310,1490,1550,1625 | |
| display resolut | Linear display;0.1% logarithmic display:0.0dBm | |
| Working temperature (°C) | -10~ +60 | |
| Storage temperature (°C) | -25~+70 | |
| Auto light machine time (min) | 10 | |
| Battery continuous working time (h) | ≥48 | |
| Dimensions (mm) | 190*100*48 | |
| power supply | 5AA battery | |
| weight | 400g | |
