- Model Number:C320
- Type:OLT, OLT
- Brand Name:ZTE
- Product name:C320
- Color:Grey
- Operating temperature:0 ~+50
- Warranty:1 Year / 12 Months
- Brand:ZTE Original
- MOQ:1 Pcs
- Capacity:8 Downstream GPON Ports
- Power supply:110~240VAC 12V/0.5A DC
- Material:Iron
- Supply Ability500 Piece/Pieces per Week
- Packaging Detailscartons
- PortCHANGSHA
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Product Description
Brand
|
ZTE
|
Model
|
ZXA10 C320
|
Backplane capacity
|
420 Gbit/s
|
Switching capacity
|
84 Gbit/s
|
Number of service cards
|
2 (GPON/P2P/XG-PON1)
|
Number of combined control cards
|
2
|
Number of power supply cards
|
1
|
Number of uplink cards
|
1 (10GE/GE/FE/E1/T1)
|
Maximum number of GPON subscribers
|
4096
|
Management Interfaces
|
CLI, SSH, SNMP, telnet
|
Power
|
-48 V (DC), 230V (AC)
|
Working temperature and humidity
|
-25°C – +55°C, 5% – 95%
|
Split Ratio
|
up to 1:128
|
Range
|
20-60 km
|
Maximum attenuation
|
SFP B+ 28 dB, SFP C+ 32 dB
|
Dynamic Bandwidth Allocation
|
NSR-DBA, SR-DBA
|
Support
|
FEC, AES128, SCB, OLS
|
Dimensions
|
86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
|
Power Supply
|
Dual DC: 48V/60VAC: 100V~240V
|
Cabinet
|
Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E
|
Main-Control Switching Card SMXA
|
Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) +1*serial port+ 1*management FE+ 1*environment
detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE |
Service Card (2 slots)
|
GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1)
|
![](http://s.alicdn.com/@sc04/kf/He662bb85fdc2457e856ebafda8fa72a6x/267594387/He662bb85fdc2457e856ebafda8fa72a6x.jpg?quality=close)

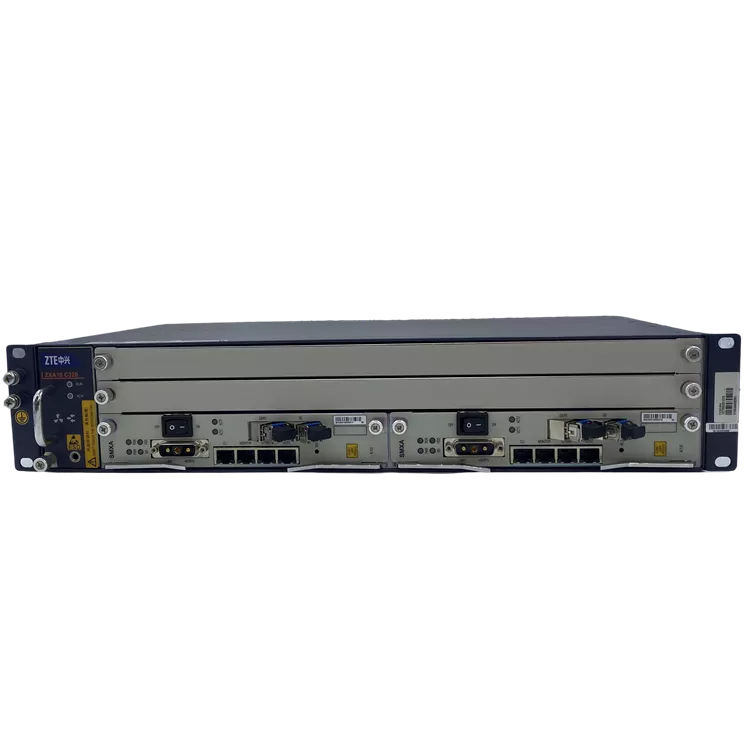

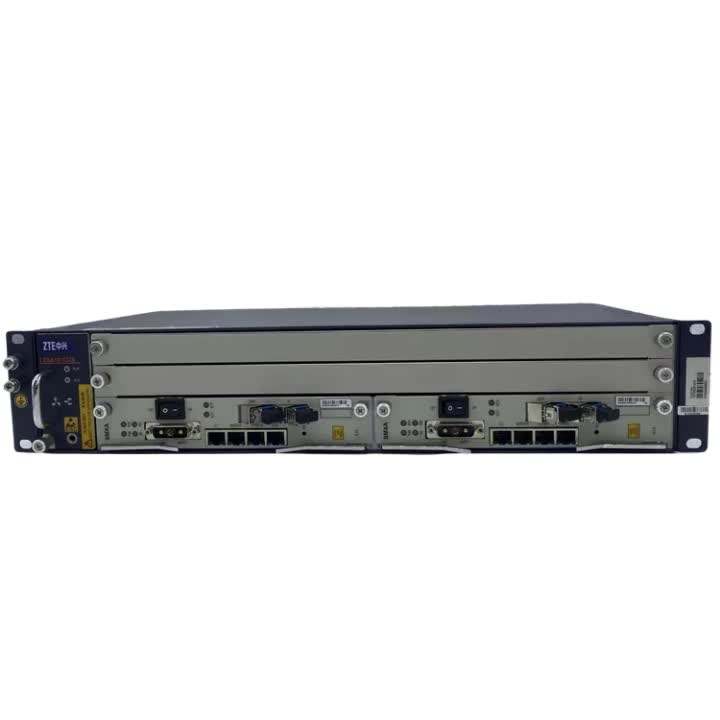

ZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.
ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS and security reliability.
ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS and security reliability.
ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
![](http://s.alicdn.com/@sc04/kf/Ha3ad9523c0ca46cda0416da6b84bf4dbO/267594387/Ha3ad9523c0ca46cda0416da6b84bf4dbO.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/Hf1a958ec4f5d433b81dd73bdf301db26C/267594387/Hf1a958ec4f5d433b81dd73bdf301db26C.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/Hd9a3905395434c52acc9b504f10100bfl/267594387/Hd9a3905395434c52acc9b504f10100bfl.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H5c00029decaa4b78aed71ac570ed07bbP/267594387/H5c00029decaa4b78aed71ac570ed07bbP.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/Hab90ce1712544d09adbb42504ed870035/267594387/Hab90ce1712544d09adbb42504ed870035.jpg?quality=close)
Packing&Shipping
![](http://s.alicdn.com/@sc04/kf/H4b86087558724273b42fb34d5dae3581i/267594387/H4b86087558724273b42fb34d5dae3581i.jpeg?quality=close)
