- Model Number:EG8120L
- Type:ONU
- Place of Origin:Zhejiang, China
- Use:FTTH
- Warranty Time:1 year
- Network:None
- Dimension:30 mm x 115 mm x 94 mm
- Weight:About 155g
- Operating Temperature:0°C to +40°C
- Operating Humidity:5% RH to 95% RH (non-condensing)
- Ports:1 POTS + 1 GE + 1 FE
- System Power Supply:11V to 14V DC, 1A
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Shanghai/Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)7To be negotiated
Product Description
The EchoLife EG8120L is an intelligent routing-type ONT that provides one GE port, one POTS port, and one FE port.The EG8120L features high-performance service forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future-oriented service-supporting capabilities for networks.
Product Paramenters
Model
|
EG8120L
|
Dimensions (H x W x D)
|
30 mm x 115 mm x 94 mm
|
Weight
|
About 155g
|
Ports
|
1 POTS + 1 GE + 1 FE
|
Indicators
|
POWER/PON/LOS/LAN/TEL
|
Operating Temperature
|
0°C to +40°C
|
Power Adapter Input
|
100V to 240V AC, 50/60 Hz
|
Static Power Consumption
|
3.8W
|
Maximum Power Consumption
|
4.9W
|
Details Images

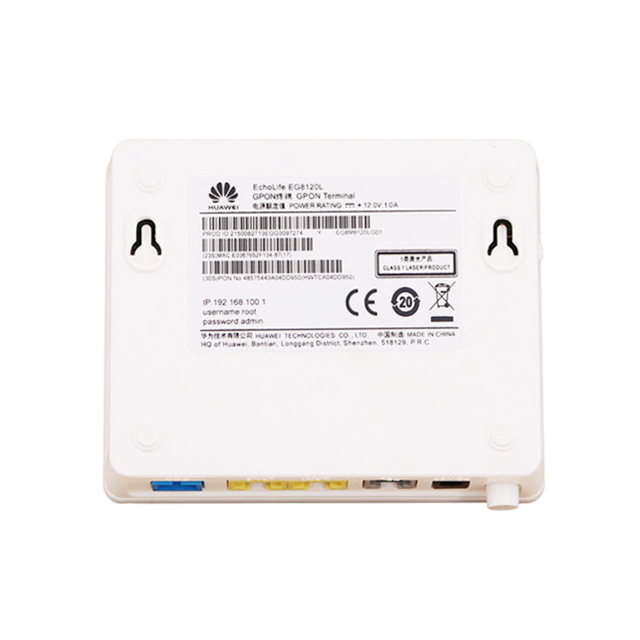

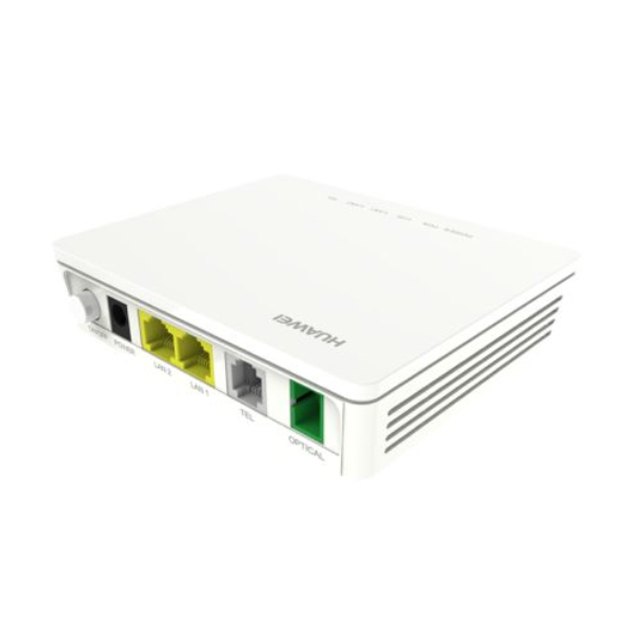

![](http://s.alicdn.com/@sc04/kf/Hcabe4c99bfe24313aca94f17ca51fe90h/258088691/Hcabe4c99bfe24313aca94f17ca51fe90h.jpg?quality=close)
1GE+1FE+POTS
![](http://s.alicdn.com/@sc04/kf/H4a284bb64a464367b351dcea7d1aa6d4K/258088691/H4a284bb64a464367b351dcea7d1aa6d4K.jpg?quality=close)
Application
![](http://s.alicdn.com/@sc04/kf/Hac2283a99ea8452499e411980aefec8a9/258088691/Hac2283a99ea8452499e411980aefec8a9.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/H2ffa90c6903240adb6eac34788873085W/258088691/H2ffa90c6903240adb6eac34788873085W.png?quality=close)
Packing&Shipping
![](http://s.alicdn.com/@sc04/kf/Hcba0e38b787e4316ac0511e9cee0c520V/258088691/Hcba0e38b787e4316ac0511e9cee0c520V.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/H4cecb4ad5a224419a4c76a8c5422b1ecv/258088691/H4cecb4ad5a224419a4c76a8c5422b1ecv.png?quality=close)
