HUAWEI GPON EPON GEPON 2*X2CS / 2* GICF 2*SCUN 2* PRTE 1G 10G Huawei SmartAX MA5683T OLT

Configuration Alternatives

1. 10GE

Dual 10GE uplink boards (2*X2CS)+ Dual Control boards (2*SCUN) + Dual power boards ( 2* PRTE)

2. 1GE

Dual 1GE uplink boards (2*GICF)+ Dual Control boards (2*SCUN) + Dual power boards ( 2* PRTE)



Overview





Huawei SmartAX MA5683T OLT  is optical access device functions as an OLT device in a GPON/EPON system. Its functions are similar to those of the Huawei MA5680T. It is a small-to-medium-capacity OLT device. Huawei SmartAX MA5683T OLT is 19inch, with 5U height 6 service slots, supporting EPON, GPON, 10G PON, P2P service; H802MABO subrack equipped with 2 x H801 SCUN or 2 x H802 X2CS , 2 x H802 PRTE.

MA5683T HUAWEI   is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and service boards.

Huawei MA5683T provides 13 slots, including 6 service board slots; 2 main control board slots; 2 GIU upstream board slots; 2 power board slots; and 1 common interface board slot.



Specifications



Model No.	MA5680T	MA5683T	MA5608T
Dimension:	490*275.8*447.2mm	442*283.2*263mm	442*233.5*88mm
Operating Environment	Temperature:         -25℃~+55℃                Humidity:5%~95% (non-condensing)	Temperature:                -40℃~+65℃                 Humidity:5%~95% (non-condensing)	Temperature:        -40℃~+65℃        Humidity:5%~95% (non-condensing)
Power Supply Parameters	-48V DC input            Supports dual power protection           Working Voltage range  -38.4V~-72V	-48V DC input            Supports dual power protection           Working Voltage range  -38.4V~-72V	-48V DC input            Supports dual power protection           Working Voltage range  -38.4V~-72V         Support 220V / 110V AC input
Backplane     Exchange capacity	3.2Tbit/s	1.5Tbit/s	720Gbit/s
Control Board   Exchange Capacity	1920 Gbit/s	960Gbit/s	512Gbit/s
Access Capacity	128*10G EPON   64*10G GPON   128*EPON       256*GPON         768*GE	48*10G EPON       24*10G GPON     48*EPON         96*GPON           288*GE	16*10G EPON               8*10G GPON             16*EPON                 32*GPON                     96*GE
Access Type	Upstream interface: 10GE optical, GE optical/electricity                                                          Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface





Features



Large-capacity shared platform

Huawei SmartAX MA5683T OLT provides the large-capacity shared platform that supports a high-speed switching capacity.

Based on the iMAP hardware platform and the IAS software platform of Huawei, Huawei SmartAX MA5683T OLT adopts advanced architecture and design.

Powerful integrated GPON/EPON access capability

EPON access capability

The point to multi-point (P2MP) architecture is used to support the passive optical transmission over Ethernet. Symmetrical upstream and downstream rates of 1.25 Gbit/s are supported to provide the high-speed broadband services

GPON access capability.

The downstream rate is up to 2.488 Gbit/s and the upstream rate is up to 1.244 Gbit/s. Long-distance is supported. The maximum physical transmission distance of the ONT is 60 km. The physical distance between the farthest ONT and the nearest ONT can be up to 20 km. High split ratio is supported. The 8-port GPON access board supports a split ratio of 1:128.

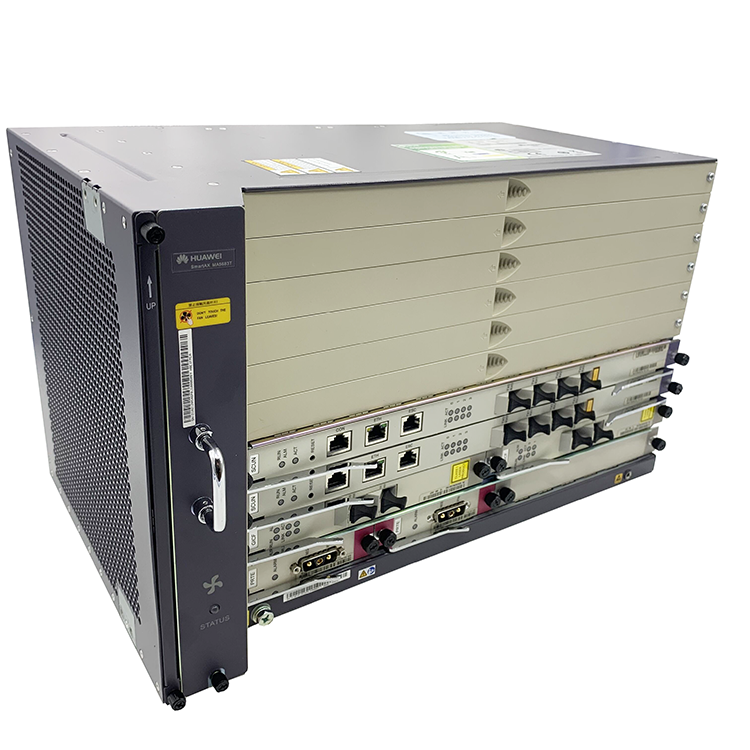

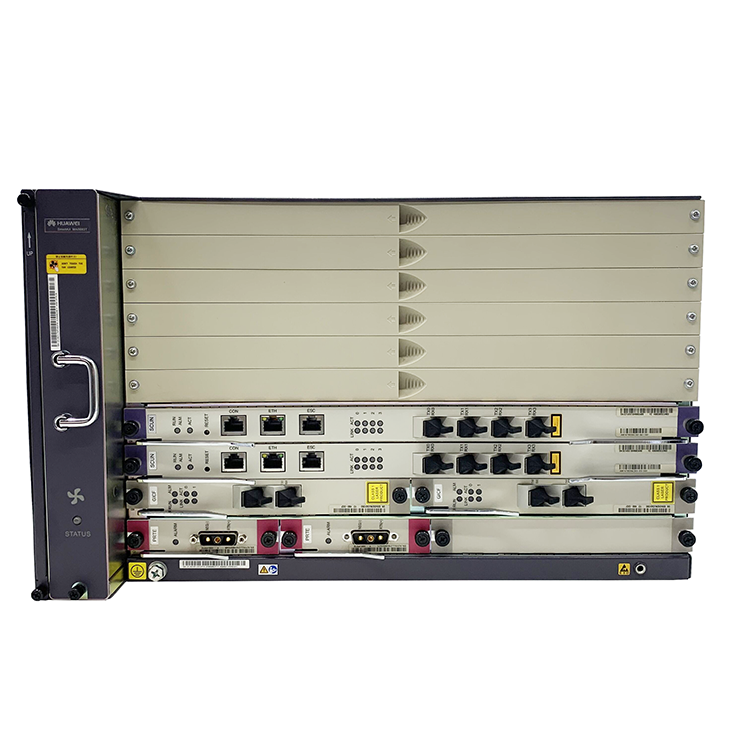

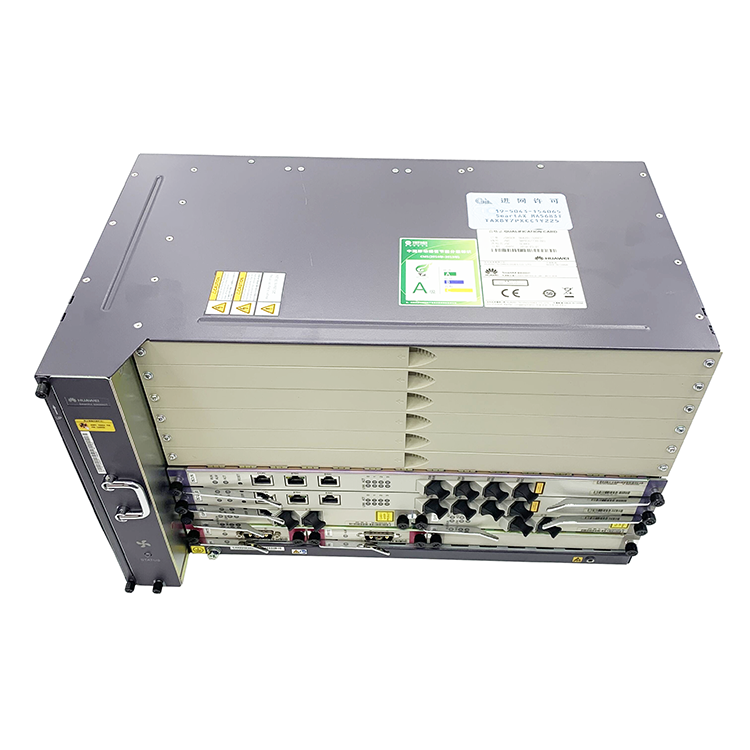

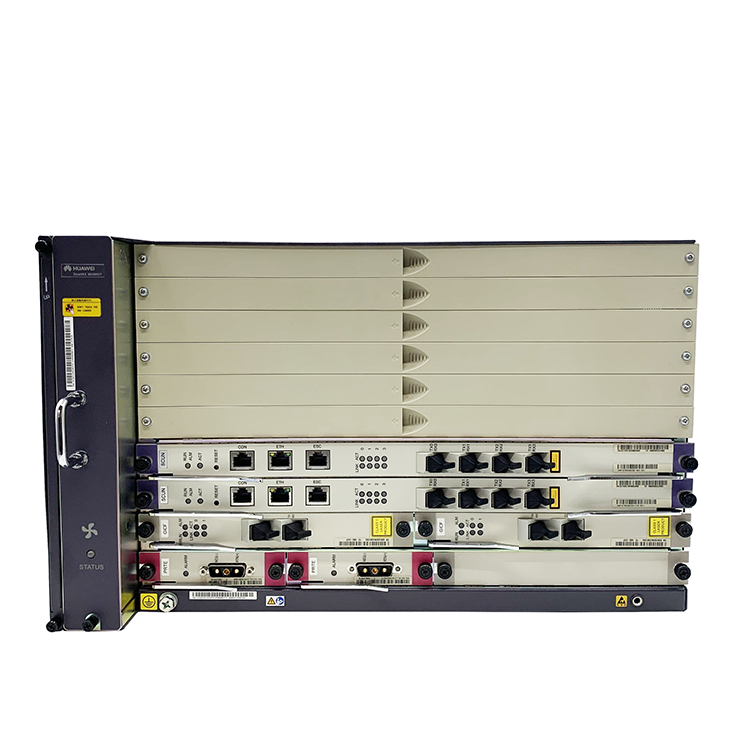

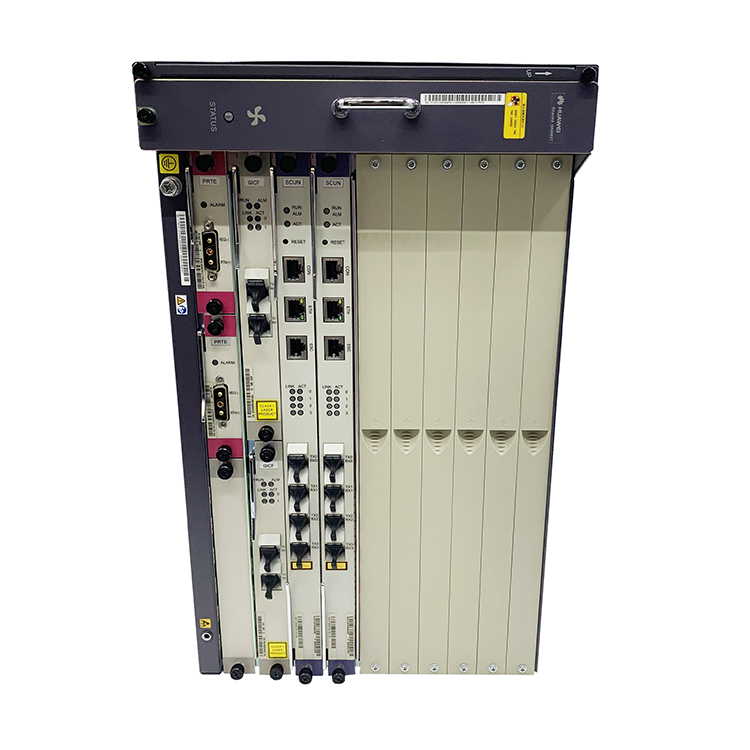

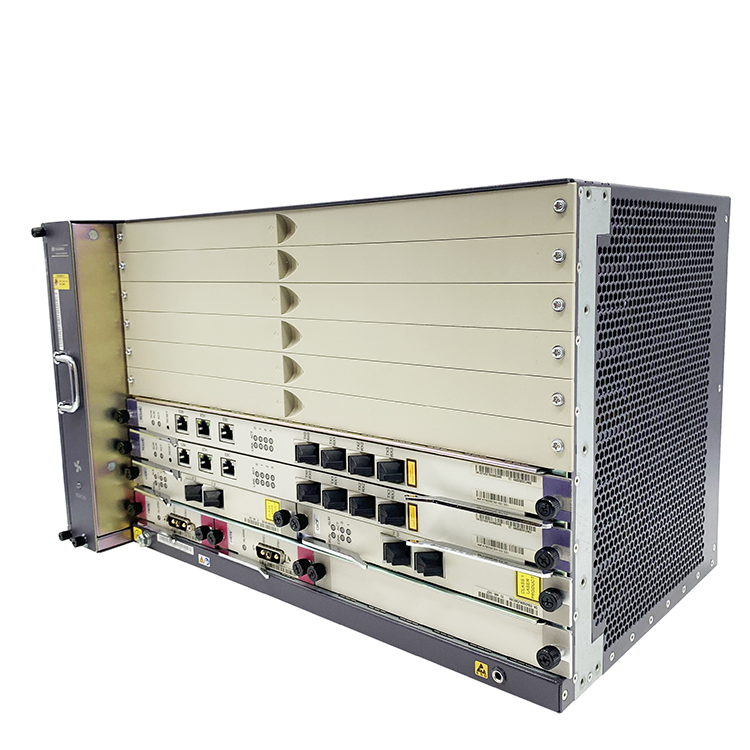

Pictures
