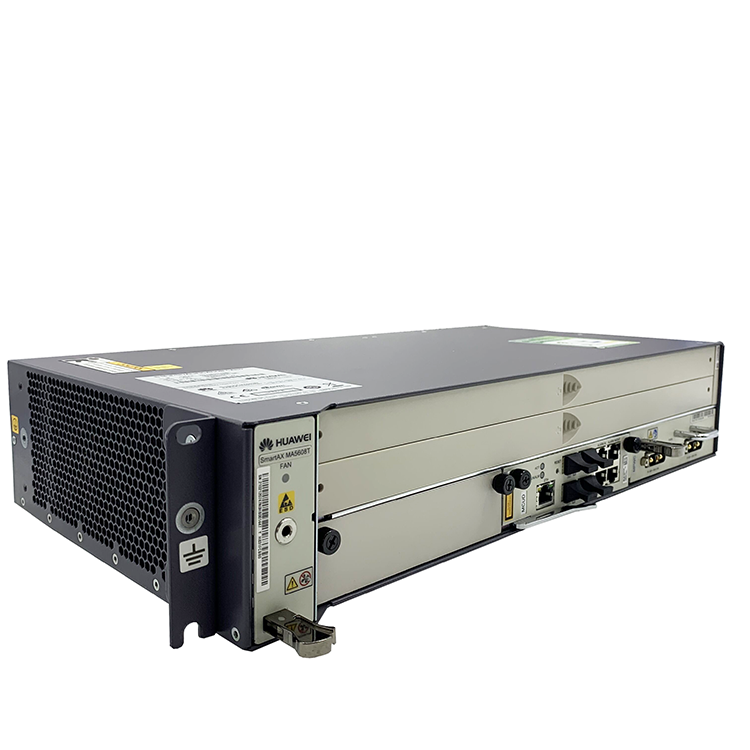

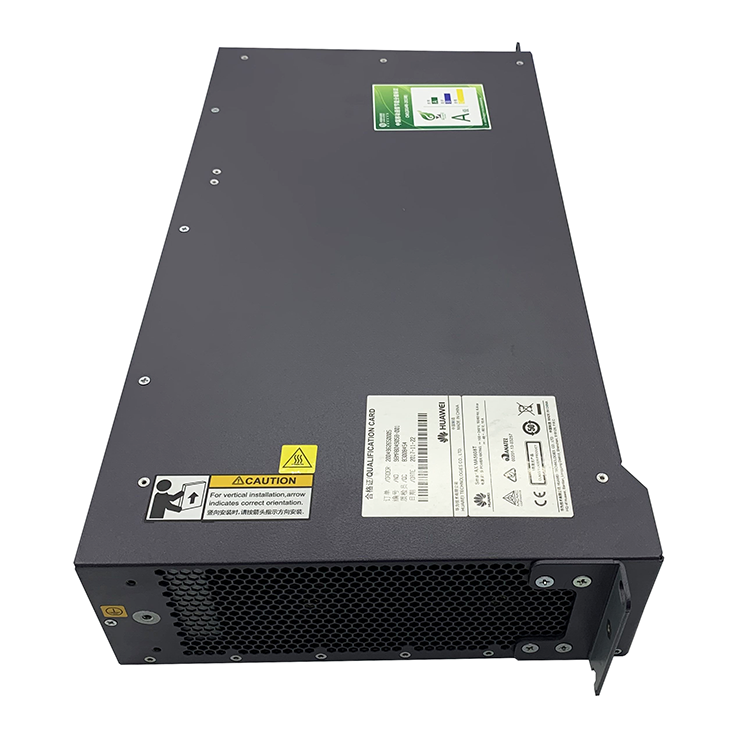

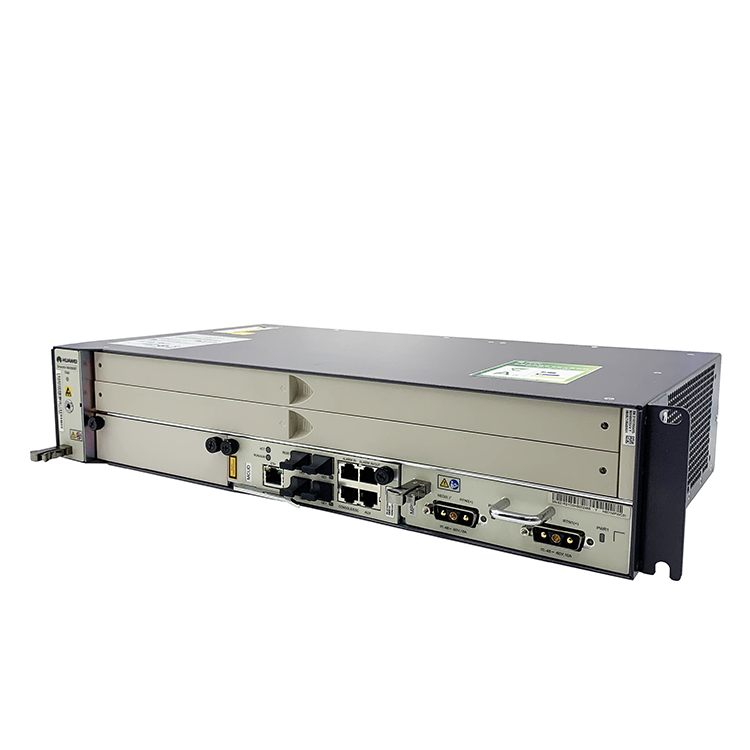

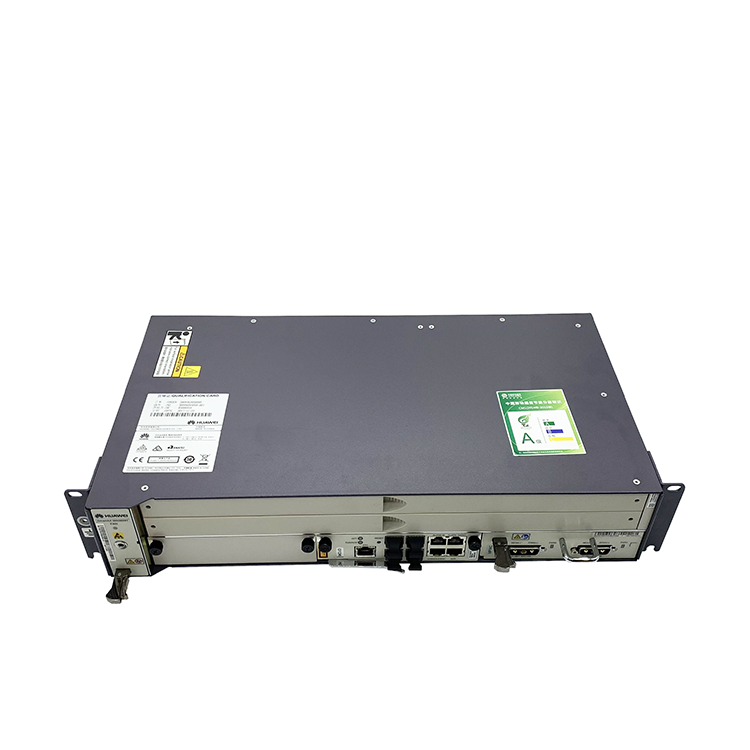

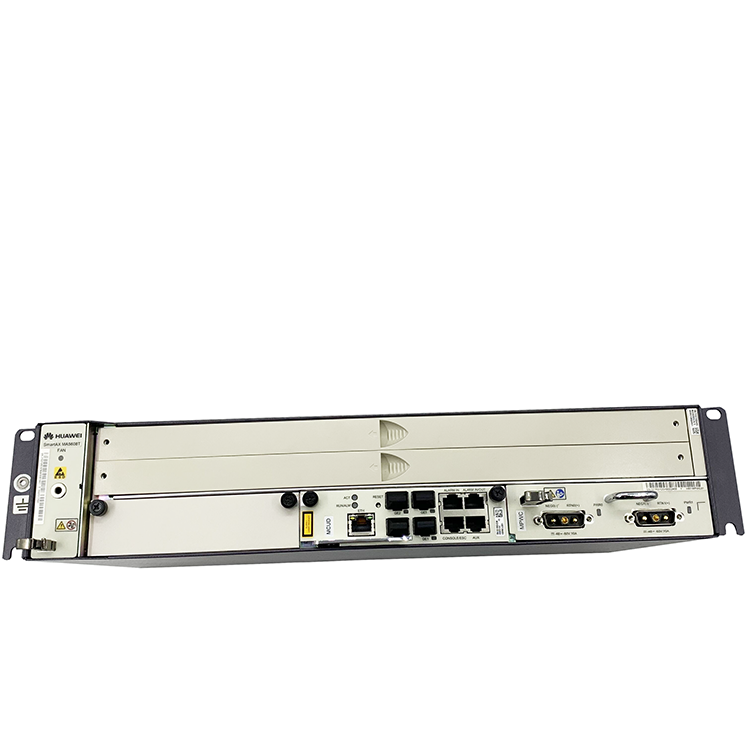

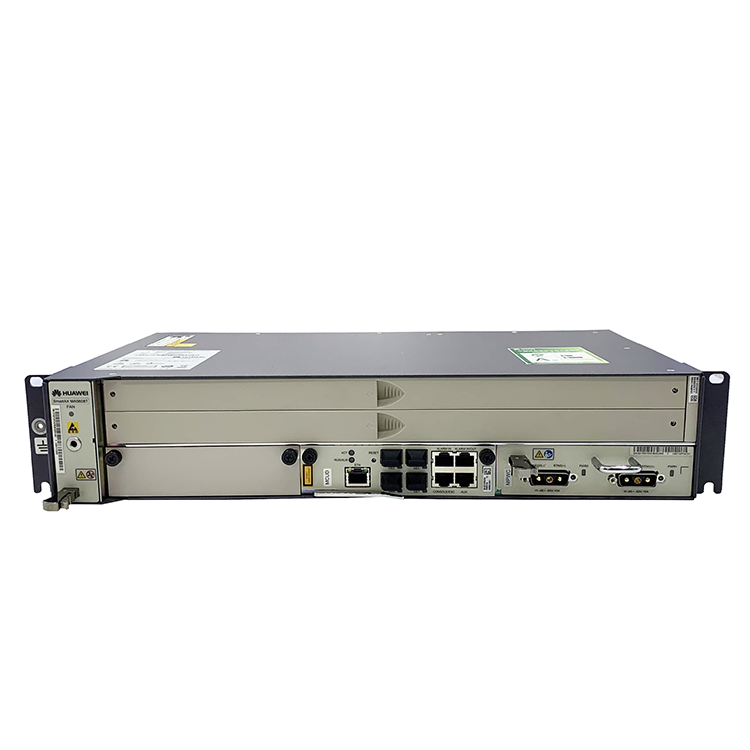

HUAWEI GPON EPON GEPON Optical Line Terminal 1G 10G AC DC Power input Huawei SmartAX MA5608T OLT

Configuration Alternatives

1. 10GE DC

Dual Control boards with uplink ports (2*MCUD1) + DC power boards ( 1* MPWC)

2. 10GE AC

Dual Control boards with uplink ports (2*MCUD1) + AC power boards ( 1* MPWD)

3. 1GE DC

Dual Control boards with uplink ports (2*MCUD) + DC power boards ( 1* MPWC)

4. 1GE AC

Dual Control boards with uplink ports (2*MCUD) + AC power boards ( 1* MPWD)



Overview

Huawei SmartAX MA5608T OLT is one of telecom operator-class Gigabit Passive Optical Network (GPON/EPON) Optical Line Terminal for large-scale aggregation and access networking.

This is the world first OLT which integrates the functionality of the aggregation switch and edge router. It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple-play service, TDM/ATM/Ethernet leased line service for business customers
& mobile backhaul with high reliability and high precision clock, and high-density GE/10GE interfaces for cascading remote access
equipment. Huawei MA5600T support to simplify network architecture, to improve network reliability and lower TCO essentially

It is usually equipped with GPFD GPBD GPBH service card MCUD1 /MUCD main control card AC or DC power module. ( There are B+ and C+ SFP for service card. C+ SFP cover B+ SFP)



Specifications

Model No.	MA5680T	MA5683T	MA5608T
Dimension:	490*275.8*447.2mm	442*283.2*263mm	442*233.5*88mm
Operating Environment	Temperature:         -25℃~+55℃                Humidity:5%~95% (non-condensing)	Temperature:                -40℃~+65℃                 Humidity:5%~95% (non-condensing)	Temperature:        -40℃~+65℃        Humidity:5%~95% (non-condensing)
Power Supply Parameters	-48V DC input            Supports dual power protection           Working Voltage range  -38.4V~-72V	-48V DC input            Supports dual power protection           Working Voltage range  -38.4V~-72V	-48V DC input            Supports dual power protection           Working Voltage range  -38.4V~-72V         Support 220V / 110V AC input
Backplane     Exchange capacity	3.2Tbit/s	1.5Tbit/s	720Gbit/s
Control Board   Exchange Capacity	1920 Gbit/s	960Gbit/s	512Gbit/s
Access Capacity	128*10G EPON   64*10G GPON   128*EPON       256*GPON         768*GE	48*10G EPON       24*10G GPON     48*EPON         96*GPON           288*GE	16*10G EPON               8*10G GPON             16*EPON                 32*GPON                     96*GE
Access Type	Upstream interface: 10GE optical, GE optical/electricity                                                          Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface





Features

Smooth Evolution:

10GPON uplink can be supported in two years

MA5608T can support Board Level Vectoring and System Level Vectoring in two years

Just insert GPON board, MA5603T&MA5608T can be used as OLT

All Service Access:

Support E1 and G.SHDSL for enterprise leased line or PBX access

IPTV can be launched for all users, up to 4k channels

H-QoS support 5-level QoS guaranteeing SLA

Green Design:

Fully meet the CoC v4 power-conservation requirement of the European Commission

Short-loop design of POTS card, 20% power consumption reduced

Third generation chipsets, support the dynamic energy-saving, 30% energy saving of xDSL
