- Model Number:GPHF
- Type:OLT, 16 port olt pon card
- Place of Origin:Zhejiang, China
- Brand Name:HUAWEI
- Use:FTTH Network
- Warranty Time:FTTH Network
- Network:wifi, 4g
- Product name:Huawei gpon GPHF Pon Board 100% original from Huawei support 2048
- Specification:GPHF
- module:C+,C++
- Encapsulation Type:SFP
- Single package size:49X32.5X7.5 cm
- Package Type:1 piece/carton
- Function:service business board card
-
- Supply Ability
- 10000 Piece/Pieces per Day
-
- Packaging Details
Carton
-
- Port
NING BO/ SHANG HAI
- Picture Example:
- Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated

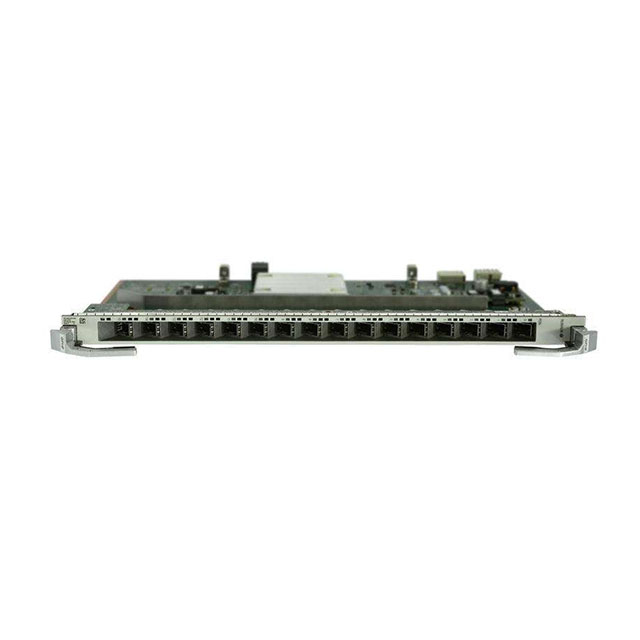

Huawei gpon GPHF Pon Board 100% original from Huawei support 2048 users
Product Description
GPHF works:
The basic principles of GPHF are as follows:
1.Control module to complete the software board loading, operation control, management and other functions.
2.The switching module implements the aggregation and forwarding of 16 GPON port signals.
3.The interface module implements the conversion between GPON optical signals and Ethernet packets.
4.The power supply module provides working power for each function module in the board.
5.The clock module provides the working clock for each function module in the board
1.Control module to complete the software board loading, operation control, management and other functions.
2.The switching module implements the aggregation and forwarding of 16 GPON port signals.
3.The interface module implements the conversion between GPON optical signals and Ethernet packets.
4.The power supply module provides working power for each function module in the board.
5.The clock module provides the working clock for each function module in the board
Specification
|
Forwarding
|
40Gbit/s
|
|
The number of T-CONTs supported by each PON port
|
1024
|
|
The maximum number of traffic that each board supports (pc)
|
16368
|
|
Maximum frame length
|
2052 bytes; 9216 bytes (jumbo frame function used)
|
|
The number of MAC address
|
131072
|
|
The distance between the two ONUs and the PON ports in the same PON port
|
40km
|
|
CAR group
|
Support
|
|
Scheduling level
|
Level 4 HQoS (port level / ONU level / queue level / queue group level)
|

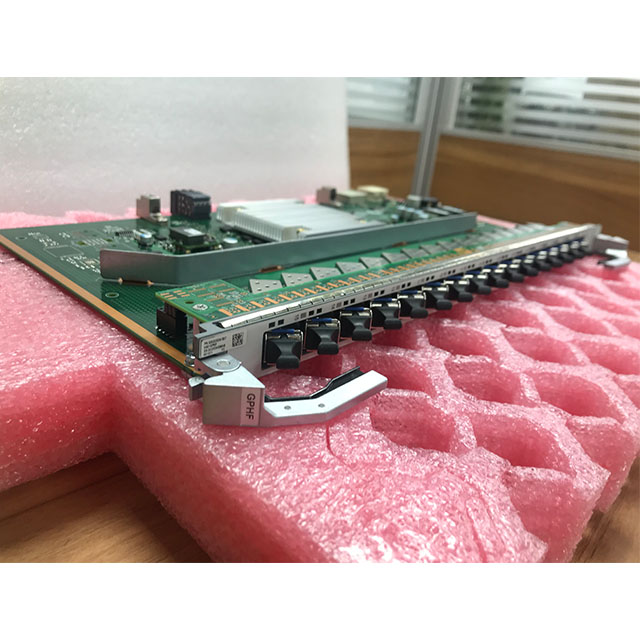

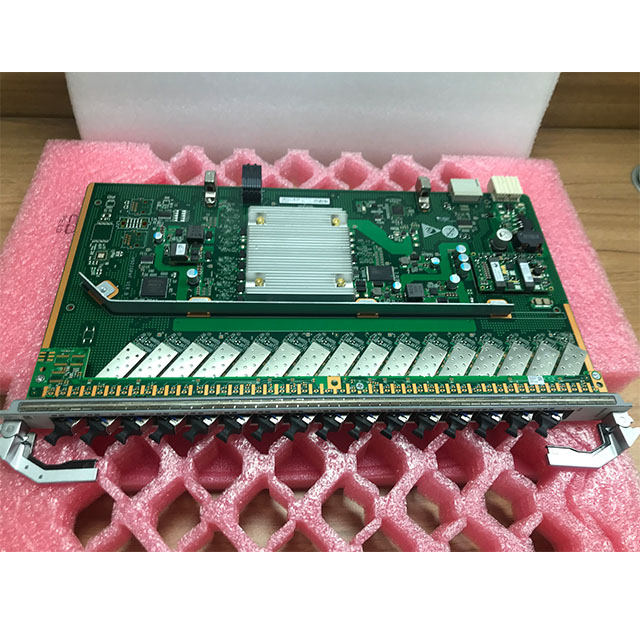

Details Images
