SKU 1600448074293 Categories ,
  • Model Number:GPUF
  • Type:OLT
  • Place of Origin:Zhejiang, China
  • Brand Name:HUAWEI
  • Use:FTTH
  • Warranty Time:1 year
  • Network:Wireless Lan, wifi, 4g
  • model:GPUF
  • brand name:HUAWEI
  • Optical Fiber Type:Single-mode
  • Operating Wavelength:Tx: 1490 nm, Rx: 1310 nm
  • Port Rate:Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
  • Dimensions:23.30 mm * 257.90 mm * 399.20 mm
  • Supply Ability100 Piece/Pieces per Month
  • Packaging Details1pcs/ctn
  • PortShanghai/Ningbo
  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

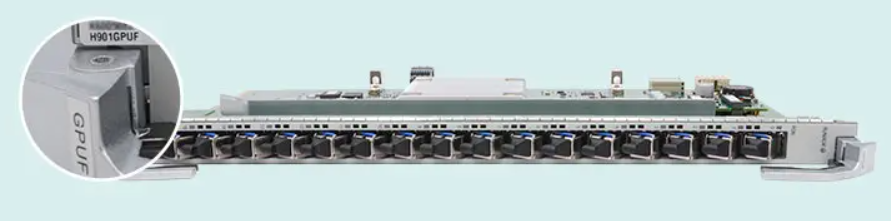

Huawei GPUF Service Board is a 16 port GPON interface card applying for MA5800 X2 MA5800 X7 MA5800 X15 MA5800 X17 OLT system and gives GPON service access from ONT. GPHF can maximum access 16*128 GPON subscribers.
Product Parameters
Model
HUAWEI GPUF
GPON Port
16-GPON Port
Operating Wavelength
Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type
SFP
Port Rate
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Optical Connector Type
SC
Optical Fiber Type
Single-mode
Dimensions (W x D x H)
23.30 mm * 257.90 mm * 399.20 mm
Maximum Frame Size
2052 bytes
Details Images
Application
Packing&Shipping

Specification

23.30 mm * 257.90 mm * 399.20 mm
