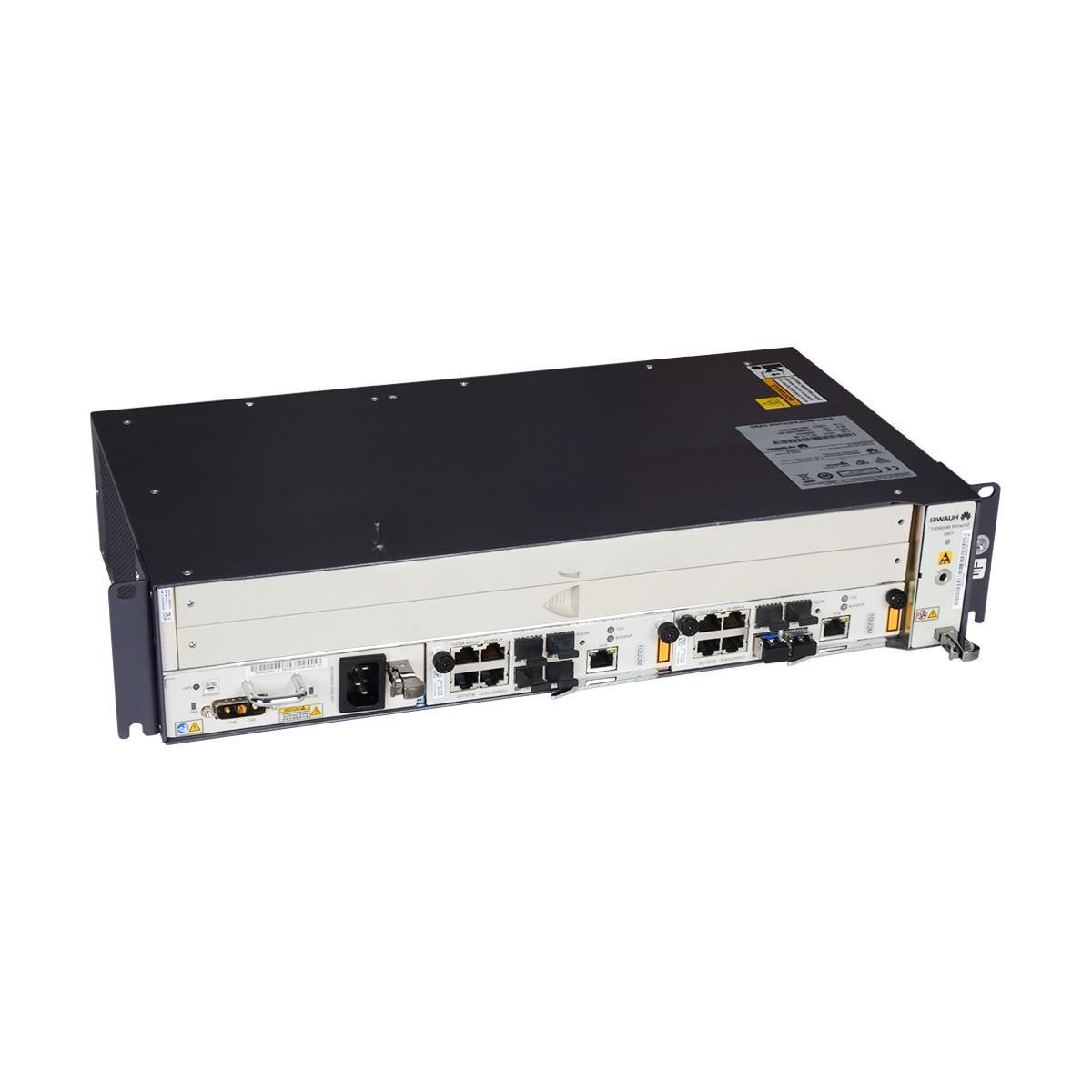

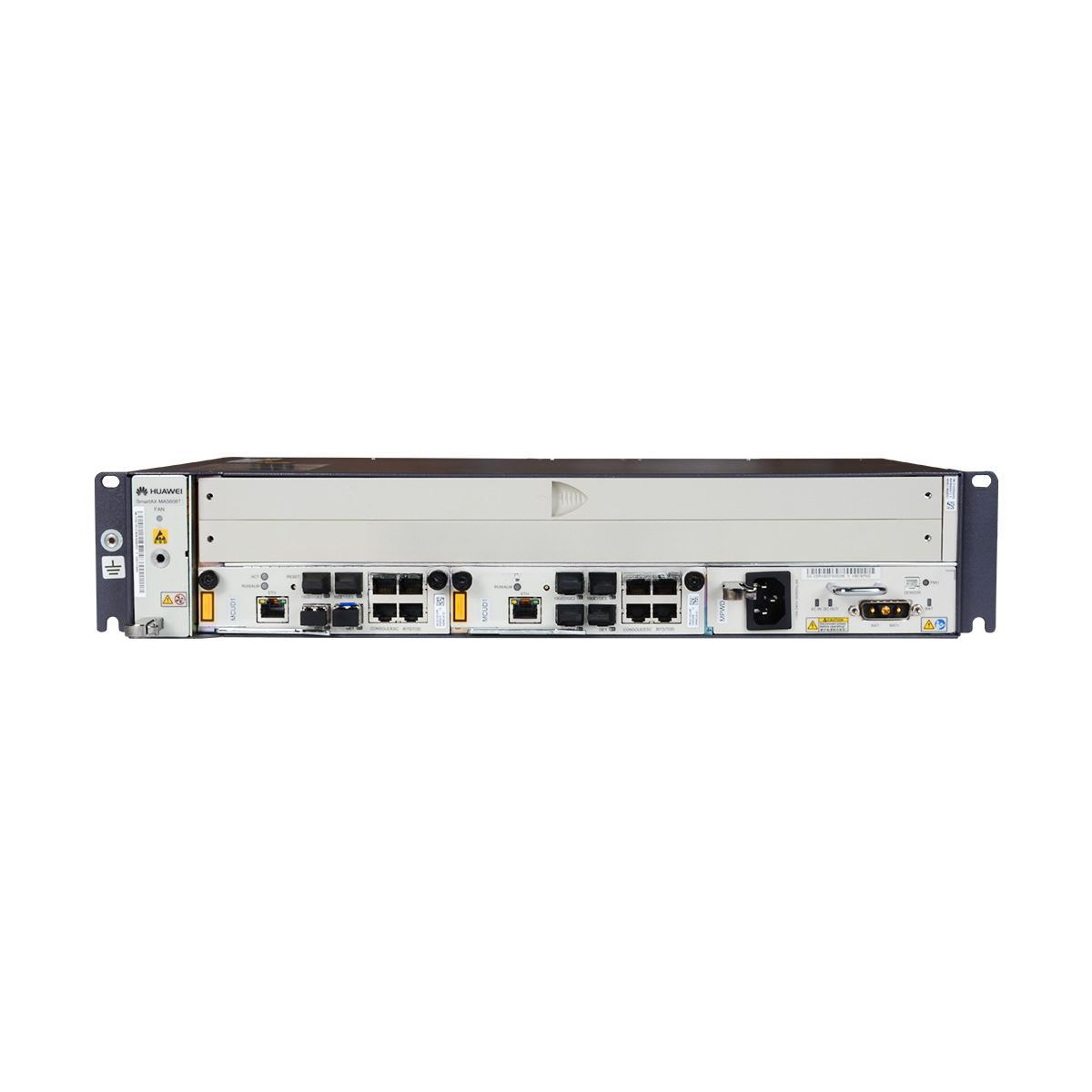

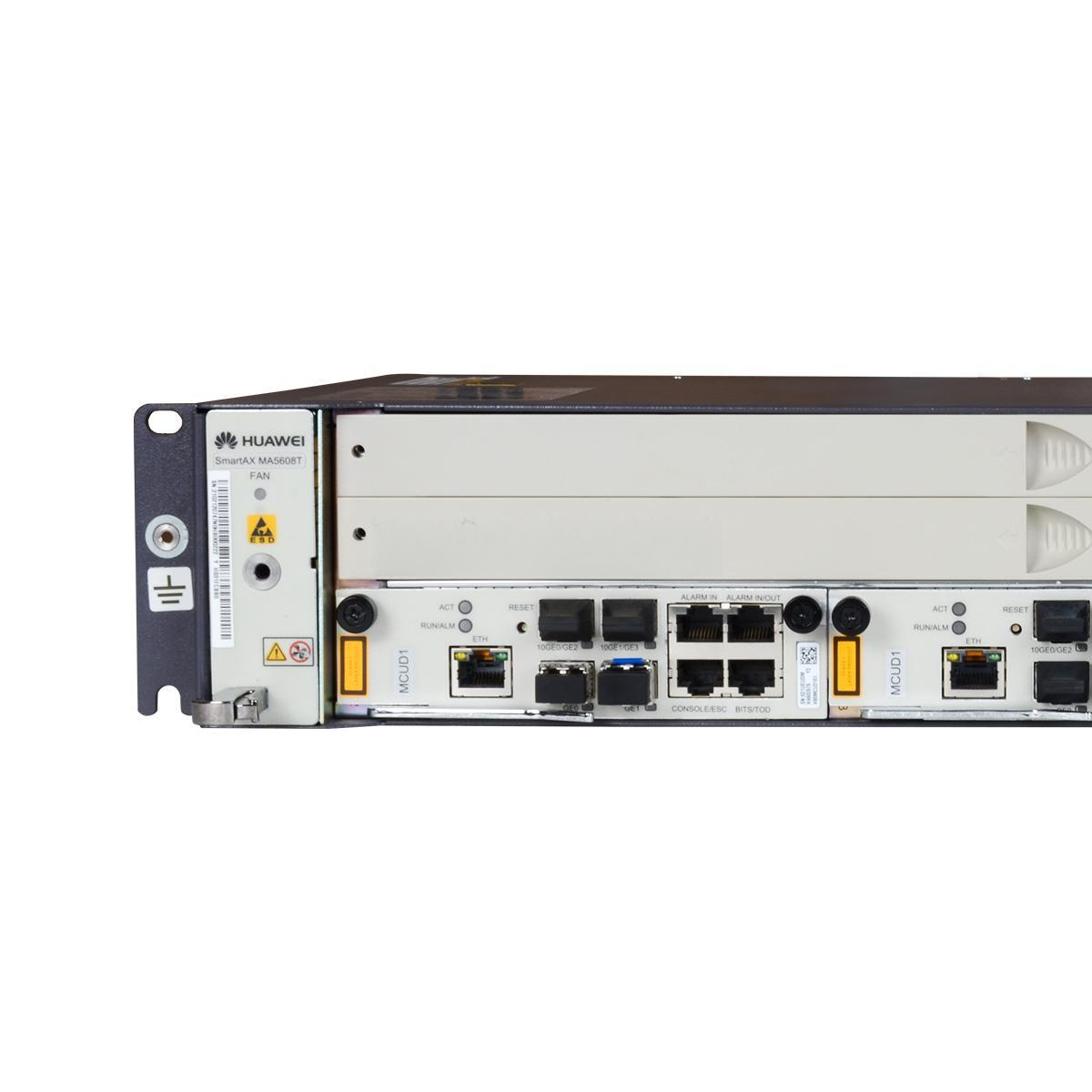

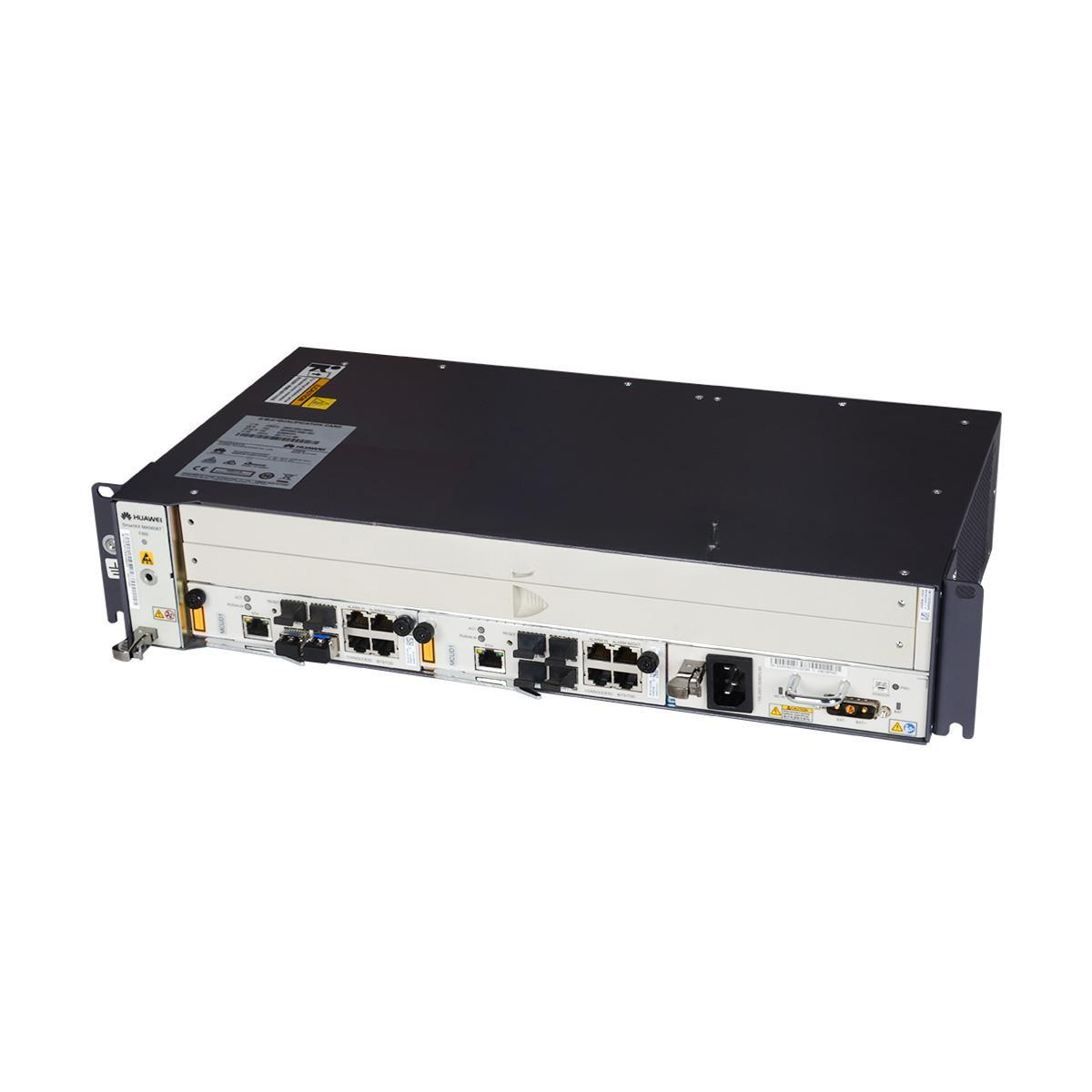

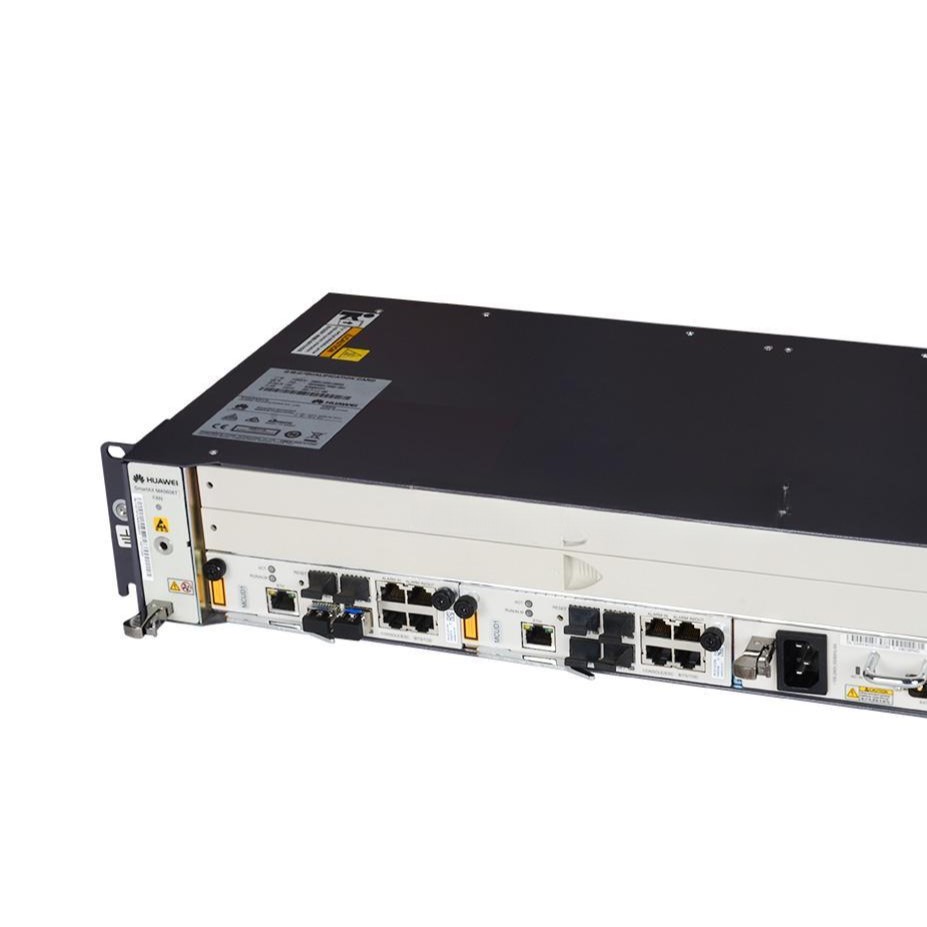

Huawei MA5608T Branded Chassis with 10GE Main Control Board – Compact Optical Access Platform for FTTx Networks
Product Overview
The Huawei MA5608T Branded Chassis is a mini Optical Line Terminal (OLT) chassis designed for fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and fiber-to-the-office (FTTO) deployment scenarios. This listing includes the branded chassis bundled with a 10GE main control board (MCUD1), offering high-speed backhaul capabilities, stable performance, and carrier-class reliability in a compact form factor.
Built for small to medium capacity access networks, the MA5608T supports GPON, XG-PON, GE/FE, and 10GE uplinks, making it ideal for both greenfield rollouts and existing network upgrades in urban and rural broadband projects.
Key Features of Huawei MA5608T Branded Chassis
-
Compact 2U chassis with full Huawei branding and original packaging
-
Includes 10GE-capable main control board (MCUD1) for high-speed uplinks
-
Supports GPON, 10G-GPON (XG-PON), and P2P GE/FE access technologies
-
Built-in Layer 2/Layer 3 switching features with QoS, VLAN, multicast
-
Suitable for both DC and AC power configurations (power module optional)
-
Supports remote O&M via Huawei U2000/NMS and CLI/EMS
-
Ideal for residential broadband, enterprise leased lines, and mobile backhaul
Huawei MA5608T Branded Chassis Technical Specifications
| Specification | Details |
|---|---|
| Model | Huawei MA5608T with 10GE MCUD1 Main Control Board |
| Chassis Size | 2U height, compact 482.6 mm × 220 mm × 88.1 mm |
| Service Slots | 2 service slots + 1 control slot + 1 uplink slot |
| Installed Board | 1 × MCUD1 (10GE Main Control Board) |
| Uplink Ports | 2 × 10GE + 2 × GE (Combo), depending on configuration |
| Access Interface Support | GPON, XG-PON, GE/FE P2P, Combo Boards |
| Switching Capacity | Up to 480 Gbps |
| Users Supported | Up to 4,096 ONTs (depending on board configuration) |
| Power Supply | DC -48V or AC 220V (external power modules required) |
| Operating Temperature | -40°C to +65°C (with air flow design and proper installation) |
| Management Interfaces | SNMP, Telnet, CLI, Web, Huawei U2000 |
| Compliance | RoHS, CE, ISO9001, ITU-T G.984/G.987 |
Huawei MA5608T Branded Chassis Application Scenarios
-
FTTH/FTTB/FTTO deployments in urban or rural broadband networks
-
Multi-service access for residential, SME, and corporate users
-
10GE high-speed uplink for metro aggregation or IP core interconnection
-
Fiber-based IPTV, VoIP, and high-speed internet access delivery
-
Compact OLT for space-constrained central offices and edge nodes
Technical Specifications
| Item | Description |
|---|---|
| Main Control Board | H801MCUD1 × 2 |
| Upstream Ports | 4 × 10GE SFP+ 4 × GE SFP |
| GPON Ports | 0 |
| Service Slots Remaining | 2 |
| Power Supply Mode | AC power supply: –100 V to –240 V |
| Dimensions (W × D × H) | 482.6 mm × 244.5 mm × 88.1 mm (including mounting brackets) |
| Weight (Empty Chassis) | 7.5 kg |
Customization & Wholesale Options
-
Supplied with full test reports, CE/RoHS compliance, and manufacturer’s label
-
Customizable with GPON/XG-PON/GE line cards per project requirements
-
Available in bulk for ISPs, telecom carriers, and government projects
-
Optional OEM branding, remote configuration, and rack integration
-
Supported by technical documentation, manuals, and firmware on request
Why Choose the Huawei MA5608T Branded Chassis with 10GE Main Control Board?
-
Compact yet powerful platform for modern FTTx architecture
-
10GE uplink ensures future-ready bandwidth performance
-
Field-proven Huawei reliability in core optical access networks
-
Scalable solution with multi-board flexibility for custom network needs
-
Seamless integration with Huawei GPON ONTs and ODN components
Request a Quote
Deploy next-generation broadband services with the Huawei MA5608T Branded Chassis with 10GE Main Control Board—the smart, scalable, and compact OLT solution for tomorrow’s fiber access networks.
