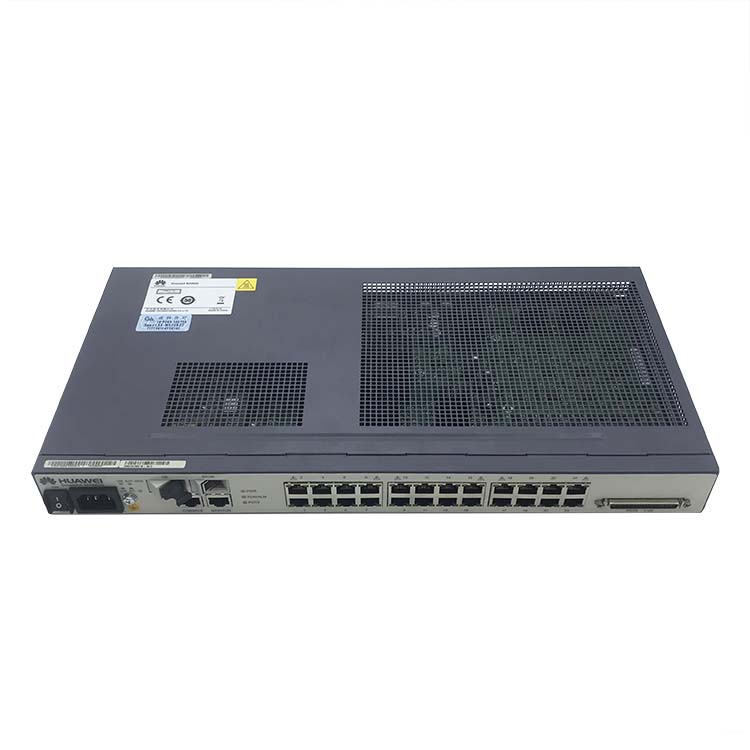

Huawei MA5620 24 Port Description:
Huawei MA5620 24 Port is a box-type device configurable with GPON uplink ports and up to 24 downstream ports for Broadband, VOIP, Pots, and Internet access services. Huawei MA5620 24 Port is a multi-dwelling unit (MDU) launched by Huawei Technologies Co, Ltd. And it applies in fibre to the building (FTTB) and fibre to the curb (FTTC) scenarios.
In the upstream direction, Huawei MA5620 24 Port provides an SFF uplink optical port that supports GPON upstream transmission. In the downstream direction, it provides 24 FE electrical ports. he Huawei SmartAX MA5620 is an industry-leading remote Multi-Dwelling Unit (MDU) that provides broadband services and IP voice services on the Fiber-To-The-Building (FTTB) network for family users and small to medium enterprises.
The MA5620 is a box-type device. Each box provides one GPON or EPON uplink port and supports 8-channel, 16-channel, or 24-channel LAN access (LAN:POTS = 1:1). SmartAX MA5620 devices feature broad temperature range, low power consumption, mute design, high stability, and improved energy conservation. They can be used on workbenches and installed in corridors and cabinets, facilitating easy installation and maintenance.
Huawei MA5620 24 Port Product Feature:
- Strong QoS capability: Support bandwidth management based DBA, flexible service mapping and accurate service management base the flow. The strong quality of service (QoS) capability provides the user difference service experience.
- High-performance IPTV services management: Strong service switching capability, packet forwarding capability and high integration (data exchange and user management) enable them to have carrier-class multicast operation capability.
- Perfect voice features, supporting basic services (voice service, fax service, and modem service) and supplementary services (three-way calling, call waiting, call transfer, calling line identification presentation, and calling number restriction)
Specifications:
|
Brand
|
Huawei
|
|
Model
|
MA5620 24 Port
|
|
Dimensions (H×W×D)
|
43.6mm×442mm×220mm
|
|
Network-side port
|
Each of them provides two uplink ports that use the SFP optical modules and automatically adapt to GPON and GE modes. The two
uplink ports can be configured as follows: |
|
2×GPON
|
|
|
2×GE (optical)
|
|
|
1×GE (optical) + 1×GPON
|
|
|
24×FE + 16×POTS
|
|
|
Operating temperature
|
-40oC to 55oC; startup at -25oC
|
|
Humidity
|
5% to 95% (non-condensing)
|
|
Heat dissipation mode
|
No fans; passive cooling
|
|
Power supply
|
AC: 220V/110V
|
|
Lightning protection capability
|
LAN: 6kV; POTS: 4kV
|
|
Weight
|
24 ports: 2.3kg
|
|
16 ports: 2.29kg
|
|
|
8 ports: 2.28kg
|
