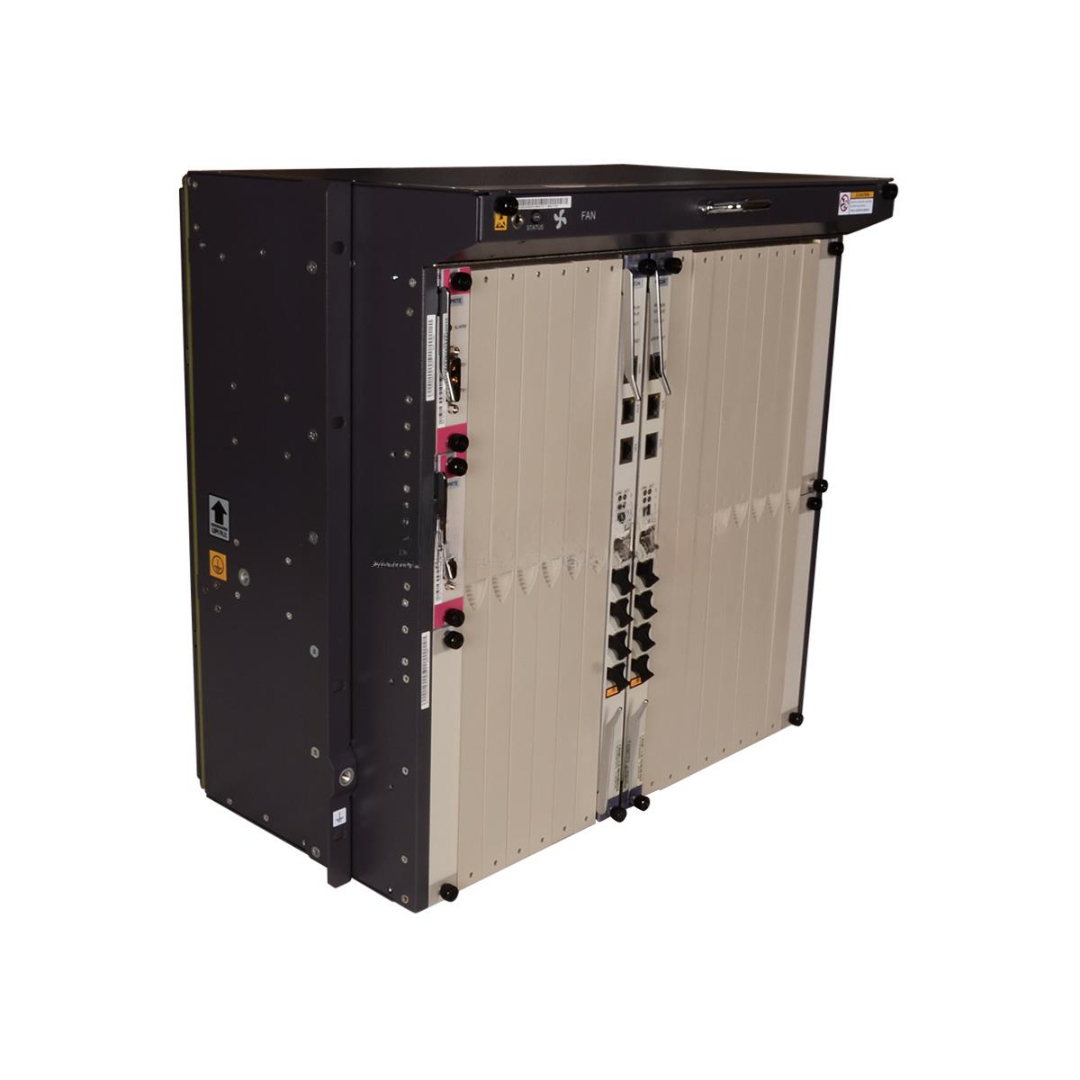

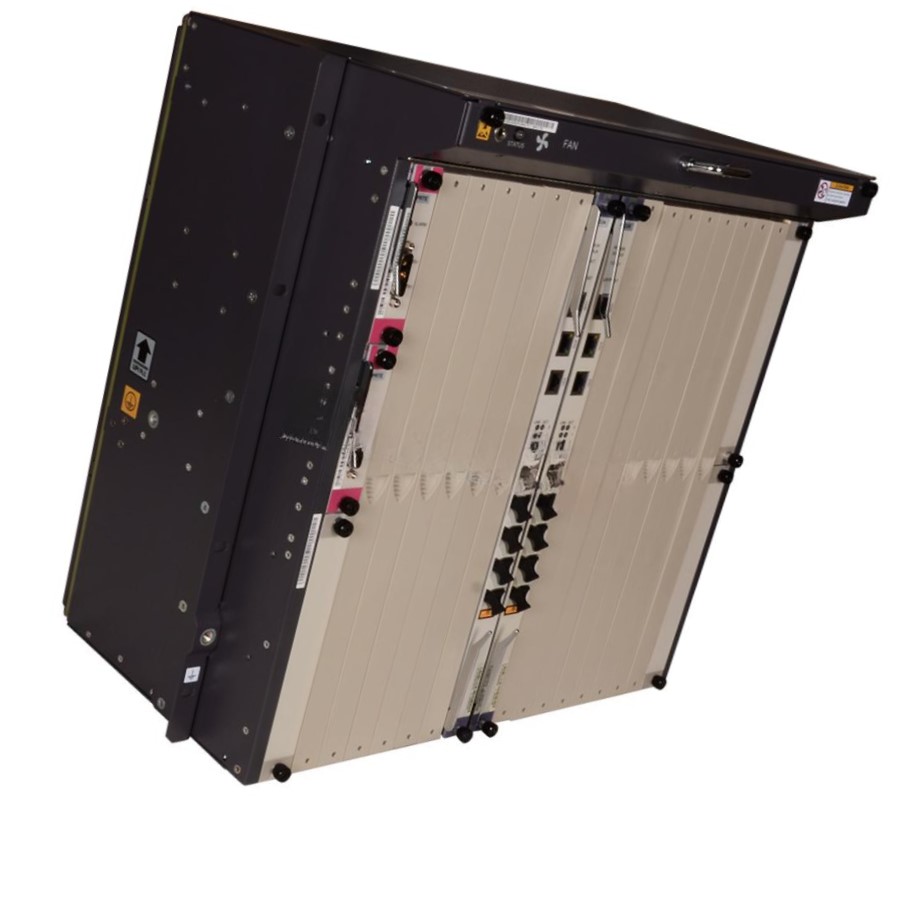

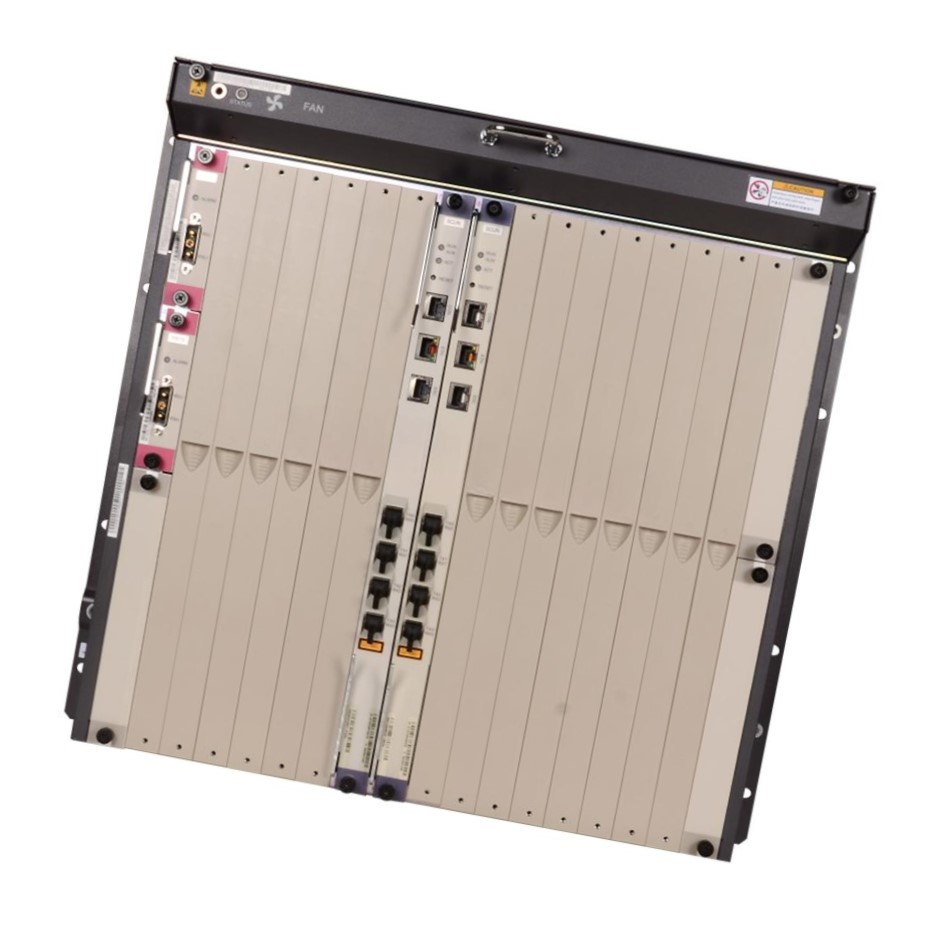

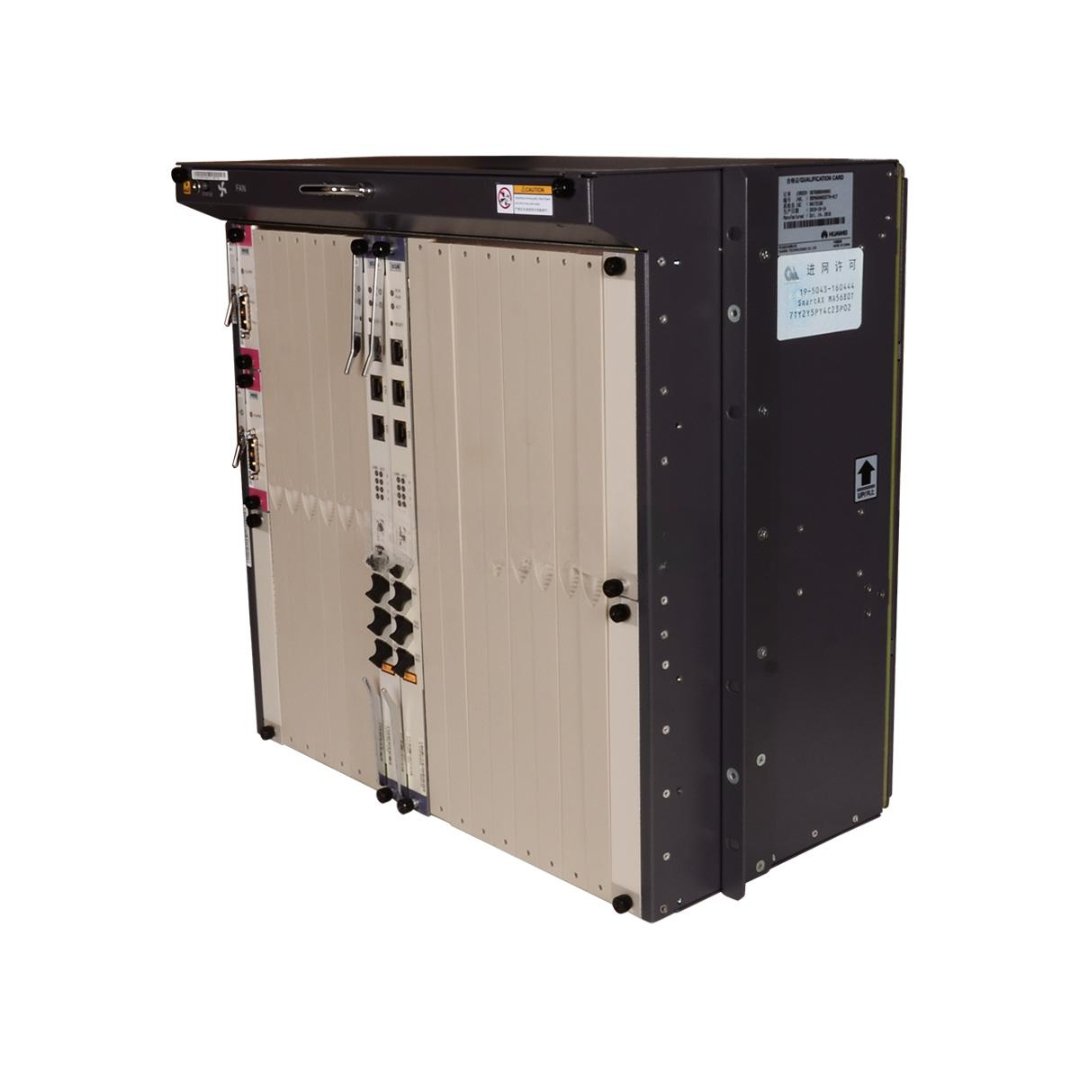

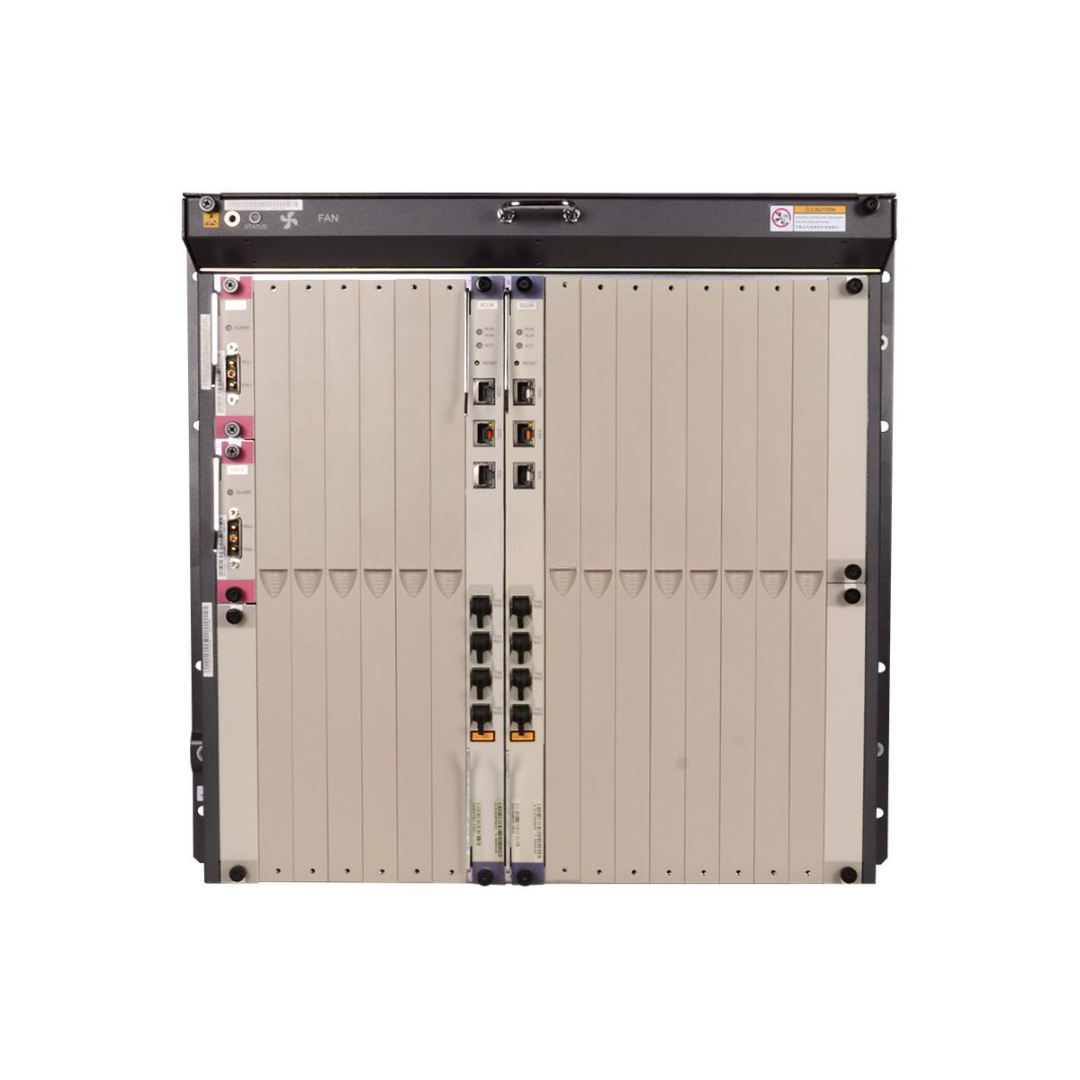

Huawei MA5680T SmartAX High Quality OLT with Service Slots Support
The Huawei MA5680T is a high-performance, carrier-grade GPON/EPON Optical Line Terminal (OLT) from the SmartAX series, designed to meet the demands of large-scale FTTx (Fiber to the x) deployments. As part of Huawei’s next-generation OLT platform, the MA5680T provides high capacity, flexible service access, and multiple service slot support, making it an ideal solution for telecom operators, ISPs, and enterprise networks.
Built with a modular architecture, the MA5680T supports up to 16 service slots, allowing deployment of various interface boards such as GPON, EPON, POTS, xDSL, and Ethernet, ensuring full-service access on a unified platform.
Key Features
-
Model: MA5680T SmartAX Series
-
Condition: 100% Brand New, Original Huawei
-
Chassis Type: 19-inch, 9U high
-
Service Slots: 16 service slots for interface boards
-
Control & Uplink Slots: 2 slots (CCUB/CCUE), 2 uplink slots
-
Fan & Power Slots: 1 fan slot, 2 power input unit (PIU) slots
-
Switching Capacity: Up to 3.2 Tbps
-
Subscriber Capacity: Supports up to 16,000 subscribers per chassis
-
Redundancy: Supports main control, uplink, and power redundancy
-
Service Types: GPON/EPON, POTS, VDSL, ADSL2+, GE/FE access
-
Hot-Swappable Slots: Yes, supports online plug and play
Technical Specifications
| Specification | Details |
|---|---|
| Model | Huawei MA5680T SmartAX |
| Dimensions (W×D×H) | 442 × 275 × 396 mm |
| Weight (Empty) | Approx. 18 kg |
| Power Supply | Dual DC (-48V) with redundancy support |
| Max Power Consumption | < 600W (depends on configuration) |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% to 95%, non-condensing |
| Service Slots | 16 slots (H8/GPFD, GPBD, GICG, etc.) |
| Control Board Options | CCUB, CCUE, CCUC, CCUD |
| Uplink Board Options | GE, 10GE, Combo PON |
| Fan Module | Intelligent temperature-controlled fan tray |
| Mounting | Standard 19” rack mounting supported |
Huawei MA5680T Applications
-
FTTH / FTTB Deployments – Flexible access to GPON/EPON subscribers
-
Enterprise Broadband – Stable services for private and campus networks
-
Triple-Play Service – Integrated voice, data, and IPTV delivery
-
Smart Cities / Surveillance – Scalable fiber backbone for city-wide networks
-
Legacy Migration – Support for xDSL and POTS for gradual upgrade from copper
Customization & OEM Options
-
Preloaded Configurations – VLANs, ONT profiles, ACLs pre-configured
-
Optional Interface Boards – Choose from GPON, GE, DSL, POTS modules
-
Branding Services – Custom label, documentation, and branding
-
Extended Testing & QA – Environmental and burn-in tests available
Huawei MA5680T Wholesale & Global Supply
-
Original Huawei Equipment – Factory-sealed and new
-
Bulk Orders Available – Ideal for carriers, system integrators
-
Fast Shipping Worldwide – Secure, export-ready packaging
-
Professional Support – Technical integration assistance on request
Why Choose Huawei MA5680T
-
High Port Density – Supports thousands of users with flexible scaling
-
Unified Access – GPON, EPON, DSL, and Ethernet in a single chassis
-
Carrier-Grade Reliability – Main control and uplink redundancy
-
Smart Power & Cooling – Energy efficient with intelligent fan modules
-
Future-Proof – Perfect for next-gen broadband and 5G backhaul readiness
Contact Us Today
Deploy the Huawei MA5680T SmartAX OLT for your access network and benefit from scalable architecture, multi-service support, and global Huawei quality — ideal for dense FTTH rollouts, enterprise broadband, and public infrastructure networks.
