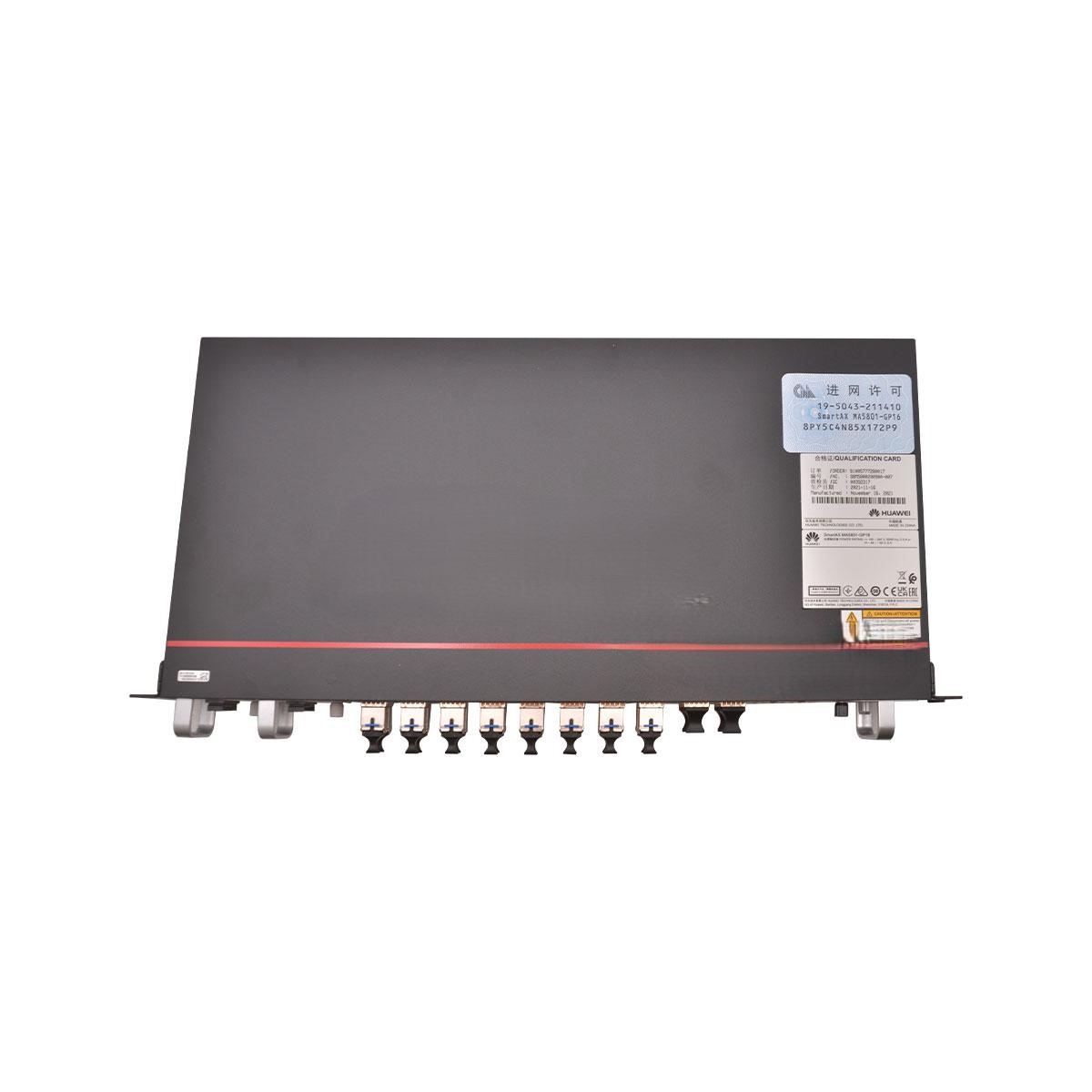

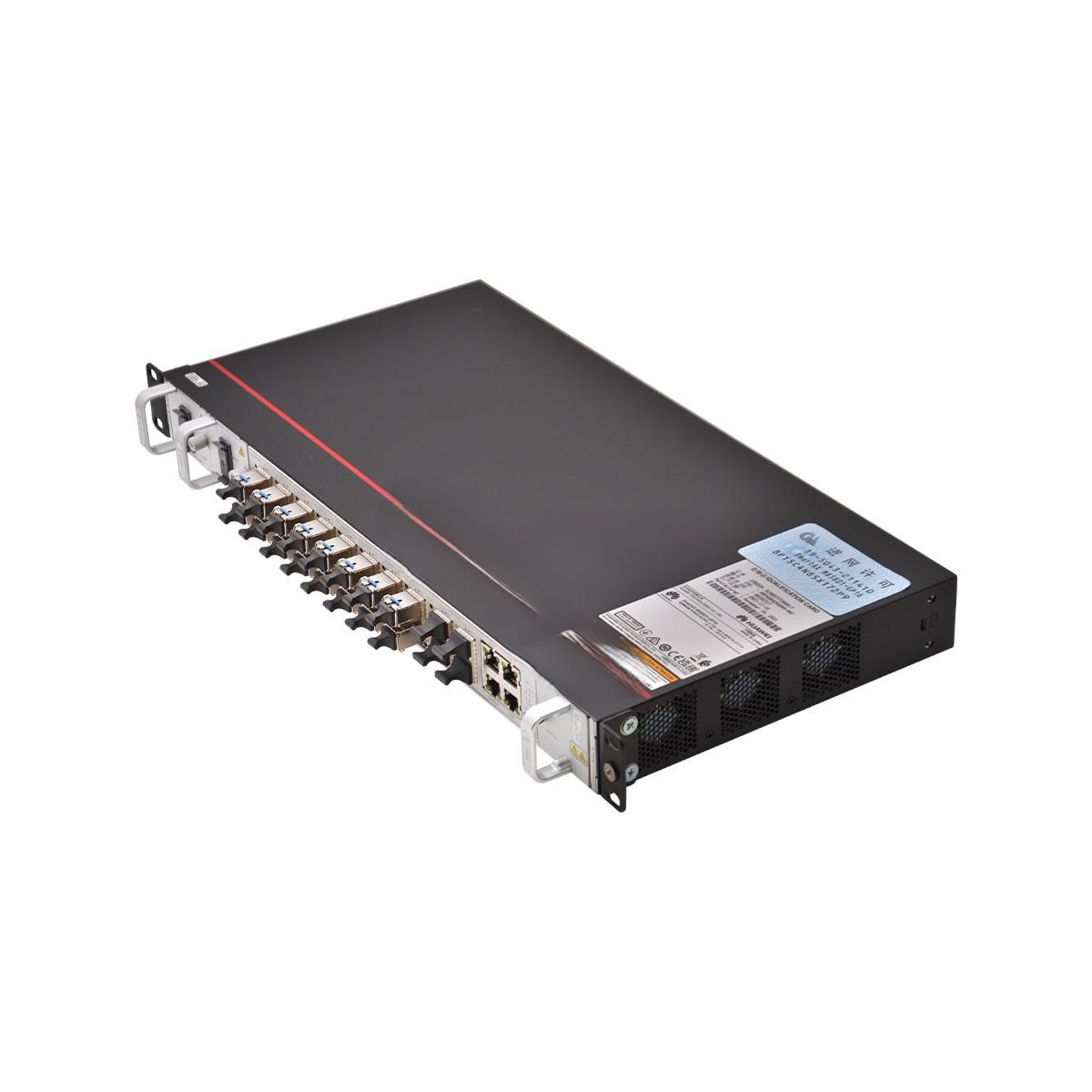

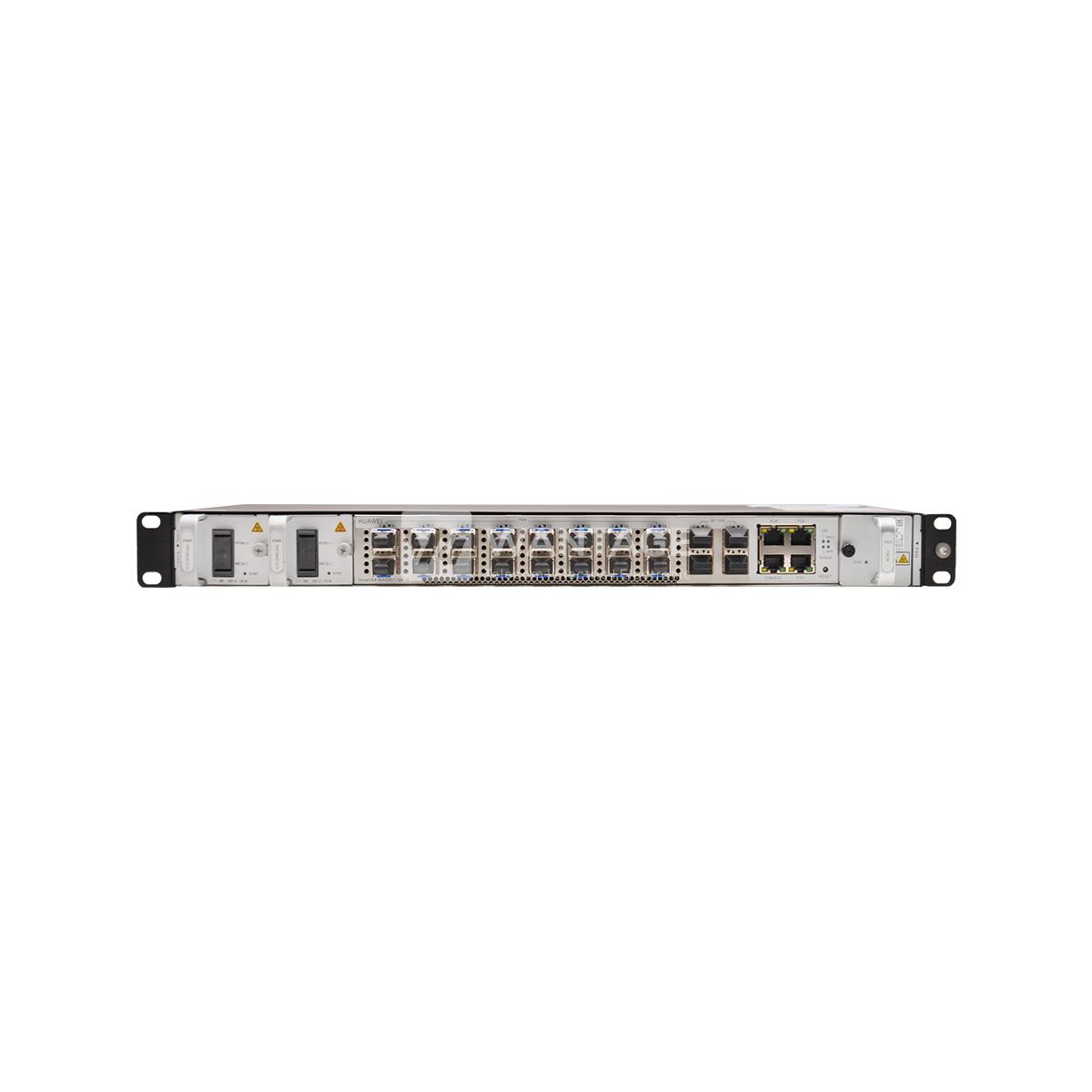

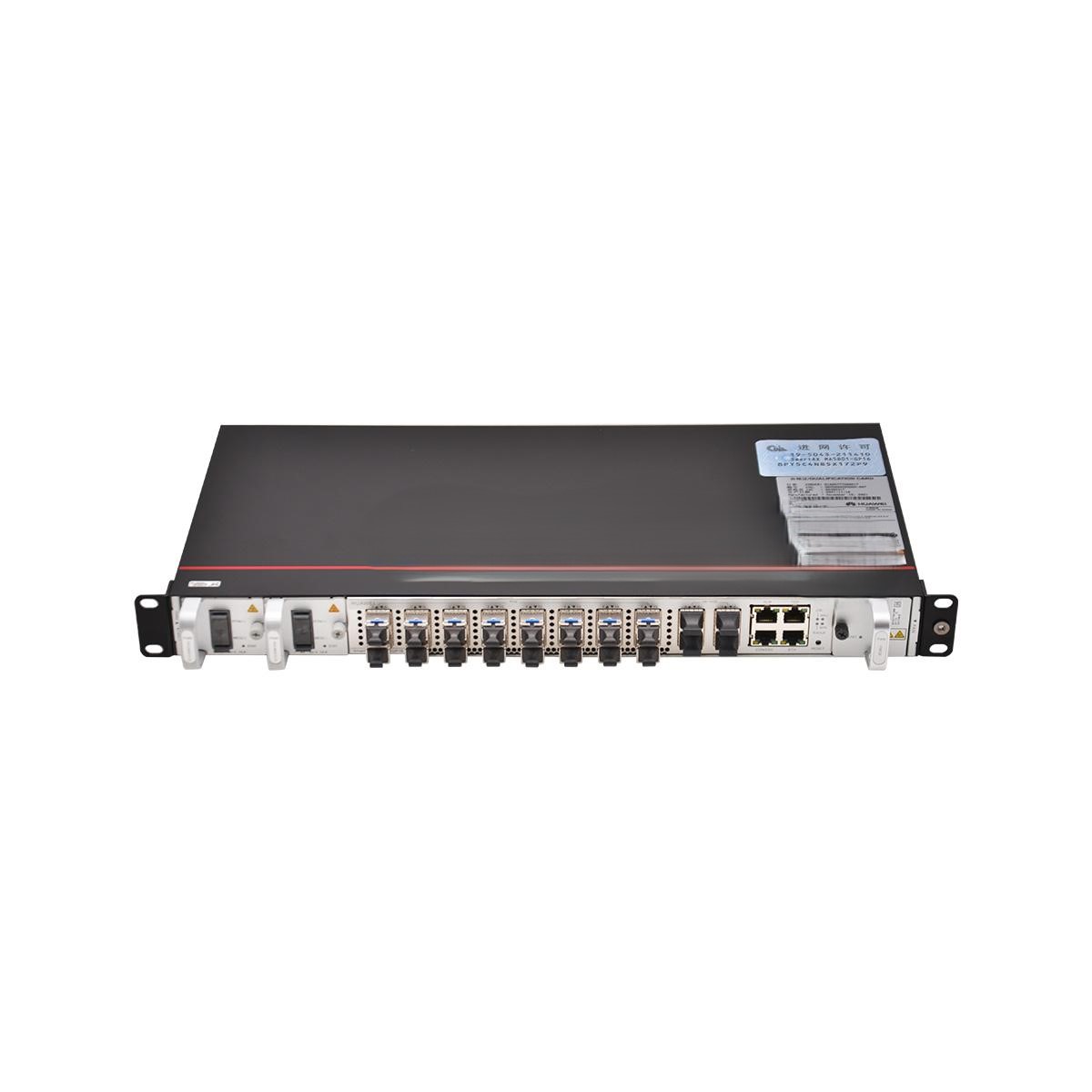

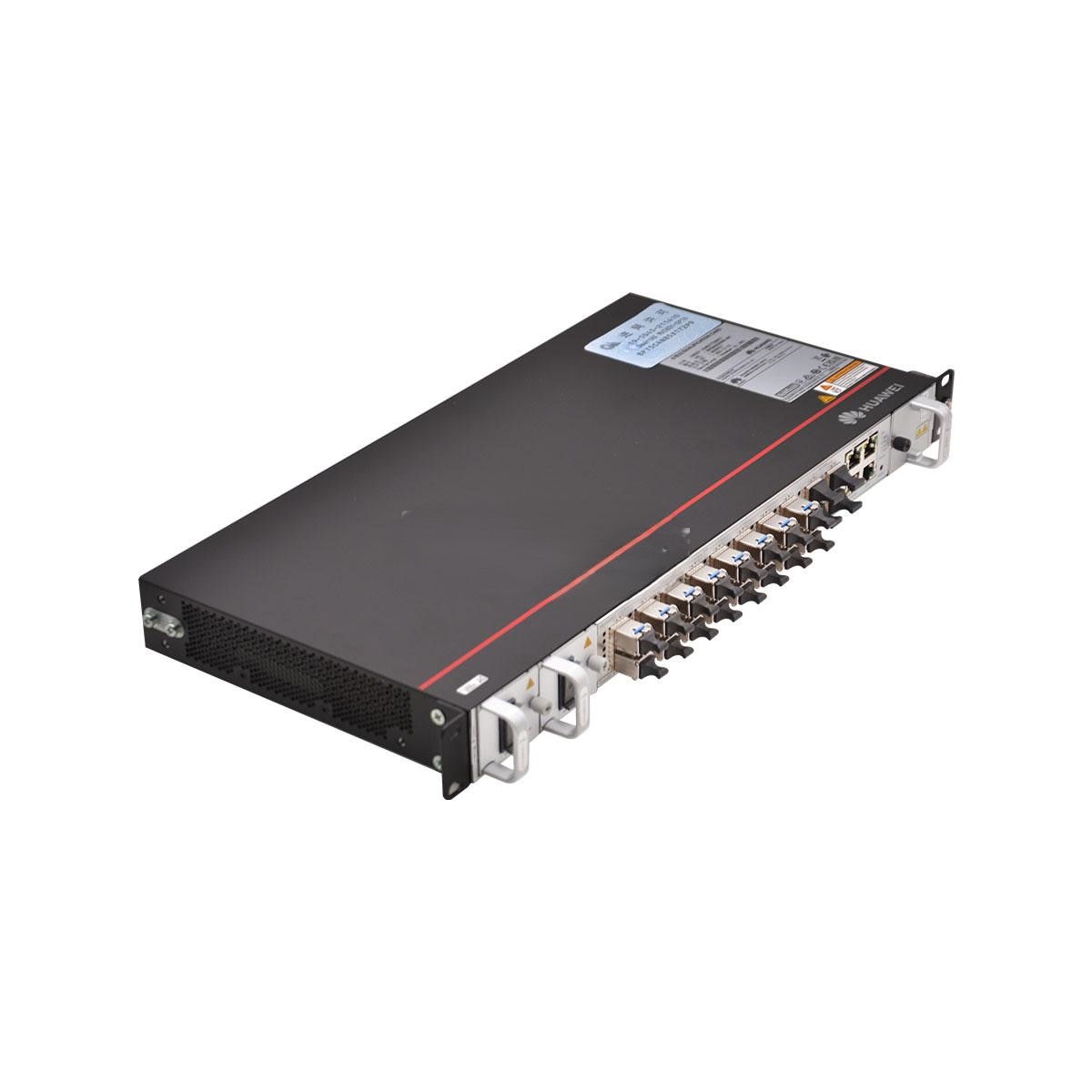

Huawei MA5801-GP16-H2
The Huawei MA5801-GP16-H2 is a compact, box-shaped Optical Line Terminal (OLT) designed to deliver efficient Fiber to the Home (FTTH) solutions. It is particularly suitable for scenarios requiring economical and efficient network construction, such as fixed-mobile convergence, national broadband coverage, and enterprise all-optical campus deployments.
- Huawei MA5801-GP16-H2 is 1U height box-shaped OLT with 16*GPON ports, 4*10GE/GE upstream ports
- Comes with a 1PCS power cable, 1PCS earth cable, an accessory package, and a cable management rack.
- Chassis supports 2 pluggable power modules, AC or DC for selection.
- System switching capacity: 140 Gbit/s
- Support 32768 MAC address, 16384 ARP table
Huawei MA5801-GP16-H2 is a compact and low-density box-shaped OLT. It provides multiple fiber to the home (FTTH) solutions to meet the requirements of economical and efficient network construction.
It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise’s all-optical campus scenario.
Specifications
Huawei MA5801-GP16-H2 |
|||
| Switching capacity of the system | 140 Gbit/s | ||
| MAC address | 32768 | ||
| Access ONT | 1024 | ||
| IPv4 routing table | 8192 | ||
| IPv6 routing table | 4096 | ||
| ARP table | 16384 | ||
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load | ||
| Upstream ports | 4 GE/10GE | ||
| Service ports | 16 GPON | ||
| Dimensions (W x D x H) (mm) |
1U height
Excluding mounting ears: 442 x 220 x 43.6 Including IEC mounting ears: 482.6 x 220 x 43.6 Including ETSI mounting ears: 531 x 220 x 43.6 |
||
| Maximum weight(including mounting brackets) | 5 kg | ||
| Technical specification | |||
| Maximum input current | DC power supply: 6 A
AC power supply: 2.5 A |
||
| Working voltage range | DC power supply: –38.4 V to –72 V
AC power supply: 100 V to 240 V |
||
| Ambient temperature | –40°C to +65°C
The device can start up at a lowest temperature of –25°C. NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
||
| Ambient humidity | 5% RH to 95% RH | ||
Features & Benefits
-
High Density: Supports 16 GPON service ports, enabling efficient broadband delivery to end-users.
-
Flexible Deployment: Compact design allows for deployment in various environments, including mobile cabinets and enterprise campuses.
-
Dual Power Supply: Ensures high reliability with dual AC/DC power options.
-
Robust Performance: Offers a system switching capacity of 140 Gbit/s, supporting high-density access and service scalability.
-
Advanced Routing Capabilities: Supports extensive MAC addresses, IPv4/IPv6 routing tables, and ARP entries, accommodating complex network topologies.
Application Scenarios
-
Fixed-Mobile Convergence: Utilizes existing mobile infrastructure to provide broadband services to nearby households.
-
National Broadband Coverage: Deploys efficiently in low-density areas, extending broadband reach to underserved regions.
-
Enterprise All-Optical Campus: Provides high-speed, reliable connectivity within enterprise environments.
