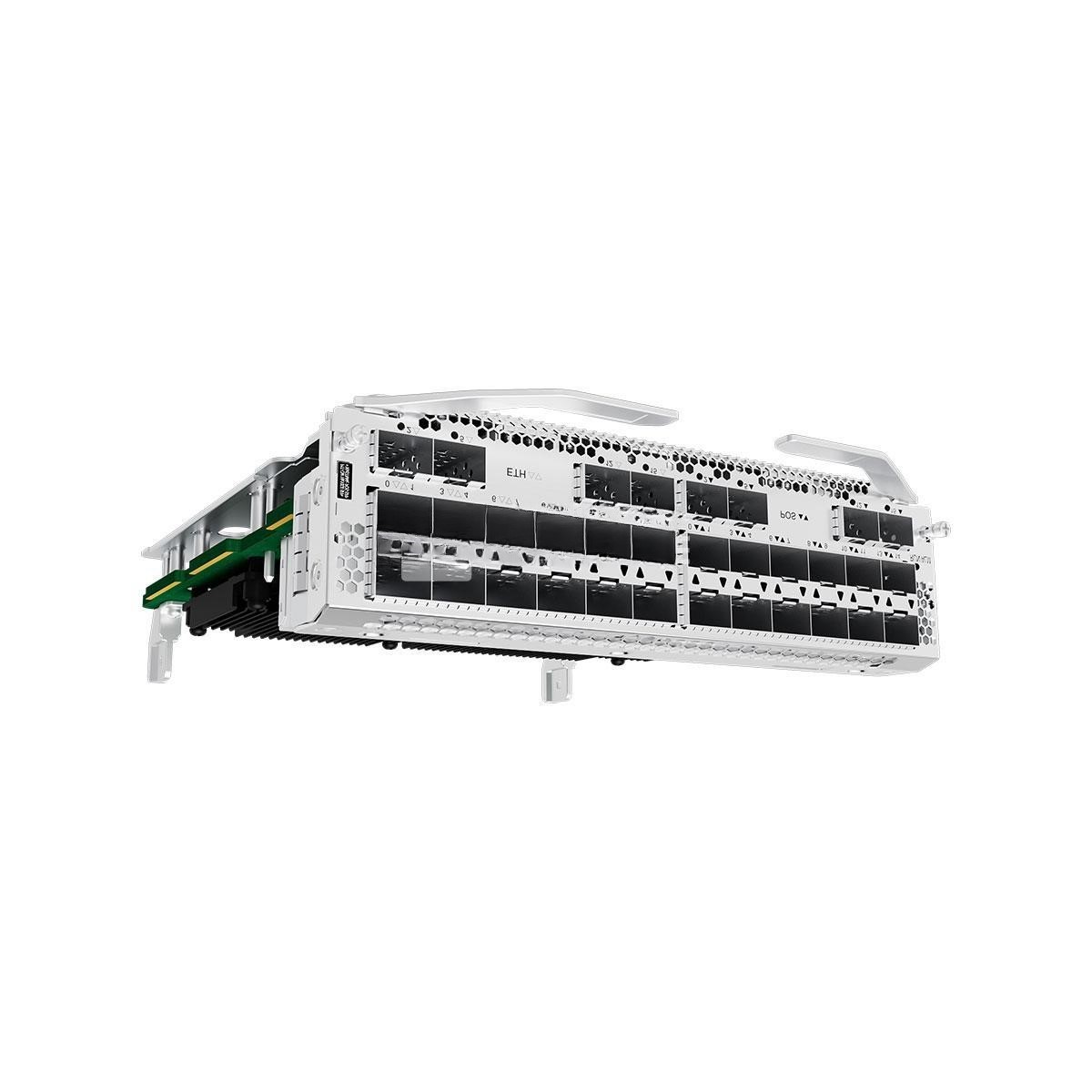

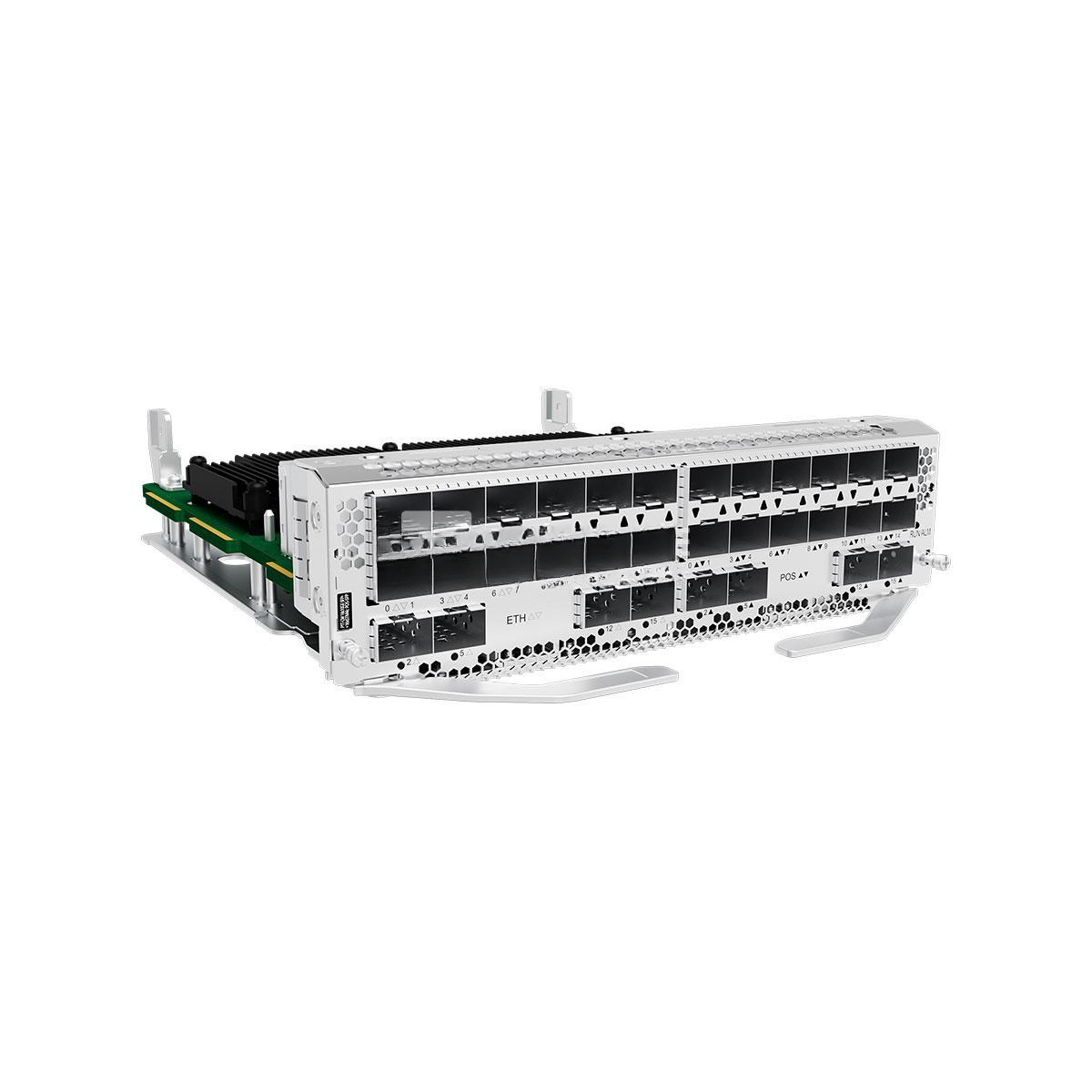

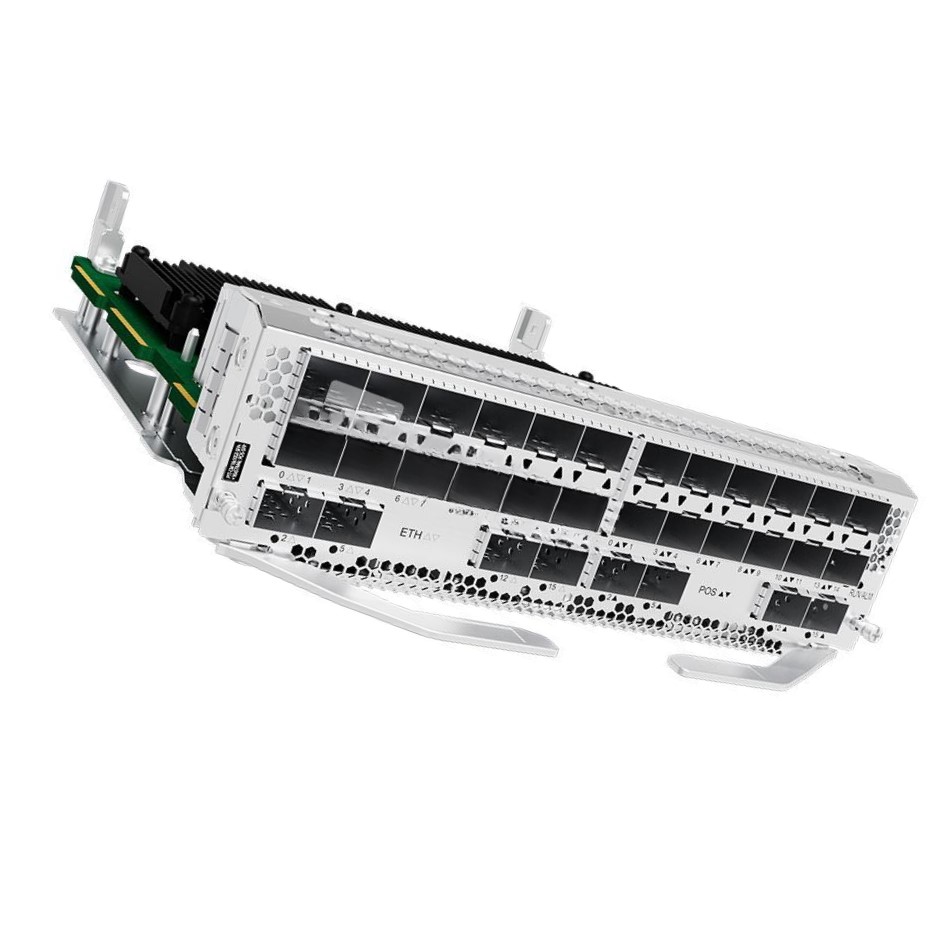

Huawei NE8000 Branded 16-Port 10GE (SFP+) Flexible Card
Product Overview
The Huawei NE8000 Branded 16-Port 10GE Flexible Card is a high-performance interface module designed for Huawei’s Net Engine 8000 series core routers. With 16 hot-swappable SFP+ slots, this card delivers powerful 10 Gigabit Ethernet connectivity, enabling high-density, low-latency, and scalable networking for telecom operators, cloud data centers, and large-scale enterprise networks.
Built with Huawei’s advanced forwarding architecture, this flexible card ensures carrier-grade reliability, intelligent traffic management, and seamless integration into the Huawei NE8000 routing platform.
Key Features of Huawei NE8000
-
Model Type: 16-Port 10GE Flexible Card
-
Interface Type: 10 Gigabit Ethernet (SFP+)
-
Port Quantity: 16 x SFP+ ports
-
Compatibility: Huawei NE8000 Series Routers (NE8000-M8, M14, M16, etc.)
-
Line Rate Forwarding: Full 10G throughput per port
-
Hot-Swappable Design: Easy maintenance and zero-downtime upgrades
-
Application Scenarios: Metro/core networks, backbone aggregation, data centers
-
Condition: 100% Brand New, Huawei Original Hardware
-
Compliance: IEEE 802.3ae (10GE), RoHS, CE, ISO9001
Huawei NE8000 Specifications
| Parameter | Details |
|---|---|
| Product Type | Flexible Line Card |
| Interface Speed | 10Gbps per port (SFP+ Based) |
| Number of Ports | 16 x 10GE (SFP+) |
| Forwarding Capability | Line-rate forwarding on all ports |
| Connector Type | Hot-swappable SFP+ transceivers |
| Wavelength Support | Based on SFP+ module (SR, LR, ER, etc.) |
| Compatibility | Huawei NE8000 Series Routers |
| Operating Temperature | -5°C to +45°C |
| Status | Brand New, Factory Sealed |
Applications
-
National & Metro Backbone Networks
-
Cloud Data Center Interconnect (DCI)
-
Carrier-Grade IP/MPLS Routing Platforms
-
Internet Exchange Point Infrastructure
-
Large-Scale Campus and Enterprise Core Networks
Customization Options
We offer full support for specialized deployment needs:
-
Preloaded SFP+ Modules: Choose from 10G SR, LR, ER, ZR, CWDM, DWDM
-
Configuration Support: VLANs, L2/L3 features, QoS, traffic shaping
-
Bundled Packages: Combine with chassis, power modules, MPUs, and software licenses
-
Firmware Pre-Installation: Matching your live environment
-
Custom Labeling & Branding: For resellers and integrators
Let us know your project requirements, and we’ll configure the right card + module combination.
Technical Specifications
Functions and Features
| Parameter | Details |
|---|---|
| Basic Function | Supports 500 Gbit/s line-rate forwarding |
| Reliability & Availability | Hot swappable |
| Breakout Supported | Yes. Use port split command to enable breakout |
| Interface Rate Auto-Sensing | No |
| FlexE Supported | Yes |
| FlexE Port Grouping | • Ports {0, 1}, {2, 3}: Can be bonded into 200G via FlexE (400G bonding not supported) • Ports 0, 1, 2, 3, 4 can each be added to groups with port-id range 1000–3000• Up to 20 FlexE clients per group (standard) • On CR8DLPUFT171, CR8DLPUFT072, CR81LPUFT072, CR8DLPUFT172: Max 10 FlexE clients per port group |
| Restrictions & Remarks | 1. Default rate: 100 Gbit/s. Supports 100GE/50GE/40GE/4x25GE/4x10GE/2x50G. Use port split for unmatched modules.2. FlexE bonding supported for every two 100G interfaces (200G max). 400G not supported. |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (without packaging) | 55.4 × 197.5 × 230.6 mm (2.18 × 7.78 × 9.08 in.) |
| Dimensions (with packaging) | 150 × 313 × 385 mm (5.91 × 12.32 × 15.16 in.) |
| Weight (without packaging) | 1.4 kg (3.09 lb) |
| Weight (with packaging) | 2.2 kg (4.85 lb) |
| Typical Power Consumption | 76 W |
| Typical Heat Dissipation | 246.6 BTU/hour |
| Operating Temperature (Long-term) | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Temperature (Short-term) | –5°C ~ +50°C (23°F ~ 122°F) |
We support volume procurement and global distribution with:
-
Competitive Factory Pricing for Distributors & Integrators
-
MOQ Flexibility & Volume-Based Discounts
-
Stock Reservation for Project Rollouts
-
Fast Shipping & Global Logistics Handling
-
Dedicated Sales Manager for Enterprise Accounts
-
OEM/ODM Support for Certified Partners
Request a quote or send your BOM (Bill of Materials) for tailored pricing.
Additional Information
| Attribute | Value |
|---|---|
| Weight (declared) | 2.5 kg |
| Dimensions (declared) | 31.3 × 38.5 × 15 cm |
| Port Count | 12–24 |
| Connector Rate | 10G |
| Features | Hardware Compatibility, Hardware Tested |
Why Choose Huawei NE8000?
-
Huawei-Certified Hardware with Full Traceability
-
Comprehensive Technical Support & After-Sales Assistance
-
Proven Supplier to ISPs, Data Centers & Telcos Worldwide
-
Genuine Parts – Fully Tested & Certified Before Shipping
-
One-Stop Solution for Huawei NE8000 Series Components
Order Now
Upgrade your NE8000 platform with the Huawei Branded 16-Port 10GE SFP+ Flexible Card — an essential for high-speed, scalable, and reliable network performance. Available now for individual and bulk orders with customization and fast global delivery.
