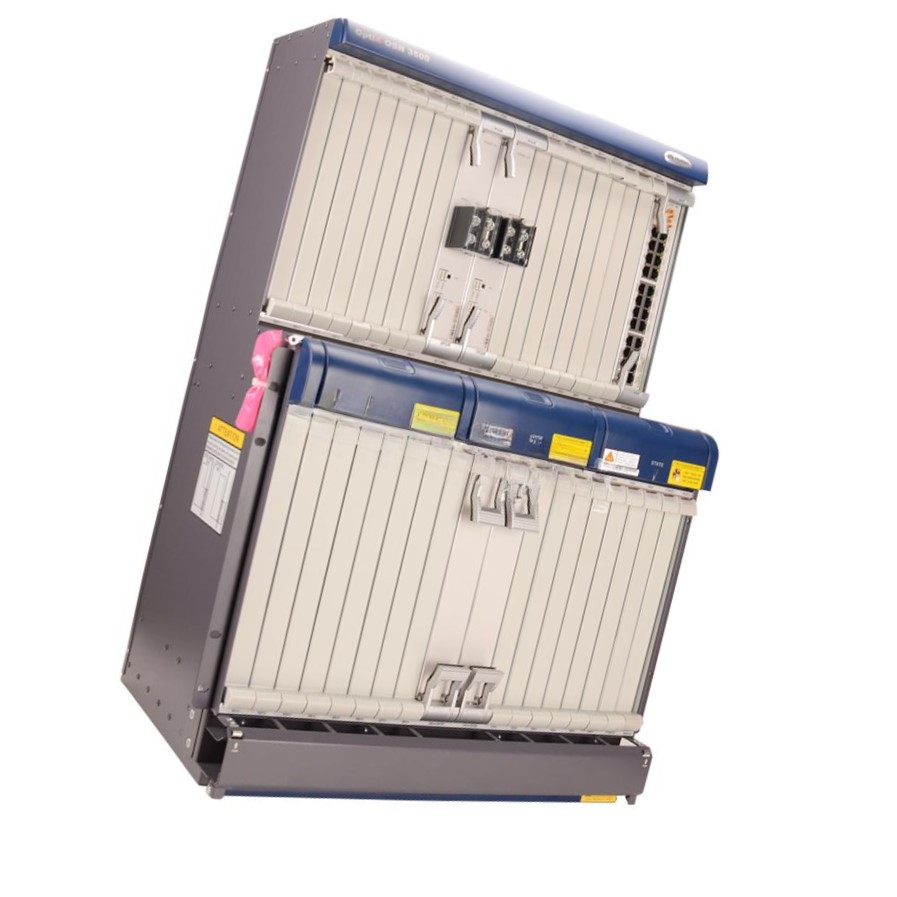

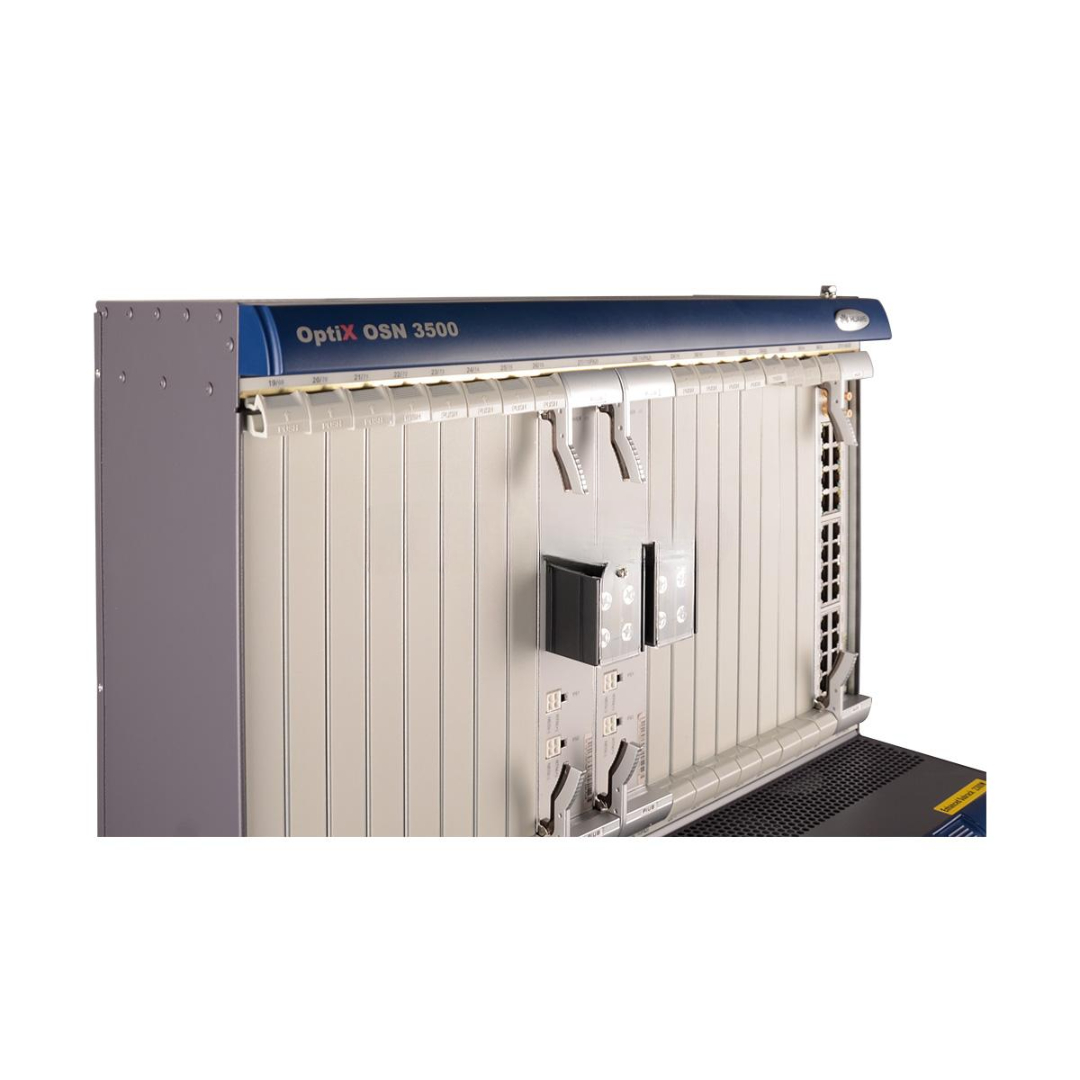

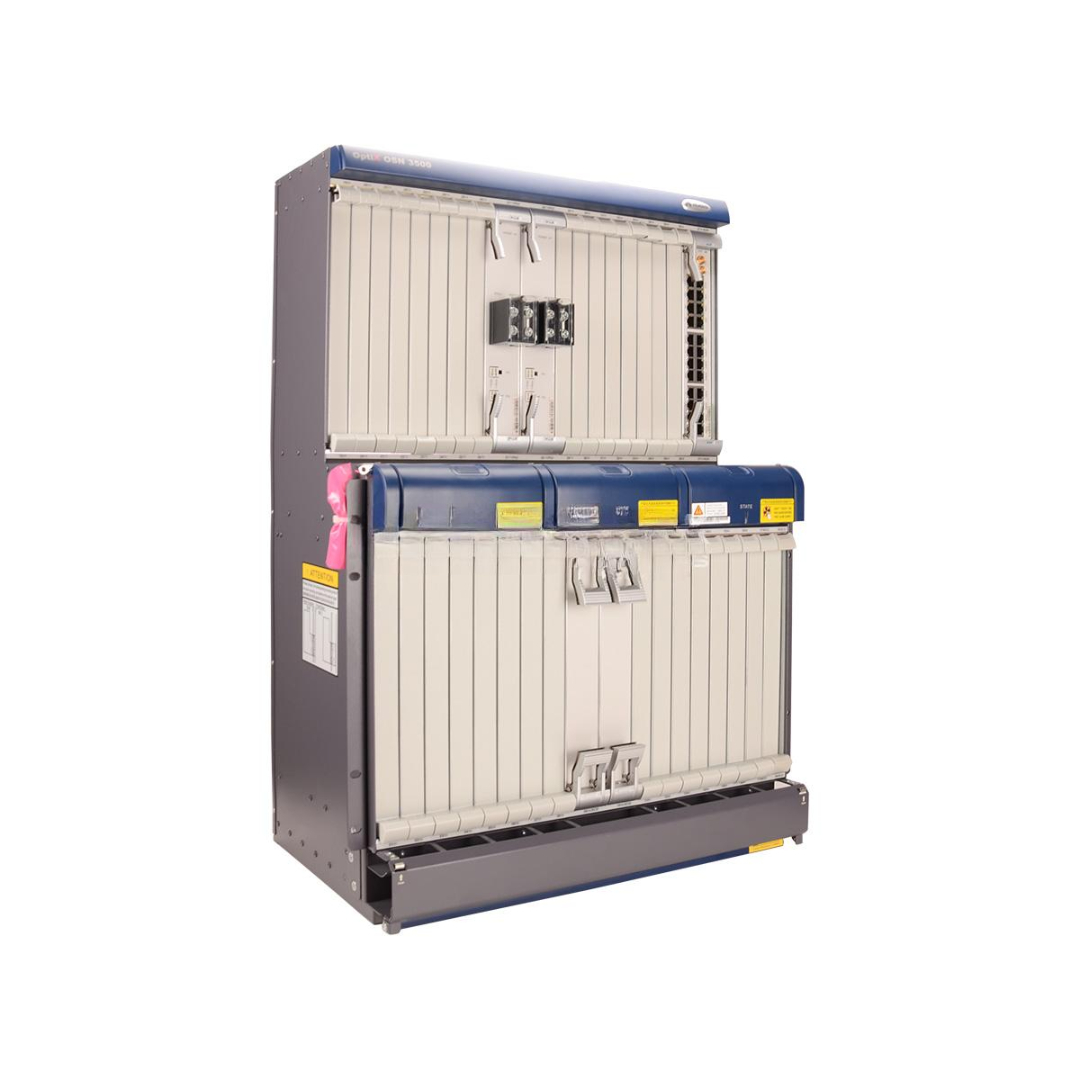

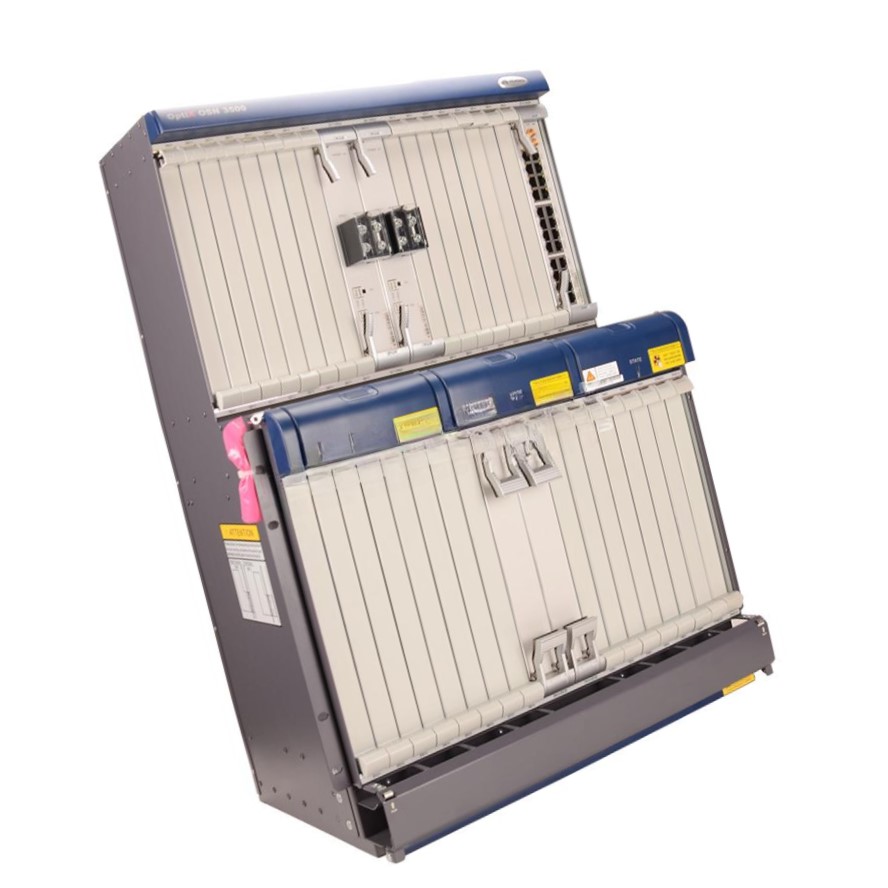

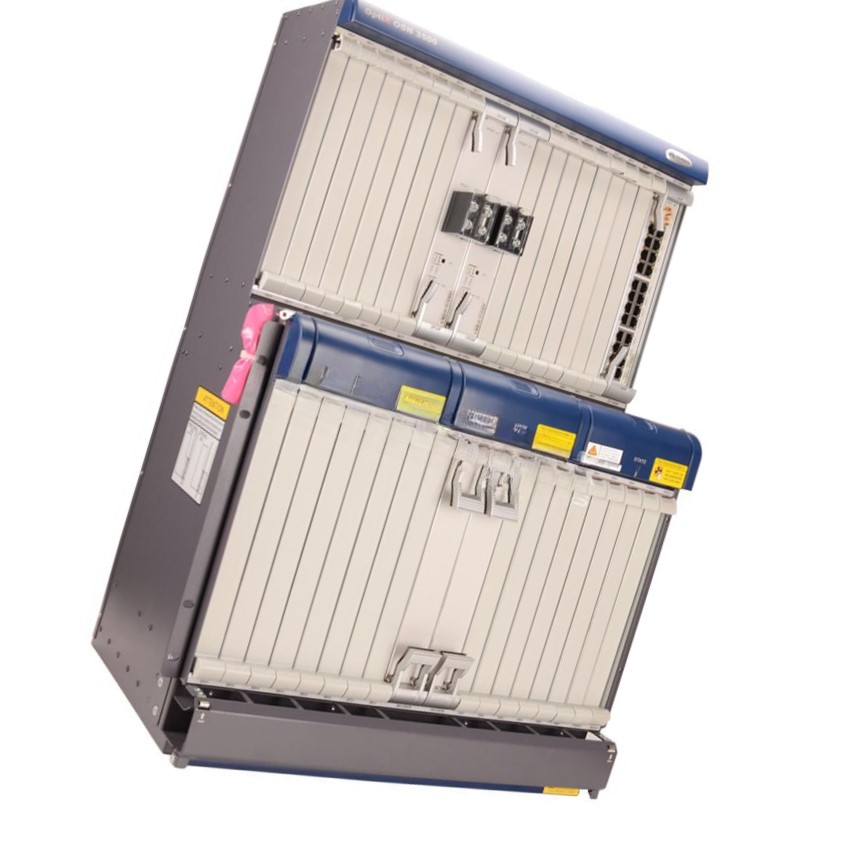

Huawei OptiX OSN3500 High Quality 15 Service Slots, Equipped
The Huawei OptiX OSN3500 is a high-performance, fully equipped MSTP (Multi-Service Transport Platform) designed for flexible deployment in backbone, metro, and access layer transmission networks. With 15 service slots, the OSN3500 offers a hybrid transport solution that supports SDH, PDH, Ethernet, ATM, and OTN services, delivering strong performance and service integration. Known for its modular design, high reliability, and comprehensive network management, it is trusted by telecom operators and enterprises worldwide.
Key Features
-
Model: Huawei OptiX OSN3500
-
Condition: 100% Brand New & Fully Equipped
-
Slot Configuration: 15 Service Slots + Control + Cross-Connect + Power Slots
-
Service Types: SDH, PDH, Ethernet (Fast/Gigabit), ATM, OTN
-
Transmission Rates: STM-1, STM-4, STM-16, STM-64, FE, GE, 10GE
-
Architecture: Integrated MSTP with cross-connect and optical/electrical interfaces
-
Modular Design: Easy addition and replacement of boards (e.g., SSN1SLQ16, SSN3SL16)
-
Cross-Connect Capacity: Up to 80G Electrical Cross-Connect
-
Redundancy: Dual control, dual power, and board-level protection
-
Management: Supports Huawei U2000/NCE-T, CLI, SNMP, Web-based interface
-
Equipment Type: 19-inch or ETSI rack-mountable chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | OptiX OSN3500 |
| Slot Count | 15 service slots + slots for control, power, XCS |
| Service Support | SDH, Ethernet, ATM, CES, OTN, PDH |
| Transmission Rates | STM-1/4/16/64, FE, GE, 10GE, E1, VC-4 |
| Cross-Connect Capacity | 80G (non-blocking, electrical) |
| Switch Fabric | Optional TNH2XCS, TNH1UXCS, TNH1XCS |
| Power Input | -48V DC (dual power slots for redundancy) |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance | ITU-T G.707, G.783, G.803, G.841, IEEE 802.3 |
| Dimensions (W×D×H) | 442 × 295 × 488 mm |
| Mounting | Standard 19″ or ETSI rack cabinet |
| Warranty | 1–3 Years Manufacturer Warranty |
Huawei OptiX OSN3500 Applications
-
Metro Core & Access Networks — Aggregates and transports voice, data, and video
-
Carrier SDH/Ethernet Services — Offers E-Line, E-LAN, and legacy TDM transport
-
Power Utilities & Railways — Robust platform for SCADA, signaling, and telecom systems
-
Government & Enterprise Networks — Secure and stable backbone for mission-critical data
-
Mobile Backhaul & 4G/5G Transport — Supports synchronization and Ethernet-based fronthaul
Customization & OEM Options
-
Pre-Installed Service Boards — Choose STM-1/4/16, E1, GE, CES boards per project needs
-
Fully Equipped Sets — Preloaded subracks with control, power, cross-connect, fan units
-
Custom Configuration — VLANs, Ethernet paths, VC mapping, and topology settings
-
Labeling & Branding — Optional OEM logo and customized part labeling for partners
-
Extended Testing — Factory-verified QoS, ring protection (MSP, SNCP), and optical loops
Huawei OptiX OSN3500 Wholesale & Global Procurement
-
Genuine OEM Equipment — 100% original Huawei with valid serials and warranty
-
Bulk Availability — Large stock of complete and modular systems for telco rollouts
-
Secure International Packaging — Anti-static, shock-proof foam and boxed kits
-
Fast Logistics — Global air/sea shipping with telecom compliance certifications
-
Technical Support — Assistance with site installation, commissioning, and NMS integration
-
On-Demand Configurations — Delivered with specified boards, software, and cabling options
Why Choose the Huawei OptiX OSN3500 MSTP System
-
High Capacity & Versatility — 15 service slots for SDH, Ethernet, and multiservice access
-
Carrier-Grade Stability — Redundant design with hot-swappable modules
-
Proven Field Performance — Deployed in over 100+ countries for mission-critical networks
-
Unified Management — Supports centralized O&M via Huawei U2000/NCE-T
-
Cost-Effective Scalability — Supports growth from 10Mbps to 10Gbps+ services
Contact Us Now for Bulk Orders, Configurations & Price Quotes
Upgrade your network with the Huawei OptiX OSN3500 — 15-slot, high-performance MSTP chassis, ideal for converged service delivery, transport network modernization, and next-gen access solutions.
