Huawei S5720-32P-EI-AC Enterprise Switch – 24-Port 1000BASE-T + 8 × GE SFP Uplinks | Layer 3 Managed Switch | AC Power
Product Overview
The Huawei S5720-32P-EI-AC New Switch is a high-performance, Layer 3 managed switch designed for enterprise access and aggregation scenarios. It features 24 × 10/100/1000BASE-T Ethernet ports and 8 × Gigabit SFP uplinks, combining powerful switching capacity with advanced routing, security, and traffic management features.
Powered by AC input, this switch delivers enterprise-grade reliability and full IPv4/IPv6 capabilities, making it ideal for campus networks, data centers, and business backbones where flexible port combinations and high throughput are essential.
Key Features of Huawei S5720-32P-EI-AC New Switch
-
24 × 10/100/1000BASE-T ports for copper-based Gigabit access
-
8 × 1000BASE-X SFP uplink ports for flexible fiber aggregation
-
Advanced Layer 3 routing support: Static, RIP, OSPF, BGP, IPv6
-
Intelligent traffic control, QoS, and storm suppression for optimized performance
-
Enterprise-grade security features: 802.1X, DHCP snooping, ACLs, MAC filtering
-
Supports SVI, VLANs, QinQ, and multicast protocols (IGMP/MLD snooping)
-
Managed via SNMP, CLI, Telnet, or Huawei iManager NCE platform
-
Intelligent energy-saving design with low noise and smart fan control
Huawei S5720-32P-EI-AC New Switch Technical Specifications
| Specification | Details |
|---|---|
| Model | Huawei S5720-32P-EI-AC |
| Downlink Ports | 24 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 8 × 1000BASE-X SFP |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 32K entries |
| VLAN Support | Up to 4,096 VLANs |
| Layer 3 Features | Static Routing, RIP, OSPF, BGP, IPv6 |
| Power Supply | 100–240V AC, 50/60 Hz |
| Dimensions (W × D × H) | 442 mm × 220 mm × 43.6 mm |
| Weight | ≤ 4.5 kg |
| Operating Temperature | 0°C to 50°C |
| Mounting | 1U rack-mountable |
| Compliance | CE, FCC, RoHS, ISO9001 |
Huawei S5720-32P-EI-AC New Switch Application Scenarios
-
Enterprise LAN access and aggregation layers
-
Education, healthcare, and government networks
-
SME and branch office environments needing high-performance access
-
Campus networks requiring fiber uplinks to aggregation/core switches
-
Hybrid copper/fiber deployments with scalability and security in mind
Tech Specs Consolidated
| Item | Description |
|---|---|
| Fixed Ports | 24-port 1000BASE-T, 4-port FE/GE SFP, 4-port GE SFP |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total |
| MTBF (Mean Time Between Failures) | 80.32 years |
| MTTR (Mean Time To Repair) | 2 hours |
| Availability | > 0.99999 |
| Service Port Surge Protection | Common mode: ±6 kV |
| Power Supply Surge Protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) | Basic: 43.6 mm x 442.0 mm x 224.9 mm |
| Maximum: 43.6 mm x 442.0 mm x 237.3 mm | |
| Weight (with packaging) | 4.5 kg (9.92 lb) |

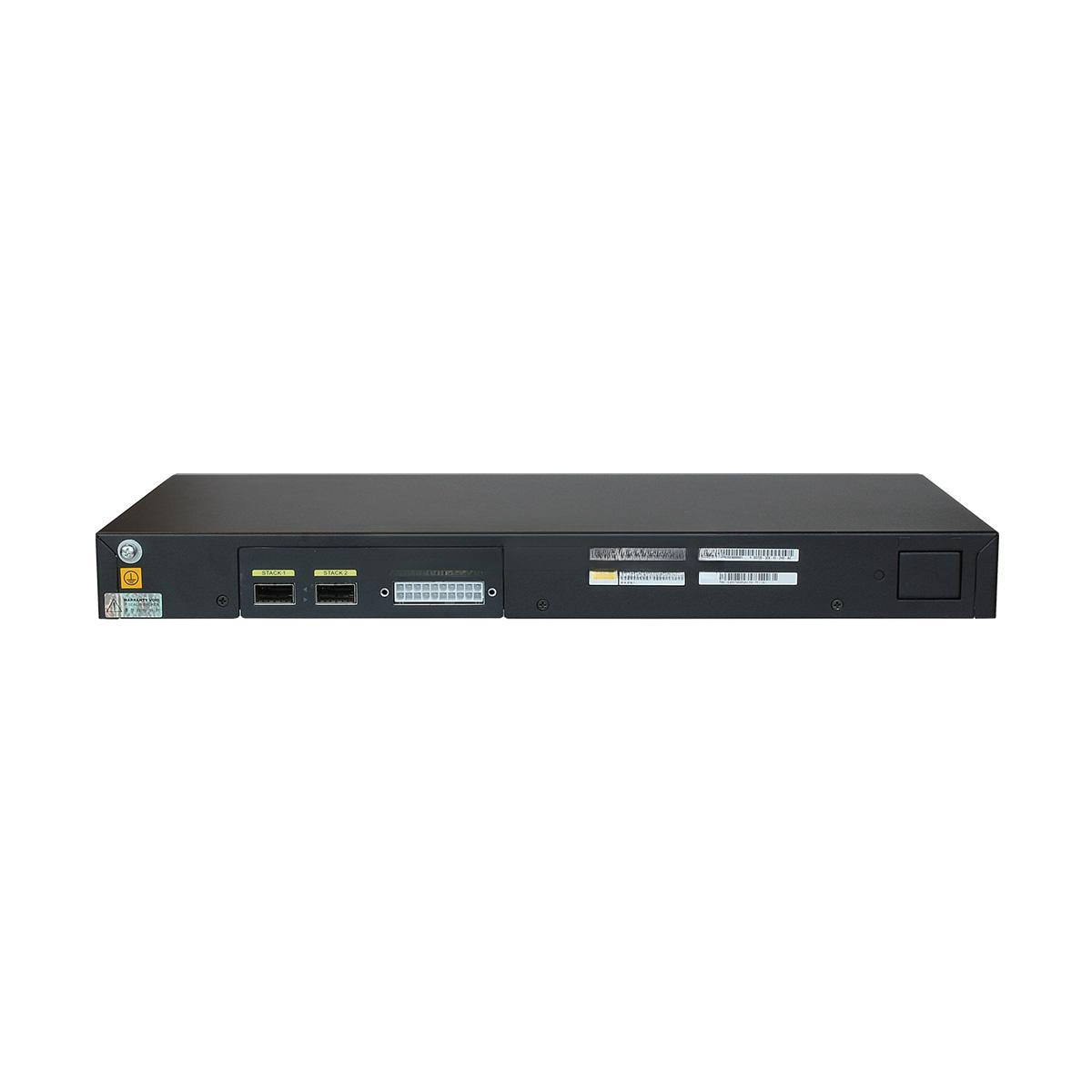

| Stack Ports | Two fixed QSFP+ stack ports on the rear card |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated Voltage Range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum Voltage Range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Max Power Consumption | 50.7 W (100% throughput, full speed of fans) |
| Typical Power Consumption | 39.75 W (30% of traffic load, EEE enabled, no PoE) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0–1800 m (0–5906 ft.) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise Level | < 49.3 dB(A) at 27°C |
| Relative Humidity | 5% to 95%, noncondensing |
| Operating Altitude | 0–5000 m (0–16404 ft.) |
| Certification | EMC, Safety, Manufacturing certifications |
| Part Number | 02350BDY |
Wholesale & Customization Options
-
Available for bulk purchases for infrastructure rollouts and tenders
-
Supplied with original Huawei packaging, serial tracking, and factory reports
-
Supports OEM branding, firmware preloading, and remote provisioning
-
Technical support available for deployment, configuration, and integration
Why Choose Huawei S5720-32P-EI-AC New Switch?
-
Combines 24-port Gigabit copper access with 8-port SFP fiber uplinks
-
Rich Layer 3 functionality and advanced traffic & security management
-
Trusted Huawei reliability for enterprise and carrier-grade networks
-
Flexible, scalable, and ready for IPv6 and modern network demands
Request a Quote
Upgrade your network with the Huawei S5720-32P-EI-AC — a robust and intelligent switch built for modern enterprises and scalable access environments.
