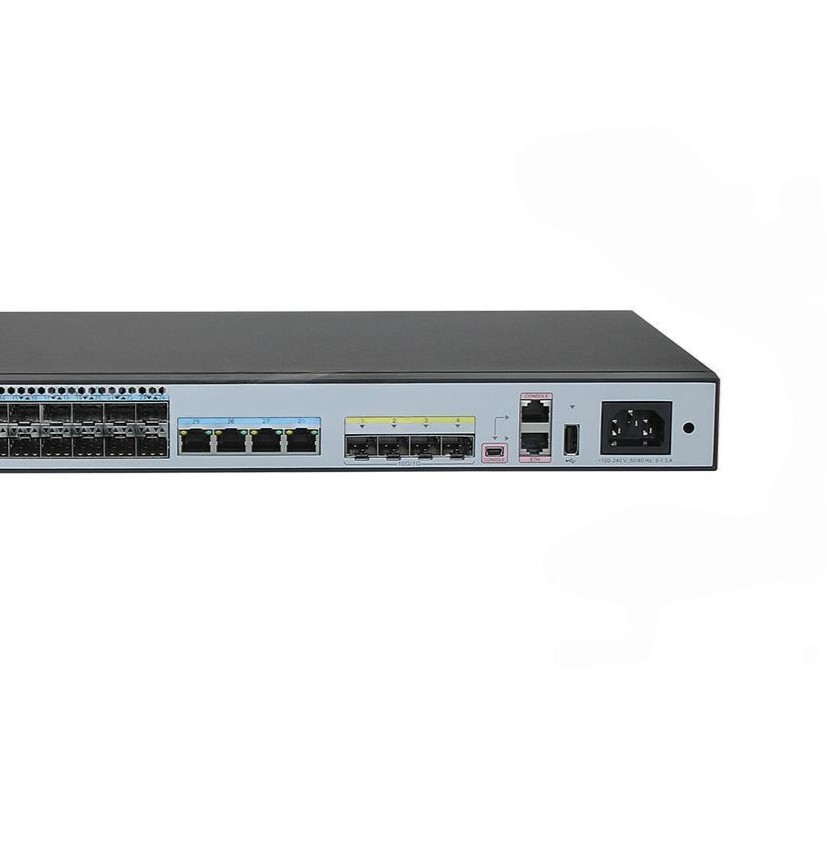

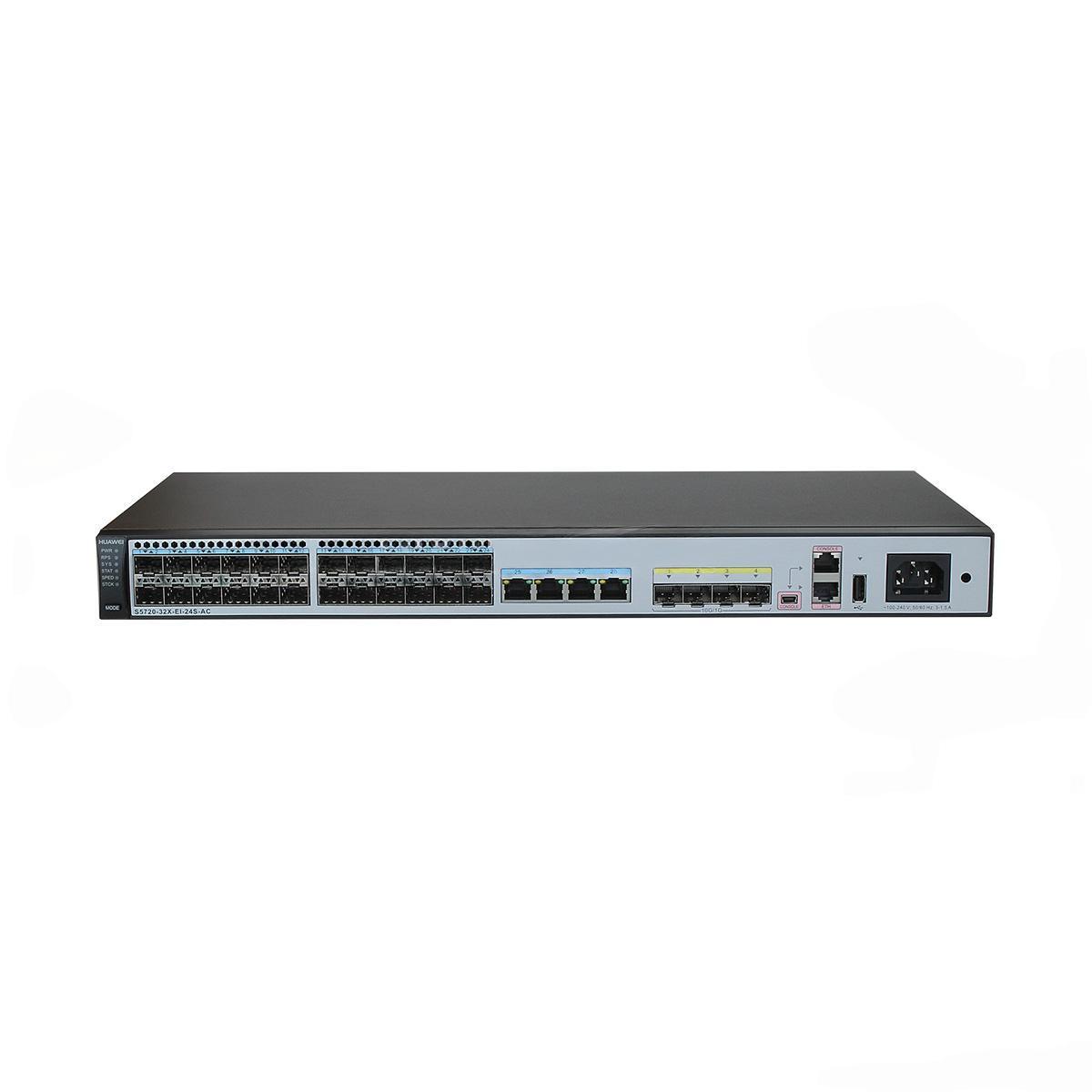

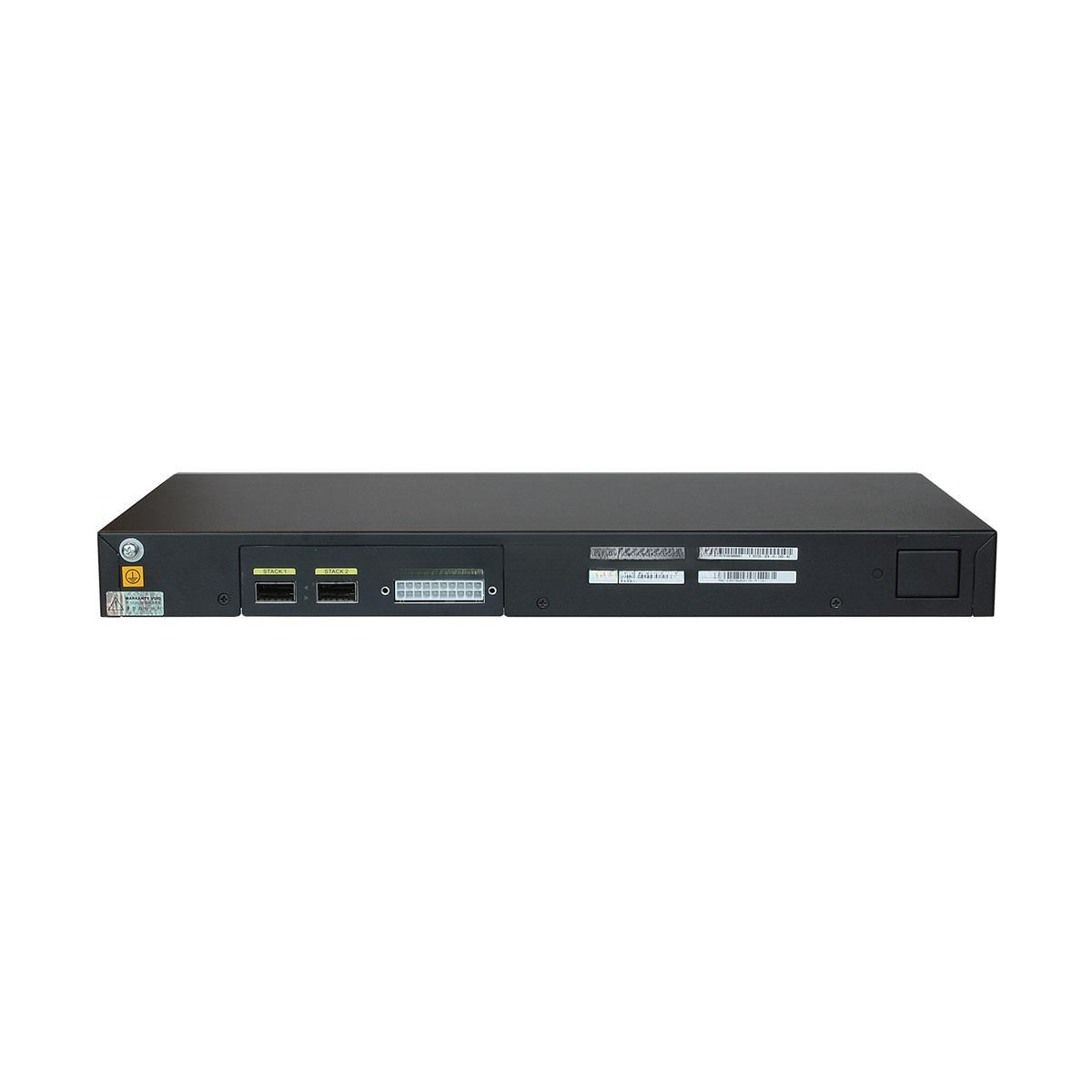

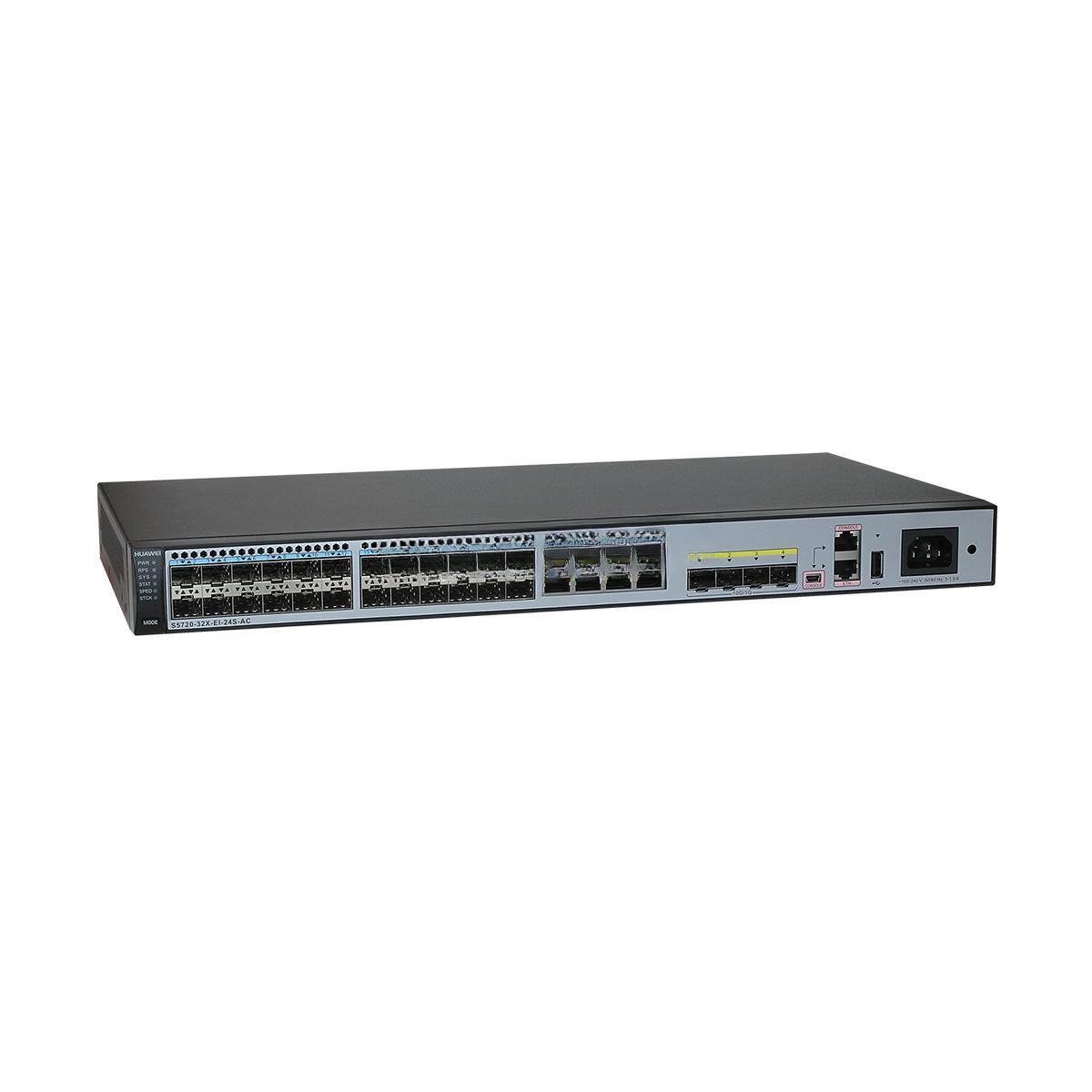

Huawei S5720-32X-EI-24S-AC Enterprise Switch – 24-Port GE SFP + 8 × 10GE SFP+ Uplinks | Layer 3 Managed | AC Power Supply
Product Overview
The Huawei S5720-32X-EI-24S-AC is a high-performance, fully managed Layer 3 Ethernet switch, engineered for enterprise campus access, aggregation layers, and data center deployments. Equipped with 24 × Gigabit SFP (100/1000Base-X) ports and 8 × 10GE SFP+ uplinks, it delivers exceptional port density, switching capacity, and intelligent service capabilities.
Designed with robust Layer 3 routing protocols, advanced QoS, and comprehensive security features, this model supports evolving network demands including IPv6, multicast, and carrier-class reliability — making it an ideal solution for organizations seeking scalability, high-speed fiber connectivity, and seamless integration into complex network architectures.
Key Features of Huawei S5720-32X-EI-24S-AC
-
24 × 100/1000Base-X SFP downlink ports for secure fiber access
-
8 × 10GE SFP+ uplinks to enable high-bandwidth aggregation or core connectivity
-
Full Layer 3 protocol support: Static routing, RIP, OSPF, BGP, IS-IS, IPv6
-
Advanced traffic engineering and multicast management (IGMP, PIM, MLD)
-
Enterprise-grade security with 802.1X, MAC/IP binding, DHCP snooping, and more
-
Intelligent QoS policies, priority queuing, and congestion avoidance
-
Comprehensive management interfaces: CLI, SNMP, web GUI, and Huawei iManager
-
Reliable AC power input with low power consumption and smart fan control
Huawei S5720-32X-EI-24S-AC Technical Specifications
| Parameter | Details |
|---|---|
| Model | Huawei S5720-32X-EI-24S-AC |
| Downlink Ports | 24 × 100/1000Base-X SFP |
| Uplink Ports | 8 × 10GE SFP+ |
| Switching Capacity | 598 Gbps |
| Forwarding Rate | 222 Mpps |
| MAC Address Table | 32K entries |
| VLANs | 4K supported, flexible QinQ, VLAN mapping |
| Layer 3 Routing | Static, RIP, OSPF, BGP, IS-IS, IPv6 |
| Multicast Support | IGMPv1/v2/v3, MLD, PIM-SM/DM, MSDP |
| Power Supply | 100–240V AC, 50/60 Hz |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | ≤ 5.6 kg |
| Operating Temp. | 0°C to 50°C |
| Mounting | 1U rack-mountable |
| Certifications | CE, FCC, RoHS, ISO9001 |
Huawei S5720-32X-EI-24S-AC Application Scenarios
-
Enterprise campus aggregation or fiber access layer
-
Data center ToR (Top-of-Rack) or distribution switching
-
Carrier and ISP backbone support for metro-E and service edge
-
Education, healthcare, and government networks needing high bandwidth
-
Hybrid networks with fiber-heavy access and high-speed uplinks
Tech Specs Consolidated
| Item | Description |
|---|---|
| Fixed port | 24 Gig SFP, 4 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports |
| Forwarding performance | 102 Mpps |
| Extended slot | NA |
| DRAM and Flash | SDRAM: 2 GB; Flash: 340 MB |
| MAC address table | IEEE 802.1d, 64K entries, learning & aging, static/dynamic/blackhole entries, MAC filtering |
| VLAN | 4K VLANs, Guest/Voice VLAN, GVRP, MUX VLAN, MAC/IP/policy-based assignment, 1:1/N:1 mapping, VLAN transparency |
| Jumbo frame | 12K |
| Ring protection | RRPP, Smart Link, SEP, G.8032 ERPS, STP/RSTP/MSTP, BPDU/root/loop protection, BPDU tunnel |
| IP routing | Static, RIPv1/2, RIPng, OSPF/v3, IS-IS/v6, BGP/4+, ECMP, Policy-based routing, 16K IPv4, 8K IPv6 routes |
| IPv6 features | ND, PMTU, IPv6 Ping/Tracert/Telnet, 6to4/ISATAP/manual tunnels, IPv6 ACLs, MLD snooping |
| Multicast forwarding | IGMP v1/v2/v3, PIM-SM/DM/SSM, VLAN replication, fast leave, load balancing, MSDP, statistics |
| QoS/ACL | Traffic rate limiting, policing, CAR, WRR/DRR/SP queues, WRED, 802.1p/DSCP re-marking, L2–L4 filtering, shaping |
| Security features | DoS/ARP/ICMP defense, IP-MAC-VLAN binding, isolation, sticky MAC, MACSec ready, AAA, 802.1x, HTTPS |
| Access security | DHCP Relay, Server, Snooping, Client, Security |
| Port aggregation | LACP, 128 trunk groups, 8 interfaces per trunk |
| Reliability | Ethernet OAM, ITU-Y.1731, BFD for BGP/IS-IS/OSPF/static routes |
| Super Virtual Fabric (SVF) | Plug-and-play SVF client, auto patch/config delivery, standalone mode support |
| Management and Maintenance | iStack, SNMP v1/v2c/v3, RMON/RMON2, sFlow, LLDP/LLDP-MED, Web NMS, SCP, TFTP, FTP, dual software/images |
| Interoperability | VLAN-based Spanning Tree (VBST), Link-type Negotiation Protocol (LNP), VLAN Central Management Protocol (VCMP) |
| Operating environment | 0–1800m: 0–45°C; above 1800m: -1°C per 220m, 5%–95% RH (non-condensing) |
| Input voltage | AC: 100–240V, 50/60 Hz (Max: 90–264V, 47/63 Hz) |
| Dimensions (mm) | 442 (W) x 220 (D) x 43.6 (H) |
| Typical power consumption | 55.64W |
Wholesale & Customization Support
-
Available for bulk orders with fast delivery and original Huawei packaging
-
Comes with official test reports, factory SN labels, and warranty documents
-
Supports OEM branding, pre-configuration, and firmware customization
-
Backed by professional support for network planning, integration, and setup
Why Choose Huawei S5720-32X-EI-24S-AC?
-
Delivers high-density fiber access and 10GE uplinks in a single unit
-
Robust Layer 3 routing with scalable performance and multicast capability
-
Huawei’s trusted enterprise-grade reliability and support ecosystem
-
Ideal for networks demanding fiber-centric, secure, and fast deployment
Request a Quote
Unlock powerful, scalable connectivity with the Huawei S5720-32X-EI-24S-AC — a perfect fit for modern fiber access networks and high-performance aggregation layers.
