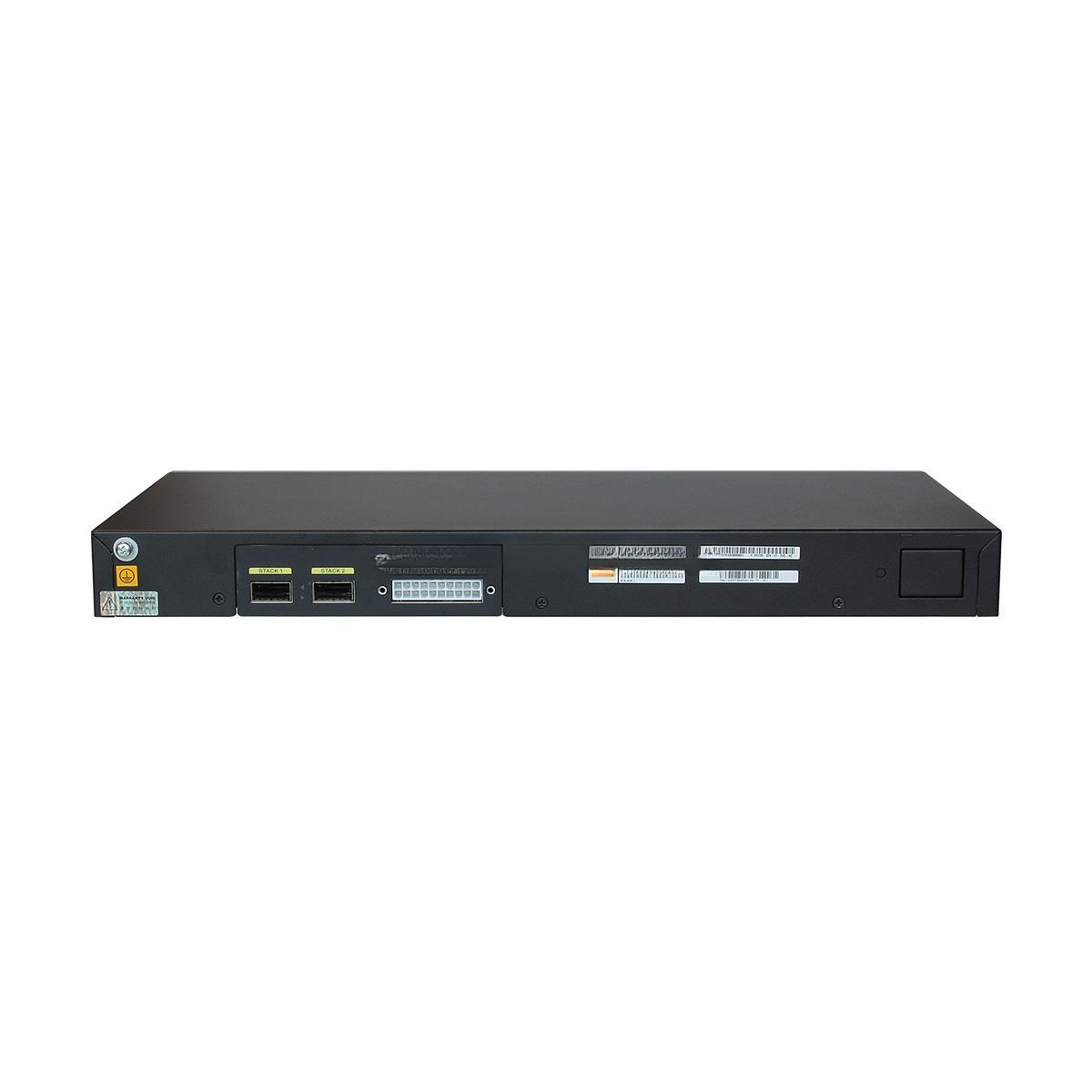

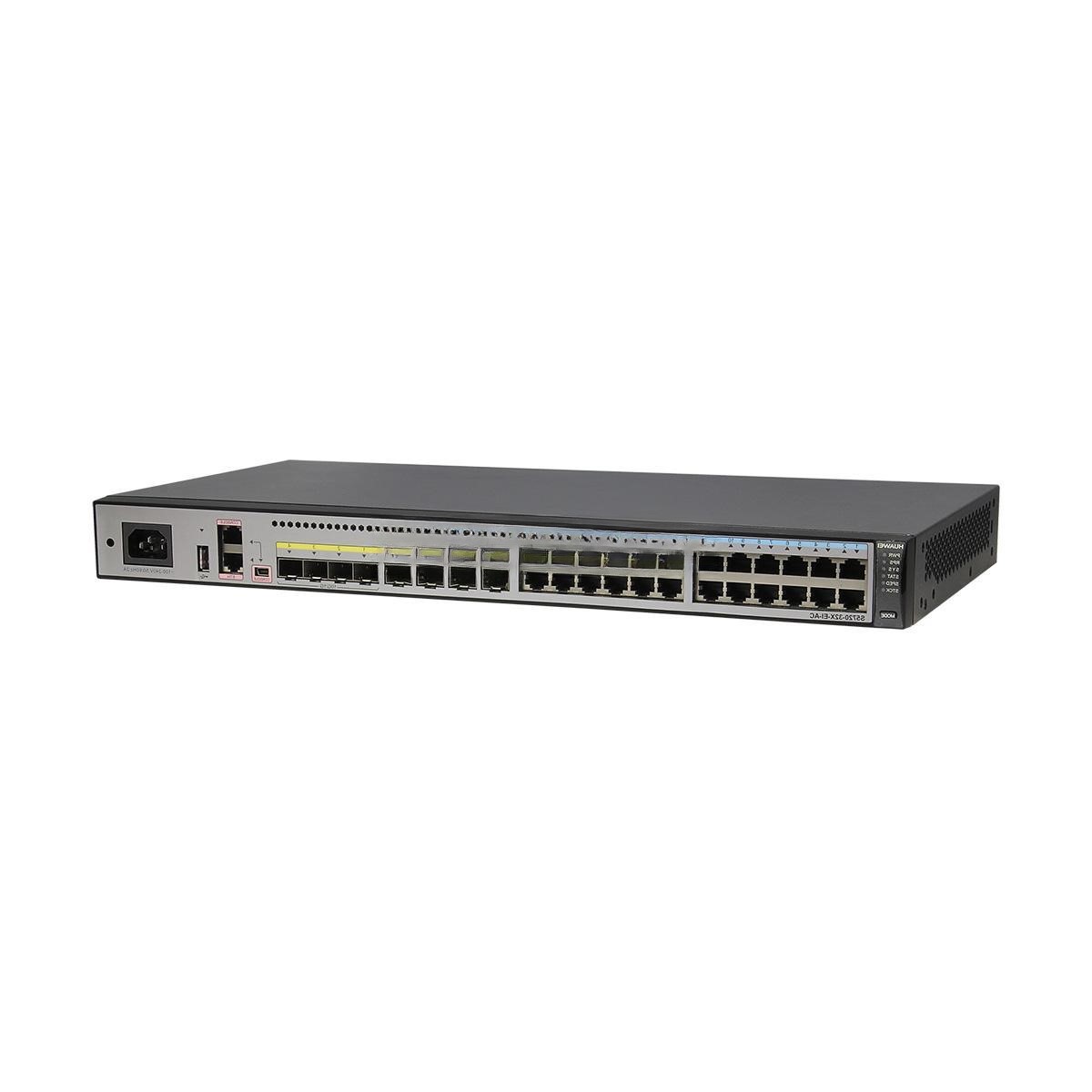

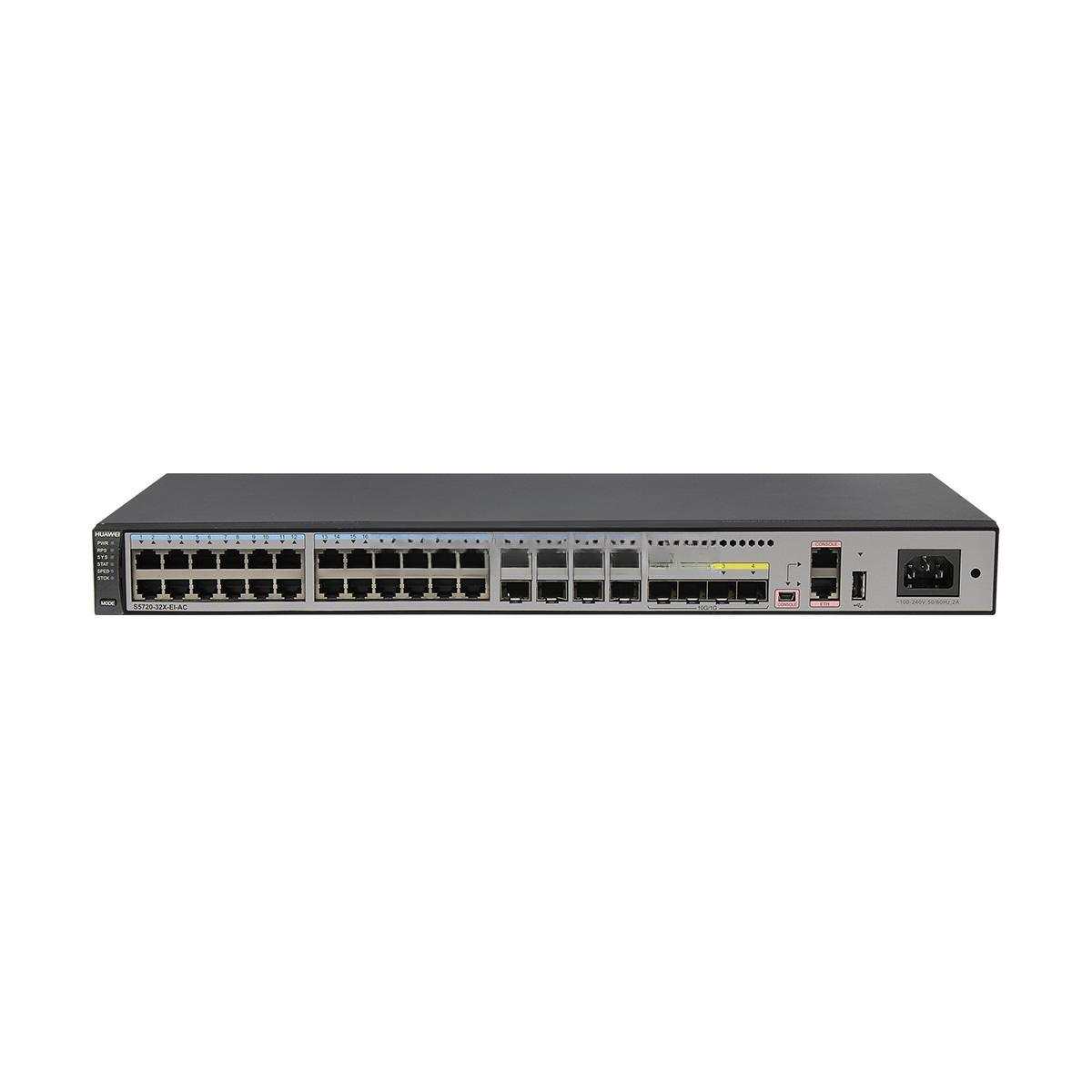

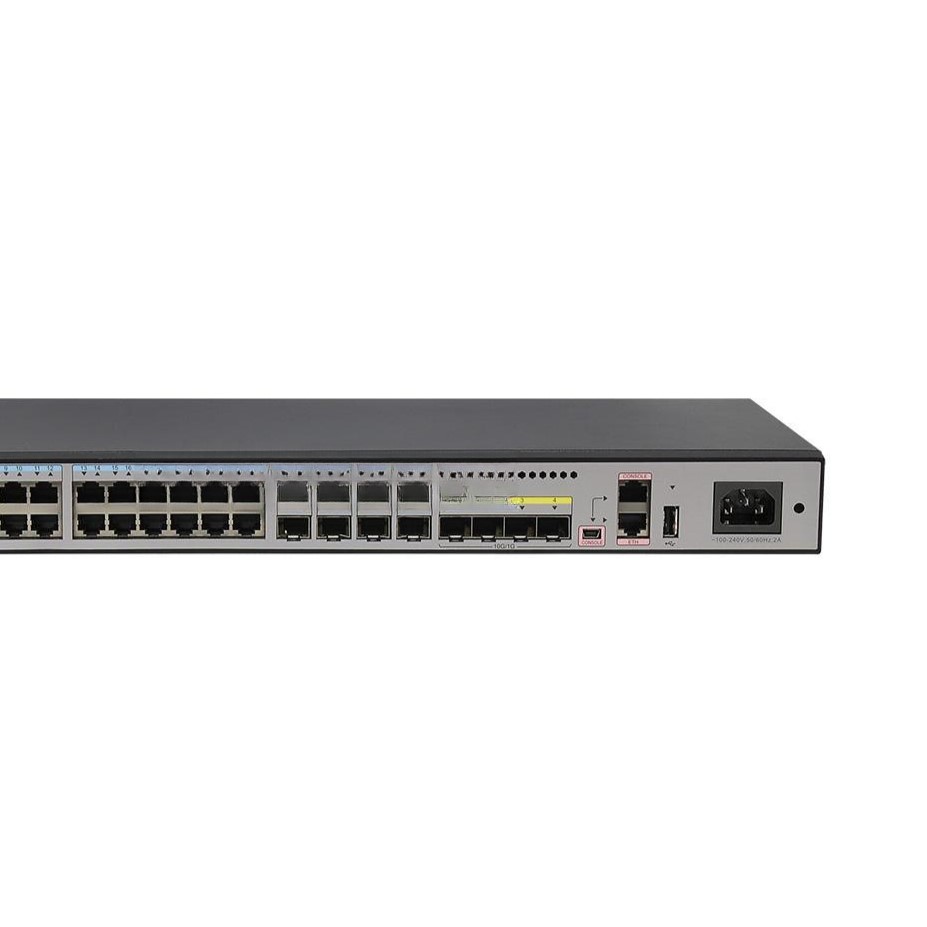

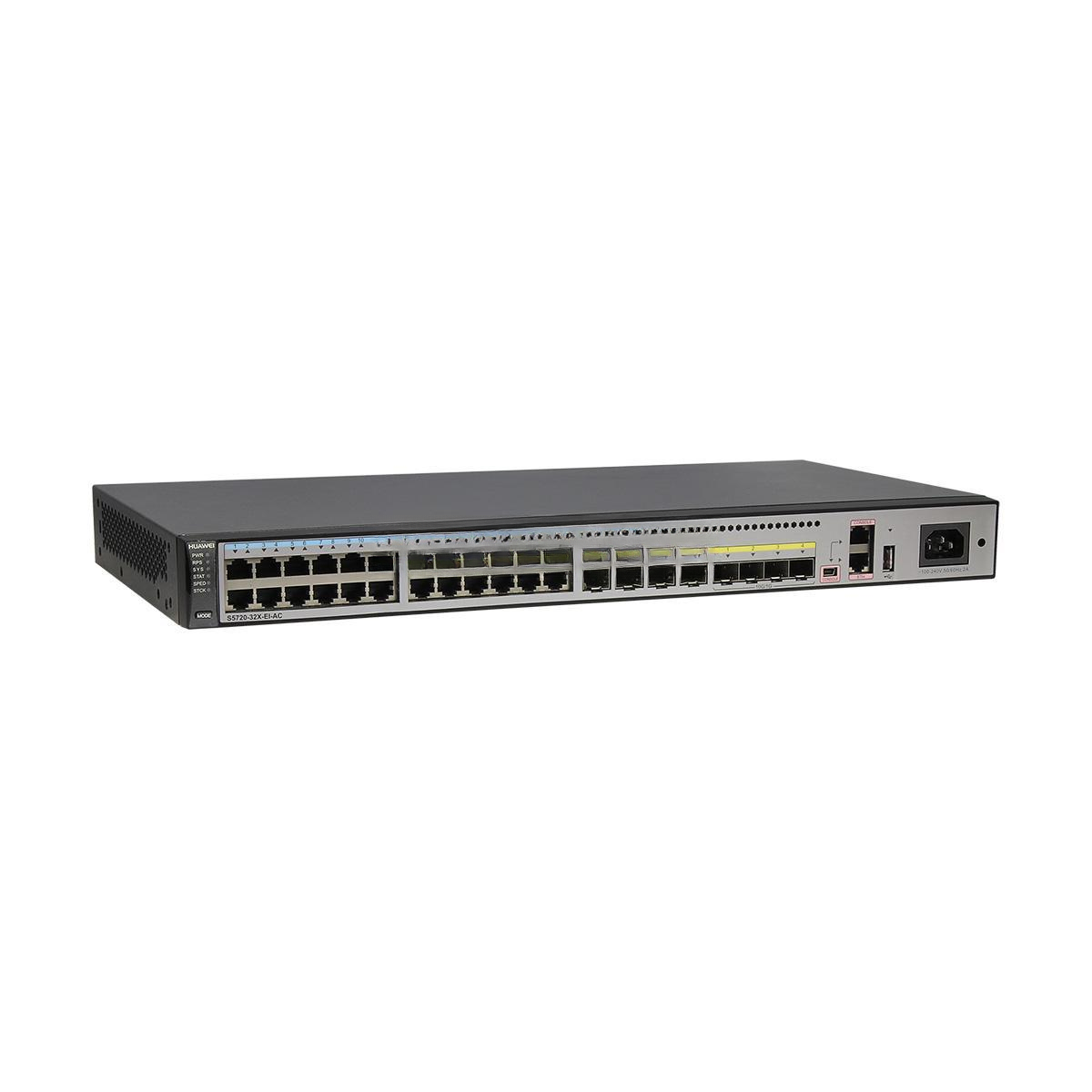

Huawei S5720-32X-EI-AC Layer 3 Managed Enterprise Switch – 24-Port 1000BASE-T + 8 x Combo + 4 x 10GE SFP+ Uplinks | AC Power | Brand New
Product Overview
The Huawei S5720-32X-EI-AC New Switch is a high-performance Layer 3 managed Ethernet switch designed for mid-sized enterprise access, aggregation, and data center edge deployments. Equipped with 24 x 10/100/1000BASE-T Ethernet ports, 8 dual-purpose combo ports, and 4 x 10GE SFP+ uplink ports, this AC-powered switch offers enhanced flexibility, advanced routing, and carrier-grade reliability.
Powered by Huawei’s robust VRP (Versatile Routing Platform) software, it supports rich Layer 2/Layer 3 services, multicast, IPv6, and intelligent traffic management, making it ideal for dynamic and scalable enterprise network environments.
Key Features of Huawei S5720-32X-EI-AC New Switch
-
24 × 10/100/1000BASE-T RJ45 ports for high-speed copper access
-
8 × Combo ports (RJ45/SFP) for flexible fiber or copper connectivity
-
4 × 10GE SFP+ uplink ports for high-speed backbone access
-
AC power input (100–240V), integrated for enterprise environments
-
Supports static and dynamic routing, including RIP, OSPF, BGP
-
Advanced security: 802.1X, MAC filtering, IP source guard, DHCP snooping
-
Intelligent QoS, ACL policies, and energy-efficient operation
-
Centralized management via Huawei eSight, SNMP, CLI, or Web UI
Huawei S5720-32X-EI-AC New Switch Technical Specifications
| Attribute | Details |
|---|---|
| Model | Huawei S5720-32X-EI-AC |
| Downlink Ports | 24 × 10/100/1000BASE-T RJ45 |
| Combo Ports | 8 × 10/100/1000BASE-T or SFP (Combo) |
| Uplink Ports | 4 × 10GE SFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 32K entries |
| VLAN Support | Up to 4,000 VLANs |
| Routing Protocols | Static, RIP, OSPF, BGP, IPv6 |
| Power Supply | Fixed AC (100–240V, 50/60 Hz) |
| Operating Temperature | 0°C to +50°C |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | ≤ 6.5 kg |
| Installation | 1U rack-mountable |
| Certifications | CE, FCC, RoHS, ISO9001, IEC |
Huawei S5720-32X-EI-AC New Switch Application Scenarios
-
Enterprise access switch for workstations, IP phones, wireless APs
-
Aggregation layer switch in campus networks or multi-floor buildings
-
Metro access and SMB backbones requiring advanced Layer 3 routing
-
Data center edge switch with flexible uplink and combo port options
-
Ideal for government, education, hospitality, and retail networks
Technical Specifications
| Item | Description |
|---|---|
| Fixed Ports | 24 × 10/100/1000 Ethernet ports, 4 × 100/1000 SFP, 4 × 10G SFP+, 2 × QSFP+ dedicated stack ports |
| Forwarding Performance | 102 Mpps |
| Extended Slot | Not Applicable (NA) |
| DRAM / Flash | 2 GB SDRAM / 340 MB Flash |
| MAC Address Table | IEEE 802.1d, 64K entries, supports static, dynamic, blackhole entries, MAC learning/aging, source MAC-based filtering |
| VLAN | 4K VLANs, Guest VLAN, Voice VLAN, GVRP, MUX VLAN, 1:1 and N:1 mapping, transparent protocol packet transmission, VLAN assignment by MAC/protocol/IP |
| Jumbo Frame | 12K bytes |
| Ring Protection | RRPP, Smart Link, SEP, G.8032 ERPS, STP, RSTP, MSTP, BPDU/root/loop protection, BPDU tunnel |
| IP Routing | Static, RIPv1/v2, RIPng, OSPF/v3, IS-IS/IS-ISv6, BGP/BGP4+, ECMP, Policy-based routing, 16K IPv4 & 8K IPv6 unicast routes |
| Static Routes | 3K IPv4, 1K IPv6 static routes |
| IPv6 Features | ND, PMTU, IPv6 Ping/Tracert/Telnet, 6to4, ISATAP, manual tunnels, IPv6 ACLs, MLD v1/v2 snooping |
| Multicast Forwarding | IGMP v1/v2/v3, PIM-SM/DM/SSM, MSDP, controllable multicast, VLAN replication, trunk load splitting, fast leave, per-port stats |
| QoS / ACL | Rate limiting, CAR (2-rate, 3-color), WRR/DRR/SP/Hybrid Queuing (8 queues/port), WRED, DSCP/802.1p remarking, Layer 2–4 filtering, mirroring |
| Security Features | DoS, ARP, ICMP protection, IP/MAC/port/VLAN binding, MAC security, sticky MAC, MACSec ready, 802.1x, AAA, RADIUS, SSH v2.0, HTTPS, NAC |
| Access Security | DHCP Relay/Server/Snooping/Security/Client |
| Port Aggregation | LACP, 128 trunk groups, up to 8 members per group |
| Reliability | Ethernet OAM (IEEE 802.3ah/1ag), ITU-Y.1731, BFD for BGP/OSPF/IS-IS/Static |
| Super Virtual Fabric | SVF client mode, auto software & patch loading, zero-config, one-click config delivery, standalone client support |
| Management & Maintenance | iStack, VCT, SNMP v1/v2c/v3, RMON, sFlow, LLDP/LLDP-MED, 802.3az EEE, SCP, TFTP/FTP, Web NMS, dual image/config storage |
| Interoperability | PVST/PVST+/RPVST (via VBST), LNP (like DTP), VCMP (like VTP) |
| Operating Environment | 0–1800m: 0–45°C 1800–5000m: –1°C per 220m rise Humidity: 5%–95% non-condensing |
| Input Voltage | 100–240V AC rated (90–264V max), 50/60 Hz |
| Dimensions (mm) | 442 (W) × 220 (D) × 43.6 (H) |
| Typical Power Consumption | 40.9 W |
Wholesale & Customization Services
-
Bulk availability for IT resellers, system integrators, and project tenders
-
Supplied with certified test reports, CE/RoHS documentation, and manuals
-
Optional OEM/private label branding and serial number tracking
-
Fully compatible with Huawei SFP/SFP+ transceivers and network accessories
-
Fast delivery support for regional and international projects
Why Choose Our Huawei S5720-32X-EI-AC New Switch?
-
Compact, flexible, and powerful for scalable multi-service access
-
Integrated combo ports allow dynamic fiber/copper connections
-
10G-ready with future-proof uplink bandwidth
-
Backed by Huawei’s field-proven switching platform
-
Excellent cost-performance ratio for both CAPEX and OPEX efficiency
Request a Quote
Upgrade your enterprise network with the Huawei S5720-32X-EI-AC—a reliable and scalable solution for intelligent Layer 3 access and aggregation switching.
