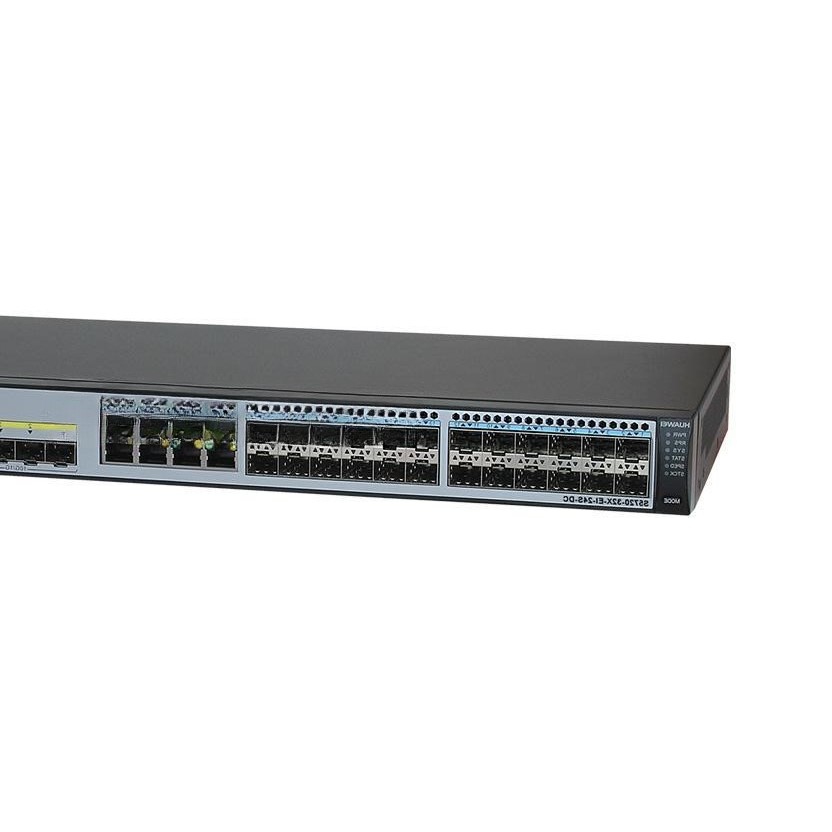

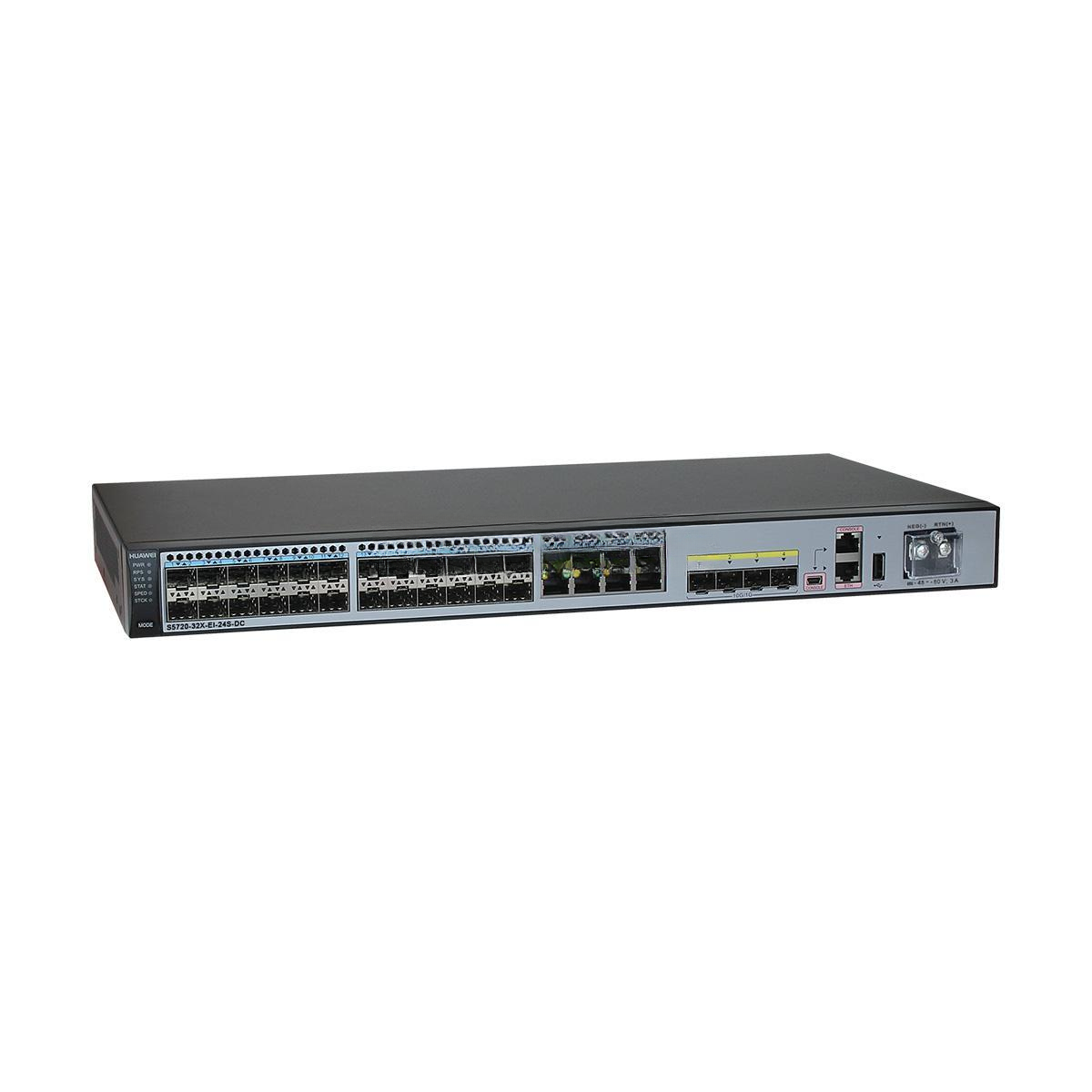

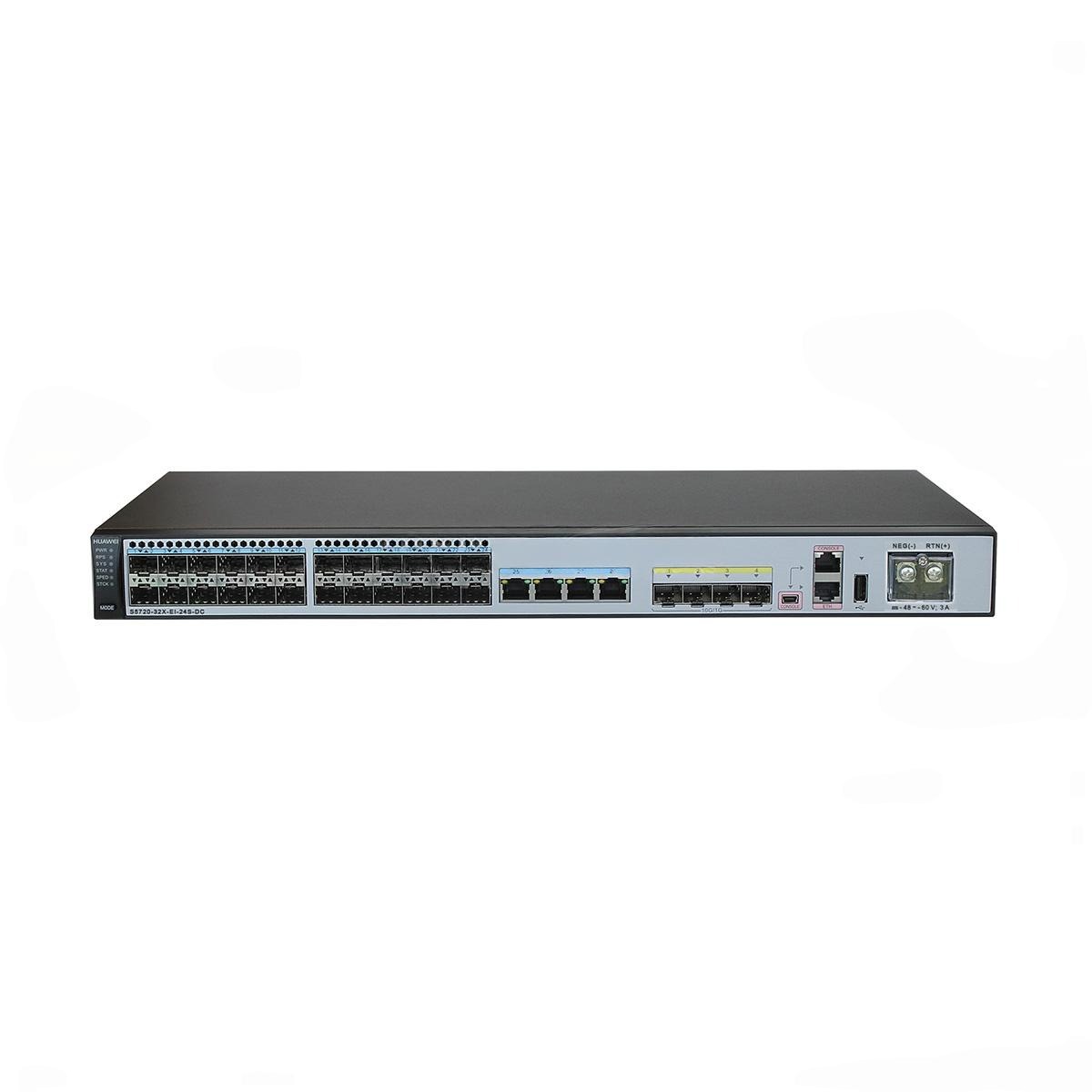

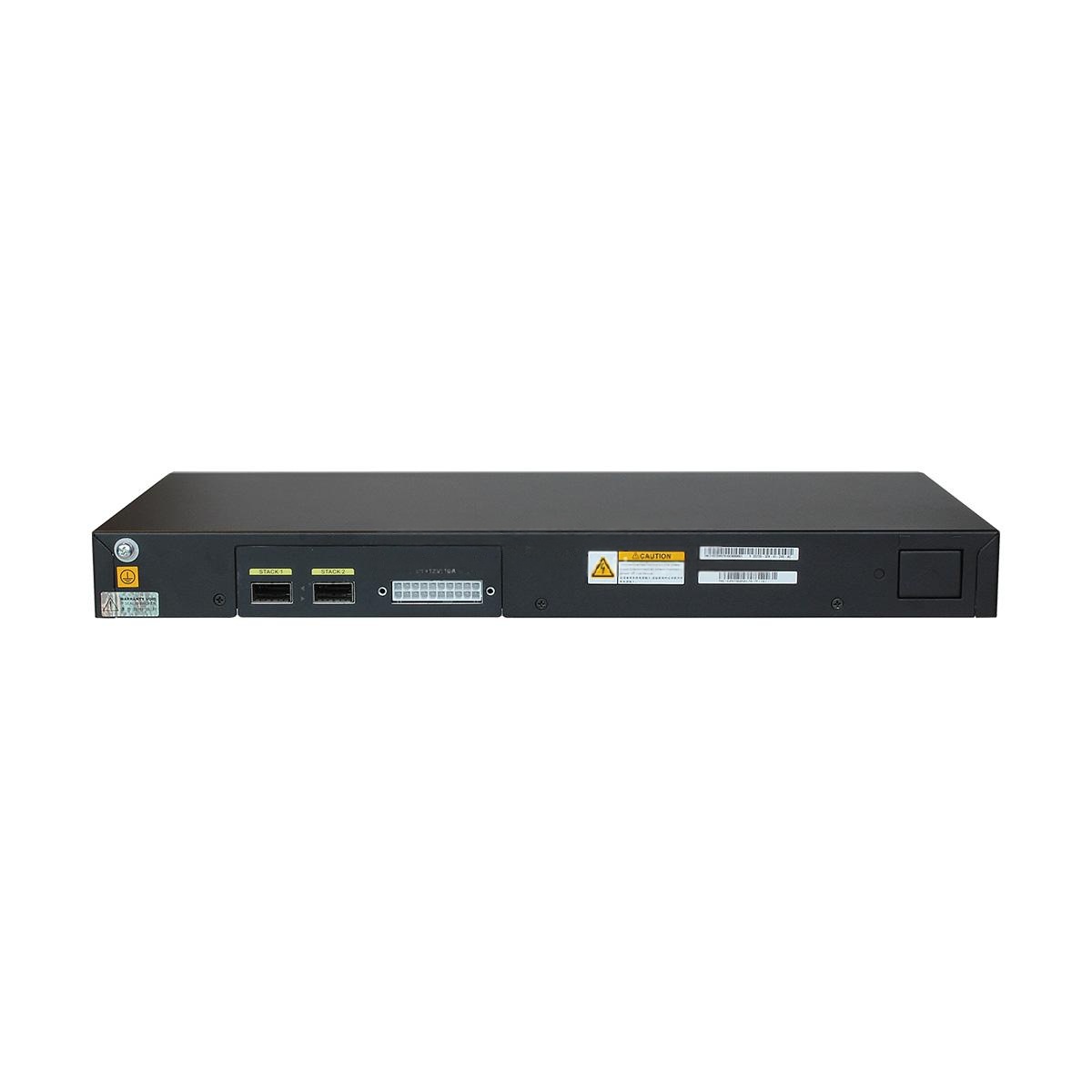

Huawei S5720-32X-EI-DC Enterprise Switch – 24-Port GE SFP + 8 x 10GE SFP+ Uplink | DC Power | Layer 3 Branded Model
Product Overview
The Huawei S5720-32X-EI-DC Branded Switch is a high-performance, Layer 3 Gigabit Ethernet switch designed for next-generation enterprise networks, data centers, and metro access layers. Featuring 24 x 100/1000Base-X SFP ports and 8 x 10GE SFP+ uplinks, it provides strong scalability, flexible deployment, and advanced routing features. Powered by a -48V DC input, it’s ideal for environments where DC power systems are used, such as telecom sites or industrial networks.
This switch supports a full suite of Layer 2/3 protocols, intelligent QoS, advanced security, and intelligent O&M capabilities, making it a reliable core or aggregation device for high-bandwidth and secure enterprise applications.
Key Features of Huawei S5720-32X-EI-DC Branded Switch
-
24 × 100/1000Base-X SFP ports for high-speed fiber access
-
8 × 10GE SFP+ uplink ports for fast data aggregation and backbone connectivity
-
-48V DC power input for telecom/industrial deployment
-
Advanced Layer 3 capabilities: static routing, RIP, OSPF, BGP, and IPv6
-
Supports SVI, VLAN, QinQ, MSTP, IGMP, and multicast routing
-
Comprehensive QoS features: traffic shaping, priority queuing, and congestion control
-
Built-in security: 802.1X, MAC/IP binding, ARP attack defense, SSH
-
Energy-efficient design with intelligent fan control and dynamic power saving
-
Managed via CLI, SNMP, Telnet, or Web UI; supports Huawei iManager NCE
Huawei S5720-32X-EI-DC Branded Switch Technical Specifications
| Parameter | Details |
|---|---|
| Model | Huawei S5720-32X-EI-DC |
| Downlink Ports | 24 × 100/1000Base-X SFP |
| Uplink Ports | 8 × 10GE SFP+ |
| Switching Capacity | 598 Gbps |
| Forwarding Rate | 222 Mpps |
| MAC Address Table | 32K entries |
| Power Supply | -48V DC (built-in) |
| Layer 3 Protocols | Static Routing, RIP, OSPF, BGP, IPv6 |
| VLAN Support | 4K VLANs, VLAN stacking, flexible QinQ |
| Management | SNMP v1/v2/v3, RMON, CLI, Telnet, Web UI |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm |
| Weight | ≤ 5.6 kg |
| Operating Temperature | 0°C to 50°C |
| Mounting | 1U Rack-mountable |
| Certifications | CE, FCC, RoHS, ISO9001 |
Huawei S5720-32X-EI-DC Branded Switch Application Scenarios
-
Enterprise data aggregation and campus backbone
-
Fiber-based ISP/telecom edge switching
-
Data centers and metro Ethernet rings
-
Government and education networks requiring secure Layer 3 routing
-
FTTX networks requiring SFP-based modular access
Tech Specs Table (Consolidated)
| Category | Item | Specification |
|---|---|---|
| Fixed Ports | Interfaces | 24 Gig SFP, 4 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ stack ports |
| Forwarding | Performance | 102 Mpps |
| Memory | DRAM and Flash | SDRAM: 2 GB; Flash: 340 MB |
| MAC Table | Capacity and Features | IEEE 802.1d, 64K entries, static/dynamic/blackhole, MAC learning and aging |
| Filtering | Based on source MAC addresses | |
| VLAN | Features | 4K VLANs, Guest VLAN, Voice VLAN, GVRP, MUX VLAN |
| Assignment | By MAC, protocols, IP subnets, policies, ports; 1:1 and N:1 mapping | |
| Protocol Transmission | VLAN-based transparent protocol transmission | |
| Jumbo Frame | Size | 12K |
| Ring Protection | Protocols | RRPP, Smart Link, SEP, ERPS, STP, RSTP, MSTP, BPDU/root/loop protection |
| IP Routing | Protocols | Static, RIPv1/2, RIPng, OSPF/OSPFv3, IS-IS/IS-ISv6, BGP/BGP4+, ECMP, Policy-based |
| Routes | 16K IPv4, 8K IPv6, 3K static IPv4, 1K static IPv6 | |
| IPv6 Features | Tools and Tunnels | ND, PMTU, Ping, Tracert, Telnet, 6to4, ISATAP, manual tunnel |
| ACL | Source/destination IPv6, L4 ports, protocol types | |
| MLD | v1/v2 snooping | |
| Multicast | Protocols | IGMP v1/v2/v3 snooping, fast leave, PIM-SM/DM/SSM, MSDP |
| Replication & Control | In VLAN, between VLANs, load split, controllable, stats per port | |
| QoS / ACL | Control | In/out rate limiting, policing, storm control, CAR |
| Queues | 8/port, WRR, DRR, SP, WRR+SP, DRR+SP, WRED | |
| Filtering | L2–L4 packet filtering (MAC, IP, TCP/UDP, VLAN ID) | |
| Traffic Management | Shaping, marking (802.1p, DSCP), port/VLAN mirroring | |
| Security Features | Access & Protection | User/password control, DoS/ARP/ICMP defense, MAC/IP/interface/VLAN binding |
| Port Control | Isolation, security, sticky MAC, blackhole entries, learning limit | |
| Authentication | 802.1x, AAA, RADIUS, HWTACACS+, NAC, SSH v2.0, HTTPS | |
| Other Features | CPU defense, MACSec ready, whitelist/blacklist | |
| Access Security | DHCP Controls | Relay, Server, Snooping, Client, Security |
| Aggregation | LACP | 128 trunks, up to 8 members each |
| Reliability | OAM & BFD | Ethernet OAM (IEEE 802.3ah/802.1ag), ITU-Y.1731, BFD for routing protocols |
| SVF | Client Function | Zero-config, patch/software auto-loading, config auto-delivery, independent run |
| Management | Tools | iStack, VCT, SNMP v1/v2c/v3, RMON, Web UI, logs, alarms, sFlow, LLDP, 802.3az EEE |
| Protocols | SCP, TFTP, FTP, dual software/config images | |
| Interoperability | Protocols | PVST/PVST+/RPVST, LNP (like DTP), VCMP (like VTP) |
| Operating Conditions | Temperature | 0-45°C (0-1800 m), -1°C/220 m increase (1800–5000 m) |
| Humidity | 5%–95% non-condensing | |
| Voltage | Rated: 100–240 V AC (50/60 Hz), Max: 90–264 V AC (47/63 Hz) | |
| Physical | Dimensions (mm) | 442 (W) × 220 (D) × 43.6 (H) |
| Typical Power Consumption | 55.5 W |
Wholesale & Customization Support
-
Available for bulk orders with fast delivery
-
Comes with genuine Huawei labeling, test reports, and packaging
-
OEM branding, pre-configuration, or firmware customization available upon request
-
Full technical support for deployment, configuration, and integration
Why Choose the Huawei S5720-32X-EI-DC Branded Switch?
-
Reliable DC-powered operation for telecom-grade environments
-
High port density with flexible SFP fiber interface options
-
Robust Layer 3 routing with intelligent traffic control
-
Huawei’s trusted security, performance, and management ecosystem
-
Scalable solution for evolving enterprise or carrier-grade networks
Request a Quote
Empower your network with the Huawei S5720-32X-EI-DC — a powerful and flexible Layer 3 switch for secure, high-speed connectivity in demanding environments.
