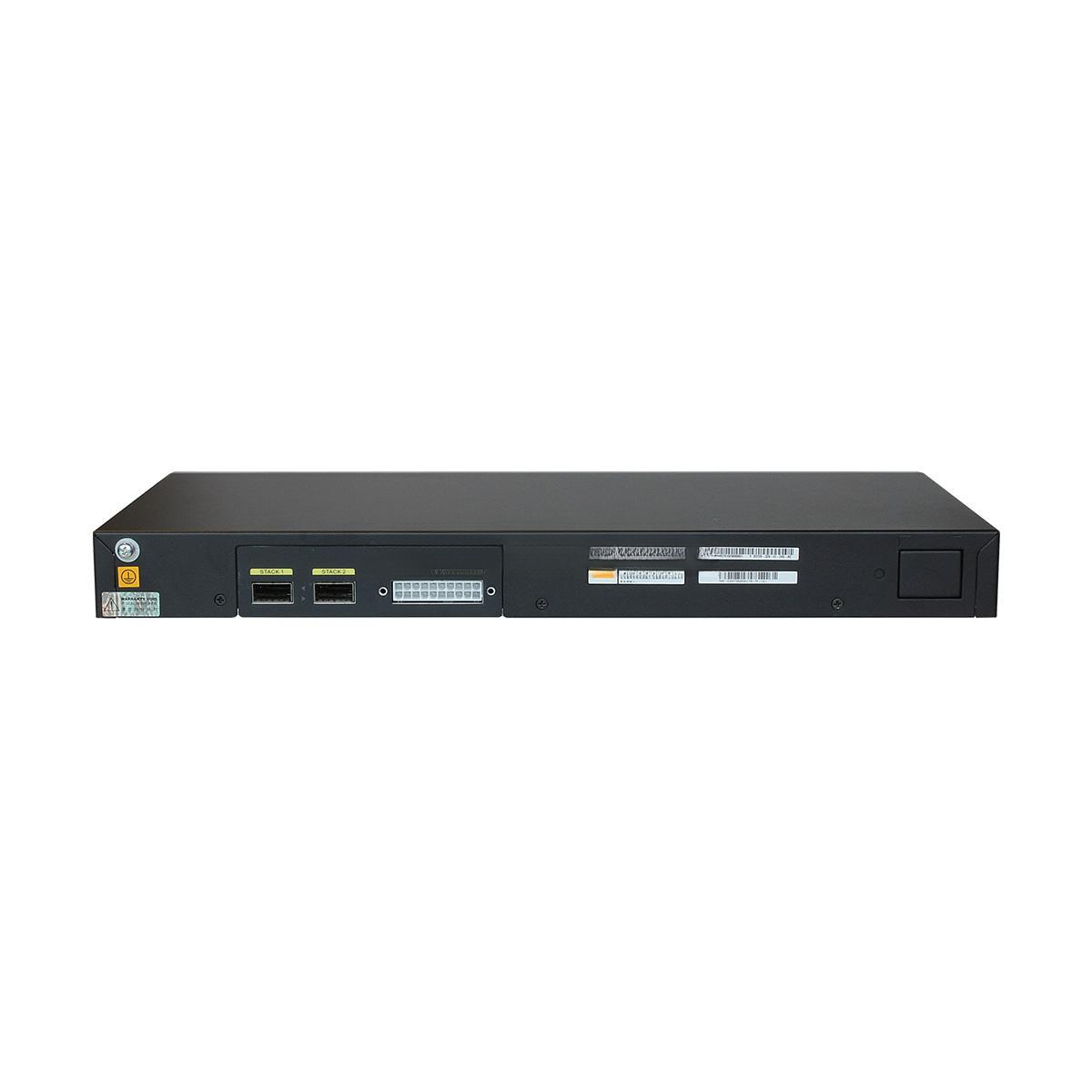

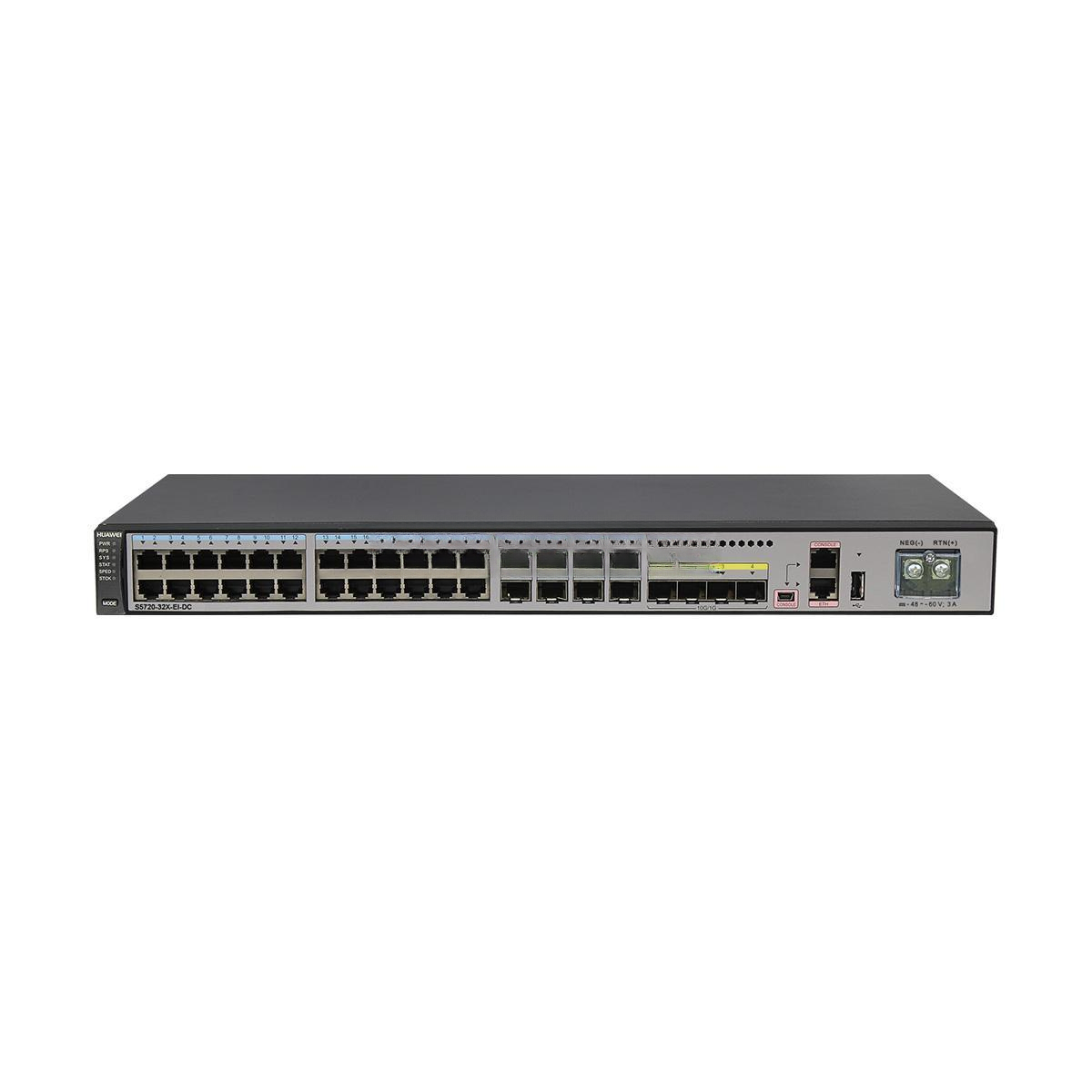

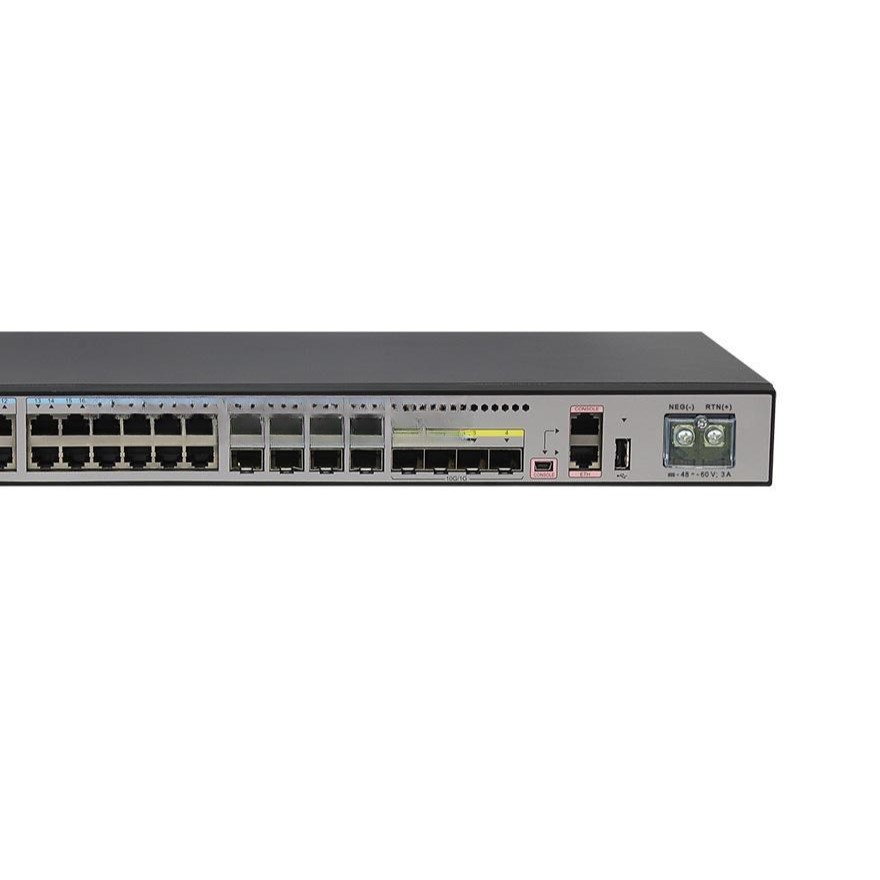

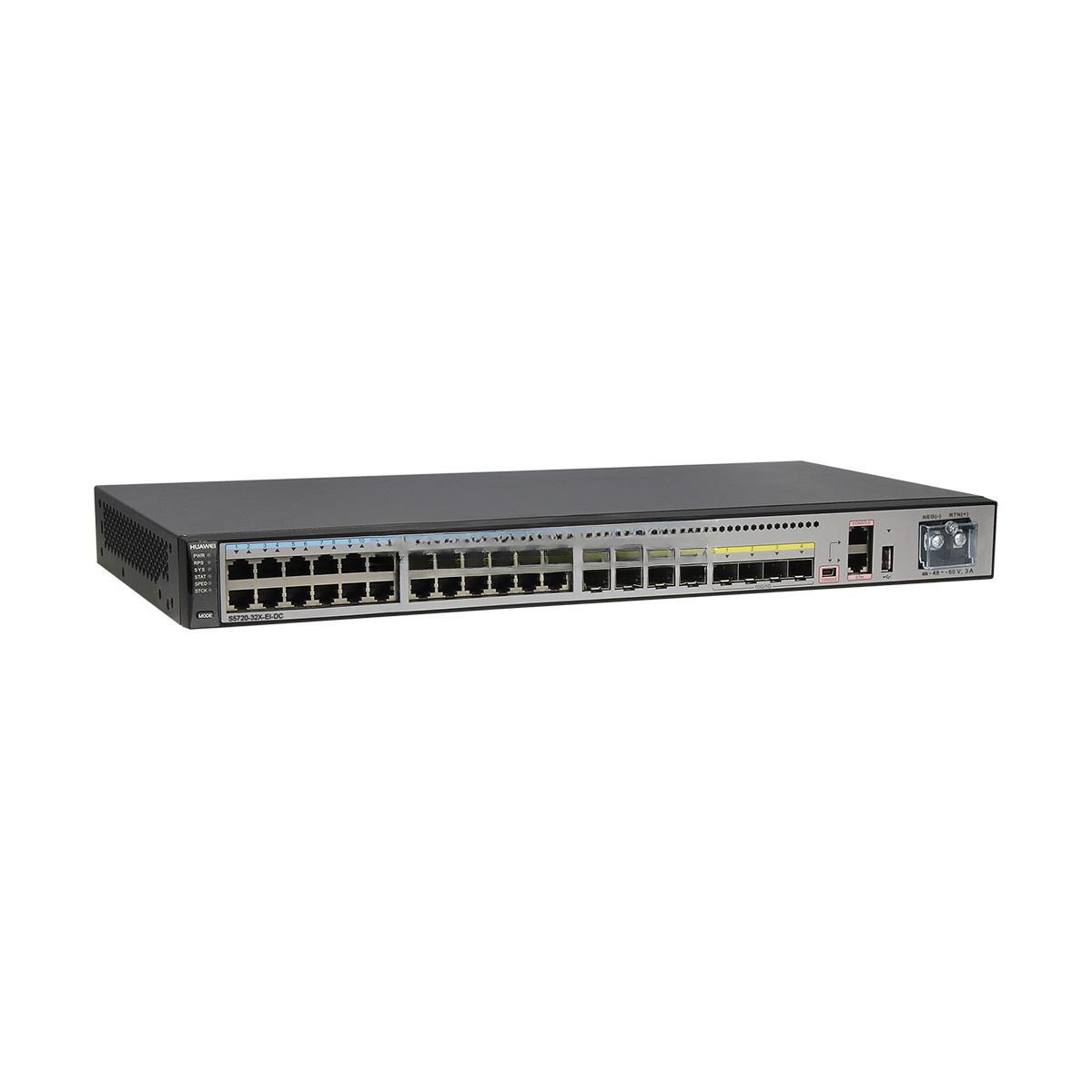

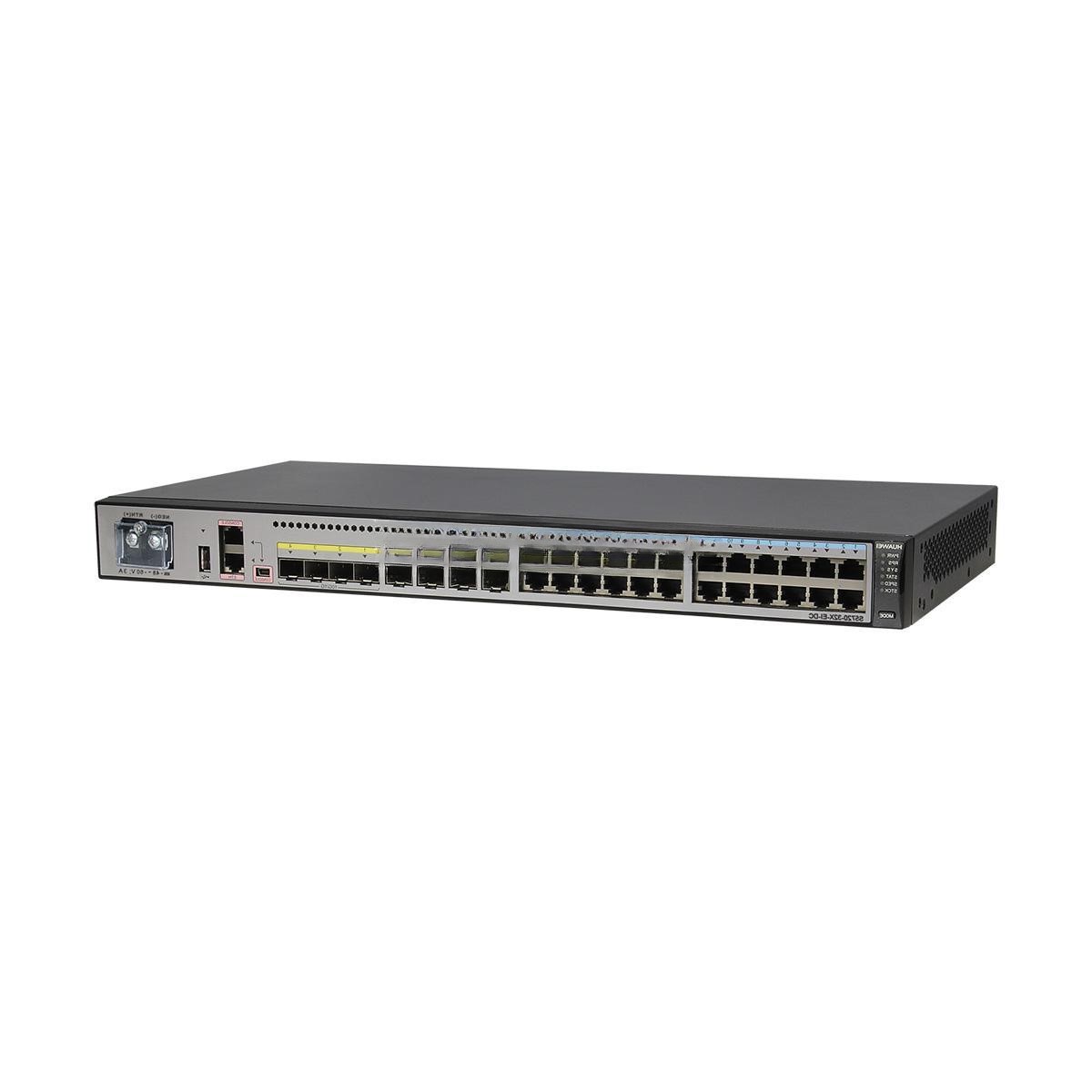

Huawei S5720-32X-EI-DC Layer 3 Gigabit Ethernet Switch – 24-Port 1000BASE-T + 8 Combo + 4 x 10GE SFP+ Uplinks | DC Power | Brand New
Product Overview
The Huawei S5720-32X-EI-DC New Switch is a high-performance, energy-efficient Layer 3 managed switch designed for enterprise campus networks, carrier access, and data center edge deployments. This model features 24 x 10/100/1000BASE-T RJ45 ports, 8 dual-purpose combo ports (RJ45/SFP), and 4 x 10GE SFP+ uplink ports, making it a flexible and scalable solution for both copper and fiber connectivity requirements.
Powered by a reliable -48V DC input, the switch is particularly suitable for telecom and industrial applications where DC power is standard. Its robust Layer 2/3 feature set, advanced security functions, and powerful switching capacity ensure stable and secure network operations.
Key Features of Huawei S5720-32X-EI-DC New Switch
-
24 × 10/100/1000BASE-T Ethernet ports for reliable copper access
-
8 × Combo (RJ45/SFP) ports offering flexible fiber/copper options
-
4 × 10GE SFP+ uplink ports for high-speed network backbone integration
-
-48V DC power supply, ideal for telecom and industrial environments
-
Full support for Layer 2 switching and Layer 3 routing protocols (RIP, OSPF, BGP)
-
Integrated security features: MAC filtering, 802.1X, ARP defense, IP source guard
-
Advanced QoS, VLAN, and multicast support for traffic prioritization
-
Remote management via SNMP, CLI, Web UI, Telnet, and Huawei eSight
Huawei S5720-32X-EI-DC New Switch Technical Specifications
| Specification | Details |
|---|---|
| Model | Huawei S5720-32X-EI-DC |
| Downlink Ports | 24 × 10/100/1000BASE-T RJ45 |
| Combo Ports | 8 × RJ45/SFP Combo Ports |
| Uplink Ports | 4 × 10GE SFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 32K entries |
| Routing Protocols | Static Routing, RIP, OSPF, BGP, IPv6 |
| Power Input | -48V DC |
| Operating Temperature | 0°C to +50°C |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | ≤ 6.5 kg |
| Installation | 1U Rack-mountable |
| Certifications | CE, FCC, RoHS, ISO9001, IEC |
Huawei S5720-32X-EI-DC New Switch Application Scenarios
-
Telecom and ISP access switching with DC power infrastructure
-
Enterprise Layer 3 distribution switch for buildings and departments
-
Aggregation switch in SME or government campus networks
-
Data center edge deployments with high copper port density
-
Security-conscious networks requiring strong Layer 2/3 protection
Technical Specifications
| Item | Description |
|---|---|
| Fixed Ports | 24 × 10/100/1000 Ethernet ports 4 × 100/1000 SFP 4 × 10G SFP+ 2 × QSFP+ (dedicated for stacking) |
| Forwarding Performance | 102 Mpps |
| Extended Slot | Not Available (NA) |
| DRAM and Flash | SDRAM: 2 GB Flash: 340 MB |
| MAC Address Table | IEEE 802.1d 64K entries MAC learning and aging Static, dynamic, blackhole entries Packet filtering by source MAC |
| VLAN | 4K VLANs Guest VLAN, Voice VLAN GVRP, MUX VLAN Assignment by MAC, protocol, IP subnet, policy, port 1:1 and N:1 VLAN mapping |
| Jumbo Frame | 12K bytes |
| Ring Protection | RRPP, Smart Link, SEP, G.8032 ERPS STP/RSTP/MSTP BPDU, root, loop protection, BPDU tunnel |
| IP Routing | Static, RIPv1/v2, RIPng, OSPF/OSPFv3, IS-IS/IS-ISv6, BGP/BGP4+, ECMP, policy-based routing 16K IPv4, 8K IPv6 unicast 3K IPv4, 1K IPv6 static |
| IPv6 Features | ND, PMTU, IPv6 Ping/Tracert/Telnet 6to4, ISATAP, manual tunnels IPv6 ACLs MLDv1/v2 snooping |
| Multicast Forwarding | IGMP v1/v2/v3 snooping, fast leave Multicast VLAN forwarding/replication Load splitting PIM-SM/DM/SSM, MSDP, Layer 2 control, traffic stats |
| QoS/ACL | Port-based rate limit (in/out), storm control CAR, WRED SP, WRR, DRR, WRR+SP, DRR+SP 802.1p & DSCP remarking L2–L4 ACL filtering, shaping |
| Security Features | User/password management DoS/ARP/ICMP defense IP-MAC-Port-VLAN binding Port isolation/security, sticky MAC MFF, blackhole MAC, MAC limits |
| IEEE 802.1x, AAA, RADIUS, HWTACACS+, NAC SSH v2.0, HTTPS CPU defense, blacklist/whitelist, MACSec ready |
|
| Access Security | DHCP Relay, Server, Snooping, Client, Security |
| Port Aggregation | LACP Up to 128 trunks Up to 8 ports per trunk |
| Reliability | Ethernet OAM (IEEE 802.3ah/802.1ag), Y.1731 BFD for BGP, IS-IS, OSPF, Static |
| Super Virtual Fabric (SVF) | SVF client, plug-and-play Auto patch/software load One-click service config Independent running support |
| Management & Maintenance | iStack, virtual cable test SNMP v1/v2c/v3, RMON/RMON2 Web GUI, logs, alarms sFlow, LLDP/LLDP-MED, 802.3az EEE SCP, TFTP, FTP Dual images |
| Interoperability | VLAN-based Spanning Tree (PVST+/RPVST) LNP (like DTP), VCMP (like VTP) |
| Operating Environment | Temperature: 0–45°C (0–1800m); –1°C per 220m above 1800m Humidity: 5%–95% (non-condensing) |
| Input Voltage | AC Rated: 100–240 V, 50/60 Hz AC Max: 90–264 V, 47/63 Hz |
| Dimensions (mm) | 442 (W) × 220 (D) × 43.6 (H) |
| Typical Power Consumption | 40.9W |
Customization & Wholesale Options
-
Bulk availability for system integrators, ICT projects, and network rollouts
-
Shipped with original packaging, serial tracking, and compliance documentation
-
OEM/private label branding available upon request
-
Optional pre-configuration for VLANs, routing, or SNMP settings
-
Fully compatible with Huawei transceivers, cables, and accessories
Why Choose the Huawei S5720-32X-EI-DC New Switch?
-
Enterprise-grade DC-powered switch with high reliability
-
Combines copper, fiber, and 10GE uplinks in a compact chassis
-
Delivers Layer 3 performance with scalable feature sets
-
Ideal for modern hybrid network topologies and critical applications
-
Backed by Huawei’s global network expertise and product stability
Request a Quote
Optimize your network with the Huawei S5720-32X-EI-DC, a smart, scalable switch offering DC-powered Gigabit access with 10GE uplinks for next-generation connectivity.
