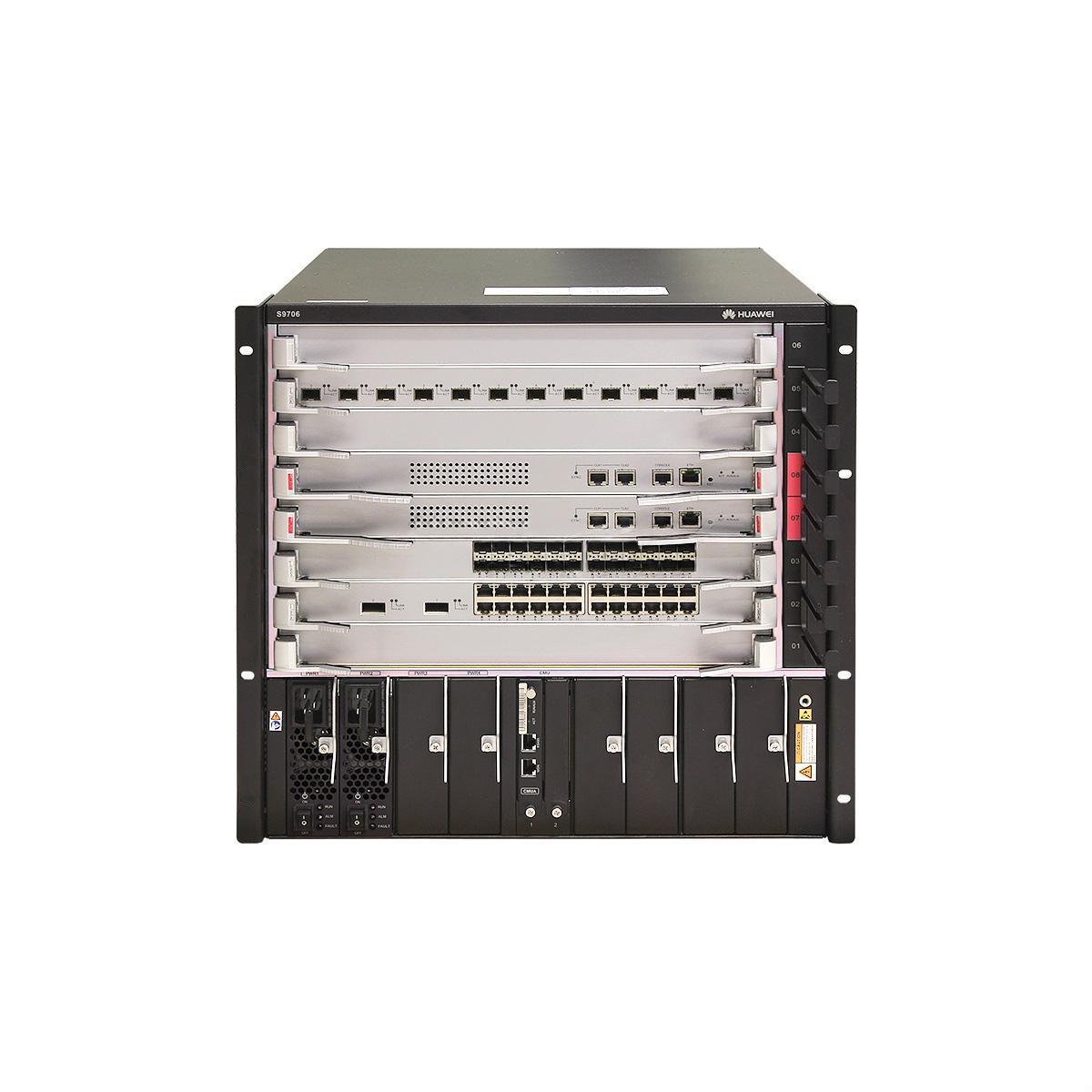

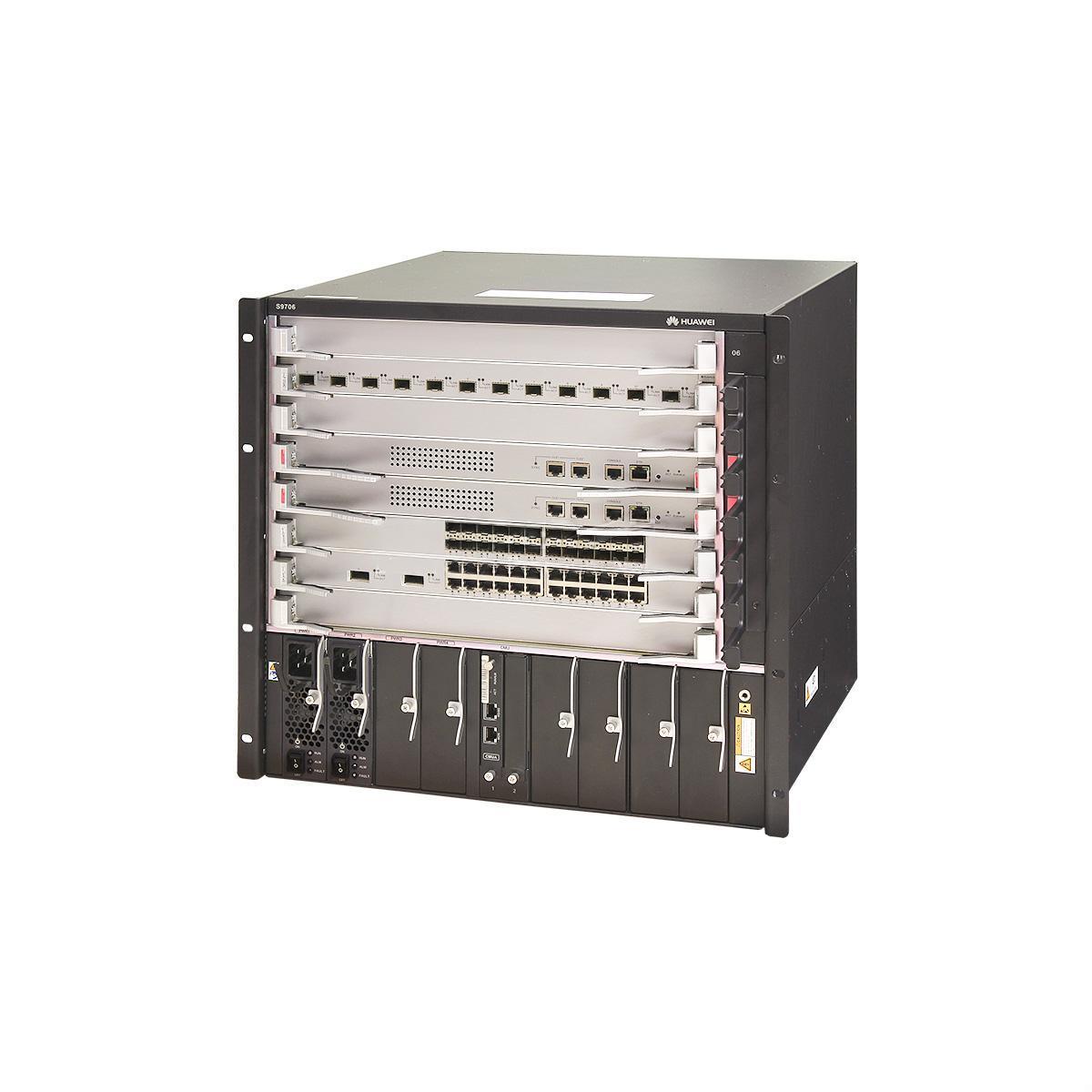

Huawei S9706 AC Bundle – Brand New Chassis with EH1BS9706E00 Main Control Board | Compact High-Capacity Modular Core Switch
Product Overview
The Huawei S9706 AC Bundle is a modular core switch system designed to meet the performance, flexibility, and scalability needs of modern enterprise and telecom networks. This bundle includes a brand new S9706 chassis and the EH1BS9706E00 Main Processing Unit (MPU), delivering a compact, energy-efficient, and carrier-class switching solution.
With advanced support for Layer 2/3/4 switching, MPLS, and IPv6, the S9706 is built to handle high-bandwidth core services, metro aggregation, and cloud interconnect networks. Its modular 6-slot design ensures a small footprint while still supporting high-performance line cards, dual control units, switch fabric units (SFUs), and redundant AC power.
Huawei S9706 AC Bundle What’s Included
| Component | Details |
|---|---|
| Chassis Model | Huawei S9706 (6-Slot Modular Core Switch Frame) |
| Control Board | 1 × EH1BS9706E00 Main Control Unit (MPU) |
| Power Supply | Dual AC Redundant Power Supply (Hot-Swappable) |
| Fan Assembly | Intelligent Redundant Fan Module |
| Condition | Brand New, Huawei Original, Factory Sealed |
Huawei S9706 AC Bundle Features
-
✅ Main Control Board for S9706 Core Switch
-
✅ Supports Advanced Routing Protocols (OSPF, BGP, ISIS, VRRP)
-
✅ MPLS VPN, Layer 3 Multicast, and Carrier-Grade QoS
-
✅ Integrated with Huawei VRP (Versatile Routing Platform)
-
✅ High-Performance Packet Forwarding and Traffic Control
Huawei S9706 AC Bundle Highlights
-
🧠 Modular 6-Slot Design: 2 slots for MPUs, 2 for SFUs, 2 for line cards
-
⚡ Redundant AC Power Inputs for High Availability
-
🖧 Flexible Card Support: 10GE, 40GE, and 100GE interface options
-
🔄 Full Hot-Swap Capability for Non-Stop Maintenance
-
🔐 Ideal for Aggregation/Core Networks in Data Centers & Campuses
Huawei S9706 AC Bundle Technical Specifications
| Parameter | Detail |
|---|---|
| Chassis Dimensions | 442 mm × 470 mm × 220 mm (W × D × H) |
| Switching Capacity | Up to 13.2 Tbps (Scalable with SFUs) |
| Forwarding Rate | Up to 3960 Mpps |
| Slot Configuration | 2 MPU, 2 SFU, 2 Line Card Slots |
| Redundancy | Control Board, Fabric Unit, Power Supply, Fan Tray |
| Power Input | 100V–240V AC Redundant Power Modules |
| Operating Temperature | 0°C to 45°C |
| Compliance | CE, RoHS, ISO9001, ITU-T, IEC Certified |
| Weight (Fully Loaded) | Approx. 35–42 kg |
Use Case Scenarios
-
🏢 Enterprise Campus Core Network Aggregation
-
📡 Metro Access Nodes or MPLS Edge Routing
-
☁️ Data Center Interconnect (DCI) Applications
-
🔐 Secure Government/Banking Network Backbones
-
🖧 ISP or Carrier-Grade Switching Infrastructure
Customizable Expansion Options
-
🔧 Optional Second MPU for Redundancy
-
🔧 Switch Fabric Units (SFUs) for Scalability
-
🔧 10GE/40GE/100GE Service Cards Available Separately
-
🔧 Compatible with the Full Huawei S9700 Ecosystem
-
🔧 Support for SRv6, MPLS-TP, Multicast, QoS Policies
🔧 Product Technical Specifications – Huawei S9706
| Category | Specification |
|---|---|
| Model | S9706 |
| Switching Capacity | 6.72 / 14.72 Tbit/s |
| Packet Forwarding Rate | 2880 / 5040 Mpps |
| Service Slots | 6 |
| Wireless Network Management | Native AC, AP control & profile management, static/dynamic configuration, QoS, security, and user management |
| User Management | Unified user management, 802.1x, MAC, Portal authentication, time-based accounting, group/domain/time-range authorization |
| iPCA Quality Awareness | Real-time dropped packet count and loss ratio monitoring at device and network level |
| SVF Virtualization | Supports 2-layer ASs, third-party device access, simplifies management |
| VLAN Support | Access, trunk, hybrid interfaces, default VLAN, VLAN switching, QinQ, selective QinQ, MAC-based VLAN assignment |
| MAC Address Features | Learning/aging, static/dynamic/blackhole entries, source MAC filtering, port/VLAN MAC limits |
| STP/ERPS Support | STP, RSTP, MSTP, BPDU/root/loop protection, BPDU tunnel, ERPS (G.8032) |
| IP Routing | IPv4: RIP, OSPF, BGP, IS-IS IPv6: RIPng, OSPFv3, ISISv6, BGP4+ |
| Multicast Support | IGMP v1/v2/v3 & snooping, PIM-SM/DM/SSM, MSDP, MBGP, prompt leave, CAC, ACL, suppression, traffic control, querier |
| MPLS Support | Basic MPLS, OAM, VPN, VLL, VPLS |
| Reliability Features | LACP, E-Trunk, VRRP, BFD (VRRP/BGP/OSPF/IS-IS), NSF, GR, TE FRR, IP FRR, DLDP, ISSU, Ethernet OAM (802.3ah/1ag), ITU-Y.1731 |
| QoS Capabilities | L2/L3/L4 traffic classification, ACL, CAR, re-marking, scheduling (SP, WRR, DRR, hybrid), WRED, tail drop, H-QoS, traffic shaping |
| Configuration & Maintenance | Console, Telnet, SSH, SNMP v1/v2c/v3, FTP/TFTP, BootROM/remote upgrade, hot patches, logs |
| Security Features | 802.1x, Portal, NAC, RADIUS, HWTACACS, CLI access control, DoS/flood/broadcast storm protection, 1K CPU queues, ICMP tools, remote monitoring |
| Value-added Services | Firewall, NAT, NetStream, IPSec, Load balancing, Wireless AC, IPS |
| Interoperability | VBST (PVST compatible), LNP (like DTP), VCMP (like VTP) |
| Energy Saving | IEEE 802.3az – Energy Efficient Ethernet (EEE) |
| Dimensions (W × D × H) | 442 mm × 476 mm × 442 mm |
| Chassis Weight (Empty) | < 30 kg |
| Operating Voltage | DC: –38.4 V to –72 V AC: 90 V to 290 V |
| Power Supply Capability | 4400 W |
Wholesale & Integration Support
Ideal for ISPs, enterprise integrators, government network tenders, and cloud providers:
-
📦 Bulk Pricing Available for B2B Orders
-
📑 Test Reports, CE/RoHS/COO Certificates Provided
-
🏷️ OEM Branding & Custom Labeling Options
-
⚙️ Pre-Configured & Tested Units for Turnkey Deployment
-
📞 Post-Sales Technical Assistance & Configuration Templates
Why Choose the Huawei S9706 AC Bundle with EH1BS9706E00?
-
✔️ Compact Design with High Throughput Switching
-
✔️ Fully Modular & Redundant for 24/7 Operation
-
✔️ Supports High-Density 10G/40G/100G Port Configurations
-
✔️ Integrated Security, QoS, and Multicast Capabilities
-
✔️ Built for Next-Gen Networking & Cloud Infrastructure
Order Now
Boost your network backbone with the Huawei S9706 AC Bundle, equipped with a new chassis and EH1BS9706E00 control board – a space-efficient, high-performance core switch trusted by enterprises, carriers, and cloud providers worldwide.
