Huawei S9712 AC Bundle – Brand New Chassis with EH1BS9712E00 Main Control Board | High-Performance Core Switch for Enterprise & Data Center Networks
Product Overview

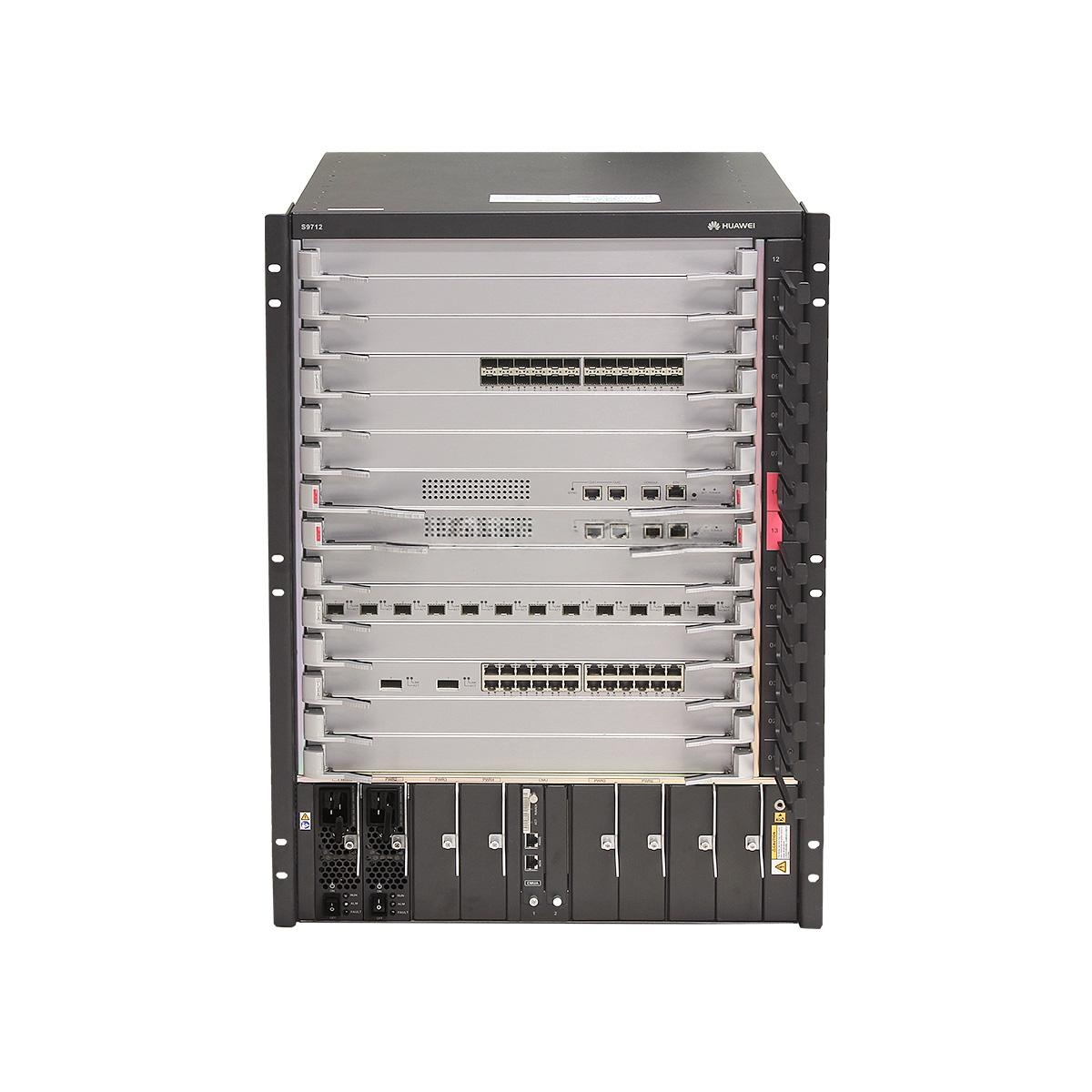

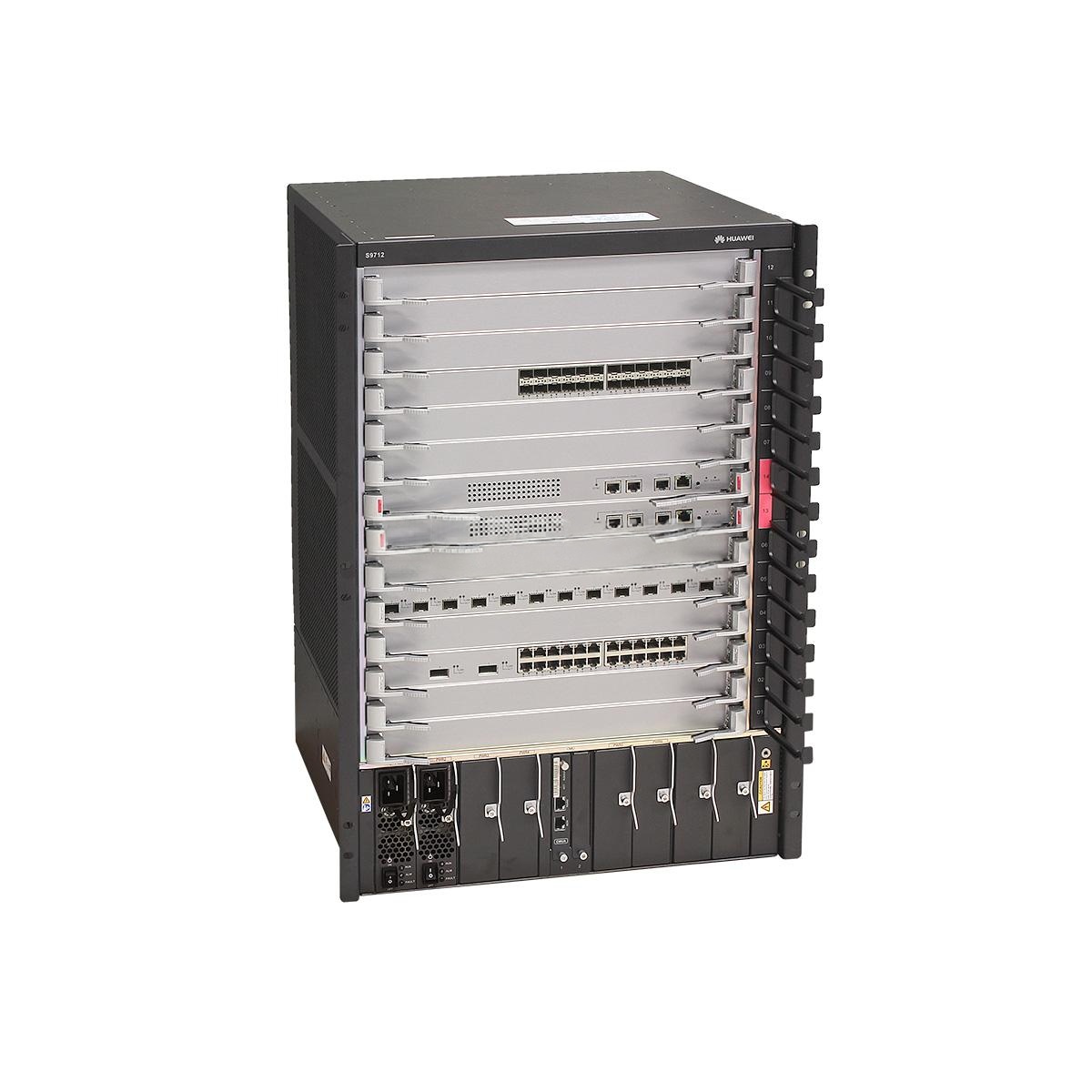

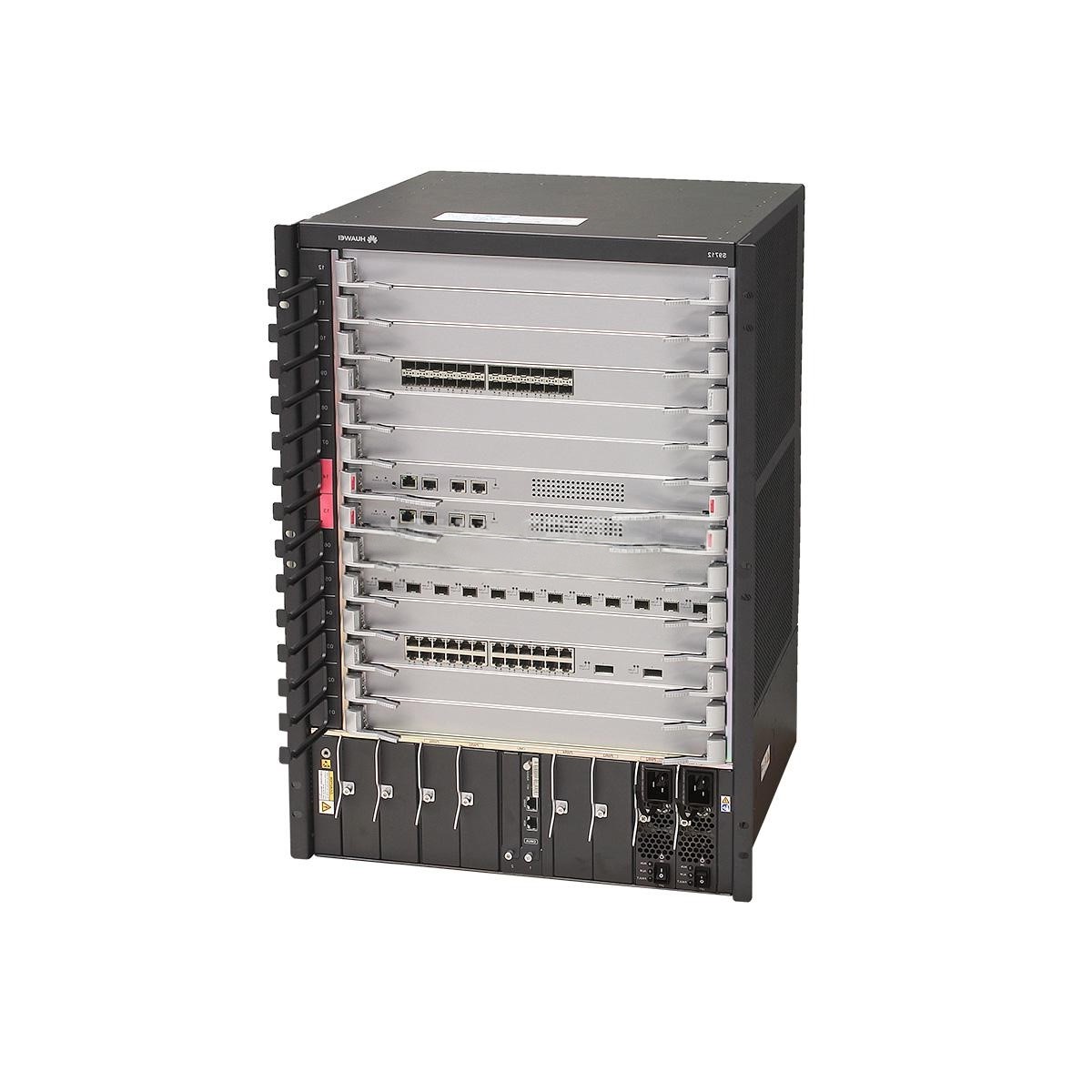

The Huawei S9712 AC Bundle is a next-generation modular core switch system built to deliver exceptional scalability, switching capacity, and redundancy for high-density enterprise LANs, cloud data centers, and ISP aggregation networks. This bundle includes a brand new Huawei S9712 chassis paired with the EH1BS9712E00 main control board, engineered for carrier-grade stability and intelligent multi-service switching.
Part of the Huawei S9700 series, the S9712 integrates advanced Layer 2/3/4 switching, IPv6-ready protocols, and flexible interface card support across 12 service slots – offering unparalleled capacity for evolving network needs.
Huawei S9712 AC Bundle What’s Included
| Component | Description |
|---|---|
| Chassis Model | Huawei S9712 (12-Slot Modular Core Switch Frame) |
| Main Control Board | 1 × EH1BS9712E00 (Main Processing Unit – MPU) |
| Power Supply | Dual AC Redundant Inputs (Hot-Swappable, Modular) |

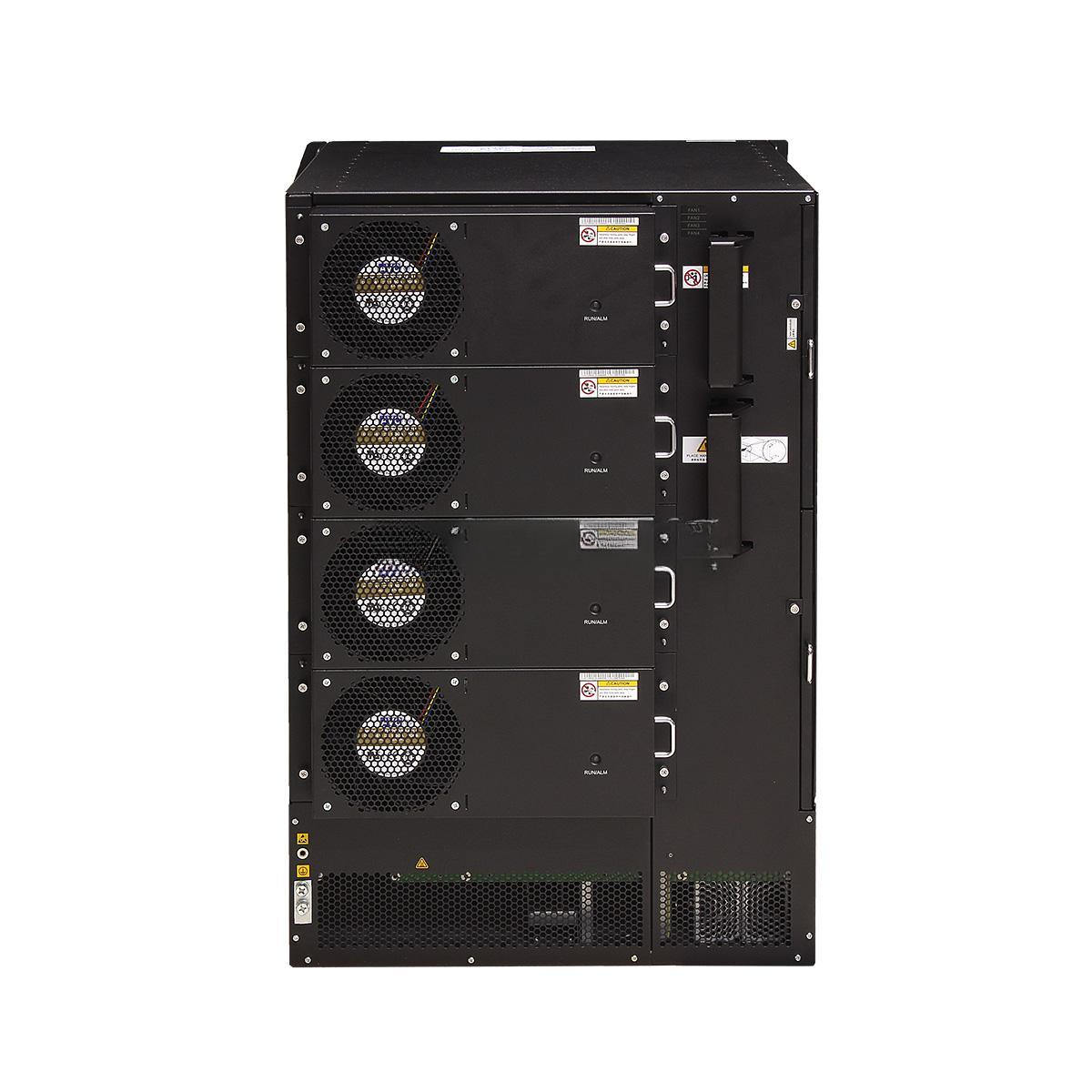

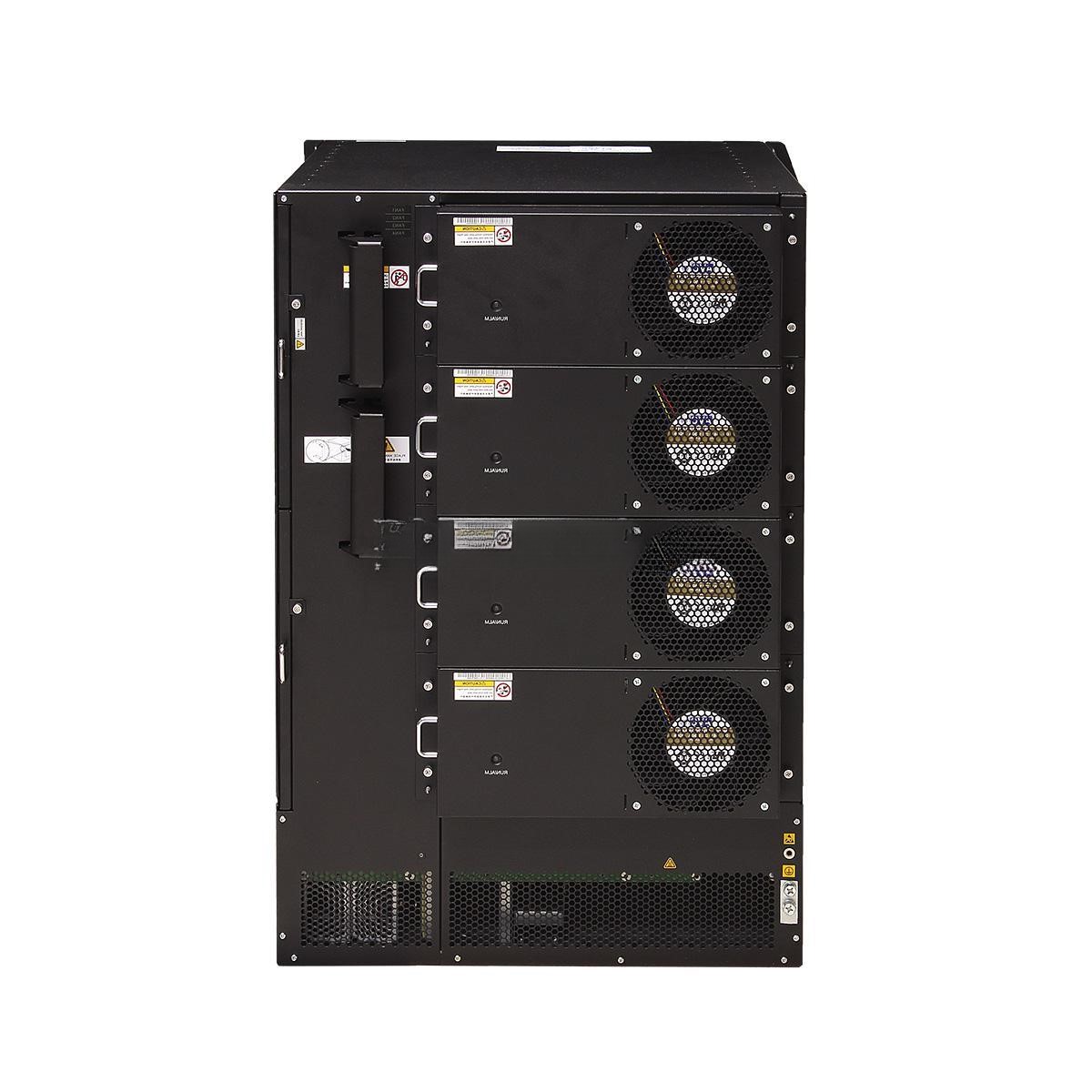

| Fan Unit | Integrated Intelligent Fan System (Redundant Airflow) |
| Condition | Brand New, Factory Sealed, Huawei Original |
Huawei S9712 AC Bundle Highlights
-
✅ Main Control Unit for S9700 Series (S9712, S9706, S9703)
-
✅ Supports High-Performance L2/L3 Routing, MPLS, Multicast
-
✅ Centralized Management & Control Plane Capabilities
-
✅ Enables Dual MPUs for Redundant Operation
-
✅ Integrated with Huawei Versatile Routing Platform (VRP)
Huawei S9712 AC Bundle Features
-
🧠 12-Slot High-Density Modular Design – Supports up to 2 MPUs, 2 SFUs, and 8 service cards
-
💡 High Switching Throughput – Up to 2.56 Tbps per slot
-
🔁 Advanced Redundancy – Supports control, fabric, and power redundancy
-
⚡ AC Power Supplies (Dual Input, Load Balancing, Hot Swap)
-
🖧 Flexible Line Card Options – GE, 10GE, 40GE, 100GE modules supported
Huawei S9712 AC Bundle Technical Specifications
| Specification | Detail |
|---|---|
| Chassis Dimensions | 442 mm × 470 mm × 486.2 mm (W × D × H) |
| Switching Capacity | Up to 25.6 Tbps (fully configured) |
| Forwarding Rate | Up to 7200 Mpps |
| Slot Configuration | 2 MPU Slots, 2 SFU Slots, 8 Line Card Slots |
| Power Supply Type | Dual AC Redundant (100–240V) |
| Cooling System | Intelligent Front-to-Back Airflow (Redundant Fans) |
| Operating Temperature | 0°C to 45°C |
| Compliance | CE, RoHS, ISO9001, IEC, ITU-T Standards |
| Weight (Approx.) | 48–60 kg (depending on module configuration) |
Use Case Scenarios
-
🏢 Enterprise Core Switching for Campus or HQ Networks
-
📡 Telecom Operator Edge Aggregation or Metro Ethernet Node
-
☁️ Data Center Backbone Connectivity with Multi-10GE/40GE Support
-
🔐 Secure Government/Finance Networks Needing MPLS VPN & ACLs
-
🔗 Cloud/Virtualized Network Infrastructure Gateway
Customization & Expansion Options
-
🔧 Additional Control Boards (Redundant MPUs)
-
🔧 Switch Fabric Units (SFU) – For increased backplane bandwidth
-
🔧 Service Cards: GE, 10GE, 40GE, 100GE interface modules
-
🔧 Compatible with full S9700 series ecosystem
-
🔧 Support for BGP, OSPF, ISIS, VRRP, MPLS VPN, IPv6, and more
🔧 Product Technical Specifications – S9712
| Category | Specification |
|---|---|
| Model | S9712 |
| Switching Capacity | 8.64 / 18.56 Tbit/s |
| Packet Forwarding Rate | 3840 / 6480 Mpps |
| Service Slots | 12 |
| Wireless Network Management | Native AC, AP access control, region & profile management, static/dynamic configuration, QoS, security, user management |
| User Management | Unified management, 802.1x, MAC, Portal authentication, time-based accounting, group/domain/time-based authorization |
| iPCA Quality Awareness | Real-time packet drop count and loss ratio at device and L2/L3 network levels |
| SVF Virtualization | Virtualized access switches & APs, 2-layer AS support, third-party access supported |
| VLAN Support | Access, trunk, hybrid modes, default VLAN, VLAN switching, QinQ, selective QinQ, MAC-based VLAN assignment |
| MAC Address Features | Automatic learning/aging, static/dynamic/blackhole entries, source MAC filtering, MAC limiting on ports & VLANs |
| STP/ERPS Support | STP, RSTP, MSTP, BPDU protection, root/loop protection, BPDU tunnel, ERPS (G.8032) |
| IP Routing | IPv4: RIP, OSPF, BGP, IS-IS IPv6: RIPng, OSPFv3, ISISv6, BGP4+ |
| Multicast Protocols | IGMP v1/v2/v3, Snooping, PIM-SM/DM/SSM, MSDP, MBGP, leave control, multicast CAC, ACL, suppression |
| MPLS | Basic MPLS, OAM, VPN, VLL, VPLS |
| Reliability Features | LACP, E-Trunk, VRRP, BFD (VRRP/BGP/OSPF/IS-IS), NSF, GR, TE FRR, IP FRR, DLDP, ISSU, Ethernet OAM (802.3ah/802.1ag), ITU-Y.1731 |
| QoS & Traffic Management | L2/L3/L4 classification, 802.1p, ACL, CAR, re-mark, queue scheduling (SP, WRR, DRR, SP+WRR, SP+DRR), WRED, tail drop, H-QoS, traffic shaping |
| Configuration & Maintenance | Console, Telnet, SSH, SNMP v1/v2c/v3, FTP/TFTP, BootROM & remote upgrade, hot patches, operation logs |
| Security & Access Control | 802.1x, Portal auth, NAC, RADIUS, HWTACACS, command level authority, DoS/TCP/UDP flood defense, broadcast storm protection, ping, traceroute, RMON |
| Value-added Services | Firewall, NAT, NetStream, IPSec, Load Balancing, Wireless AC, IPS |
| Interoperability | VBST (PVST compatible), LNP (DTP-like), VCMP (VTP-like) |
| Energy Saving | IEEE 802.3az – Energy Efficient Ethernet (EEE) |
| Dimensions (W × D × H) | 442 mm × 476 mm × 664 mm |
| Chassis Weight (Empty) | < 45 kg |
| Operating Voltage | DC: –38.4 V to –72 V AC: 90 V to 290 V |
| Power Supply Capability | 6600 W |
Wholesale & Deployment Support
Tailored for ISPs, system integrators, enterprise IT buyers, and data center operators:
-
📦 Volume Pricing for Multi-Unit Orders
-
🛠️ Pre-Sales Consultation & Network Planning Assistance
-
📑 Documentation Provided: CE, RoHS, Test Reports, COO, Datasheets
-
🏷️ OEM/White-Label Branding on Request
-
🚚 Fast Delivery & Optional Pre-Configuration Services Available
Why Choose the Huawei S9712 AC Bundle with EH1BS9712E00?
-
✔️ Scalable Modular Design for Future-Proof Deployments
-
✔️ High-Speed Switching for 10G/40G/100G Architectures
-
✔️ Redundancy at All Levels – Control, Fabric, Power, Cooling
-
✔️ Built on Huawei’s Robust VRP Software with Enhanced Security
-
✔️ Perfect for Carrier-Grade & Enterprise-Class Core Networks
Order Now
Empower your next-gen network with the Huawei S9712 AC Bundle, equipped with a new chassis and EH1BS9712E00 main control board — a proven choice for mission-critical switching, cloud connectivity, and scalable data architectures.
