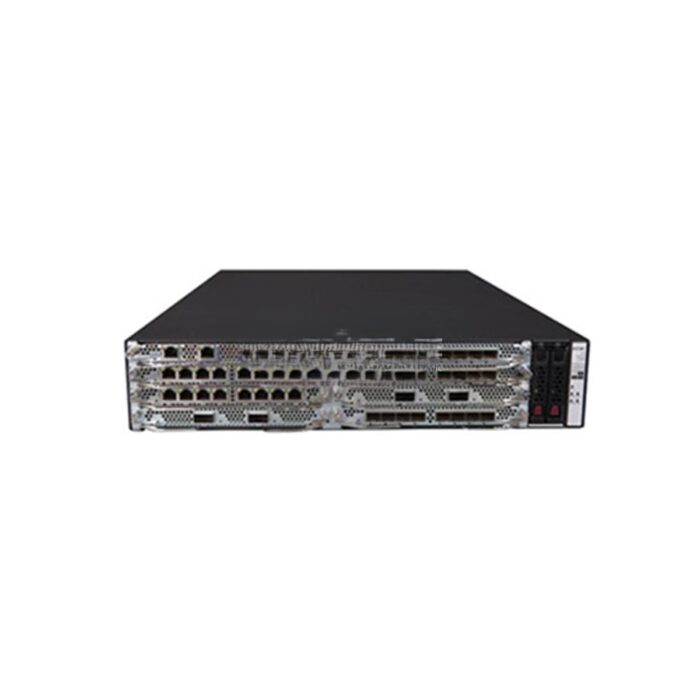

Huawei SecPath F5000-AI-20
The Huawei SecPath F5000-AI-40 and SecPath F5000-AI-20 are next-generation, AI-powered firewalls engineered to deliver intelligent, proactive security protection for enterprises and data centers. By embedding AI algorithms and big data analysis, these firewalls provide accurate threat detection, real-time response, and efficient security management, enabling networks to defend against evolving cyber threats with minimal human intervention.
Both models offer high-performance threat defense, intelligent traffic analysis, and automated security orchestration, making them ideal for large networks requiring maximum uptime and protection.
Key Features
-
🔹 AI-Enhanced Threat Detection: Built-in AI engines provide real-time traffic analysis, malware identification, and anomaly detection.
-
🔹 High Performance: Delivers up to 40 Gbps (F5000-AI-40) and 20 Gbps (F5000-AI-20) firewall throughput.
-
🔹 Advanced Threat Protection: Integrated IPS, antivirus, anti-DDoS, and sandboxing capabilities.
-
🔹 Intelligent Policy Management: Dynamic security policy adaptation based on AI-driven traffic behavior insights.
-
🔹 Flexible Interfaces: Supports multiple high-speed Ethernet interfaces (GE, 10GE, 40GE depending on model).
-
🔹 Comprehensive VPN Support: Supports IPsec VPN, SSL VPN, and L2TP VPN.
-
🔹 Cloud-Ready Security: Integrates with Huawei Cloud and third-party cloud platforms for unified threat management.
-
🔹 High Availability (HA): Supports active/standby redundancy and failover for uninterrupted service.
-
🔹 Energy Efficient Design: Optimized for low power consumption even under heavy load.
Product Specifications
| Feature | F5000-AI-40 | F5000-AI-20 |
|---|---|---|
| Firewall Throughput | 40 Gbps | 20 Gbps |
| IPS Throughput | 20 Gbps | 10 Gbps |
| Concurrent Sessions | 20 million | 10 million |
| New Sessions per Second | 500,000 | 300,000 |
| AI Threat Detection | Supported | Supported |
| VPN Throughput | 12 Gbps | 6 Gbps |
| Network Interfaces | 10GE/GE/40GE flexible combinations | 10GE/GE flexible combinations |
| IPSec VPN, SSL VPN | Supported | Supported |
| High Availability | Active/Standby, Load Balancing | Active/Standby, Load Balancing |
| Management | Web UI, CLI, SNMP, centralized controller | Web UI, CLI, SNMP, centralized controller |
| Power Supply | Dual AC/DC redundant | Dual AC/DC redundant |
| Dimensions | Approx. 442 mm × 600 mm × 88 mm (2U) | Approx. 442 mm × 600 mm × 88 mm (2U) |
| Weight | ~18 kg | ~17 kg |
| Operating Temperature | 0°C to 45°C | 0°C to 45°C |
Specifications
Huawei SecPath F5000-AI-40 |
|
| Ports | 1 × console port |
| 1 × MGMT(RJ45) | |
| 2 × USB ports | |
| 4 × GE combo ports | |
| Expansion slots | 5 |
| Interface modules |
One interface module with eight GE copper ports |
| One interface module with eight GE fiber ports | |
| One interface module with eight 10-GE fiber ports | |
| Storage media | Drives |
| Physical specifications | |
| Operation modes | Route, transparent, and hybrid |
| Ambient temperature | Operating without drives: 0°C to 45°C (32°F to 113°F) |
| Operating with drives: 5°C to 40°C (41°F to 104°F) | |
| Storage: –40°C to +70°C (–40°F to +158°F) | |
Specifications
SecPath F5000-AI-20 |
|
| Ports | 1 × console port |
| 1 × MGMT(RJ45) | |
| 2 × USB ports | |
| 4 × GE combo ports | |
| Expansion slots | 4 |
| Interface modules |
One interface module with eight GE copper ports |
| One interface module with eight 10-GE fiber ports | |
| Storage media | Drives |
| Physical specifications | |
| Operation modes | Route, transparent, and hybrid |
| Ambient temperature | Operating without drives: 0°C to 45°C (32°F to 113°F) |
| Operating with drives: 5°C to 40°C (41°F to 104°F) | |
| Storage: –40°C to +70°C (–40°F to +158°F) | |
Application Scenarios: Huawei SecPath F5000-AI-40 and SecPath F5000-AI-20
-
Enterprise Core Network Protection
-
Ideal for securing large enterprise core networks against advanced threats.
-
-
Data Center Perimeter Security
-
Acts as a powerful first line of defense at data center edges with high throughput and intelligent threat analytics.
-
-
Cloud-Integrated Security Gateway
-
Facilitates secure and seamless integration with private and public cloud resources.
-
-
AI-Driven Smart Security Operations
-
Enables proactive security operations with real-time threat hunting and policy optimization.
-
-
ISP/Carrier-Grade Network Security
-
Perfect for telecom providers needing ultra-high concurrency and fast session establishment.
-
