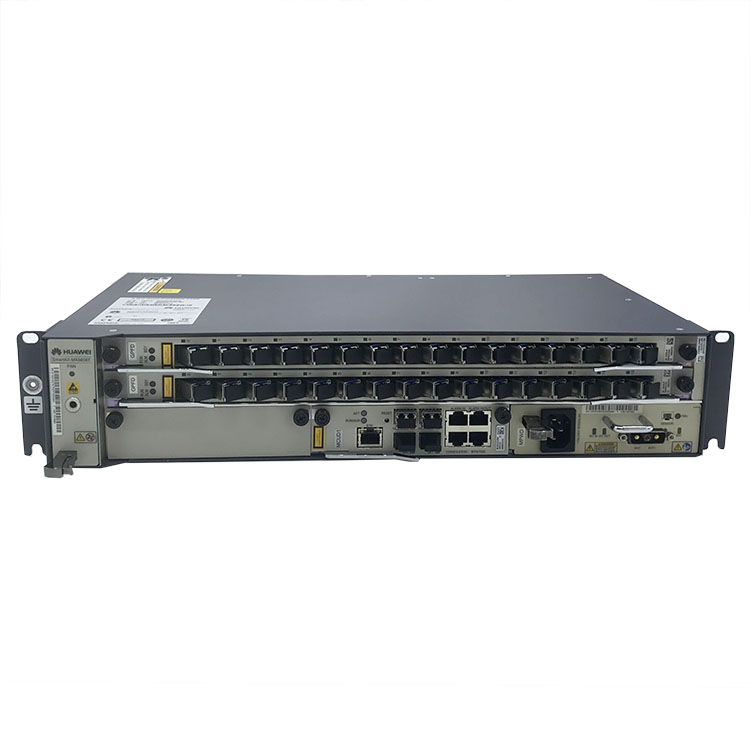

Huawei SmartAX MA5608T OLT Description:
Huawei SmartAX MA5608T OLT which integrates the functionality of the aggregation switch and edge router. It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple-play service, TDM/ATM/Ethernet leased line service for business customers & mobile backhaul with high reliability and high precision clock, and high-density GE/10GE interfaces for cascading remote access equipment.
HuaweiMA5600T support to simplify network architecture, to improve network reliability and lower TCO essentially. It is usually equipped with GPFD GPBDGPBH service card MCUD1 /MUCD main control card AC or DC power module. ( There are B+ and C+ SFP for service card. C+ SFP cover B+ SFP)
Huawei SmartAX MA5608T OLT Product Features:
Smooth Evolution:
10GPON uplink can be supported in two years
MA5608T can support Board Level Vectoring and System Level Vectoring in two years
Just insert GPON board, MA5603T&MA5608T can be used as OLT
All Service Access:
Support E1 and G.SHDSL for enterprise leased line or PBX access
IPTV can be launched for all users, up to 4k channels
H-QoS support 5-level QoS guaranteeing SLA
Green Design:
Fully meet the CoC v4 power-conservation requirement of the European Commission
Short-loop design of POTS card, 20% power consumption reduced
Third generation chipsets, support the dynamic energy-saving, 30% energy saving of xDSL
Specification:
|
Model No.
|
MA5680T
|
MA5683T
|
MA5608T
|
|
Dimension:
|
490*275.8*447.2mm
|
442*283.2*263mm
|
442*233.5*88mm
|
|
Operating Environment
|
Temperature: -25℃~+55℃ Humidity:5%~95% (non-condensing)
|
Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing)
|
Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing)
|
|
Power Supply Parameters
|
-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V
|
-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V
|
-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input
|
|
Backplane Exchange capacity
|
3.2Tbit/s
|
1.5Tbit/s
|
720Gbit/s
|
|
Control Board Exchange Capacity
|
1920 Gbit/s
|
960Gbit/s
|
512Gbit/s
|
|
Access Capacity
|
128*10G EPON 64*10G GPON 128*EPON 256*GPON 768*GE
|
48*10G EPON 24*10G GPON 48*EPON 96*GPON 288*GE
|
16*10G EPON 8*10G GPON 16*EPON 32*GPON 96*GE
|
|
Access Type
|
Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON
optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface |
||
|
Warranty
|
1 Year
|
