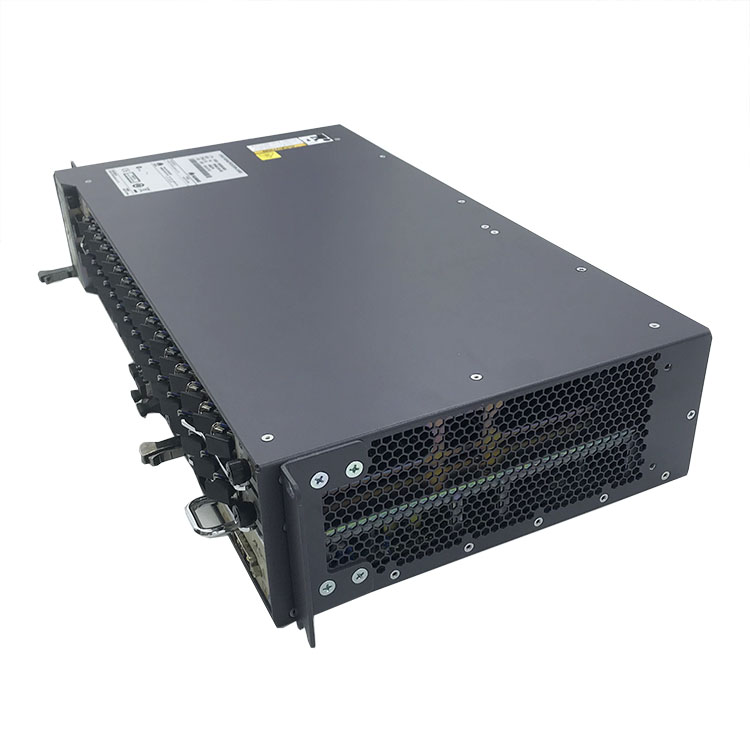

Huawei SmartAX MA5608T OLT Description:
Huawei SmartAX MA5608T OLT is one of telecom operator-class Gigabit Passive Optical Network (GPON/EPON) Optical Line Terminal for large-scale aggregation and access networking. This is the world first OLT which integrates the functionality of the aggregation switch and edge router.
It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple-play service, TDM/ATM/Ethernet leased line service for business customers & mobile backhaul with high reliability and high precision clock, and high-density GE/10GE interfaces for cascading remote access equipment. HuaweiMA5600T support to simplify network architecture, to improve network reliability and lower TCO essentially.
Huawei SmartAX MA5608T OLT Product Features:
Smooth Evolution:
10GPON uplink can be supported in two years
MA5608T can support Board Level Vectoring and System Level Vectoring in two years
Just insert GPON board, MA5603T&MA5608T can be used as OLT
All Service Access:
Support E1 and G.SHDSL for enterprise leased line or PBX access
IPTV can be launched for all users, up to 4k channels
H-QoS support 5-level QoS guaranteeing SLA
Green Design:
Fully meet the CoC v4 power-conservation requirement of the European Commission
Short-loop design of POTS card, 20% power consumption reduced
Third generation chipsets, support the dynamic energy-saving, 30% energy saving of xDSL
Specifications:
| Model No. | MA5680T | MA5683T | MA5608T |
| Dimension: | 490*275.8*447.2mm | 442*283.2*263mm | 442*233.5*88mm |
| Operating Environment | Temperature: -25℃~+55℃ Humidity:5%~95% (non-condensing) | Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing) | Temperature:
-40℃~+65℃ Humidity:5%~95% (non-condensing) |
| Power Supply Parameters | -48V DC input Supports dual power protection
Working Voltage range -38.4V~-72V |
-48V DC input
Supports dual power protection Working Voltage range -38.4V~-72V |
-48V DC input
Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input |
| Backplane Exchange capacity | 3.2Tbit/s | 1.5Tbit/s | 720Gbit/s |
| Control Board Exchange Capacity | 1920 Gbit/s | 960Gbit/s | 512Gbit/s |
| Access Capacity | 128*10G EPON
64*10G GPON 128*EPON 256*GPON 768*GE |
48*10G EPON
24*10G GPON 48*EPON 96*GPON 288*GE |
16*10G EPON
8*10G GPON 16*EPON 32*GPON 96*GE |
| Access Type | Upstream interface: 10GE optical, GE optical/electricity
Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface |
