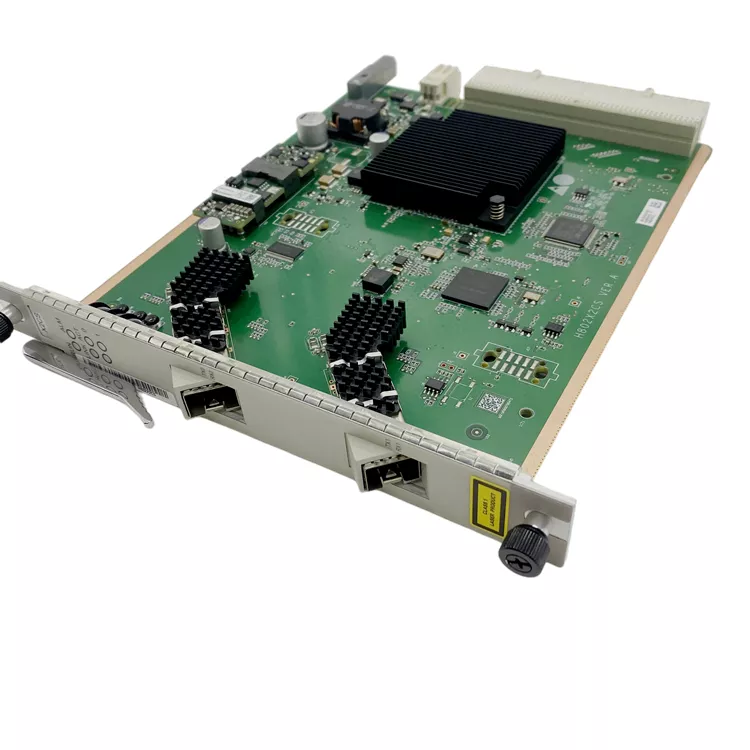

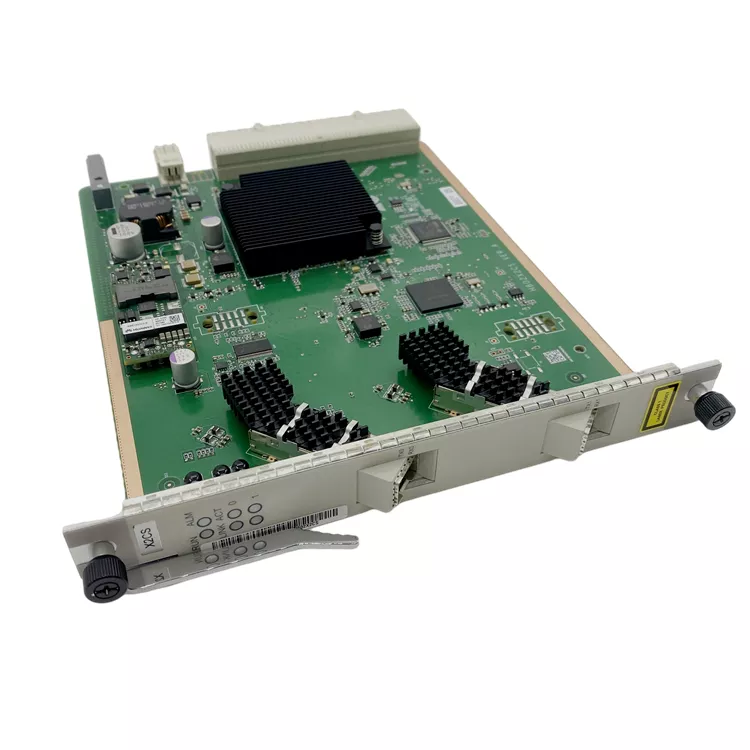

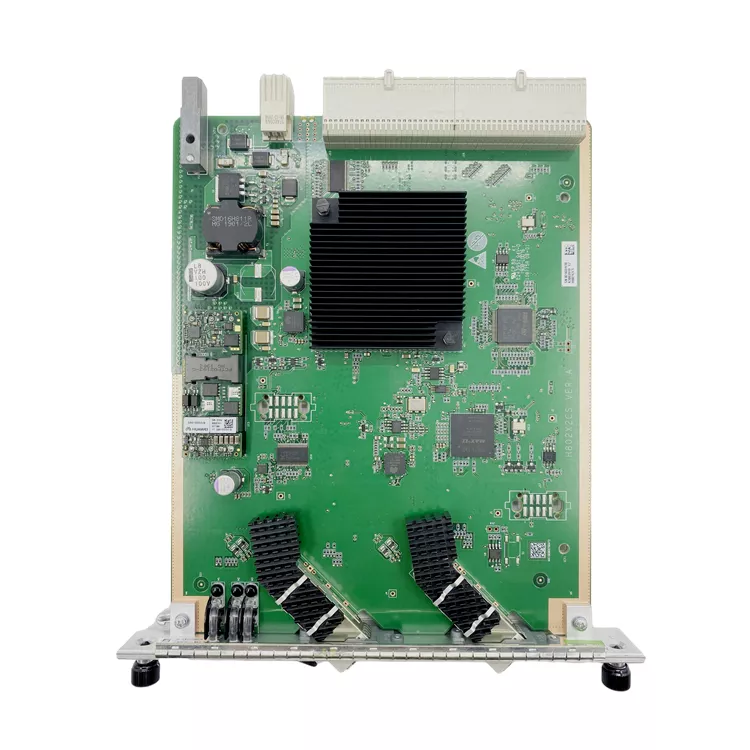

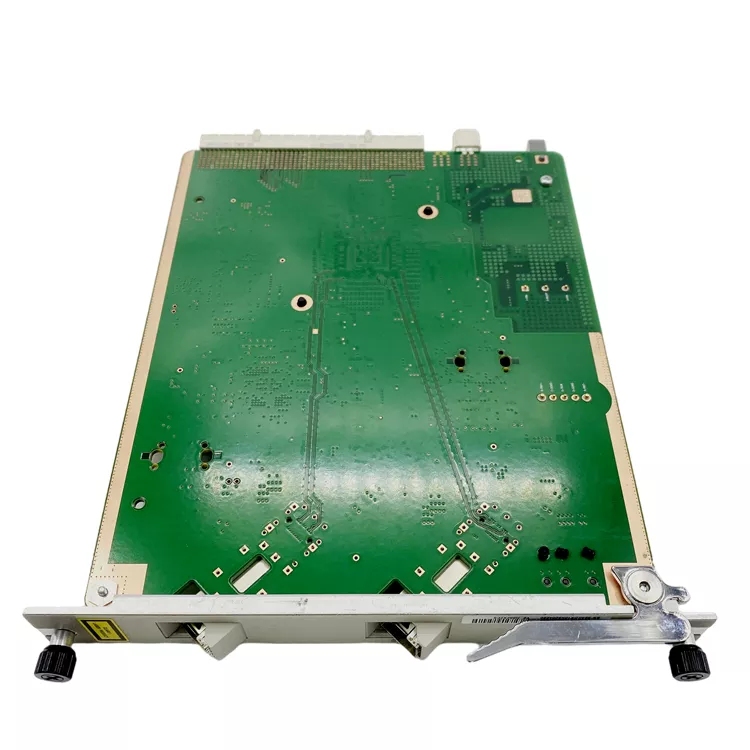

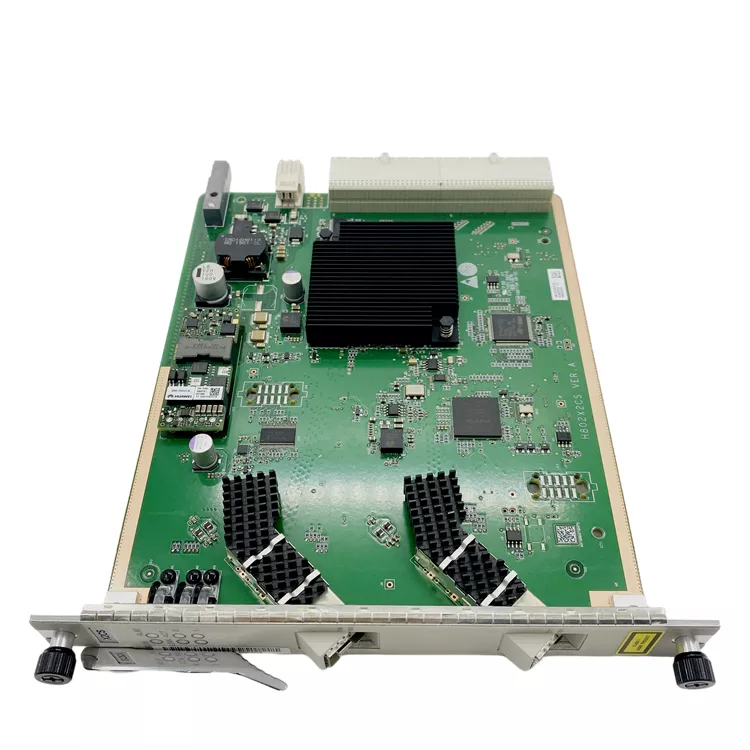

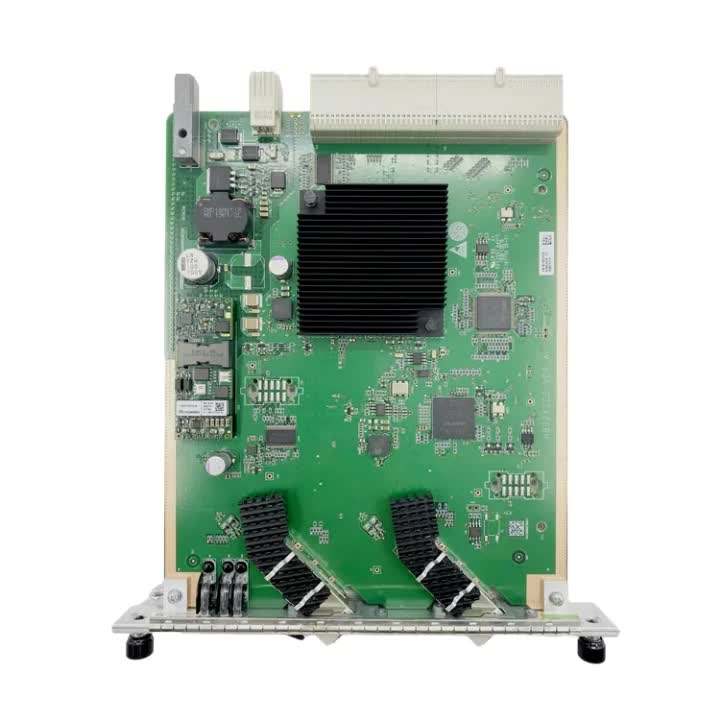

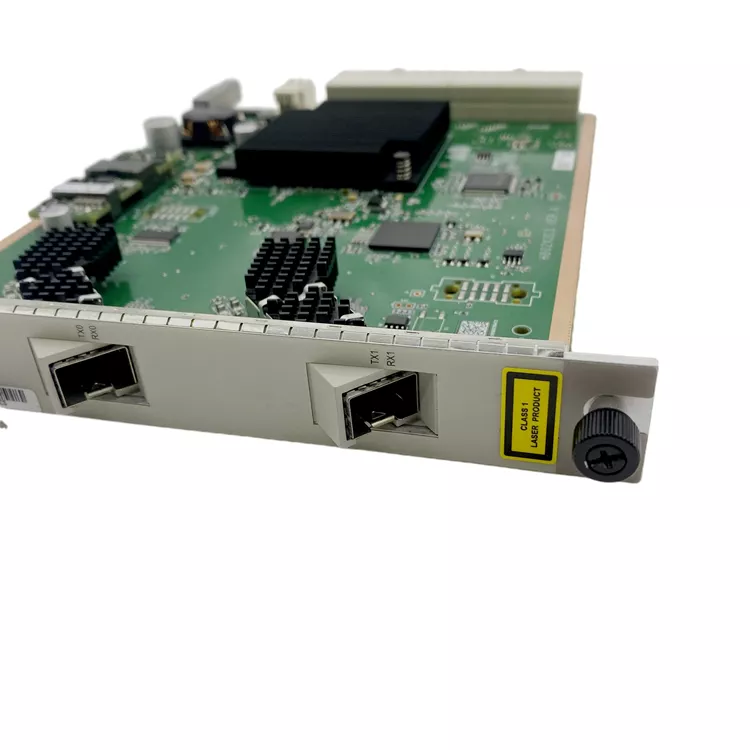

huawei uplink board upstream board X2CS H801 for olt MA5680T

SKU: 1600580522015 Categories: ,
  • Model Number:X2CS
  • Type:OLT cards, upstream link
  • Place of Origin:China
  • Brand Name:huawei
  • Use:FTTH
  • Product name:X2CS
  • Ports:2 10 GE Uplink Port
  • Pluggable Module:SFP+ Module
  • Corresponding Control Board:SCUF/SCUN/SCUL/SCUH
  • Color:Green
  • Brand:Huawei Original
  • Warranty Time:1 Year
  • Operating temperature:From -25°C to 65°C
  • Dimensions:25,40 *237,00 *197,20 mm
  • Supply Ability
    1000 Piece/Pieces per Week
  • Packaging Details

    carton Package

  • Port


  • Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Product Description
2 10GE Uplink Ports
Pluggable Module
SFP+ Module
Corresponding Control Board
Device Specifications
Dimensions (mm)
25.40 (W) x 237.00 (D) x 197.20 (H)
Power Consumption and Maximum Frame Size
Power Consumption
Static: 17.6 W
Maximum: 18 W
Maximum Frame Size
2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported
Operating temperature
-25°C to +65°C
Huawei 2-port 10GE Optical uplink board
Apply to Huawei MA5683T, MA5680T, MA5608T OLT system
Without 10GE SFP+ module equipped by default
Supports SyncE.

X2CS is a 2 port 10GE uplink optical uplink card of Huawei OLT, providing upstream or cascading optical ports. Without 10GE SFP+
module equipped as default, if need equip SFP+ module, please contact with our sales representative.
