SKU 1600494136041 Categories ,
  • Products Status:Stock
  • Ports:≤ 8
  • Transmission Rate:10/100Mbps
  • Function:POE, QoS, VLAN Support
  • Communication Mode:Full-Duplex & Half-Duplex
  • Switch Capacity:16G
  • Model Number:TS6208P-2G
  • Place of Origin:Guangdong, China
  • PoE Standard:IEEE802.3af /IEEE802.3at
  • PoE power:52VDC 2.3A
  • Product Name:8 Port PoE Switch
  • PoE Ports:1-8 Port Support PoE
  • Uplink Ports:2*10/100/1000Mbps Uplink Ports
  • Applications:Support PoE IP Cameras
  • Warranty:1 Year
  • Keywords:8port PoE switch
  • Certification:CE FCC
  • Packaging Details

    carton

  • Port

    Guangzhou

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 23 – 100101 – 500>500Lead time (days)51520To be negotiated
Product Description

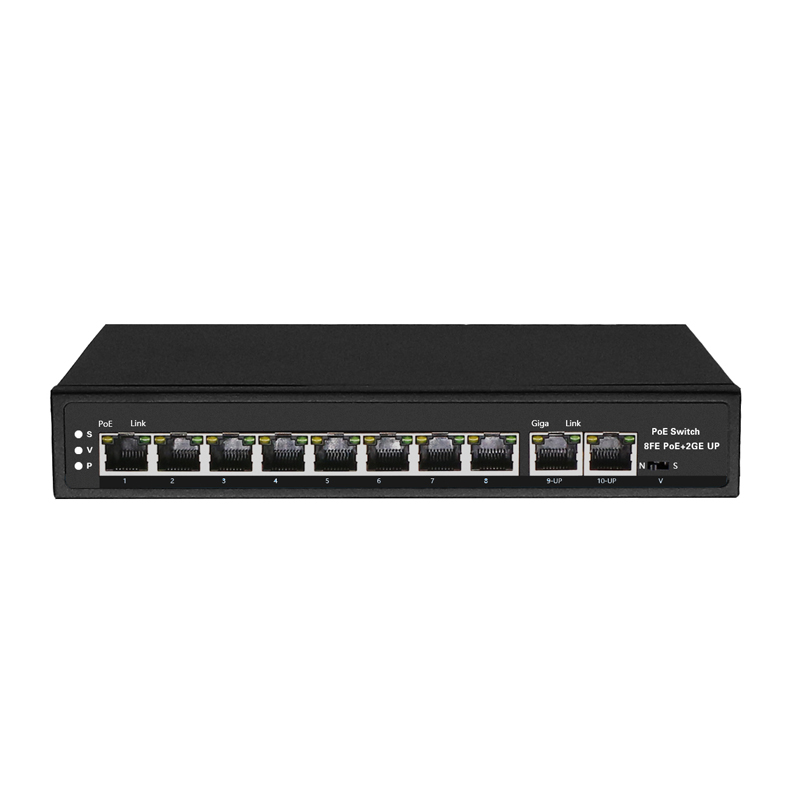

Long Distance 8-Port Ethernet Switch 10/100Mbps POE Switch With 2 Gigabit RJ45 Uplinks

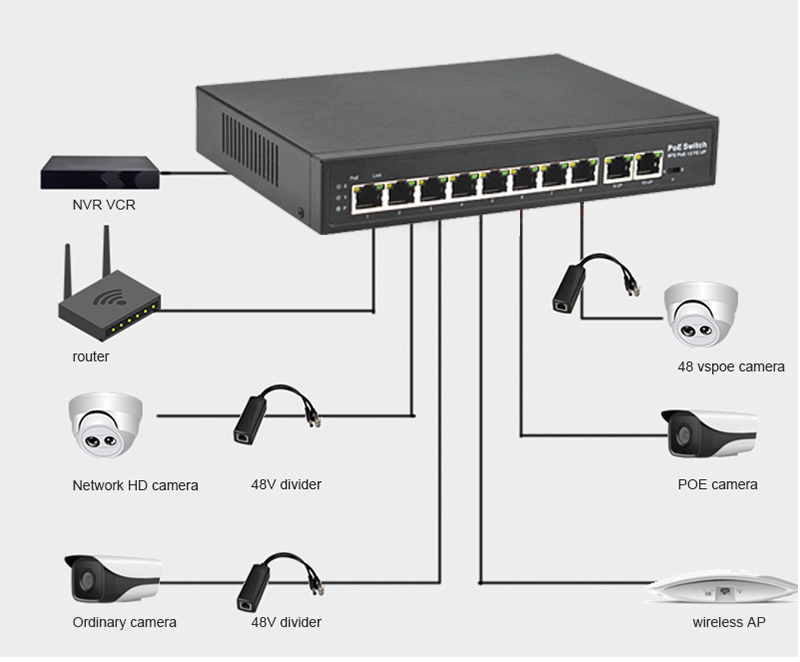

pplication:


* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
Product
8+2G Port POE Switch
Model
TS6208P-2G
POE Port
1 to 8 support IEEE802.3AF/AT Standard
Output Power
15.4W/30W IEEE802.3af/at
Power Pin
Both 1/2+、3/6- and 4/5+7/8-
Whole Power
≤120W (52V 2.3A)
POE Protocol
IEEE 802.3af/IEEE 802.3at
POE Type
End-span
Power Distance
≤250m
Network Standard
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
Network Medium
10/100BASE-TX:5 class and above non shielded twisted pair
Data Distance
≤250m
Switch Capability
16Gbps
Forwarding Mode
Store and forward
Forwarding Rate
100Mbps:14880pps
1000Mbps:14800pps
MAC Address
MAC address table 2K
Port Function
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator
LINK/ACT. 100Mbps; POE Status Indicator; Power indicator; Extender
Working Environment
Working temperature:-10°– 55°C
Weight
1.3kg
Size
210mm*140mm*44mm(L*W*H)
Detailed Images
Color

Black
