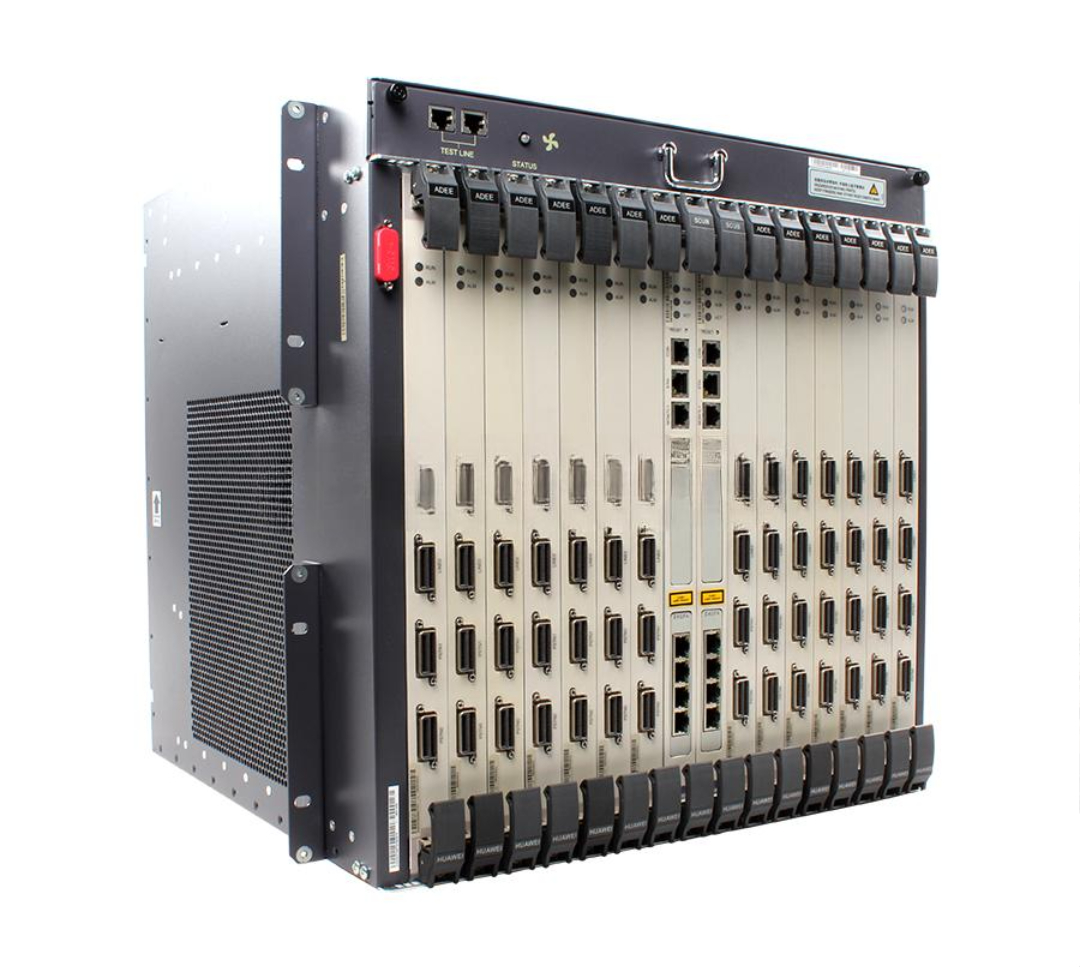

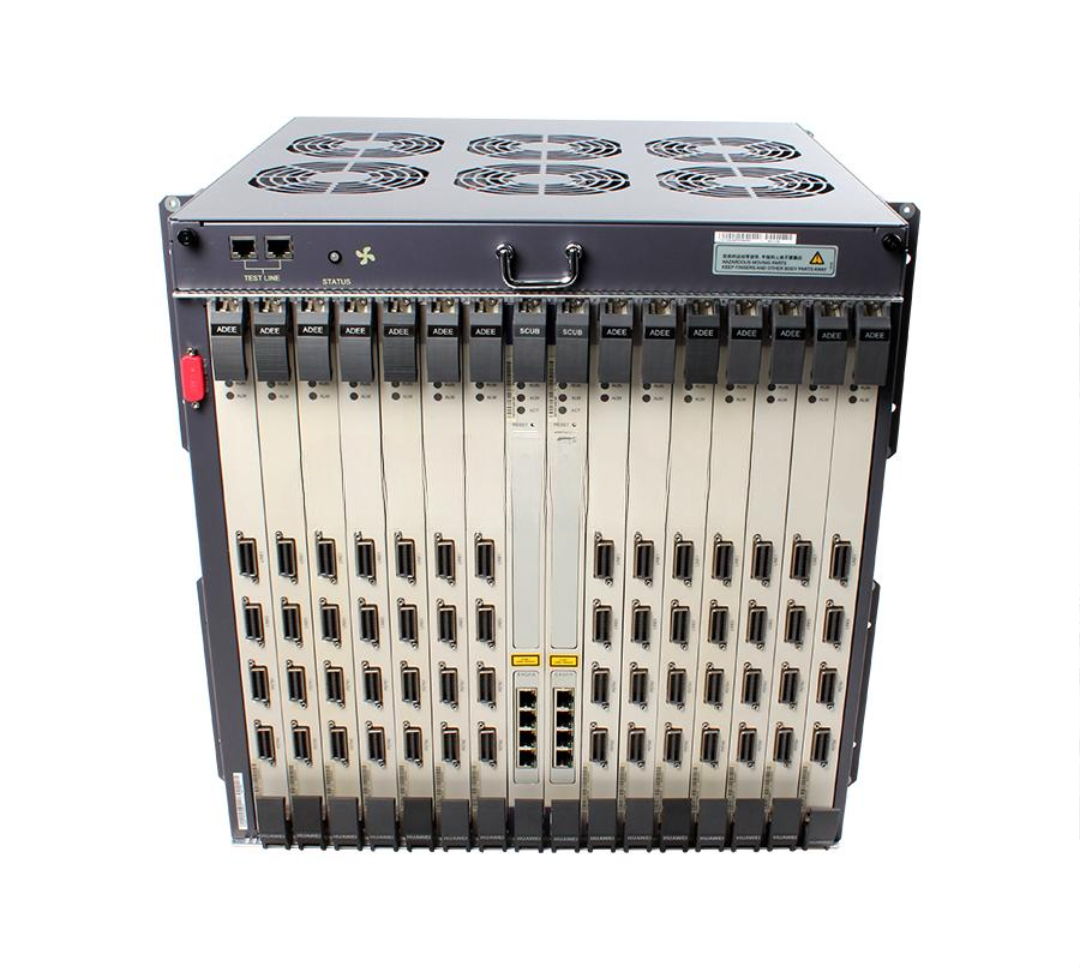

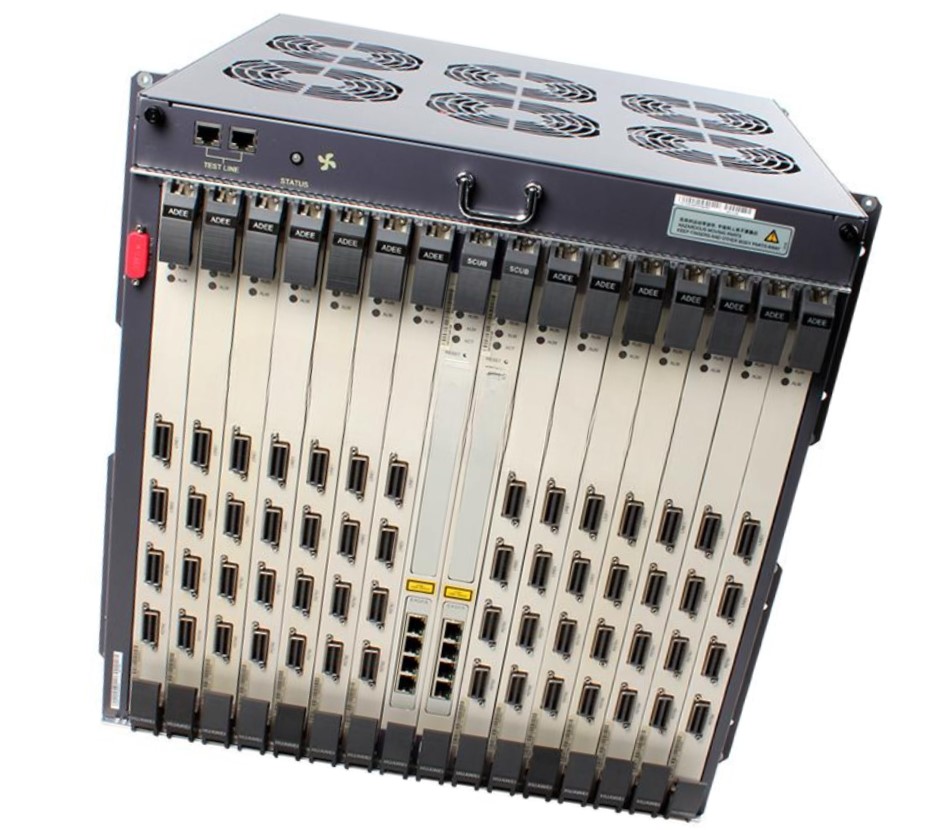

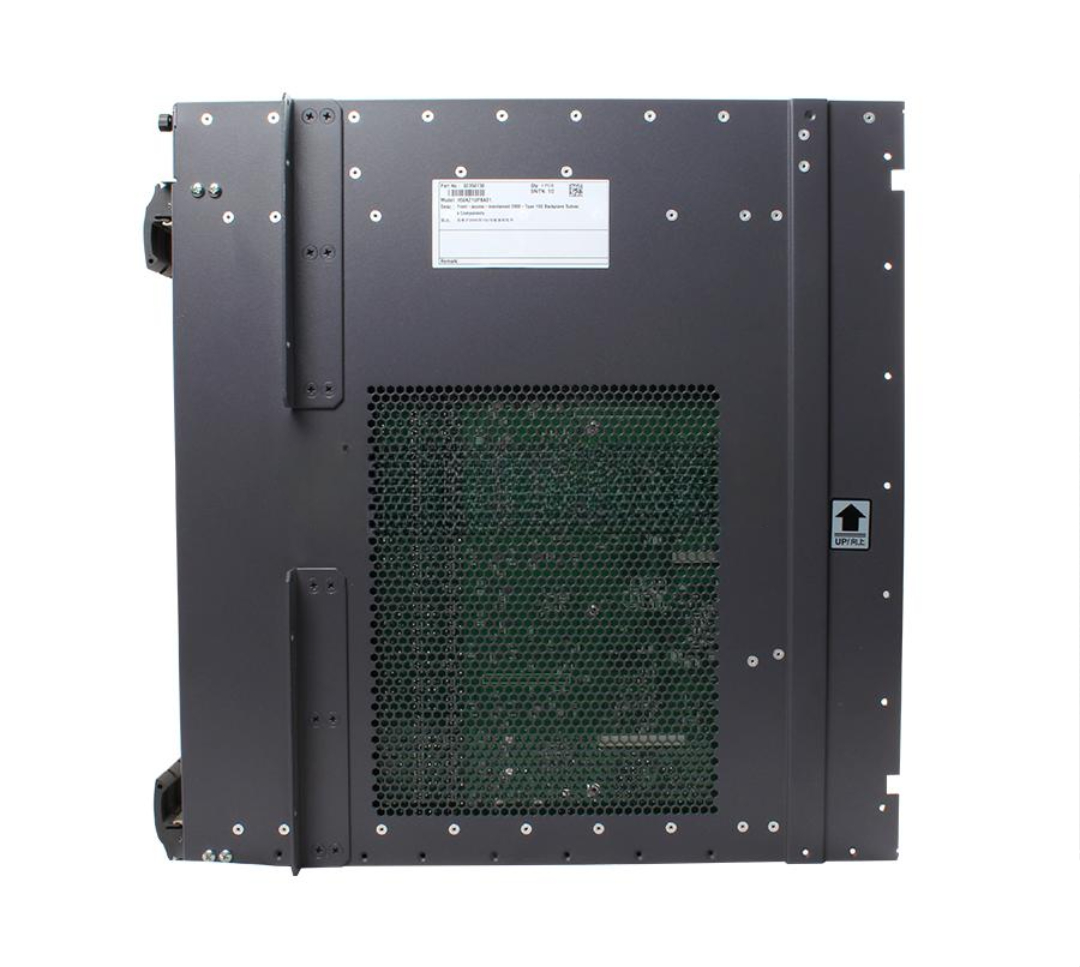

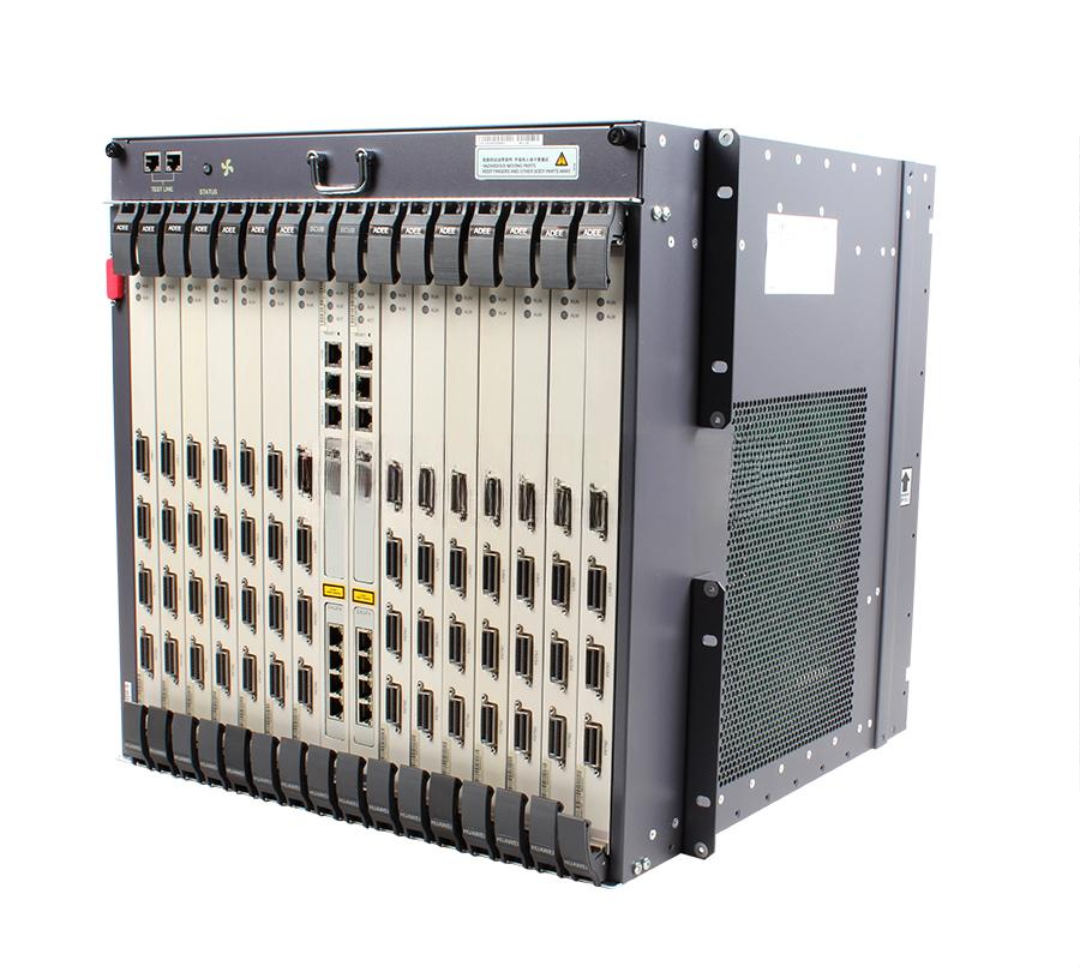

MA5600 DSLAM Huawei Brand New SmartAX MA5600 14 Service Slot Chassis
The MA5600 DSLAM Huawei is a carrier-grade DSLAM (Digital Subscriber Line Access Multiplexer) platform, engineered for high-performance broadband access over copper lines. Designed with 14 service slots, the MA5600 supports multiple service boards for ADSL2+, VDSL2, POTS, and SHDSL, enabling large-scale broadband, voice, and IPTV deployments. Ideal for FTTC, FTTB, and legacy copper access scenarios, it’s a smart choice for operators seeking reliable and scalable network solutions.
Key Features
-
Model: SmartAX MA5600
-
Condition: 100% Brand New, Original Huawei
-
Service Slots: 14 hot-swappable service slots
-
Uplink Slots: 2 dedicated uplink slots
-
Control Slots: 2 control and switch board slots
-
Flexible Access: Supports ADSL2+, VDSL2, SHDSL, POTS, ISDN, and VoIP boards
-
Backplane Capacity: High-speed bus ensuring smooth data transmission
-
Chassis Type: 19-inch rack mountable metal chassis
-
Redundant Design: Supports dual power inputs and controller redundancy
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | MA5600 |
| Service Slots | 14 (hot-swappable) |
| Uplink Slots | 2 (GE/FE/STM-1/ATM) |
| Control Board Slots | 2 |
| Power Supply | DC -48V |
| Dimensions (W x D x H) | 442 mm × 262 mm × 221.5 mm |
| Mounting | Standard 19-inch rack |
| Operating Temperature | -25°C to +65°C |
| Humidity | 5% to 95%, non-condensing |
| Backplane Bandwidth | ≥ 10 Gbps |
| Management Interface | CLI, SNMP, Web, NMS (Huawei U2000 supported) |
| Compliance | ITU-T, IEEE, RoHS, CE |
MA5600 DSLAM Huawei Applications
-
FTTC (Fiber to the Curb) – Aggregates copper-based access near subscriber premises
-
Legacy Network Modernization – Enables broadband over existing copper infrastructure
-
Triple Play Services – Supports voice, internet, and IPTV over DSL or POTS
-
Enterprise Access – High-density multi-service delivery in business buildings
-
Rural Deployment – Ideal for copper-heavy, cost-sensitive deployment environments
Customization & OEM Services
-
OEM Labeling: Custom chassis branding and product labels
-
Board Pre-installation: ADSL2+, VDSL2, or POTS boards preloaded
-
Port Mapping & VLANs: Pre-configured based on your network plan
-
Complete Solution Kit: Includes power cable, mounting brackets, and documentation
MA5600 DSLAM Huawei Wholesale Supply & Logistics
-
Original Huawei Equipment – Direct from factory or certified distributor
-
Bulk Availability – Ideal for ISPs, telcos, and infrastructure projects
-
Worldwide Delivery – Secure packaging with full export documentation
-
Support Services – Optional remote assistance for setup and deployment
Why Choose MA5600 DSLAM Huawei
-
14 Service Slots – Supports high port density in one chassis
-
Carrier-Grade Stability – Proven 99.999% uptime performance
-
Hybrid Access Support – ADSL, VDSL, SHDSL, and POTS over copper
-
Flexible Network Integration – Ideal for both legacy and next-gen networks
-
Scalable for Growth – Easily expandable with plug-and-play boards
Contact Us Now
Power your broadband rollout with the Huawei SmartAX MA5600 DSLAM — the versatile, scalable access platform for future-ready DSL and voice service delivery.
