Product Description
MA5608T OLT AC DC MPWD MCUD1 MCUD 10G 1.25G Control Board Recycling Chassis 19 Inches GPBD GPFD 8 16 Ports Mini GPON OLT
1.Frame OLT-MA5608T,19inch,2U,supporting 2 slots for PON service boards, 442(W)*233.5(D)*88(H)mm2.Control boardMCUD & MCUD13.Service board (8 & 16 ports)GPBD & GPFD (C+ & C++)4.Power boardMPWC & MPWD
Maximum Number of MAC Addresses262,143
Maximum Number of ARP/Routing Entries64K
Ambient Temperature-40°C to 65°C*
*: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest
temperature measured at the air intake ventWorking Voltage Range
-38.4V DC to -72V DCDC power supply:
-38.4V to -72VAC power supply:
100V to 240VLayer 2 Features
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82Layer 3 Features
Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRFMPLS & PWE3
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switchingIPv6
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relayMulticast
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicastQoS
Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability
GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service
Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board
fault detection and rectification, and service overload control
Maximum Number of ARP/Routing Entries64K
Ambient Temperature-40°C to 65°C*
*: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest
temperature measured at the air intake ventWorking Voltage Range
-38.4V DC to -72V DCDC power supply:
-38.4V to -72VAC power supply:
100V to 240VLayer 2 Features
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82Layer 3 Features
Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRFMPLS & PWE3
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switchingIPv6
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relayMulticast
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicastQoS
Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability
GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service
Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board
fault detection and rectification, and service overload control

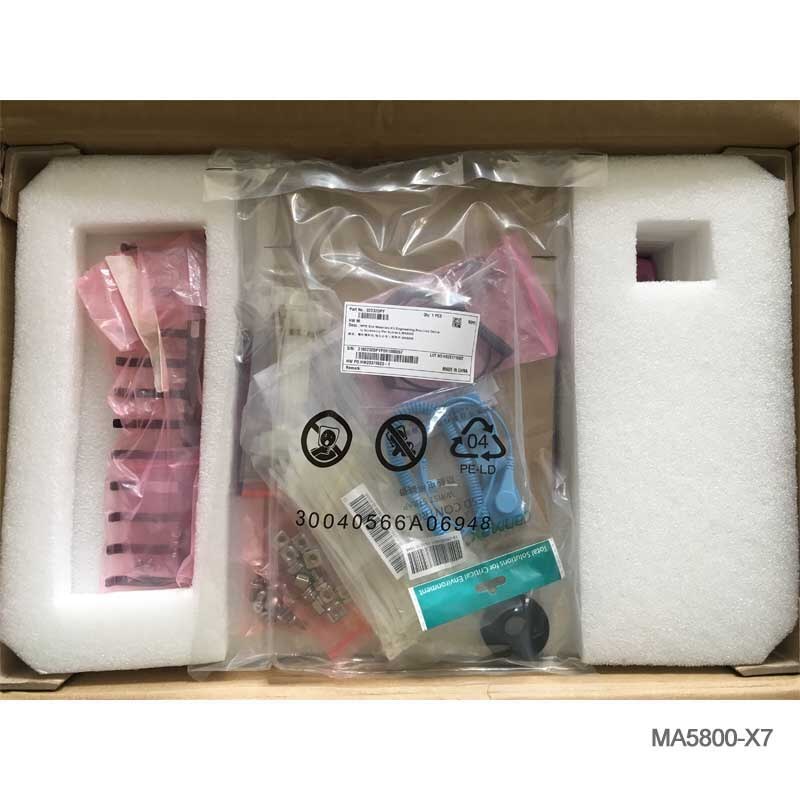

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
